  • Jack Circular Connector ALL

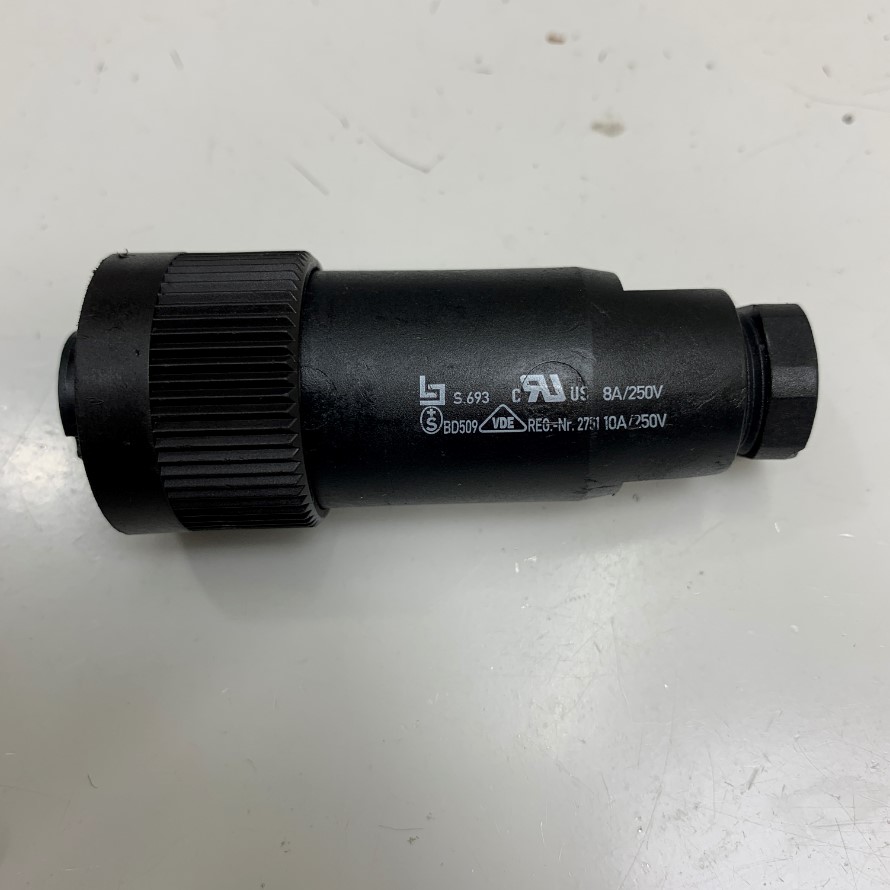

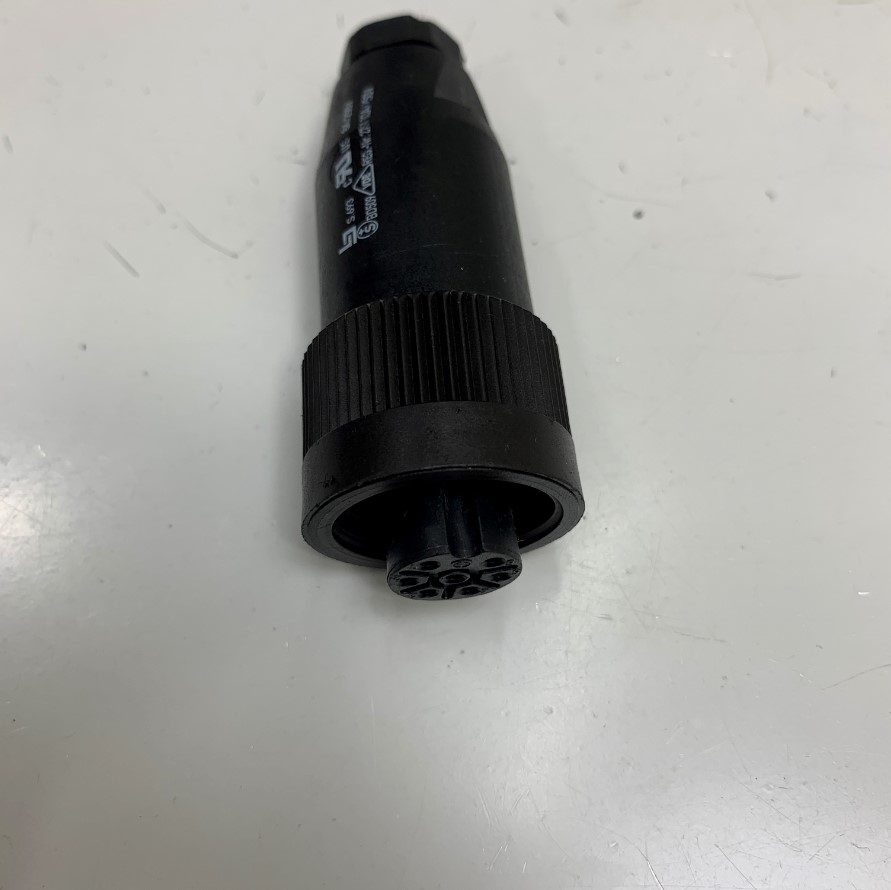

  • Đầu Jack Original 99-4226-00-07 BINDER Connector M23 7 Pin Female (6+PE) 10A/250V Circular Connector 693 Series 6 Contacts PBT For M23 Signal and Power

Đầu Jack Original 99-4226-00-07 BINDER Connector M23 7 Pin Female (6+PE) 10A/250V Circular Connector 693 Series 6 Contacts PBT For M23 Signal and Power

Mã SP: 11056

Thương hiệu: BINDER

Loại sản phẩm: M23 Connector 7 Pin Female

Đánh giá

:

Giá

:

700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Germany/Original M23 BINDER Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

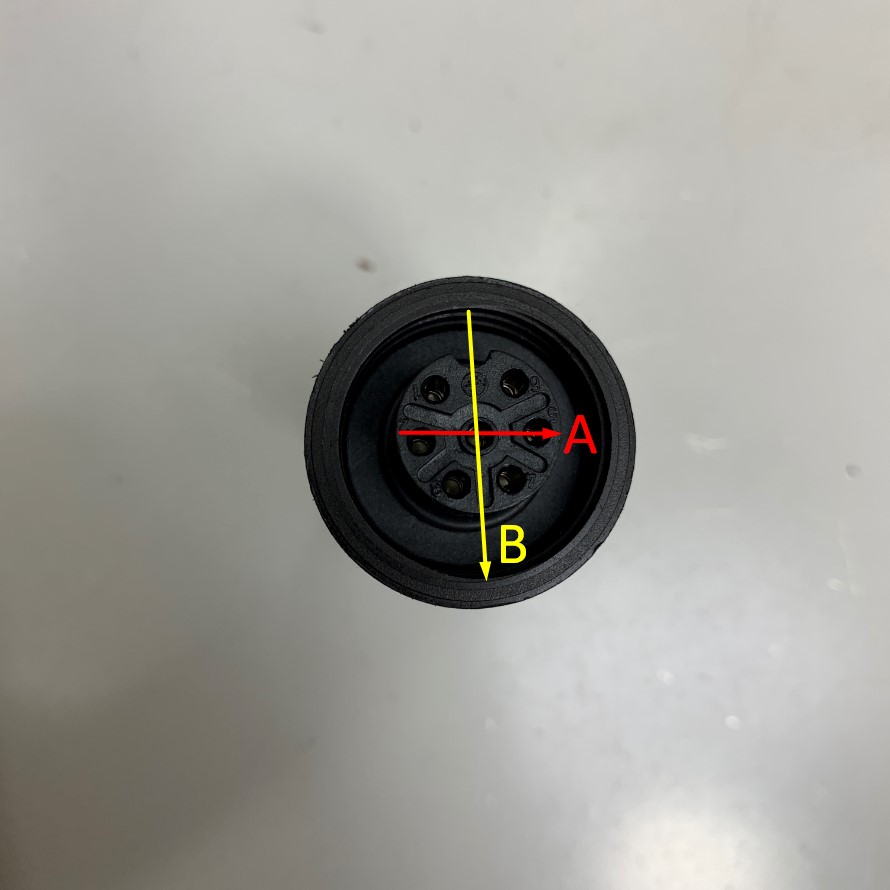

Dimension(mm) ΦA=13.5, ΦB=23.6

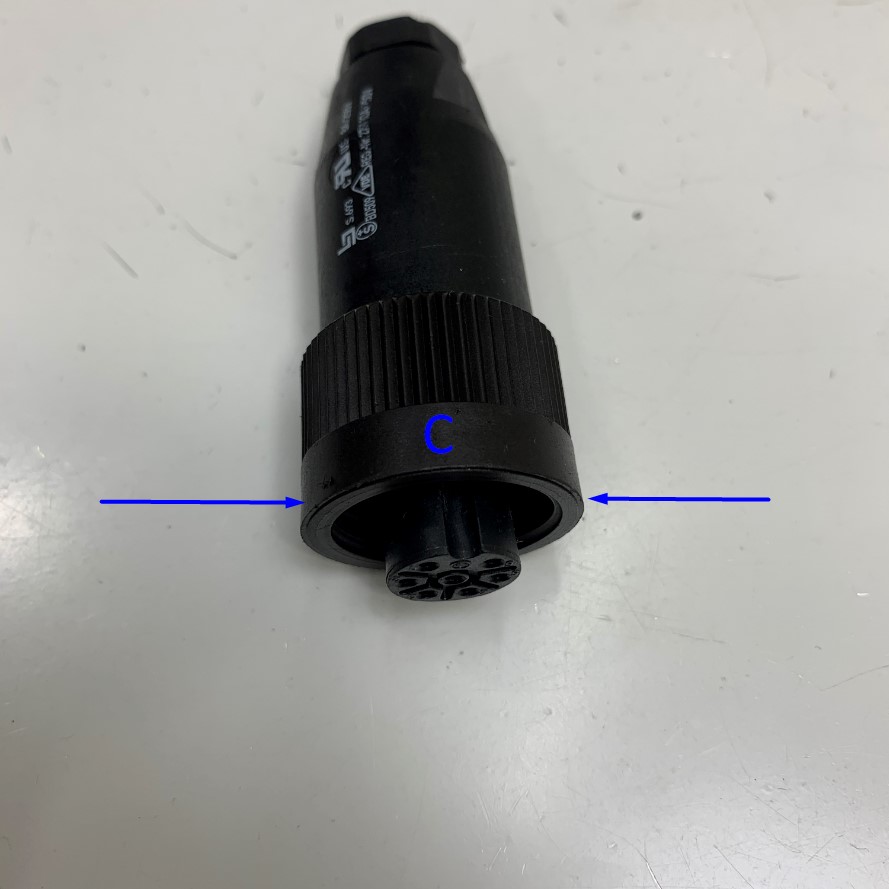

Dimension(mm) ΦC=29

General features
Part no.: 99 4226 00 07
Connector design: Female cable connector
Version    Connector socket straight
Connector locking system: screw
Termination: solder
Degree of protection: IP67
IP65 with cable diameter 6-7 mm
Cross-sectional: area    max. 0.75 mm² / AWG 18
Cable outlet: 6.0-9.0 mm
Temperature range from/to: -40 °C / 100 °C
Mechanical operation: > 500 Mating cycles
Đầu Jack Original 99-4226-00-07 BINDER Connector M23 7 Pin Female (6+PE) 10A/250V Circular Connector 693 Series 6 Contacts PBT For M23 Signal and Power
