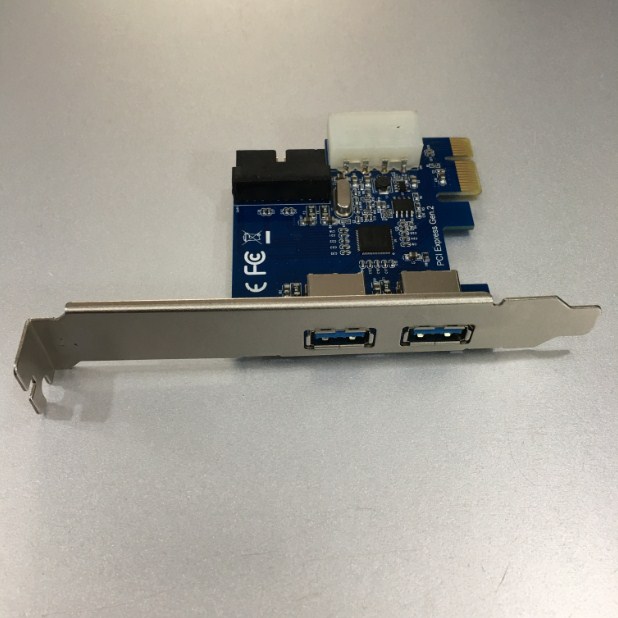

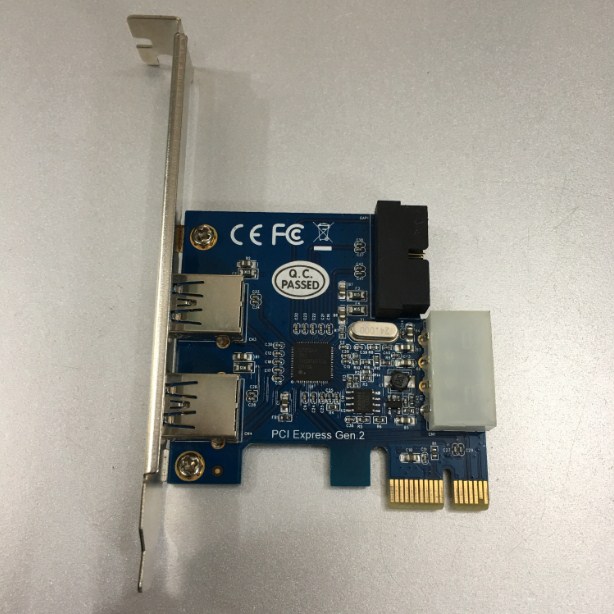

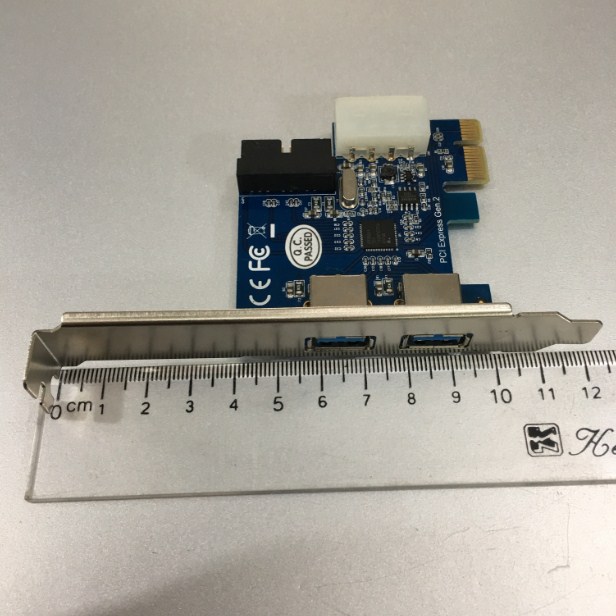

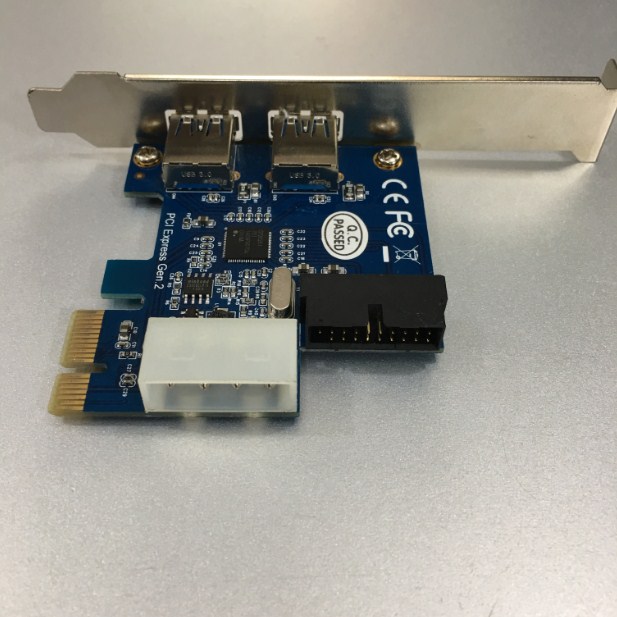

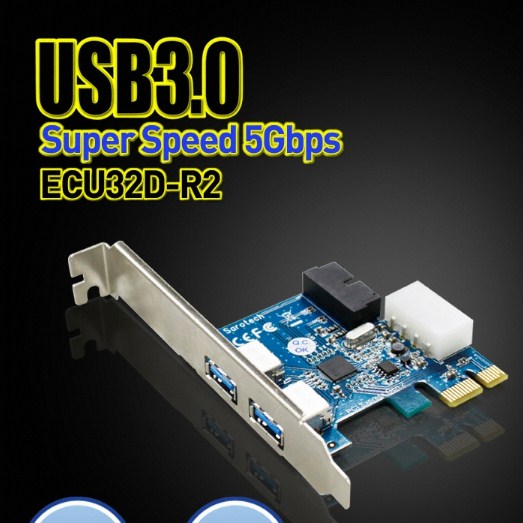

Card PCI Express to 2 Port USB3.0 Super Speed 5Gbps KCC-REI-SRT-ECU32D-R2 Chíp NEC D720201-701 For Computer Desktop MT

Brand

Sarotech

Model

KCC-REI-SRT-ECU32D-R2

Type

PCI Express to USB Card

External USB Ports

2 x USB 3.0 Ports

Standard

USB 3.0

Data Transfer Rate

Up to 5.0 Gbps

Controller Chipset ID

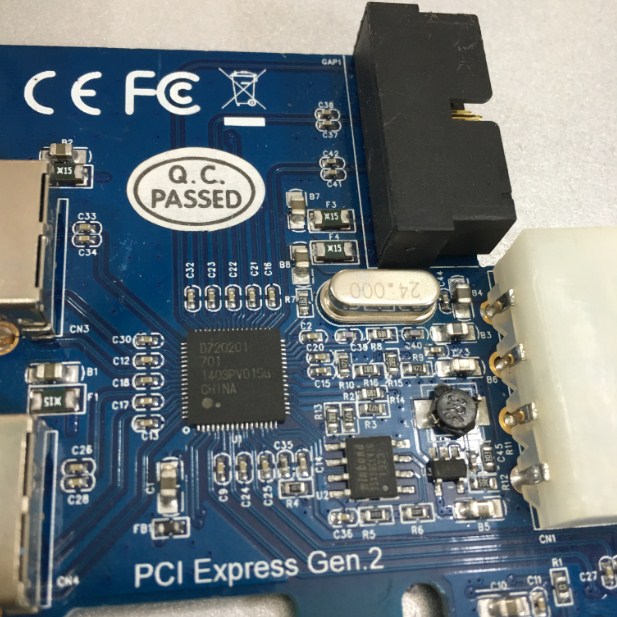

NEC D720201-701

Operating Systems Supported

Operating Systems Supported

Windows XP / Vista / 7 / 8 / 8.1 / 10 (32 / 64 bits)

Windows 10 will find or use generic drivers automatically.
If you updated the Windows from Windows 7 / 8 to Windows 10 and encountered issues, please follow the steps below.

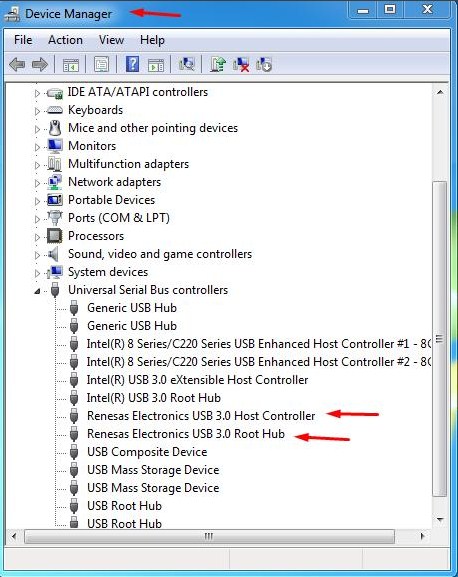

1. With the device plugged in, open Device Manager

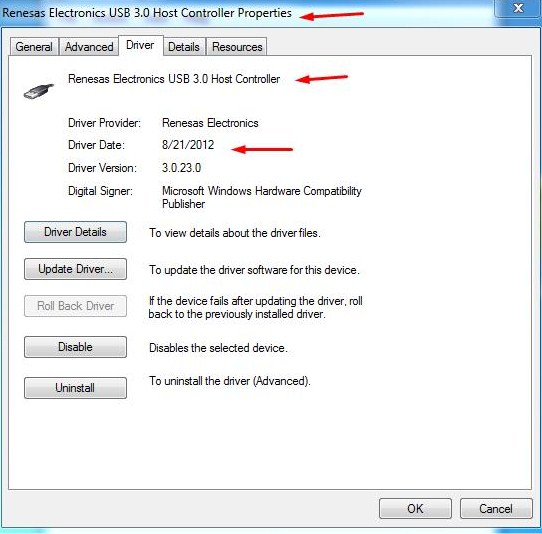

2. Locate "Renesas Electronics USB 3.0 Host Controller" under Device Manager
3. Right click on it and left click on Uninstall. Check the box "Delete The Driver Software For This Device"
4. Reboot the system.
5. Once booted back into Windows 10, Windows will recognize the device and install the device using the built in drivers. It will appear as "Renesas USB 3.0 eXtensible Host Controller – 1.0 (Microsoft)" in Device Manager.

Features

Fully compliant with PCI Express Base Specification Revision 2.0

Single-lane (x1) PCI Express throughput rates up to 5 Gbps

Compliant with Universal Serial Bus 3.0 specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 2 downstream ports for all speeds

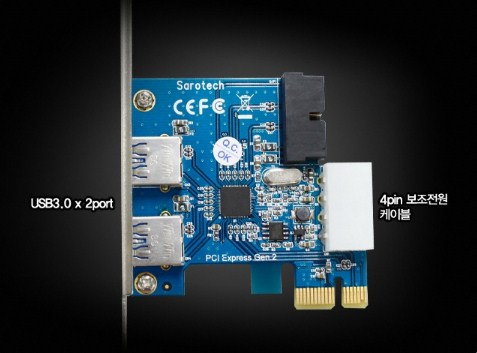

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system
