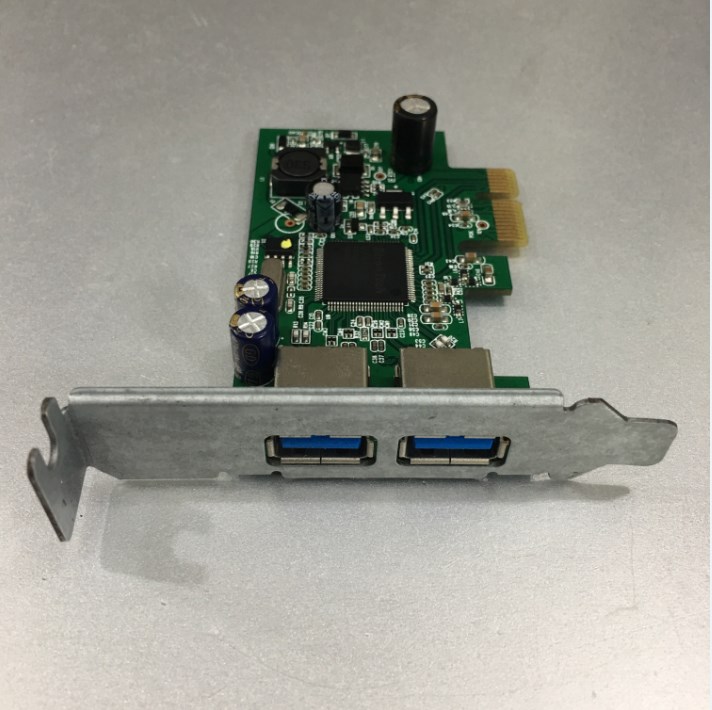

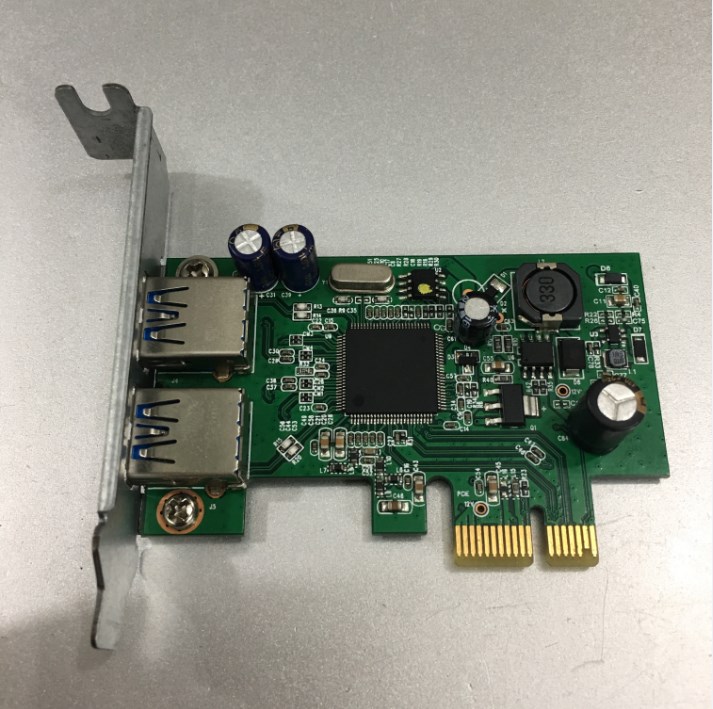

Card PCI Express to 2 Port USB 3.0 Super Speed 5Gbps Dell 5D6X7 For Computer Desktop Small Form SFF

Brand

Model

Type

PCI Express to USB Card

External USB Ports

2 x USB 3.0 Ports

Standard

USB 3.0

Data Transfer Rate

Up to 5.0 Gbps

Controller Chipset ID

Operating Systems Supported

Operating Systems Supported

Windows XP / Vista / 7 / 8 / 8.1 / 10 (32 / 64 bits)

Windows 10 will find or use generic drivers automatically.
If you updated the Windows from Windows 7 / 8 to Windows 10 and encountered issues, please follow the steps below.
1. With the device plugged in, open Device Manager
2. Locate "Renesas Electronics USB 3.0 Host Controller" under Device Manager
3. Right click on it and left click on Uninstall. Check the box "Delete The Driver Software For This Device"
4. Reboot the system.
5. Once booted back into Windows 10, Windows will recognize the device and install the device using the built in drivers. It will appear as "Renesas USB 3.0 eXtensible Host Controller – 1.0 (Microsoft)" in Device Manager.

Features

Fully compliant with PCI Express Base Specification Revision 2.0

Single-lane (x1) PCI Express throughput rates up to 5 Gbps

Compliant with Universal Serial Bus 3.0 specification Revision 1.0

Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices

Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)

Supports 2 downstream ports for all speeds

Built-in 4-pin power connector for receiving extra power supply from system

Hot-swapping feature allows you to connect/disconnect devices without powering down the system
