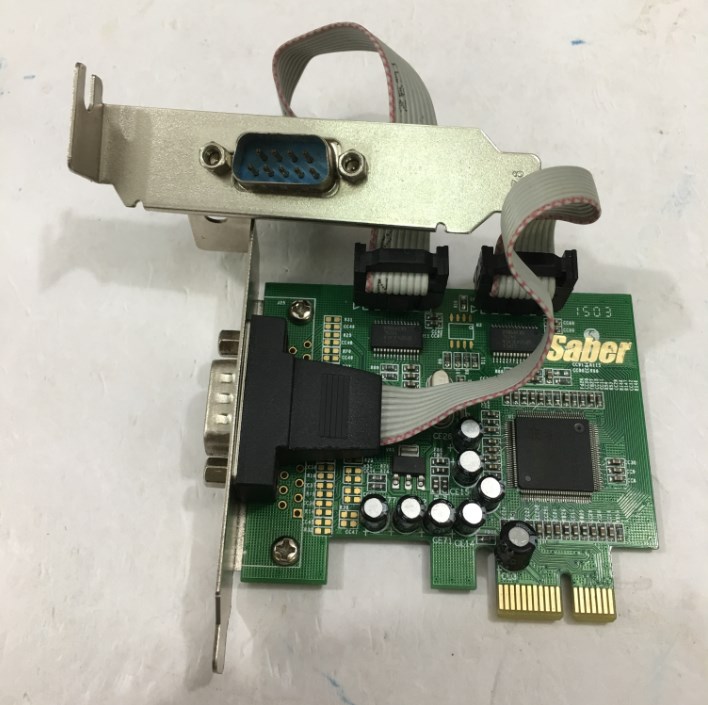

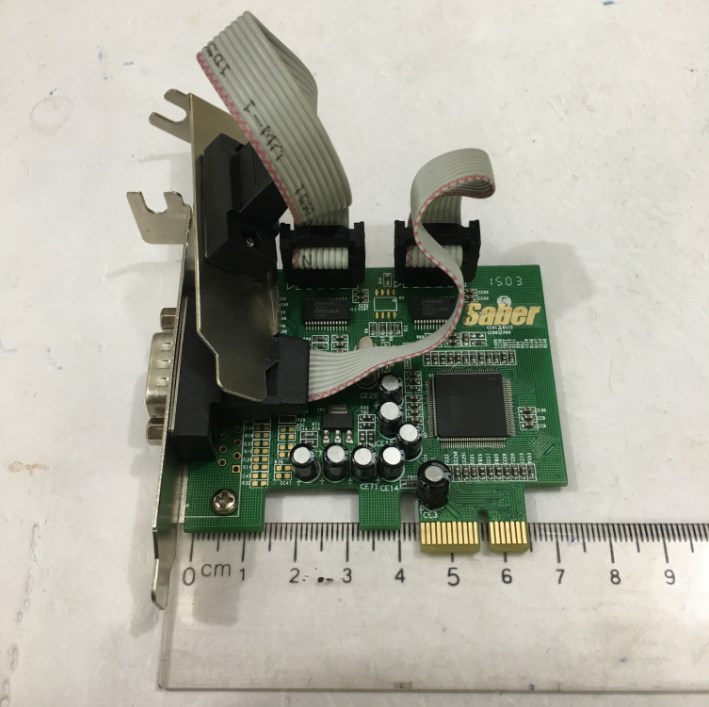

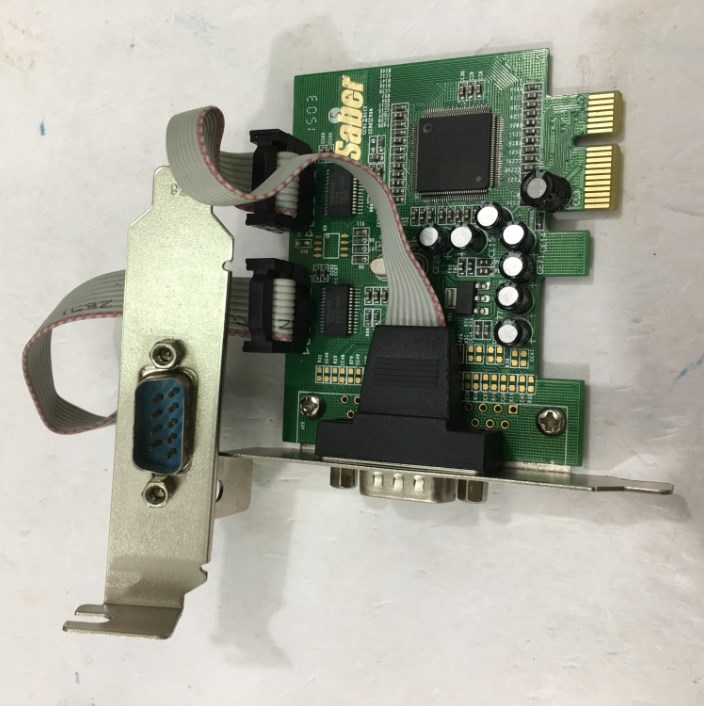

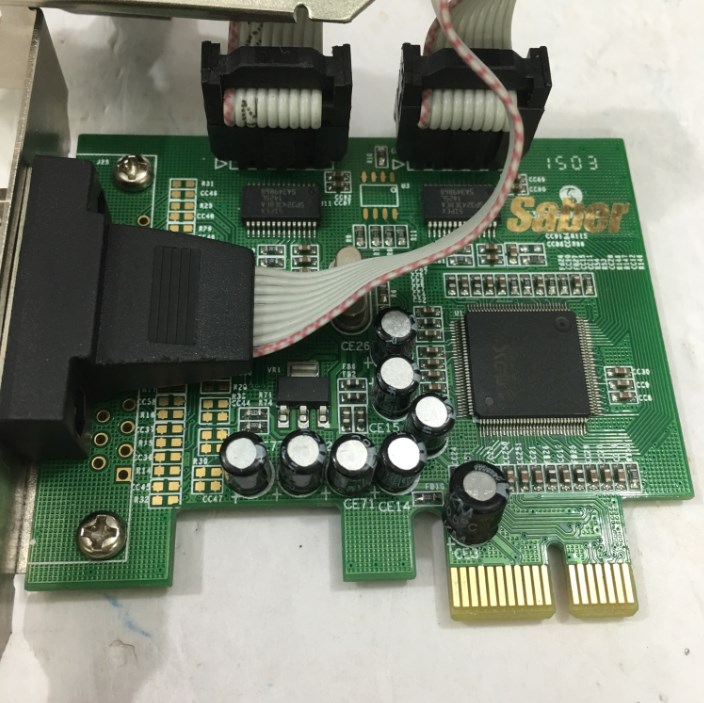

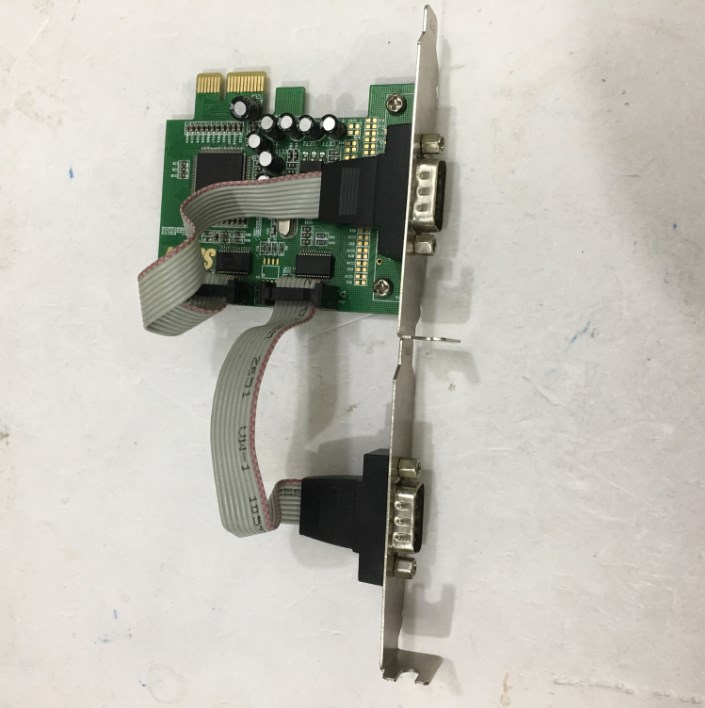

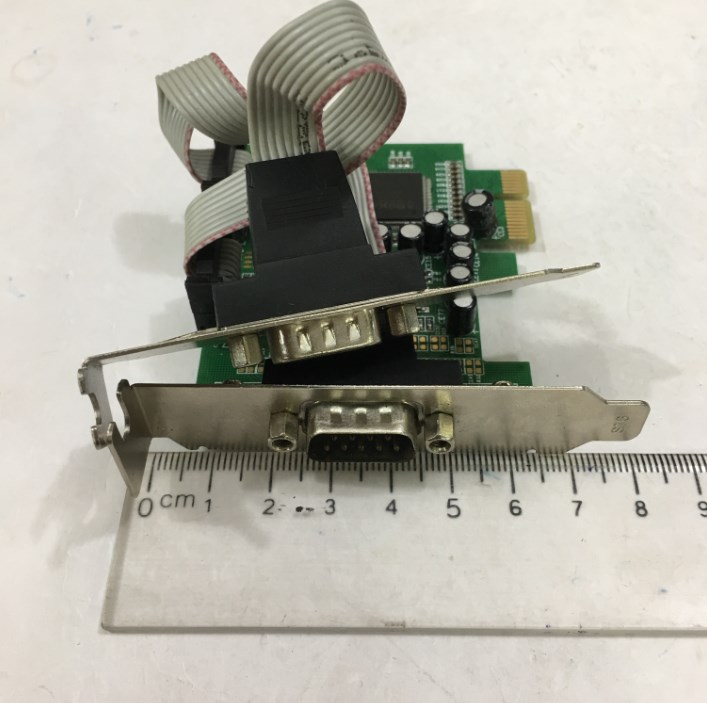

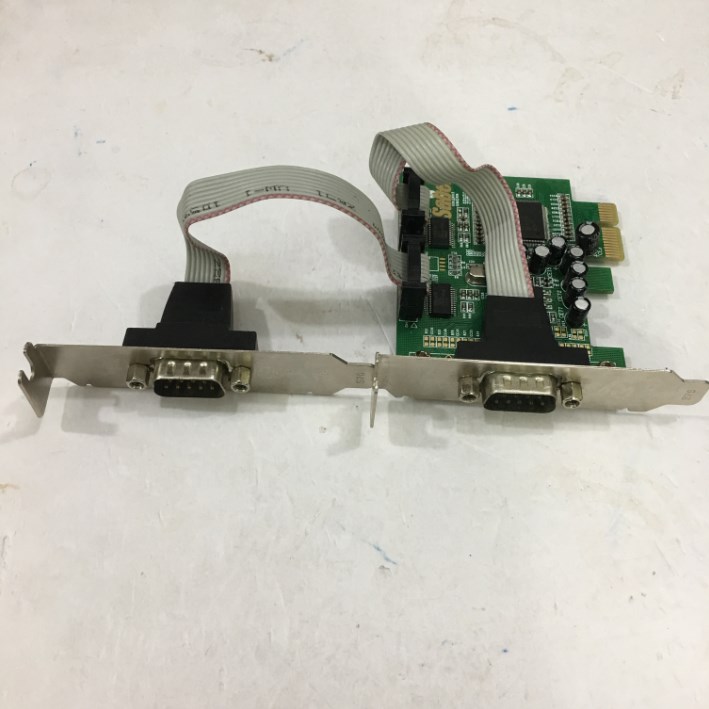

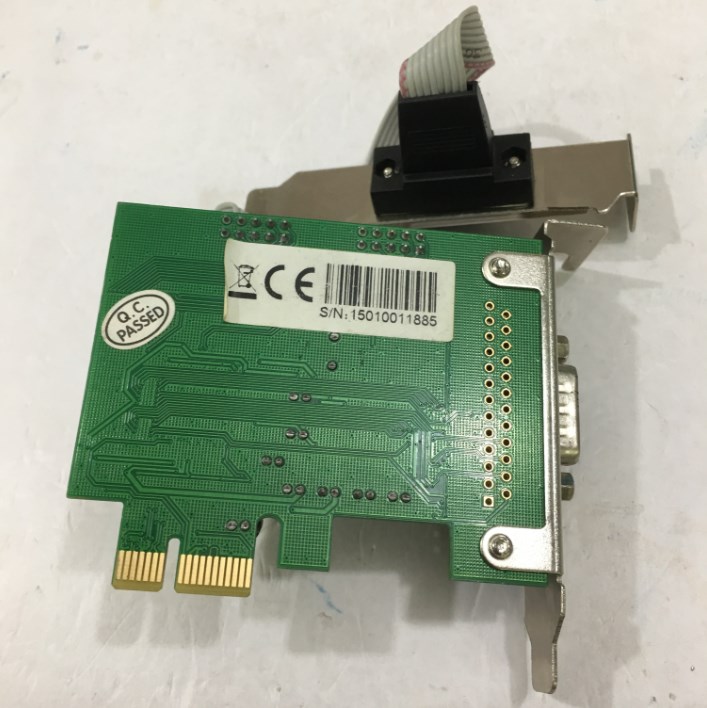

Card PCI Express to 2 Port RS232 Serial Com DB9 MCS9922CV Chipset For Computer Slim Desktop Thiết Bị Y Tế Cân Điện Tử Máy Công Nghiệp CNC PLC
Mã SP: 2791
Thương hiệu: HP
Loại sản phẩm: PCI Express to 2 Port RS232 Serial Com DB9
400.000₫
(Giá sản phẩm chưa bao gồm VAT)
Card PCI Express to 2 Port RS232 Serial Cắm Được Cho Các Slot Sau:
Slot PCI Express x1 - Slot PCI Express x8 - Slot PCI Express x16
Product name： MCS9922CV Chipset, 2-port DB-9 Serial (RS-232) PCI-e Controller Card
Product model： MM-PCE9901-2S
Download： Click to download (Download index：3444)
Product description： Features
Two serial ports transfer rate up to 250k/s
16c550 UART Compatable standral
Specifications

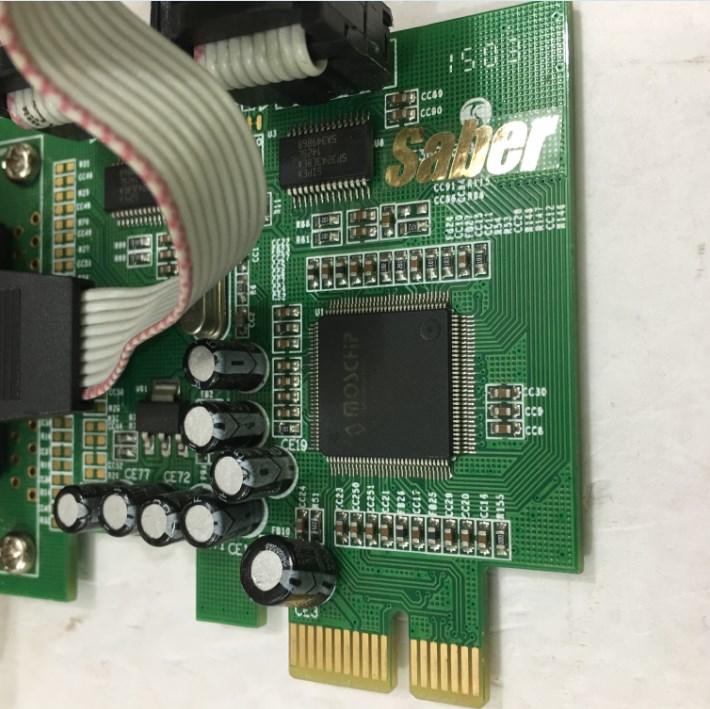

MCS9922CV Chipset
Fully Compliant with PCI-Express Base Specification, Revision 1.0a
PCIe Multi Function Peripheral Controller with x1 Lane Interface
Supports Plug & Play
Serial interface RS-232
Supports RS232, RS485 & RS422 Modes
Bi-directional Speeds from 50 bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Supported
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Even, Odd, None, Space & Mark Parity Supported
Sortware requirement
Windows 7 32/64-bit
Vista 32/64-bit
Windows XP 32/64-bit
Windows10/ 2000
Linux Kernel 2.6.11 & Above
Mac 10.4 & Above
Hardware requirement
Computer with PCI Express Slot
Specifications
General
|
Interface |
RS232 232 & Parallel LPT |
|
Controller |
SUNIX SUN2212 (16C950 UART Compatible) |
|
BUS |
PCI Express Spec 2.0, Single-Lane (x1) |
|
IRQ & IO |
Assigned by System |
Serial Communication
|
Interface |
RS232 |
|
No. of Port |
2-port |
|
FIFO |
128byte Hardware |
|
Signal |
DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI |
|
Baud rate |
50bps ~ 115.2Kbps |
|
Stop bit |
1, 1.5, 2 |
|
Parity |
even, odd, none, mark, space |
|
Flow Control |
None, Xon/Xoff, RTS/CTS |
|
Protection |
±15KV ESD protection for each signal Human Body Model (HBM) |
|
PCB Connector |
DB9 Male |
Driver Support
|
Windows Client |
XP / Vista / 7 / 8.x / 10 (X86/X64) |
|
Windows Server |
2003 / 2008 / 2012 / 2016 (X64) |
|
Windows Embedded |
Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009 |
|
Linux |
Linux 2.x / 3.x / 4.x |
|
DOS |
DOS |
|
FreeBSD |
FreeBSD 5.3~5.5 / 6.0~6.4 |
|
QNX |
QNX 6.3.2/6.4.0 |
Regulatory Approvals
|
Hardware |
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B |
|
Software |
Microsoft WHQL Windows |
Giao tiếp với các thiết bị sử dụng RS-232
Agilent 34970A Data Acquisition/Switch Unit:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: XON/XOFF
Agilent 34401A Digital Multimeter:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)
Agilent 33120A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)
Agilent 33250A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: DTR/DSR (use any flow control, except XON/XOFF, to download arbitrary
waveforms)
RS-232 Configuration at the EPM-E Series Power Meter
The table below outlines the RS-232 configuration at the E4418B/E4419B power meter.
Type Setting
Remote Interface - Select Interface RS232
Remote Interface - Command Set SCPI
Remote Interface - Configure Interface Serial
Baud Rate 9600
Word Size 8
Stop Bits 1
Parity None
1 of 2 To Next Page Configuration
Pacing Tx Pacing Xon
Rx Pcaing Xon
RTS/CTS OFF
DTR/DSR OFF
