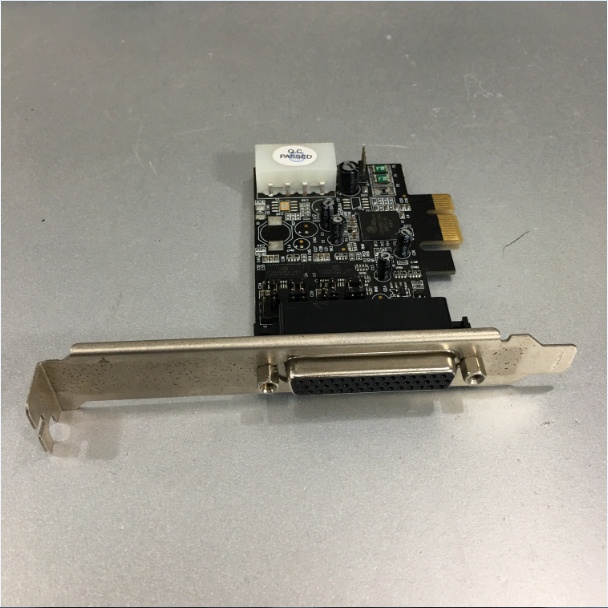

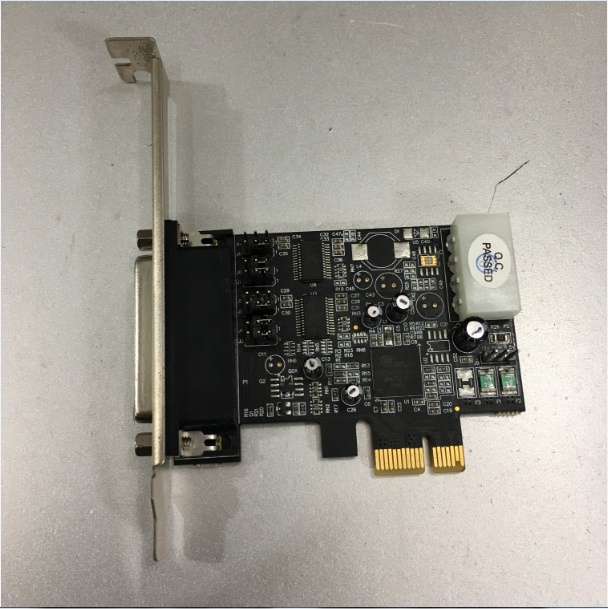

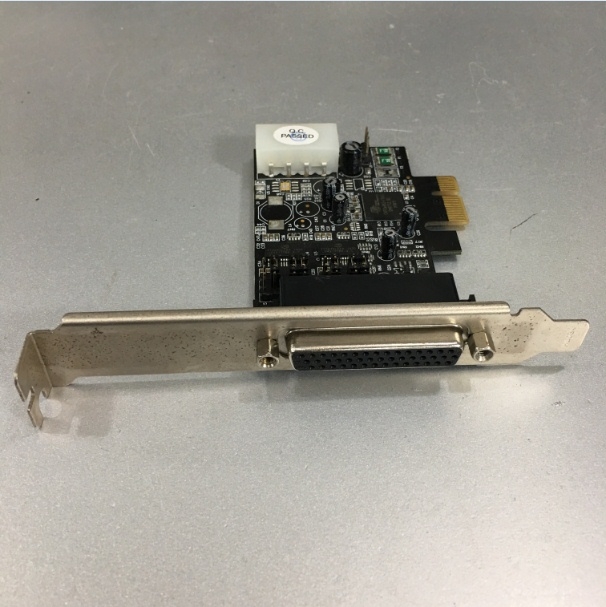

Card PCI Express to 2 Port RS232 Serial Chính Hãng ADVANTECH BB-DSLP-PCIE-100 For Computer Desktop MT PCI Express Board

Card PCI Express to 1 Port RS232 Serial Cắm Được Cho Các Slot Sau:

Slot PCI Express x1 - Slot PCI Express x8 - Slot PCI Express x16

Serial Card
Model DSLP-PCIE-100
PRODUCT FEATURES
Supports serial data transfer rates to 230.4 kbps
• Built-in 16C950 compatible UART
• 128-byte deep Transmit/Receive FIFOs
• 15V ESD protection on all signal pins
• Compliant with PCI Express Base Specification 1.1
Model DSLP-PCIE-100, RS-232 serial PCI Express Card, meets PCI
Express Base Specifications V1.1. It can be installed in virtually any available
PC system and is compatible with all major operating systems. Users do not
need to set jumpers to configure I/O addresses and IRQ locations.

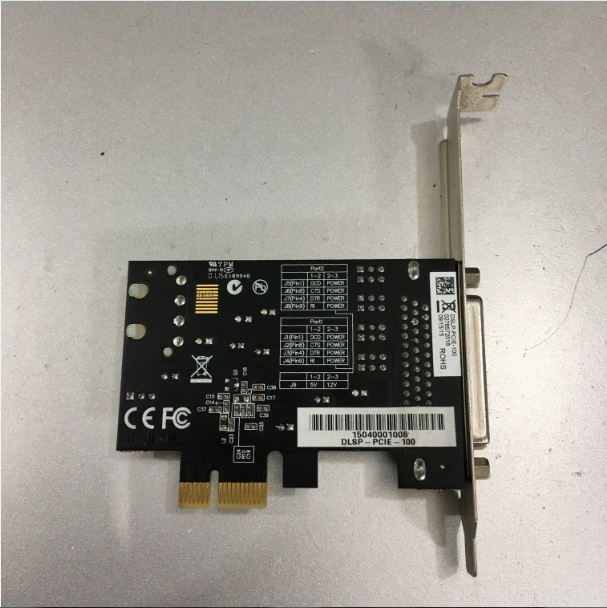

The board also supports 5VDC or 12VDC of power from each serial port
pins 1, 4, 8 or 9. This can be configured via jumpers on the board. If this
power is not required, then normal control signals are available. The default
configuration is with the jumpers set to disable the power on these pins.
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys
• Supports 2 x UART serial ports
• Optional RS-232 signal or power output to serial device
• Provides 5VDC or 12VDC power output via pins 1, 4, 8, 9
• Plug-n-play, I/O address and IRQ assigned by BIOS
• Support Windows XP/Vista/7, Linux
ORDERING INFORMATION
MODEL NUMBER DESCRIPTION
DSLP-PCIE-100 2-port Serial RS-232 to DB9, Low Profile, PCI Express Board
SPECIFICATIONS
SERIAL TECHNOLOGY
Data Transfer Rate Up to 230.4 kbps
Interface RS-232
Ports/Connectors (2) DB9 serial fan out cable; requires 1 PC bracket slot
Machine Compatibility Low profile systems, standard height configuration with low
profile orb installed
O/S Support Windows XP/Vista/7 (32/64), Linux
One available PCI Express slot
ENVIRONMENTAL
Operating Temperature -30 to 75°C (-30 to 167 °F)
Storage Temperature -40 to 85°C (-40 to 185 °F)
Ambient Relative Humidity 5 to 95% Non-condensing
APPROVALS / CERTIFICATIONS
Certifications CE, FCC,
Compliant with PCI Express Base Specifications 1.1
