Card PCI Express to 1 Port RS232 Serial Com DB9 Chính Hãng Dell Sunix SER6427A Low Profile Sun Pc 039G9N For Computer Slim Desktop Thiết Bị Y Tế Cân Điện Tử Máy Công Nghiệp CNC PLC

Mã SP: 1686

Thương hiệu: Dell Sunix

Loại sản phẩm: PCI Express RS232 Serial 1 Port

Đánh giá

:

Giá

:

400.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China - Dell Sunix
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

Card PCI Express to 1 Port RS232 Serial Cắm Được Cho Các Slot Sau:

Slot PCI Express x1 - Slot PCI Express x8 - Slot PCI Express x16

Thương hiệu: Chính Hãng Dell Sunix SER6427A Card PCI Express to 1 Port RS232 Serial
Model: SUNIX SER6427A
Part Number: 039G9N
Xuất xứ/Nguồn hãng: China Chính Hãng Dell Sunix SER6427A
Rắc cắm kết nối Computer Slim Desktop: PCI Express
Rắc External Ports: RS232 DB9 (9 pin, D-Sub) Male
Trọng lượng của sản phẩm: 40g

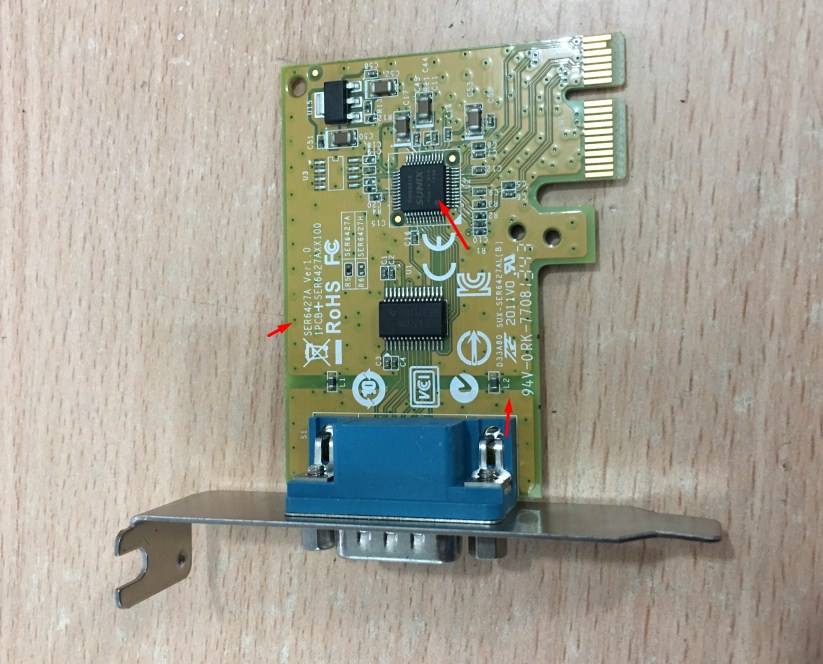

Chíp điều khiển Chipset ID: Sunix sun2212
Bo mạch mầu: Vàng
Card PCI Express to 1 Port RS232 Serial Com DB9 Chính Hãng Dell Sunix SER6427A Low Profile Sun Pc 039G9N For Computer Slim Desktop Thiết Bị Y Tế Cân Điện Tử Máy Công Nghiệp CNC PLC.

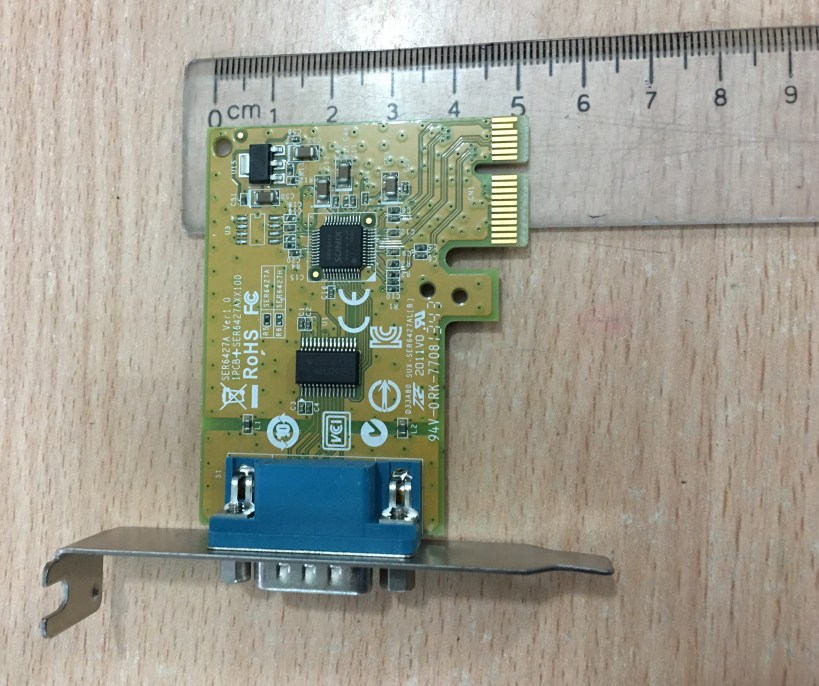

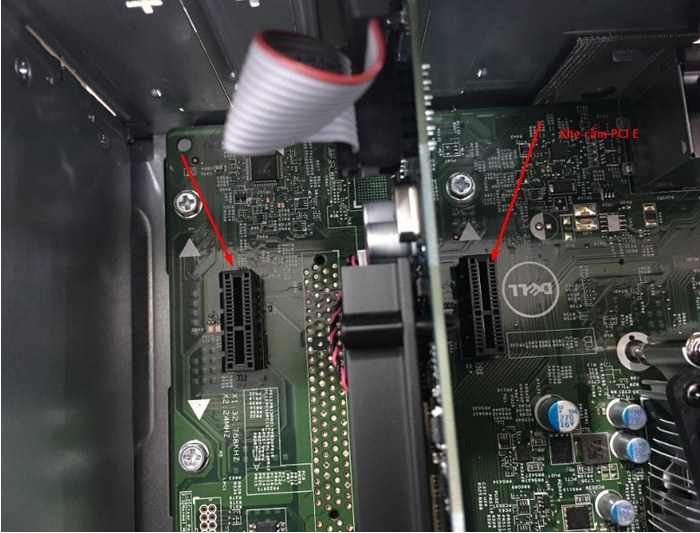

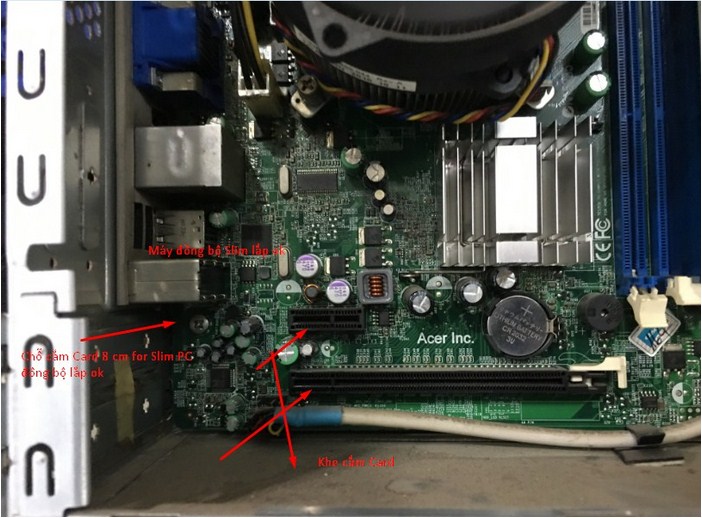

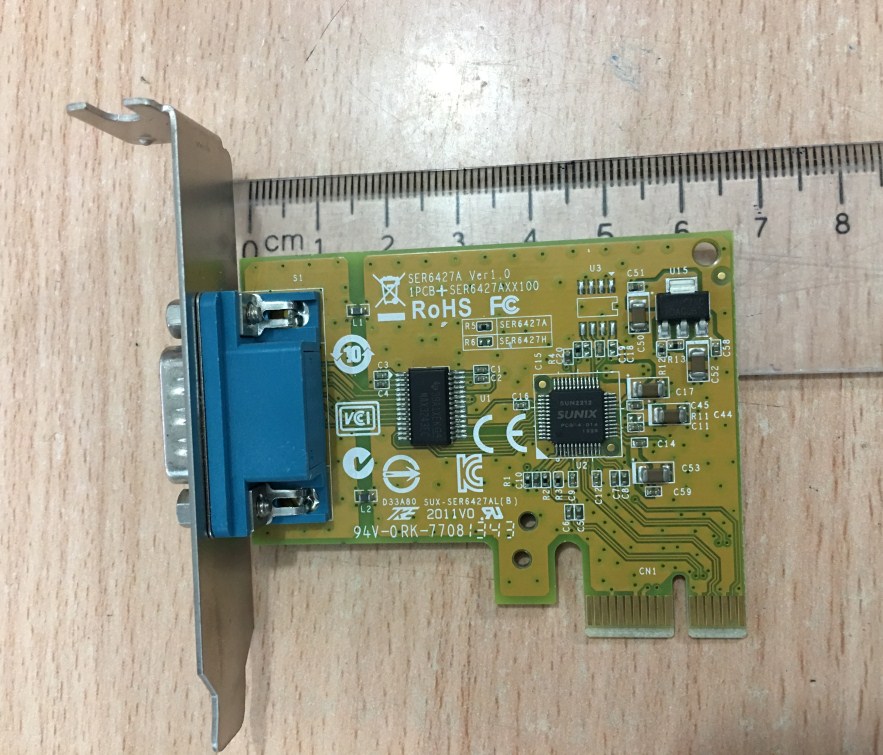

CARD SUNIX SSER6427A, PCI Express tương thích với PCI Express x1, x2, x4, x8, x16 và khe cắm card màn hình x16. Đa số các bo mạch chủ hiện nay không được trang bị với các cổng nối tiếp hoặc chỉ có một cổng nối tiếp. Với bảng nối tiếp SUNIX PCI Express, người dùng có thể thêm một cổng RS232 nối tiếp vào hệ thống  cho phép người sử dụng các thiết bị nối tiếp thêm trên cổng RS232C. Tính năng RS232C kết công nghệ tiên tiến,  giải pháp tốt nhất cho các ứng dụng tự động hóa thương mại và công nghiệp. Máy PLC, CNC, thiết bị y tế…..Do đặc thù nên card không cắm được cho cây PC không thường, vì thanh chặn Computer Slim Desktop PC Card dài 8 Cm trong khi PC thông thường thanh chặn Card dài 12 Cm

Specifications

General

Interface

RS-232

Controller

SUNIX SUN2212 (16C950 UART Compatible)

BUS

PCI Express Spec 2.0, Single-Lane (x1)

IRQ & IO

Assigned by System



Serial Communication

Interface

RS-232

No. of Port

1-port

FIFO

128byte Hardware

Signal

DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI

Baud rate

50bps ~ 115.2Kbps

Stop bit

1, 1.5, 2

Parity

even, odd, none, mark, space

Flow Control

None, Xon/Xoff, RTS/CTS

Protection

±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge

PCB Connector

DB9 Male



Driver Support

Windows Client

XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server

2003 / 2008 / 2012 / 2016 (X64)

Windows Embedded

Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

Linux

Linux 2.x / 3.x / 4.x

DOS

DOS

FreeBSD

FreeBSD 5.3~5.5 / 6.0~6.4

QNX

QNX 6.3.2/6.4.0



Regulatory Approvals

Hardware

CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software

Microsoft WHQL Windows
Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Giao tiếp với các thiết bị sử dụng RS-232

Agilent 34970A Data Acquisition/Switch Unit:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: XON/XOFF

Agilent 34401A Digital Multimeter:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)

Agilent 33120A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)

Agilent 33250A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: DTR/DSR (use any flow control, except XON/XOFF, to download arbitrary waveforms)
