CARD PCI EXPRESS BlackMagic Design BINTSPRO 4K Intensity Pro Card 4K

Descriere produs
Professional Video Standards
Intensity offers the flexibility of working with compressed and uncompressed video in standard definition PAL/NTSC up to full 1080HD video. Now it’s possible to capture live game play, archive family movies and create amazing videos in full broadcast quality video! Blackmagic Design’s Media Express software is included for a complete capture and playback solution without the need for any additional software.
True HDMI Digital Connections
Intensity features the highest quality HDMI input and output connections. HDMI is the worldwide standard for connecting digital consumer video equipment like cameras, set-top boxes and disk recorders. Intensity's HDMI output is perfect for monitoring full HD, HDV and even DV editing projects on the latest big screen TVs and HD video projectors! HDMI includes your audio, so you can connect to your TV with a single cable!
Use the software you love!
Intensity works with the software you love to use! Use DirectShow™ and QuickTime™ software, or the World's most popular editing software such as Media Composer™, Final Cut Pro™ and Premiere Pro™. You also get Photoshop™ plug-ins to grab and output frames, plus real time preview in After Effects™ and Nuke™. No other cards support more software on Windows, Mac OS X or Linux, so you have the freedom to work with your favorite tools!
Final Cut Pro™
Edit in Final Cut Pro™ with Intensity Pro, while using the highest quality uncompressed video, or choose DVCPRO HD and ProRes 422, which are higher quality and faster than native HDV. You can even use Intensity Pro just for monitoring to HDMI televisions from HDV Final Cut Pro timelines! When playing back video, you get full RT Extreme™ real time effects, all with sample accurate AV sync. Intensity Pro supports many of the advanced Final Cut Pro™ features such as 10 bit rendering, RT Extreme™, and support for ProRes 422, HDV, JPEG, DV, DV50, DV100, 8 & 10 bit uncompressed media types.
Avid Media Composer 7™
Avid Media Composer has been the choice of professional editors for over 20 years. The Avid Media Composer family of software, including Avid Symphony and Avid NewsCutter, provides fully integrated support for Intensity. Capture and playback in full uncompressed quality, or directly in Avid DNxHD or other popular compressed video formats. Media Composer 7 has fast and familiar operation and it’s new 64 bit architecture plays back complex layered effects in real time. Intensity lets you capture, edit, monitor and playback with Media Composer 7, making it the perfect choice for professionals who need the best Avid workflow on Mac OS X and Windows 8.
Adobe Premiere Pro™
On Windows, Blackmagic's full resolution (1920 x 1080) professional quality compressed HD codec can capture JPEG AVI files in real time using Premiere Pro. Unlike HDV and DVCPRO HD which uses reduced resolution 1440 x 1080 video, Blackmagic's Online JPEG maintains the full resolution 1920 x 1080 resolution of HD video without the huge file size of uncompressed HD video. Blackmagic's Online JPEG is so efficient that full motion 1080i HD video can be recorded at only 12 MB per second vs. a massive 119 MB per second for uncompressed HD video.
Adobe After Effect
Intensity even allows high end design and effects work, great for the special effects you've always wanted in Independent Films, use After Effects, Combustion™, Photoshop® and more. Intensity also includes an RGB QuickTime™ preview output for After Effects and Fusion™. And, you can always preview on the video-out interactively as you design and then play pre-renders using real time ram preview. When rendering your project, processing quality using the Blackmagic codec is full 16 bit, so you always get the advantage of uncompressed video.
Adobe Photoshop™
Intensity includes special Photoshop plug-ins, so you can directly capture and output still frames from within Photoshop. Outputting Photoshop graphics from Intensity lets you see the correct color and the effects of video interlace and field movement. Intensity uses the correct video levels so you can't get illegal 100% RGB video levels eliminating, surprises when graphics are displayed
Sony Vegas PrSony Vegas Pro works seamlessly with Intensity Pro and Shuttle for an incredible SD and HD editing experience! Use powerful video effects and versatile audio editing tools while previewing your work in real time even with full HD projects! Capture up to 10 bit uncompressed so you can start with the best possible image quality for your Blu-ray Disc creation or Windows Media 9 content distribution.
Blackmagic Media Express Included!
Blackmagic Media Express is free software that comes with every Intensity model. Media Express lets you batch capture and playback in uncompressed YUV and RGB QuickTime, AVI and DPX, or compressed ProRes, DVCPRO and MJPEG files. You can create your own playlist, organize clip bins and add additional metadata. Media Express is perfect for software applications that don't support direct capture and playback with tape decks from within the software itself. Media Express supports XML and CMX EDL import and export, plus frame accurate deck control via RS-422. Media Express is a complete solution for capture and playback!
Playlist in Playback Mode
You can load in a huge number of clips for review. Use DPX, MJPEG, uncompressed YUV and RGB, ProRes, DVCPRO HD all in the same playlist.
Realtime Preview
Preview your clips with full frame rate for accurate review.
Audio Metering
With Media Express you can select any of the 16 audio channels. Simply click on the audio you want to hear
Capture, Play or Master
Capture on the fly. Play back single or multiple clips. Master to tape via insert or assemble editing.
Dynamic Playlist Search
Organizing your playlist has never been easier with Media Express' dynamic playlist search. Even if you have 1,000 clips, you'll always find the right clip.
Clip Information
Now you can see all the important detail information of your clip, including frame size, frame rate, color space, format and codec.
Easy Grab Frame Tool
Media Express makes grabbing frames of your video easy. When the frame you want is displayed in the preview window, just hit Grab Frame.
Description

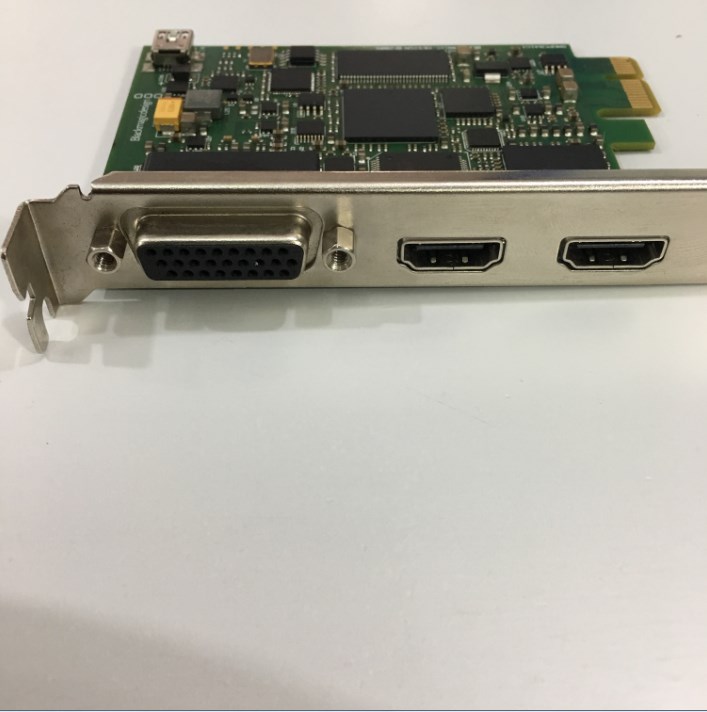

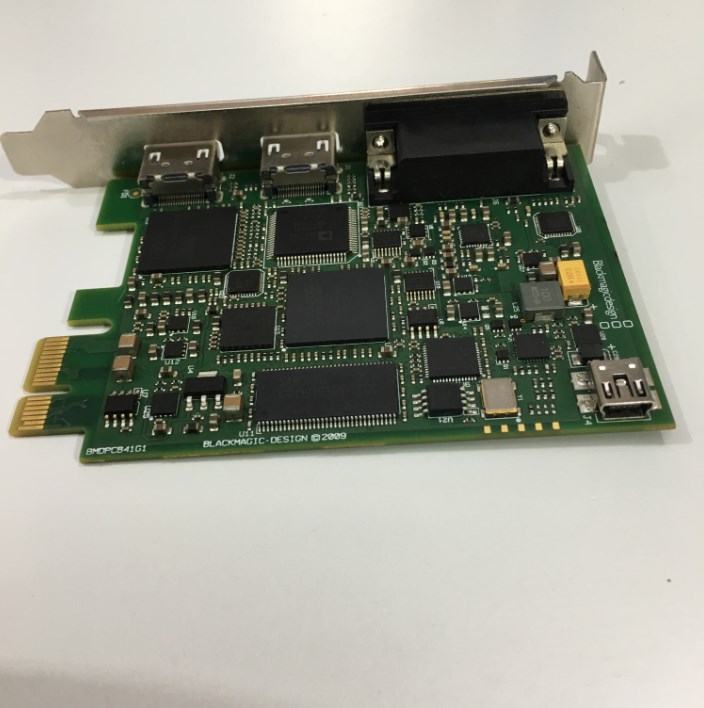

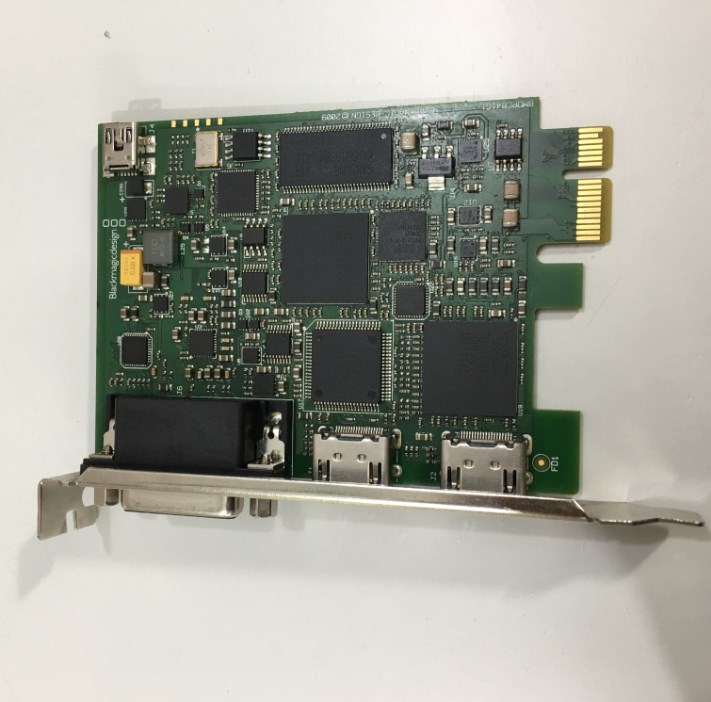

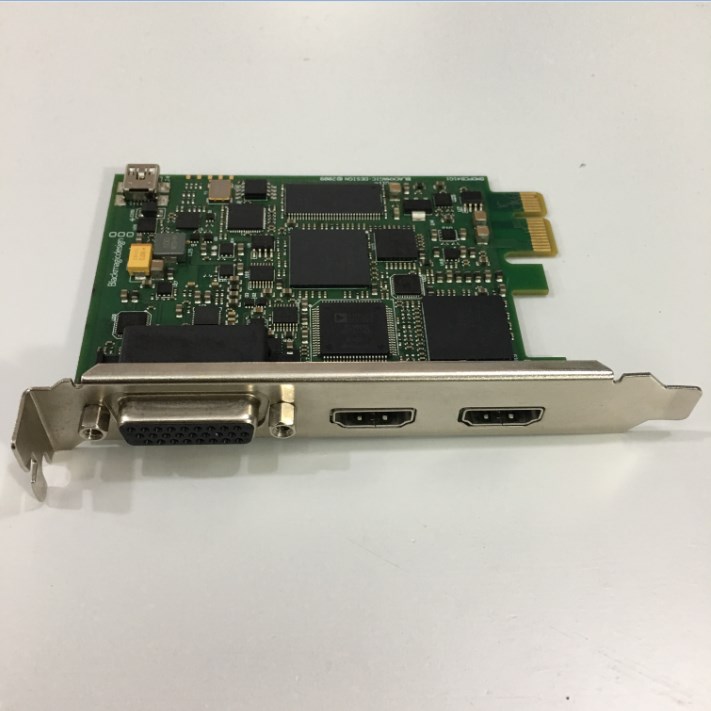

Intensity Pro is the world’s first HDMI and analog component, NTSC/PAL and S-Video PCIe capture and playback card for Windows, Mac OS X and Linux computers. Intensity Pro is great for HDTV or standard definition editing using big screen televisions and video projectors. Intensity Pro works with uncompressed SD or HD video, and compressed codecs such as DNxHD, ProRes, DVCPRO HD, DVCPRO 50, JPEG, HDV and DV! Intensity Pro is a professional editing card featuring maximum real time effects in Avid Media Composer 6™, Apple Final Cut Pro™ and Adobe Premiere Pro™, with full support for both uncompressed and compressed AVI and QuickTime files. Intensity Pro also has full integration with Adobe After Effects and Photoshop.

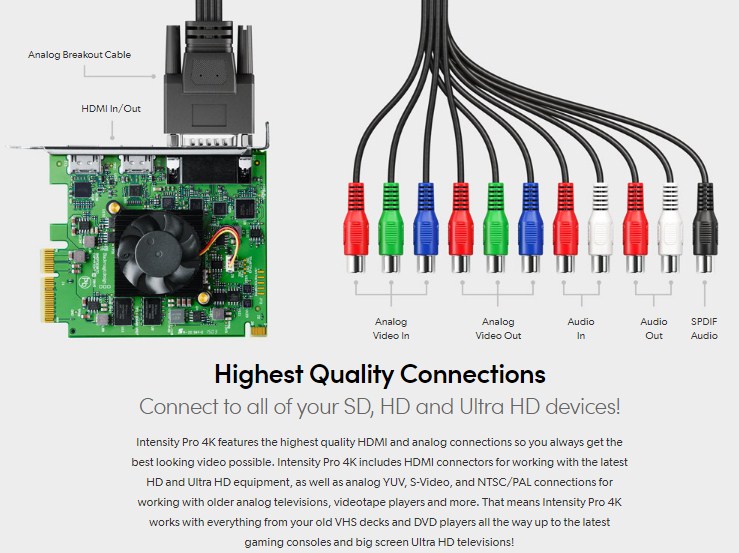

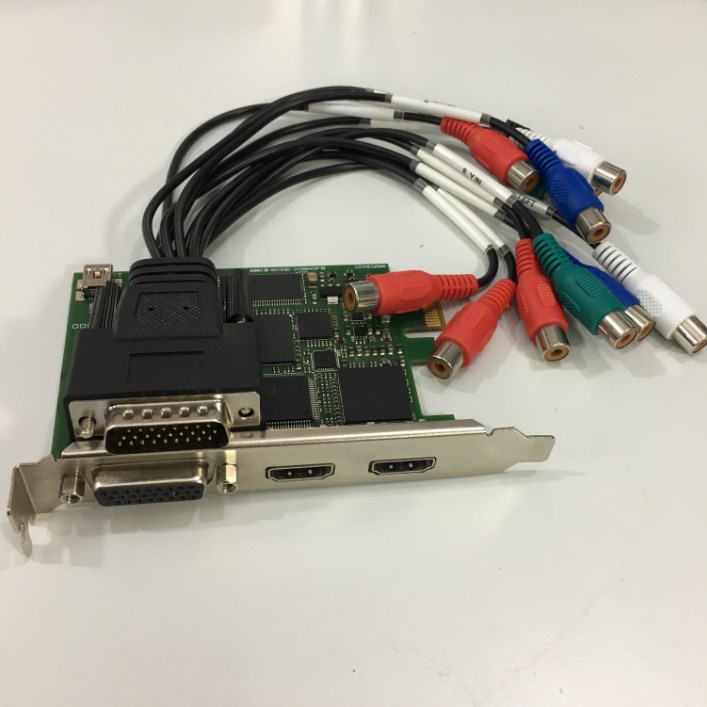

Connections
• Analog Video Input: Component, NTSC, PAL or S-Video.
• Analog Video Output: Component, NTSC, PAL or S-Video.
• HDMI Video Input: 1 x HDMI type A connector
• HDMI Video Output: 1 x HDMI type A connector
• Analog Audio Input: 2 Channel RCA HiFi audio in 24 bit.
• Analog Audio Output: 2 Channel RCA HiFi audio in 24 bit.
• HDMI Audio Input: 2 Channels.
• HDMI Audio Output: 2 Channels.
• SPDIF Audio Output: 2 Channel 24 bit.
• Dual Rate support: HDMI and Analog Component switches between high definition and standard definition.
• Device Control: None. FireWire may be used for controlling some cameras.
• Supported HDMI Formats: 525 NTSC, 625 PAL, 720HD and 1080HD switchable.
• Computer Interface: PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots.

Standards
• SD Format Support: 625i/50 PAL and 525i/59.94 NTSC.
• HD Format Support: 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 720p50, 720p59.94 and 720p60.
• HDMI Video Sampling: 4:2:2
• HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• HDMI Color Space: YUV 4:2:2
• HDMI Color Precision: 4:2:2
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing
• Colorspace Conversion: Hardware based real time.
• HD Down Conversion: Software based down conversion during video playback.
• HD Up Conversion: Real time standard definition to 1080HD and 720HD during video capture.
• Real Time Effects: Apple Final Cut Pro™ internal effects. Adobe® Premiere Pro® Mercury Playback Engine effects. Avid Media Composer 6™ internal effects.

Extras
• Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start, or via updater software.
• Physical Installation: PCI Express 1 lane, compatible with 1,4,8,16 lane PCI Express slots on Mac OS X, Windows 7 and Linux. Please check the Support pages to see the full system requirements.
• Operating System Compatibility: Compatible with Microsoft Windows 7, Apple Mac OS X and Linux.
