Card Mở Rộng Cổng PCI Express to 1 Port SERIAL PORT + PARALLEL Chính Hãng Dell SUN2410 For Thiết Bị Y Tế Cân Điện Tử Máy Công Nghiệp CNC PLC

Mã SP: 5064

Thương hiệu: Dell Sunix

Loại sản phẩm: PCI Express to 1 Port RS232 & Parallel LPT

Đánh giá

:

Giá

:

700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China - Dell Sunix
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

Card PCI Express to 1 Port RS232&Parallel LPT Expansion Serial Cắm Được Cho Các Slot Sau:

Slot PCI Express x1 - Slot PCI Express x8 - Slot PCI Express x16

Thương hiệu: Chính Hãng Dell SUN2410
Model: Dell SUN2410
Part Number: Dell SUN2410
Xuất xứ/Nguồn hãng: China Chính Hãng SUN2410

Rắc cắm kết nối Computer: PCI Express
Rắc External Ports: RS232 & Parallel LPT
Trọng lượng của sản phẩm: 67g

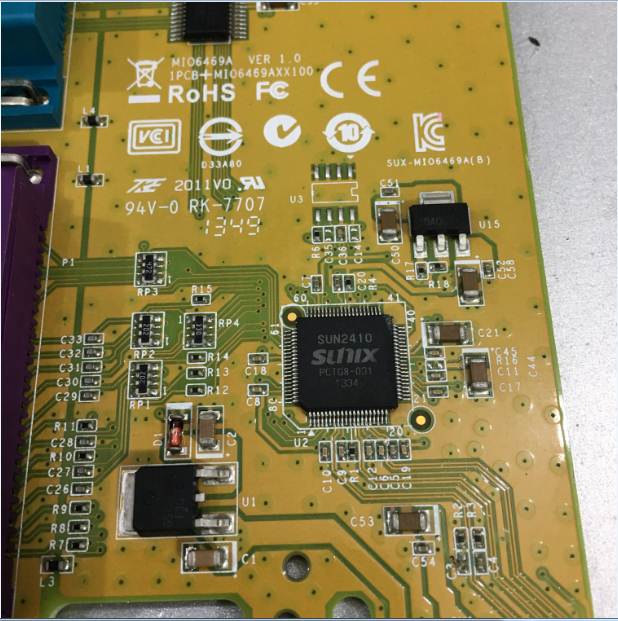

Chíp điều khiển Chipset ID: Sunix sun2410
Bo mạch mầu: Vàng

Card Mở Rộng Cổng PCI Express to 1 Port SERIAL PORT + PARALLEL Chính Hãng Dell SUN2410 For Thiết Bị Y Tế Cân Điện Tử Máy Công Nghiệp CNC PLC
CARD SUNIX SSER6427A, PCI Express tương thích với PCI Express x1, x2, x4, x8, x16 và khe cắm card màn hình x16. Đa số các bo mạch chủ hiện nay không được trang bị với các cổng nối tiếp hoặc chỉ có một cổng nối tiếp. Với bảng nối tiếp SUNIX PCI Express, người dùng có thể thêm một cổng RS232 nối tiếp vào hệ thống  cho phép người sử dụng các thiết bị nối tiếp thêm trên cổng RS232C. Tính năng RS232C kết công nghệ tiên tiến,  giải pháp tốt nhất cho các ứng dụng tự động hóa thương mại và công nghiệp. Máy PLC, CNC, thiết bị y tế…..

Specifications

General

Interface

RS232 & Parallel LPT232 & Parallel LPT

Controller

SUNIX SUN2410

BUS

PCI Express Spec 2.0, Single-Lane (x1)

IRQ & IO

Assigned by System



Serial Communication

Interface

RS232 & Parallel LPT

No. of Port

1-port

FIFO

128byte Hardware

Signal

DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI

Baud rate

50bps ~ 115.2Kbps

Stop bit

1, 1.5, 2

Parity

even, odd, none, mark, space

Flow Control

None, Xon/Xoff, RTS/CTS

Protection

±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge

PCB Connector

DB9 Male



Driver Support

Windows Client

XP / Vista / 7 / 8.x / 10 (X86/X64)

Windows Server

2003 / 2008 / 2012 / 2016 (X64)

Windows Embedded

Windows XP Embedded / POSReady 2009 / POSReady / Embedded System 2009

Linux

Linux 2.x / 3.x / 4.x

DOS

DOS

FreeBSD

FreeBSD 5.3~5.5 / 6.0~6.4

QNX

QNX 6.3.2/6.4.0



Regulatory Approvals

Hardware

CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, RoHS

Software

Microsoft WHQL Windows
Windows Client: XP / Vista / 7 / 8.x / 10 (X86/X64)
Windows Server: 2003 / 2008 / 2012 / 2016 (X64)

Giao tiếp với các thiết bị sử dụng RS-232

Agilent 34970A Data Acquisition/Switch Unit:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: XON/XOFF

Agilent 34401A Digital Multimeter:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable)
Parity: None (selectable)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)

Agilent 33120A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 9600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 2 (fixed)
Flow control: DTR/DSR (fixed)

Agilent 33250A Function Generator/Arbitrary Waveform Generator:
Baud Rate: 57600 (selectable)
Data bits: 8 (selectable; use this setting to download arbitrary waveforms)
Parity: None (selectable; use this setting to download arbitrary waveforms)
Start bits: 1 (fixed)
Stop bits: 1 (fixed)
Flow control: DTR/DSR (use any flow control, except XON/XOFF, to download arbitrary
waveforms)

RS-232 Configuration at the EPM-E Series Power Meter

The table below outlines the RS-232 configuration at the E4418B/E4419B power meter.

Type    Setting
Remote Interface - Select Interface    RS232
Remote Interface - Command Set    SCPI
Remote Interface - Configure Interface    Serial
Baud Rate    9600
Word Size    8
Stop Bits    1
Parity    None
1 of 2    To Next Page Configuration
Pacing    Tx Pacing Xon
Rx Pcaing Xon
RTS/CTS OFF
DTR/DSR OFF
