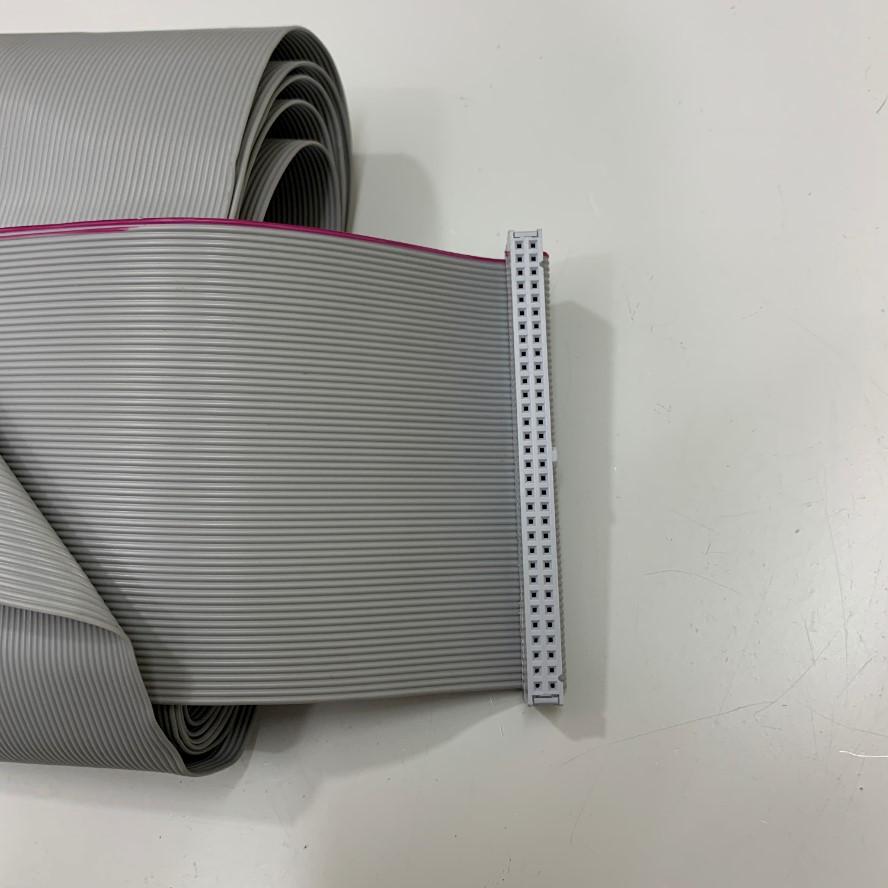

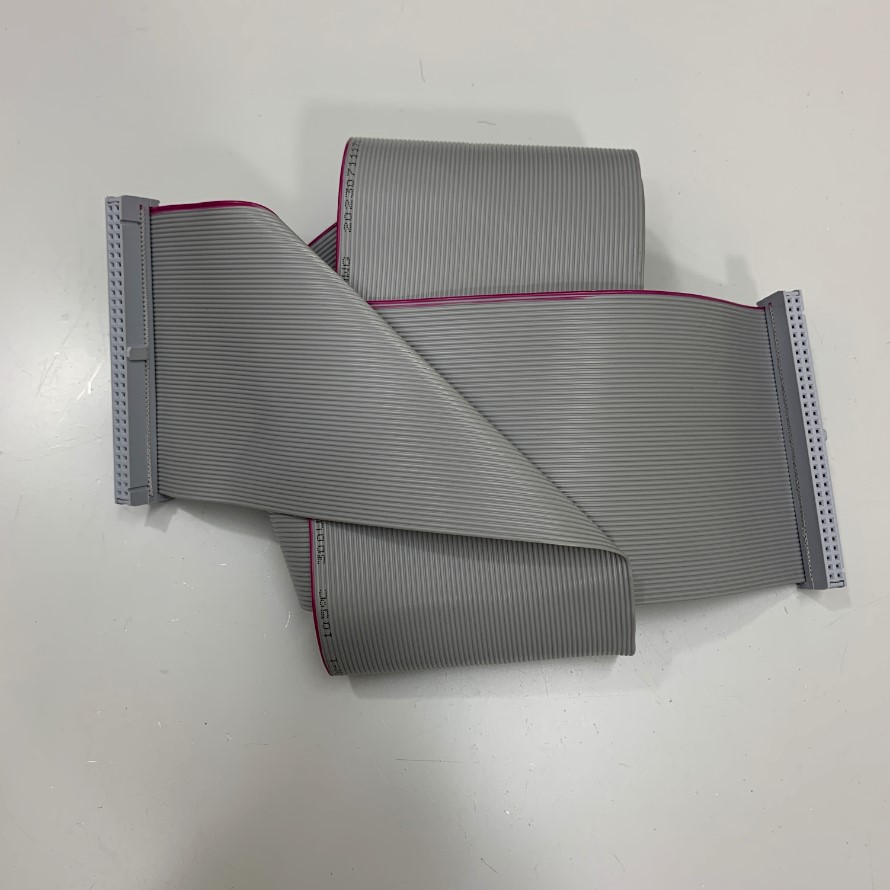

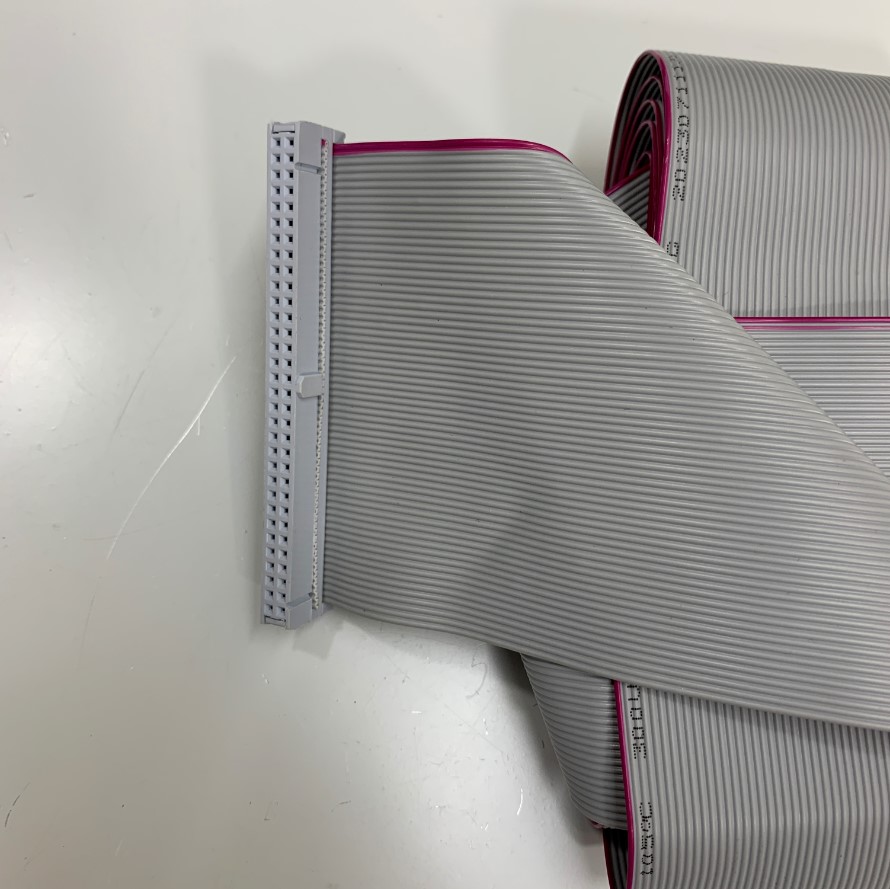

Cáp SCSI IDC 64 Pin 2.54mm Pitch Female to Female Cable 2M Flat Ribbon 1.27mm 64 Way 81.3 mm Width Grey For Hirose 64-Way IDC Connector Socket

Mã SP: 9102

Thương hiệu: KTT Cable SCSI IDC

Loại sản phẩm: FC-64P 2.54mm IDC

Đánh giá

:

Giá

:

700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

Connection circuit diagram Connector IDC 64 Pin theo tiêu chuẩn: Type A to Type A

Connection circuit diagram

Brand: ViệtNam/Thientruongpc
Cable Type: SCSI Flat IDC Cable
IDC Connector Pitch: 2.54mm
Cable Pitch: 1.27mm 64 Way 81.3mm
Connector Pin: 64 Pin
Connection circuit diagram Connector IDC 64 Pin theo tiêu chuẩn: Type A to Type A
Connector 1: 2x32 64 Pin IDC Female connector
Connector 2: 2x32 64 Pin IDC Female connector
Gender: Female to Female
Contact Plating: Gold, Nickel
Contact Resistance: 15mΩ
Wire: 28AWG 64 pin wire
Voltage Rating: 300V
Current Rating: 1A
UL Style: 2651
Temperature: 105ºC
Conductor: Copper
Color: Grey
Cable Length: 2M
Cáp SCSI IDC 64 Pin 2.54mm Pitch Female to Female Cable 2M Flat Ribbon 1.27mm 64 Way 81.3mm Width Grey For Hirose 64-Way IDC Connector Socket
