  • Cáp 2.54mm Pitch IDC Ribbon Cable

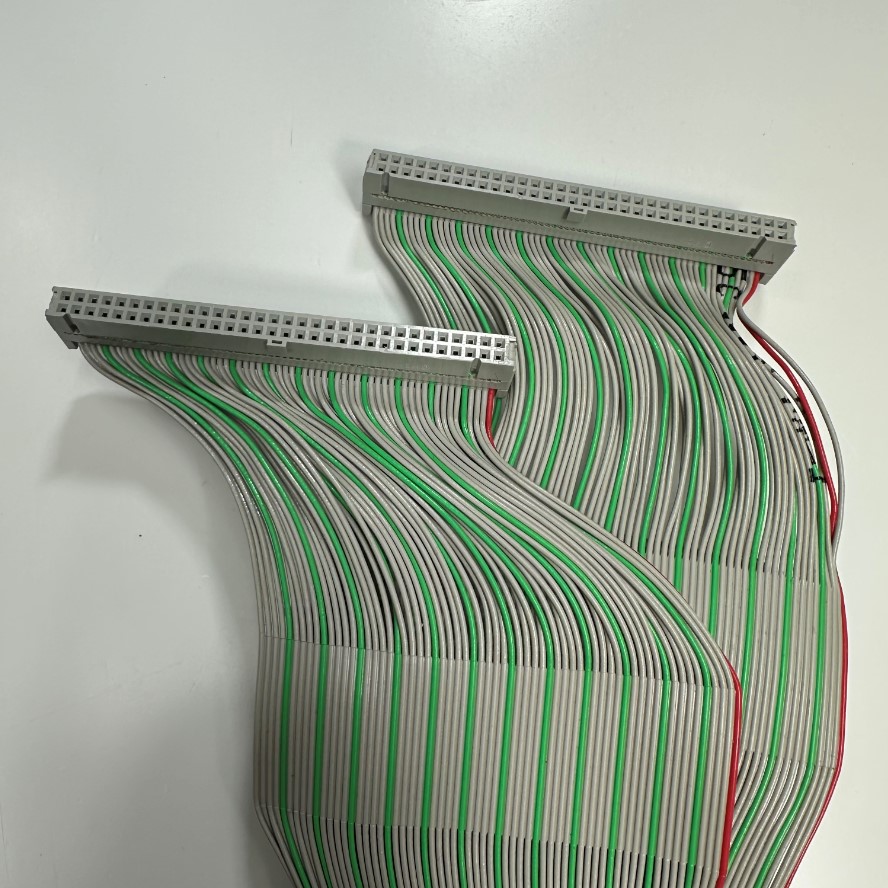

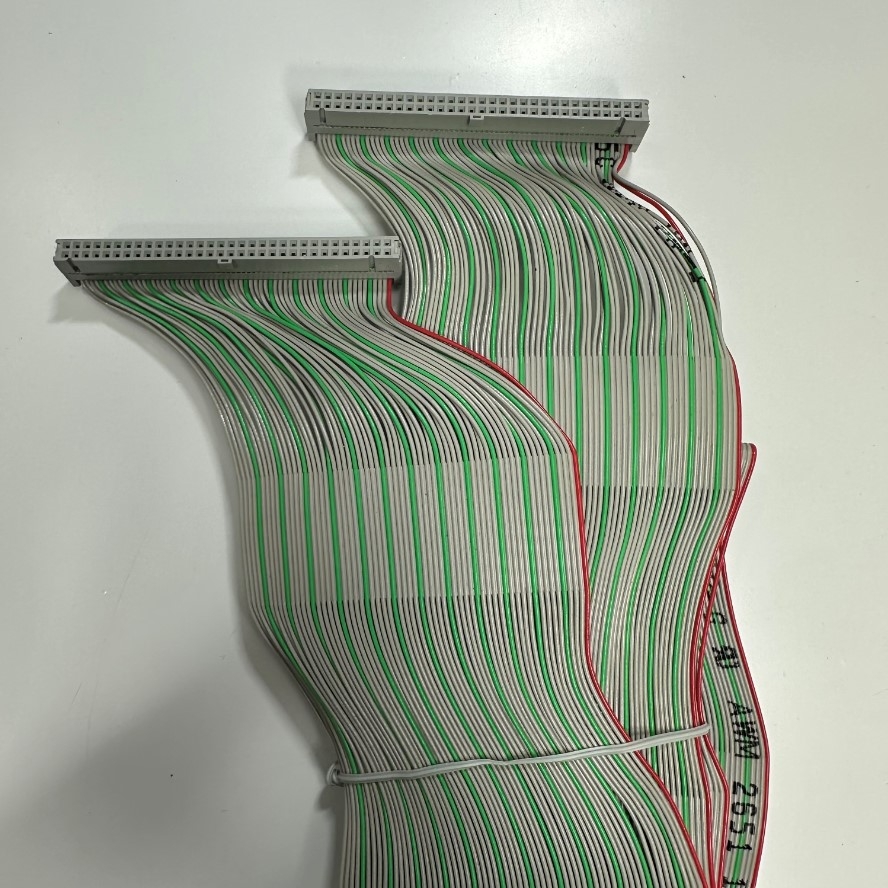

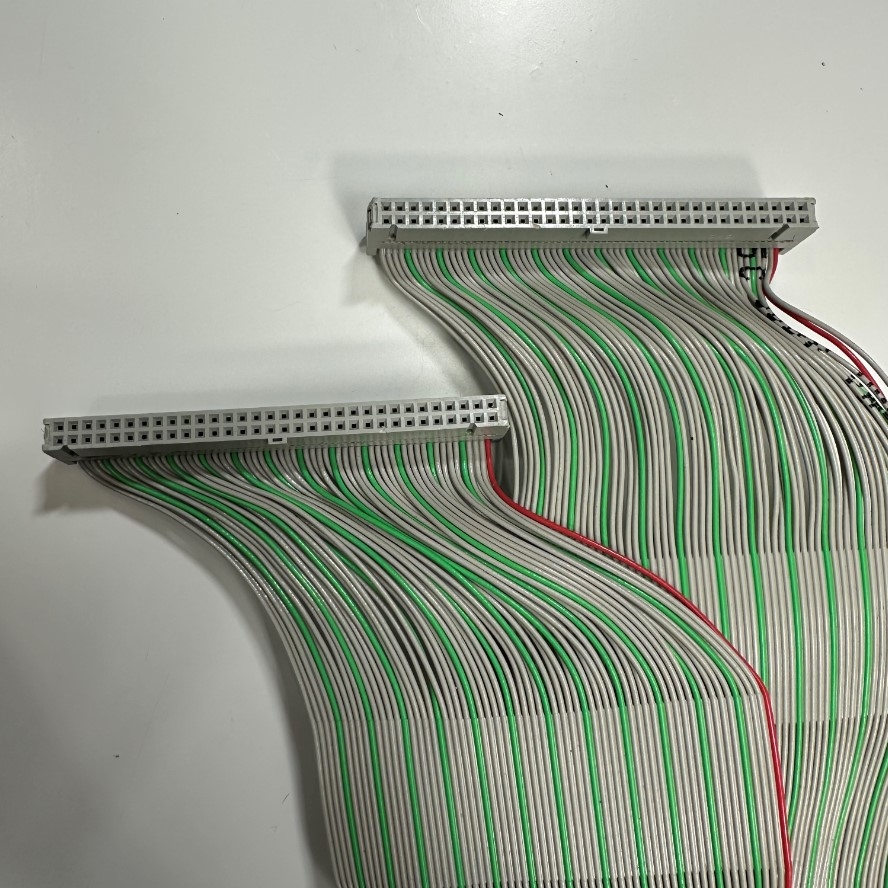

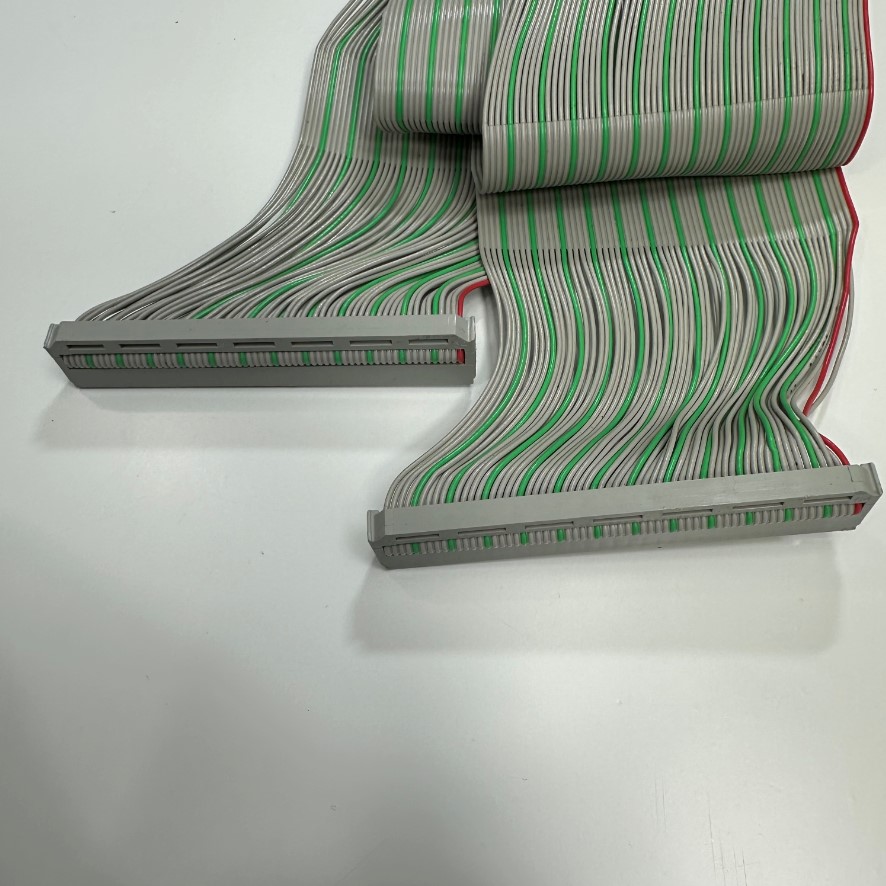

  • Cáp 1.4M 4.7ft Cable IDC 64 Pin Female to Female FC 2*32 Pitch 2.54mm Flat Rainbow Ribbon 64 Wire 1.27mm E43842-G AWM 2651 105°C 300V VW-1 For PLC CNC Data witch Terminal Board I/O Connection

Cáp 1.4M 4.7ft Cable IDC 64 Pin Female to Female FC 2*32 Pitch 2.54mm Flat Rainbow Ribbon 64 Wire 1.27mm E43842-G AWM 2651 105°C 300V VW-1 For PLC CNC Data witch Terminal Board I/O Connection

Mã SP: 12253

Thương hiệu: Original I/O Cable

Loại sản phẩm: FC-64P 2.54mm IDC

Đánh giá

:

Giá

:

1.400.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/IDC Rainbow Flat Ribbon Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Flat Cable Core colors: Red - Gray - Gray - Gray - Green 1.27mm pitch

Specifications
Xuất xứ/Nguồn hãng: Taiwan/IDC Rainbow Flat Ribbon Original I/O Cable
Product Or Component Type: Flat Rainbow Ribbon
Connector Type: IDC Female to Female Connector
IDC Connector Pitch: 2.54mm
Cable Pitch: 1.27mm
Connector Pin: 64 Pin

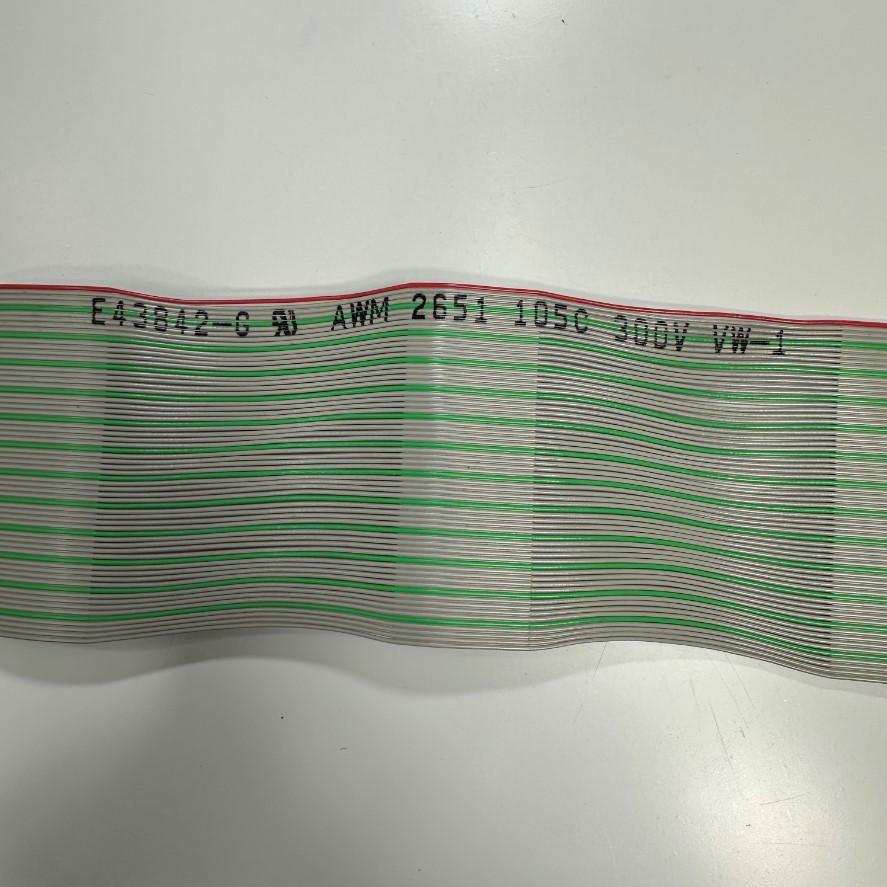

E43842-G AWM 2651 103°C 300V VW-1 Flat Ribbon Rainbow Cable 28AWG, pitch=1.27mm
Connector A: 1 -IDC (64 pin, Motherboard Header) Female
Connector B: 1 -IDC (64 pin, Motherboard Header) Female
Gender: Female to Female
Contact Plating: Gold over Nickel
Conductor Size AWG: 28AWG
Voltage Rating: 300V
Current Rating: 2A
Temperature: 105ºC
Colour: Rainbow
Cable Length: 1.4M ~ 4.7ft
Cáp 1.4M 4.7ft Cable IDC 64 Pin Female to Female FC 2*32 Pitch 2.54mm Flat Rainbow Ribbon 64 Wire 1.27mm E43842-G AWM 2651 105°C 300V VW-1 For PLC CNC Data witch Terminal Board I/O Connection
