Cáp Dài 2M 6.5ft IDC 10 Pin Female to Female 10 Pin FC 2*5 Pitch 2.54mm Cable Flat Ribbon Data Rainbow Color For CMC CNC PLC LCD Screen Total Phase I/O Connection Line Cable

Mã SP: 10758

Thương hiệu: Original I/O Data Cable

Loại sản phẩm: FC-10P 2.54mm IDC

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Original I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

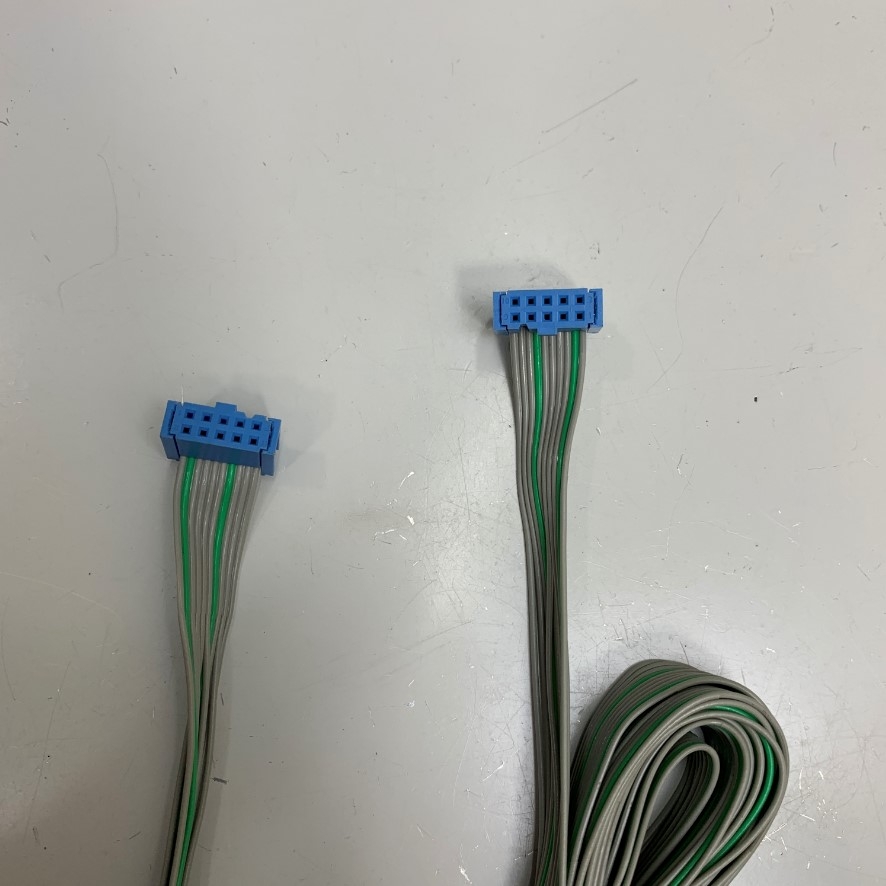

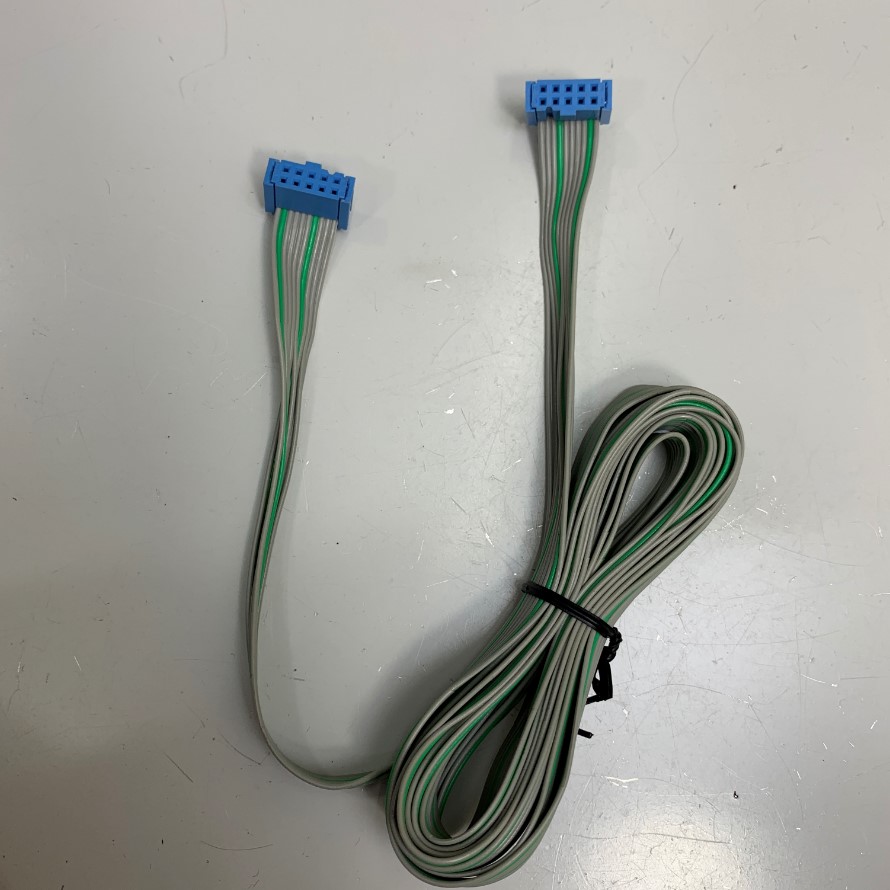

IDC 10 Pin Female to Female 10 Pin FC 2*5 Pitch 2.54mm I/O Data Cable Flat Ribbon Data Rainbow Color

10-Way IDC 2-Row Connector Socket FC 2*5 Pitch 2.54mm

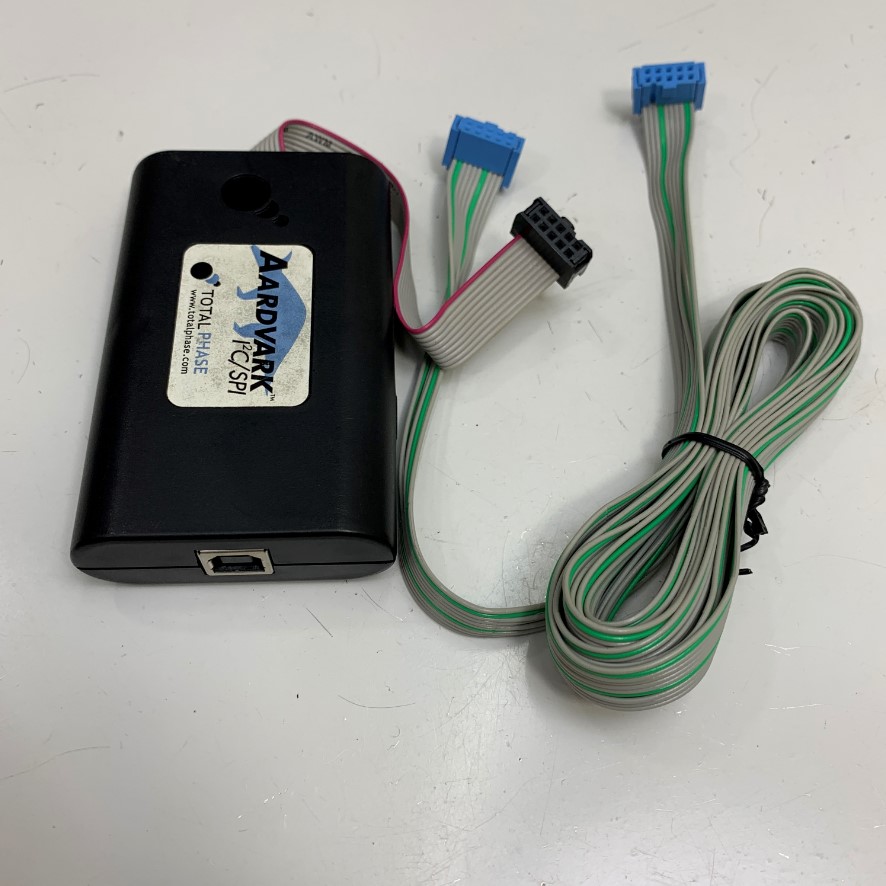

Cable witch Aardvark I2C/SPI Host Adapter

Specifications
Product Or Component Type: Flat Ribbon cable
Connector Type: IDC Female to Female Connector
IDC Connector Pitch: 2.54mm
Cable Pitch: 1.27mm
Connector Pin: 10 Pin
ul 2651 10pin flat ribbon cable 28AWG, pitch=1.27mm
Connector A: 1 -IDC (10 pin, Motherboard Header) Female
Connector B: 1 -IDC (10 pin, Motherboard Header) Female
Gender: Female to Female
Contact Plating: Gold Plated - Nickel
Range of product: PowerLogic
Range: PowerLogic
Contact Resistance: 15mΩ
Conductor Size AWG: 28 AWG
Voltage Rating: 300V
Current Rating: 2A
Temperature: 105ºC
Colour: Rainbow Color
Cable Length: 2M ~ 6.5ft
Cáp Dài 2M 6.5ft IDC 10 Pin Female to Female 10 Pin FC 2*5 Pitch 2.54mm Cable Flat Ribbon Data Rainbow Color For CMC CNC PLC LCD Screen Total Phase I/O Connection Line Cable
