  • Cáp 2.54mm Pitch IDC Ribbon Cable

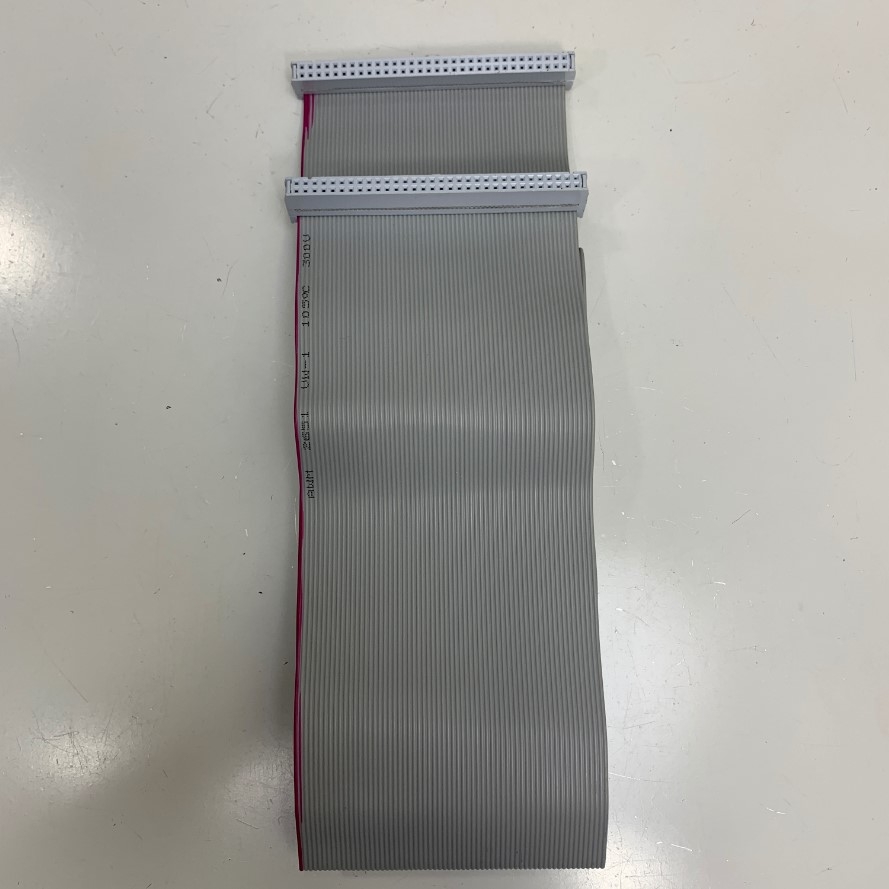

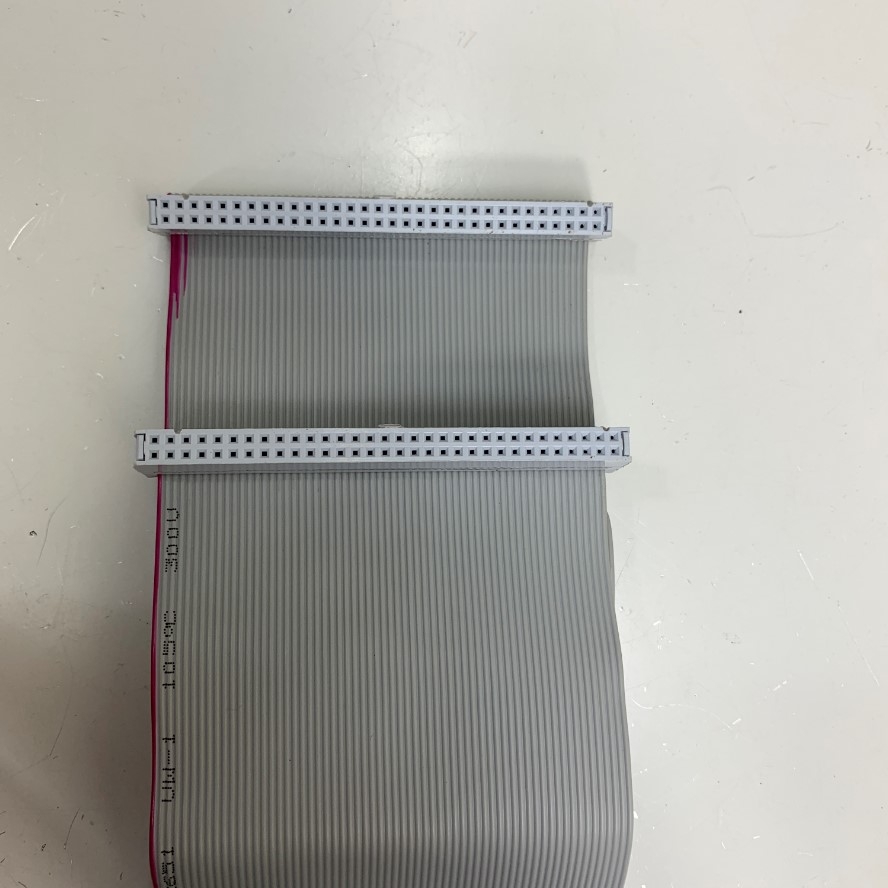

  • Cáp 1.3M 4.3ft IDC 64 Pin Female to Female 64 Pin FC 2*32 Pitch 2.54mm Cable Flat Ribbon Data AWM 2651 VW-1 105°C 300V 28AWG For PLC CNC Data witch Terminal Board I/O Connection

Cáp 1.3M 4.3ft IDC 64 Pin Female to Female 64 Pin FC 2*32 Pitch 2.54mm Cable Flat Ribbon Data AWM 2651 VW-1 105°C 300V 28AWG For PLC CNC Data witch Terminal Board I/O Connection

Mã SP: 11437

Thương hiệu: KTT PLC/Module Cable

Loại sản phẩm: FC-64P 2.54mm IDC

Đánh giá

:

Giá

:

770.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Delu TR518FR circuit board testing machine
TR518FE, TR518FR, TR518FV, TR518 SII INLINE, TR518 SII

TR518 SII DRAWER IDC F/F Flat Ribbon Cable 2.54 mm Pitch 64P 64 Pin/Wire

FCT/ICT Automated Testing Machines – Cable IDC 64 Wire 64 Pin Flat Ribbon Cable 2.54 mm Pitch 64 Pin

TR518 SII INLINE Gray IDC 64 Wire 64 Pin Flat Ribbon Cable

TR518 SII IDC 64 Pin Connector Gray Wire Flat Ribbon Cable

In-Circuit Tester (ICT) TR5001E SII IDC 64 Pin Connector Gray Wire Flat Ribbon Cable

Specifications
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Product Or Component Type: Flat Ribbon cable
Connector Type: IDC Female to Female Connector
IDC Connector Pitch: 2.54mm
Cable Pitch: 1.27mm
Connector Pin: 64 Pin
2651 64 pin flat ribbon cable 28AWG, pitch=1.27mm
Connector A: 1 -IDC (64 pin, Motherboard Header) Female pitch=2.54mm
Connector B: 1 -IDC (64 pin, Motherboard Header) Female pitch=2.54mm
Gender: Female to Female
Contact Plating: Nickel
Range of product: PowerLogic
Range: PowerLogic
Contact Resistance: 15mΩ
Conductor Size AWG: 28 AWG
Voltage Rating: 300V
Current Rating: 1A
Temperature: 105ºC
Colour: Grey
Cable Length: 1.3M ~ 4.3ft
Cáp 1.3M 4.3ft IDC 64 Pin Female to Female 64 Pin FC 2*32 Pitch 2.54mm Cable Flat Ribbon Data AWM 2651 VW-1 105°C 300V 28AWG For PLC CNC Data witch Terminal Board I/O Connection
