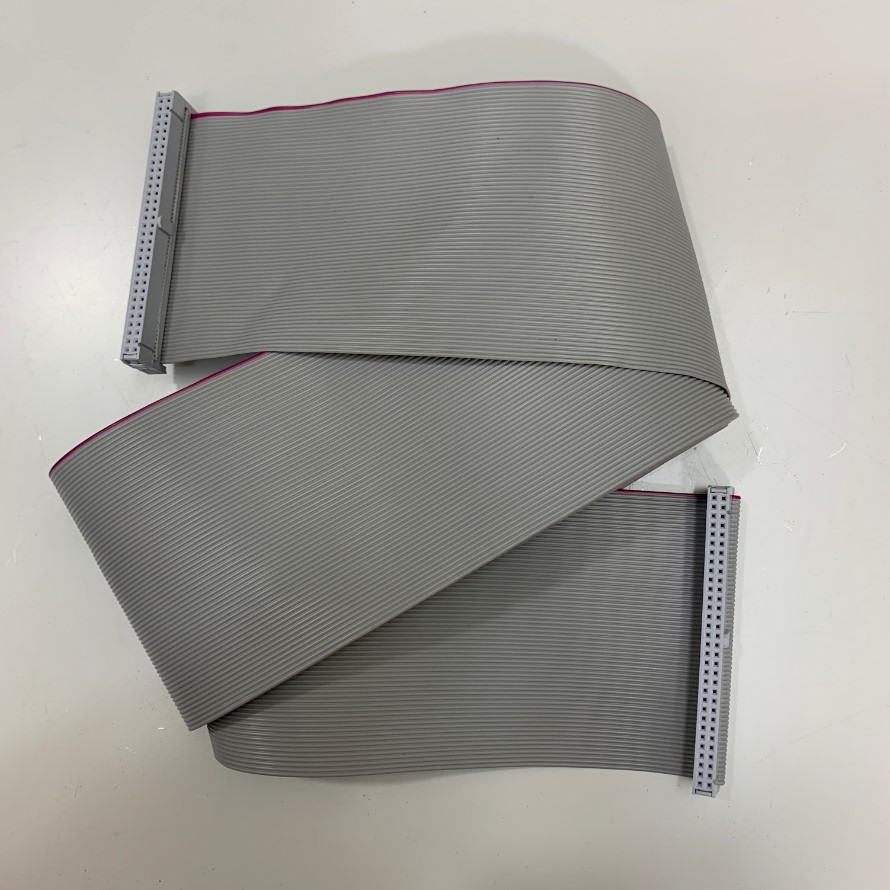

Cáp SCSI IDC 64 Pin 2.54mm Pitch Female to Female Cable 0.3M Flat Ribbon 1.27mm 64 Way 81.3mm Width Grey For Digital Robot CNC Machine, Test Research Inc ICT

Mã SP: 9100

Thương hiệu: KTT Cable Flat SCSI IDC

Loại sản phẩm: FC-64P 2.54mm IDC

Đánh giá

:

Giá

:

300.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Connection circuit diagram Connector IDC 64 Pin theo tiêu chuẩn: Type A to Type A

Connection circuit diagram

Brand: ViệtNam/Thientruongpc
Cable Type: SCSI Flat IDC Cable
IDC Connector Pitch: 2.54mm
Cable Pitch: 1.27mm 64 Way 81.3mm
Connector Pin: 64 Pin
Connection circuit diagram Connector IDC 64 Pin theo tiêu chuẩn: Type A to Type A
Connector 1: 2x32 64 Pin IDC Female connector
Connector 2: 2x32 64 Pin IDC Female connector
Gender: Female to Female
Contact Plating: Gold, Nickel
Contact Resistance: 15mΩ
Wire: 28AWG 64 pin wire
Voltage Rating: 300V
Current Rating: 1A
UL Style: 2651
Temperature: 105ºC
Conductor: Copper
Color: Grey
Cable Length: 0.3M
Cáp SCSI IDC 64 Pin 2.54mm Pitch Female to Female Cable 0.3M Flat Ribbon 1.27mm 64 Way 81.3mm Width Grey For Digital Robot CNC Machine, Test Research Inc ICT
