Bộ Rắc Hàn EDS EDH-09 Jack Metal Connector RS232 DB9 Female Gold Plated Shell Kit 9 Pin Serial Port For PLC/HMI/ Servo Driver Communication Cable

Mã SP: 9227

Thương hiệu: EDS Connector

Loại sản phẩm: RS232 DB9 Serial Connector

Đánh giá

:

Giá

:

150.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: USA/EDS Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

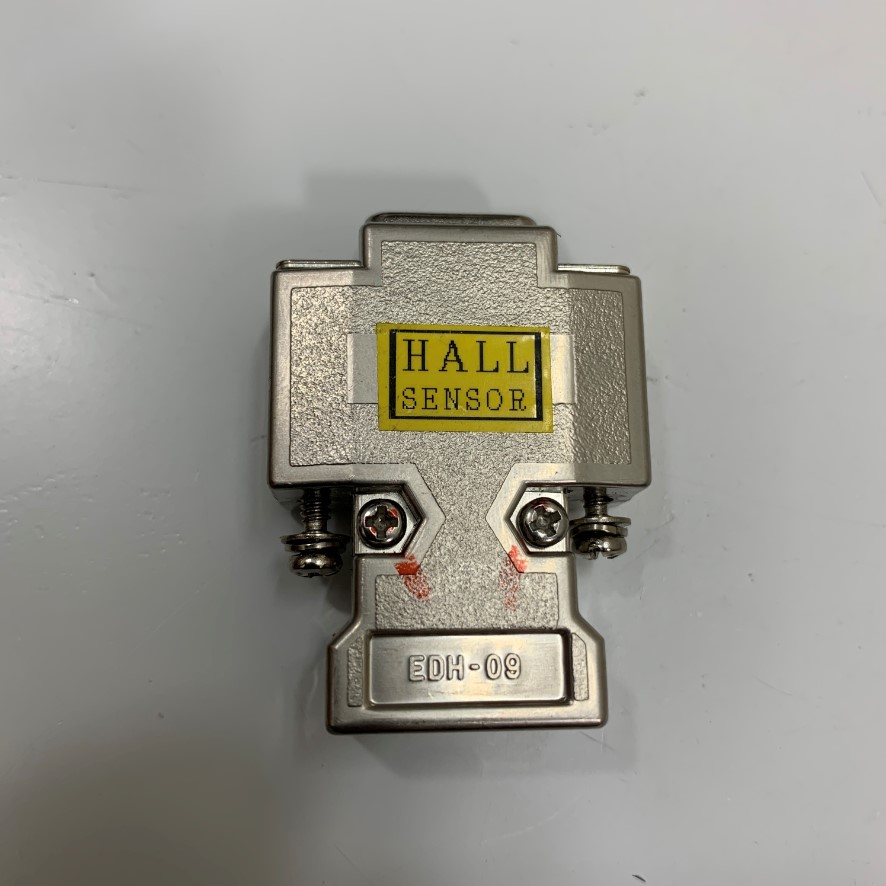

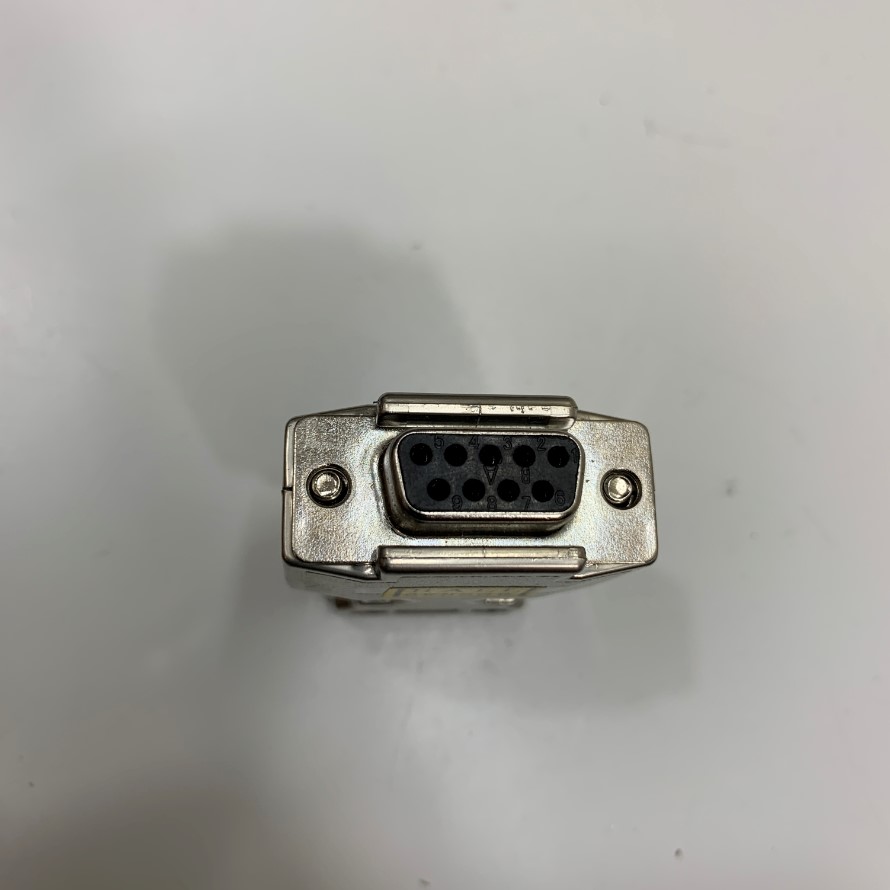

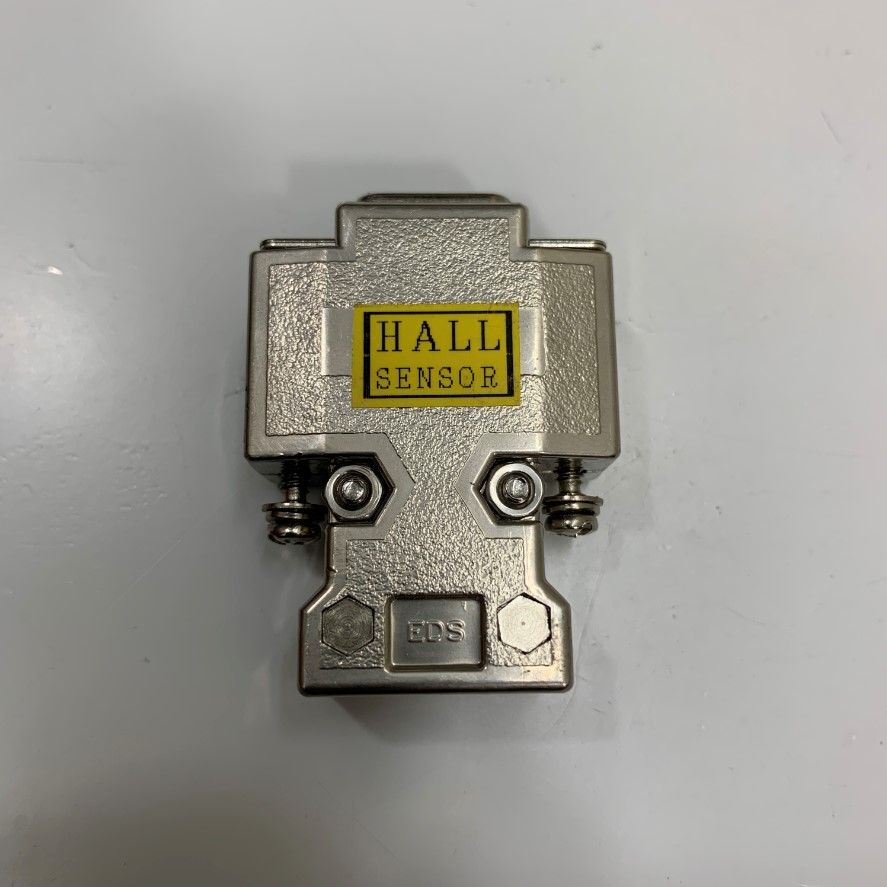

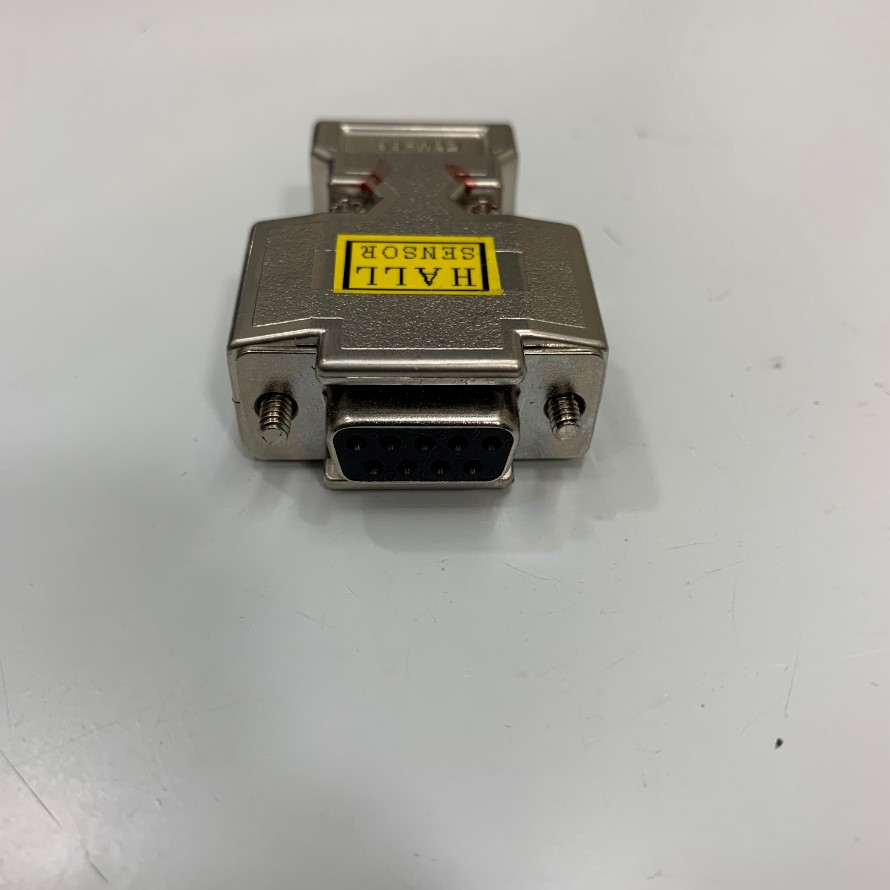

Product Parameters of EDS EDH-09 Jack Metal Connector DB9 Female Gold Plated Shell Kit 2 Rows 9 Pin Connector with Screw
Item: EDS EDH-09 Jack Metal Connector DB9 Female
Brand: EDS EDH-09 Connector
Model No.: RS232/RS422/485 DB9 Female Plug Socket Metal Shell Kit 2 Rows 9 Pin Serial Port
Metal Hood Cover Housing Backshell Shells Screws Connector DB9
Connector: DB9 Pin Female Gold Plated
Hood Color: Beige
Cable Diameter Max: 8.0mm
Operating Temperature Min:-45°C
Operating Temperature Max.: 105°C
Rated current Max: 5A
Insulation resistance: 1000M Ω/50V DC Min
Contact resistance: 30M Ω Max
Dielectric strength: 500V/Minute
Material : Metallized Plastic
Designed for the construction of DB9 Serial Cables
Communication: Serial Port Connector RS232 RS485 RS422 COM
Bộ Rắc Hàn EDS EDH-09 Jack Metal Connector RS232 DB9 Female Gold Plated Shell Kit 9 Pin Serial Port For PLC/HMI/ Servo Driver Communication Cable
