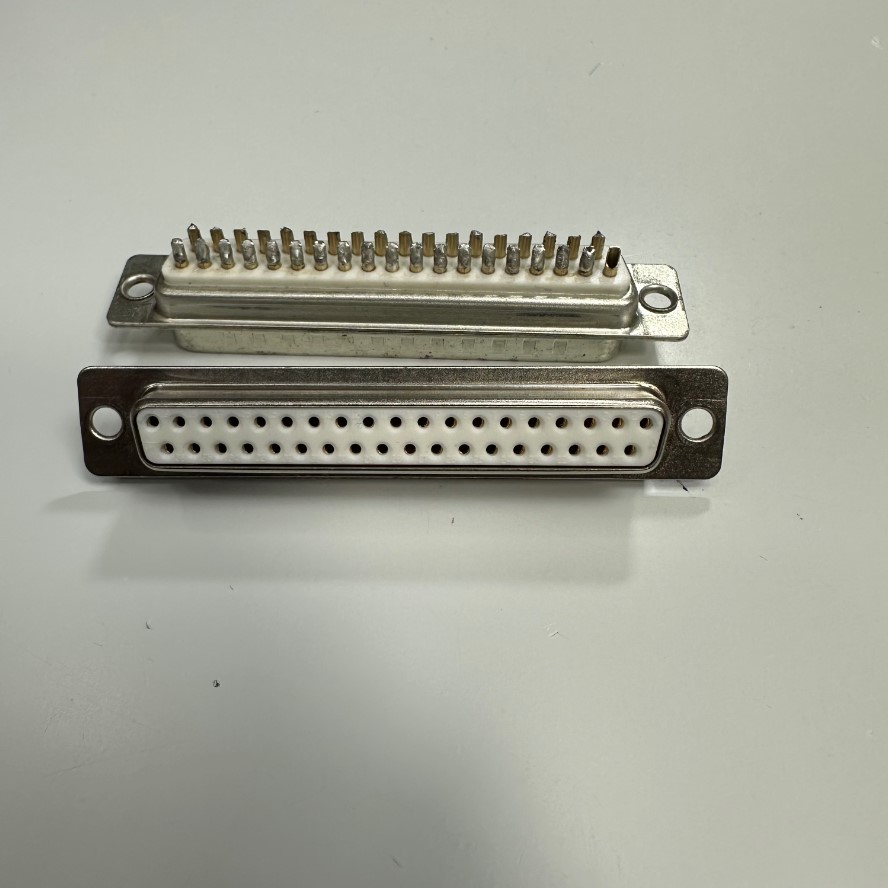

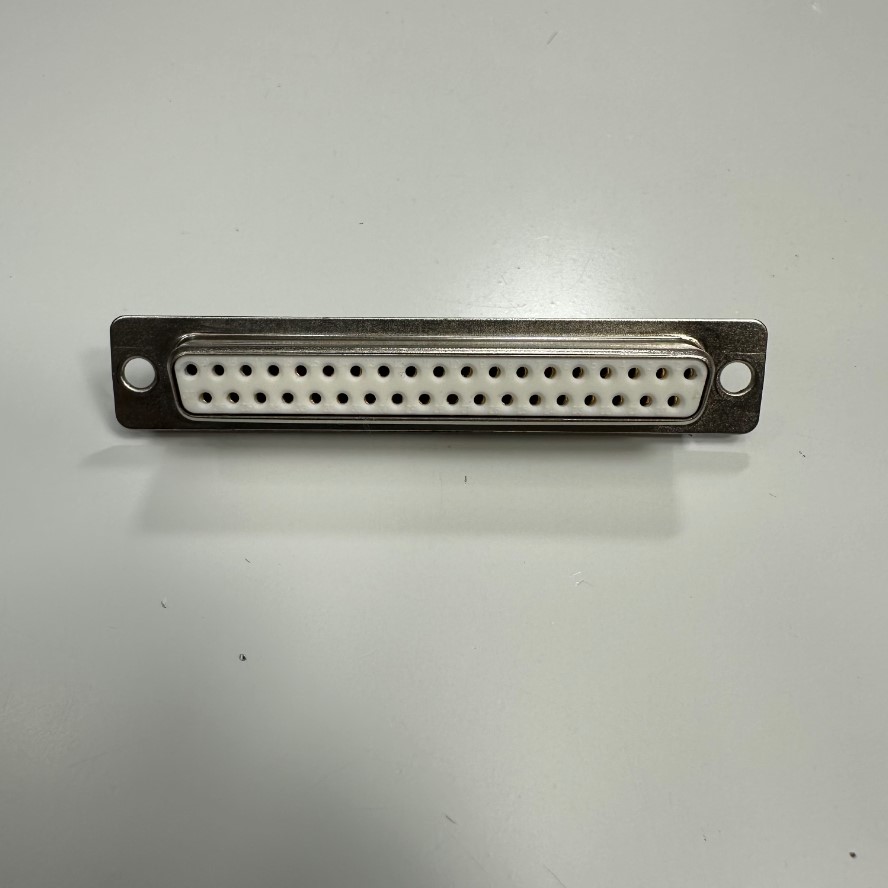

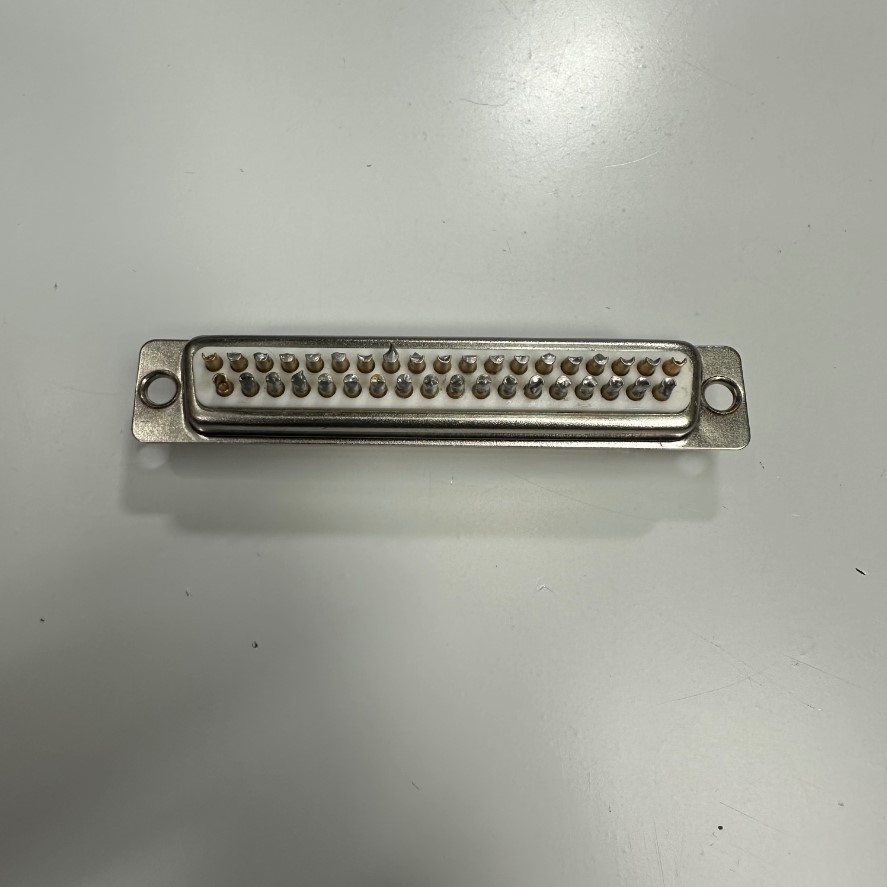

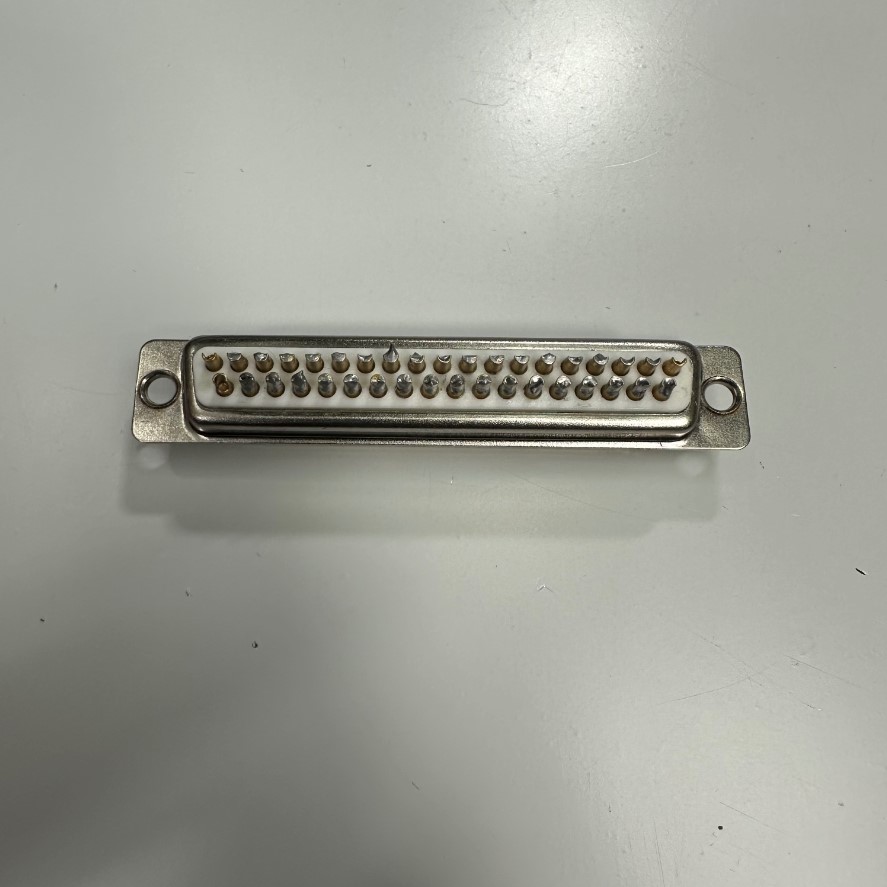

Đầu Jack DDK 17JE-13370-02(D1) DB37 Female D-sub Connector Plug For For industrial Servo Motor, Medical Interface I/O Control, Studio Audio, Data Signal and Power Cable 37 Pin

Mã SP: 12145

Thương hiệu: DDK Connector

Loại sản phẩm: 37 Pin D-Sub Female

Đánh giá

:

Giá

:

450.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/DDK FUJIKURA D-Sub Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Connector 17JE-13370-02(D1) 37 Pin D-Sub Female

Specifications
Japan/DDK FUJIKURA D-Sub Connector
Brand: DDK FUJIKURA Connector
Gender: Female
Number of Contacts: 37
Number of Rows: 2
Pitch: 2.77mm
Contact Plating: Gold/Nickel-Plated
Termination: Solder Connector
Body Orientation: Straight
Mounting Type: Panel Mount
D Connector Type: High Density D-Sub
Termination Method: Solder
Voltage Rating 300V AC (rms)
Current Rating 5A / contact
Dielevtric With Standing Voltage 1000V AC (rms) for 1 minute
Insulation Resistance 1000MΩ min. at 500V DC
Contact Resistance 15mΩ max.
Wire Accommodation
Stranded: 20 AWG max.
Solid: 22 AWG max.
Maximum Operating Temperature: +100°C
Minimum Operating Temperature: -50.0°C
Đầu Jack DDK 17JE-13370-02(D1) DB37 Female D-sub Connector Plug For For industrial Servo Motor, Medical Interface I/O Control, Studio Audio, Data Signal and Power Cable 37 Pin
