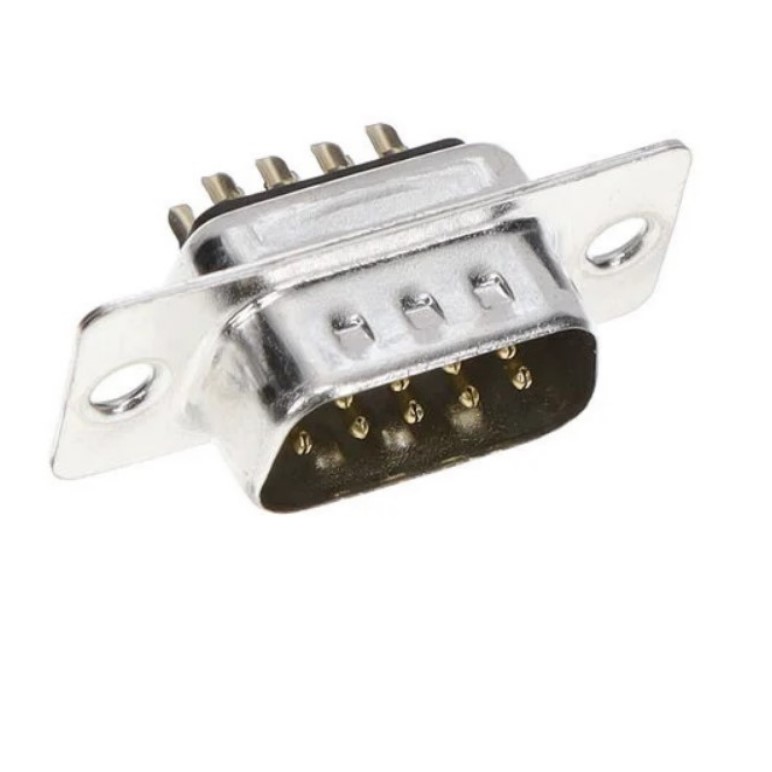

Đầu Jack Northern Technologies DE9PTES DB9 Male D-Sub Connector Plug 3A 250V Solder Type Gold 9 Way For industrial Servo Motor, Medical Interface I/O Control, Studio Audio, Data Signal and Power Cable

Mã SP: 12319

Thương hiệu: Northern

Loại sản phẩm: 9 Pin D-Sub Male

Đánh giá

:

Giá

:

200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Northern Technologies Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Northern Technologies DE-9P DB9 Male D-Sub Connector Plug 3A 2500V Solder Type

Product Specifications
Brand: Northern Technologies
Contact Material: Copper Alloy
Contact Plating: Gold over Nickel
Contact Resistance: 2.7 mOhms
Current Rating: 3A
Voltage Rating: 250V
Dielectric Material: Polyester
Housing Finish: Zinc Chromate
Housing Material: Steel
Insulation Resistance: 5,000 MOhms
Manufacturer Part Number: DE-9P
Mounting Hole Diameter: 0.12 in
Number of Contacts: 9 Pin
Number of Rows: 2
Termination Method: Solder
Operating Temperature: -55 to 125°C
Primary Type: D-Sub
Đầu Jack Northern Technologies DE9PTES DB9 Male D-Sub Connector Plug 3A 300V Solder Type Gold 9 Way For industrial Servo Motor, Medical Interface I/O Control, Studio Audio, Data Signal and Power Cable
