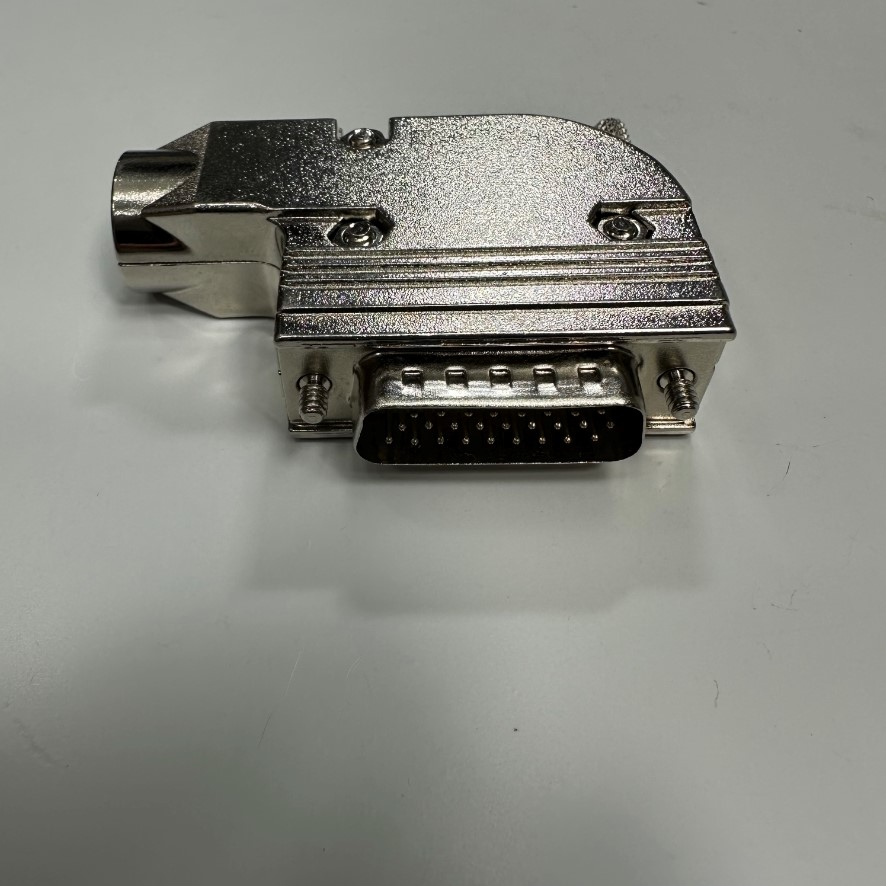

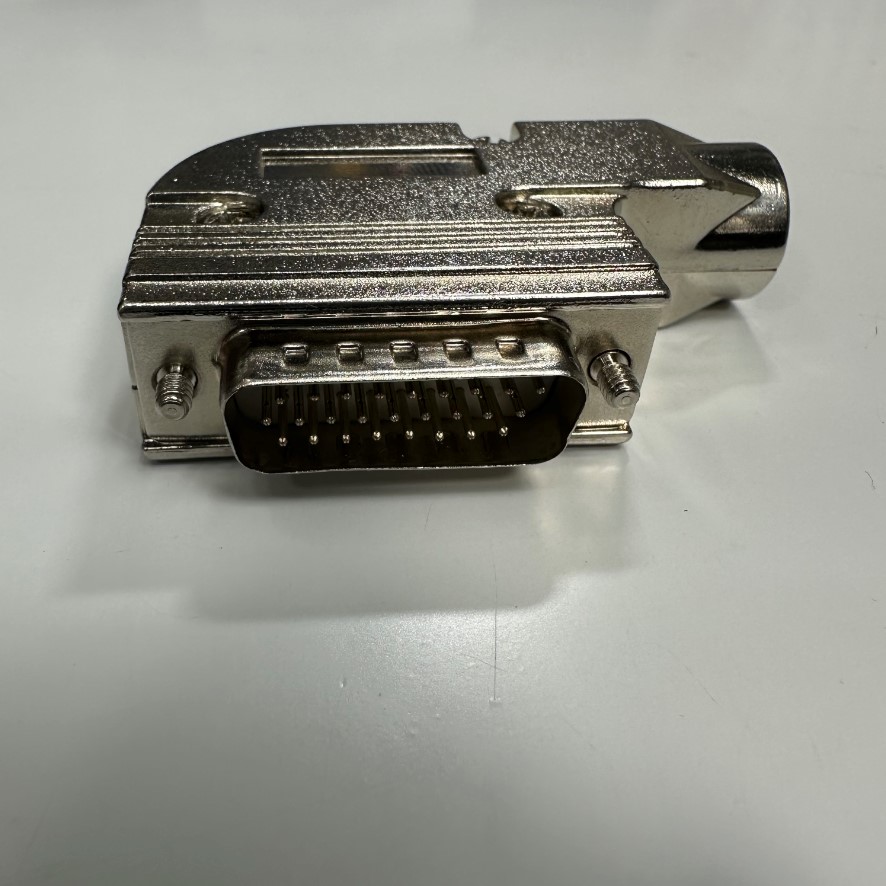

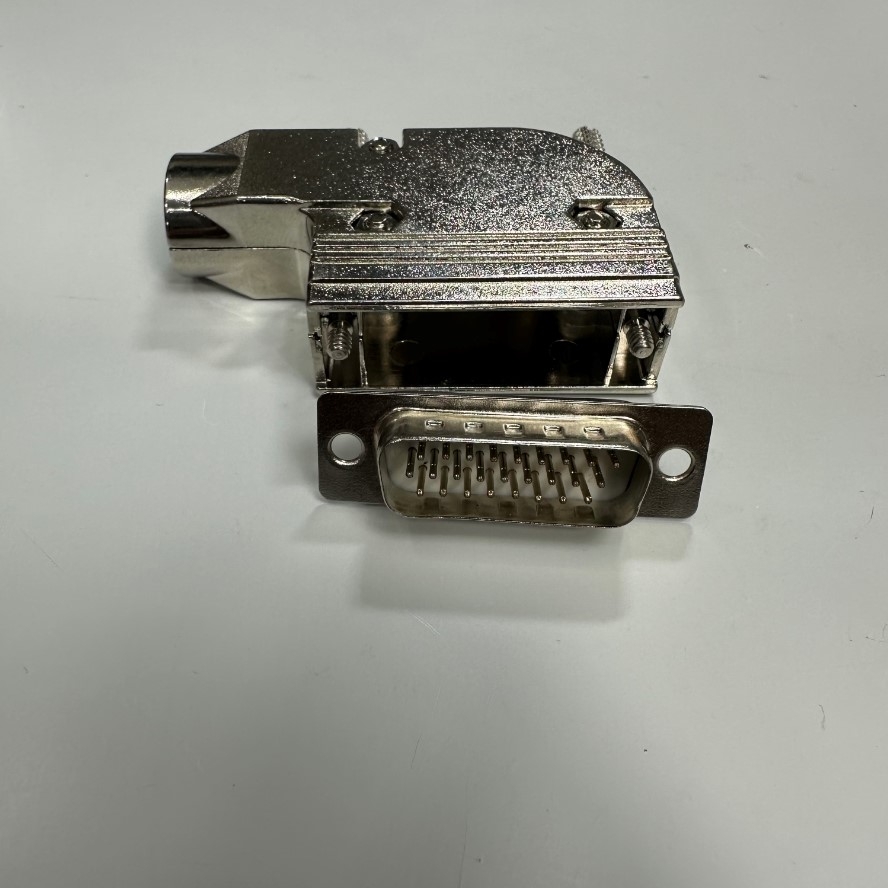

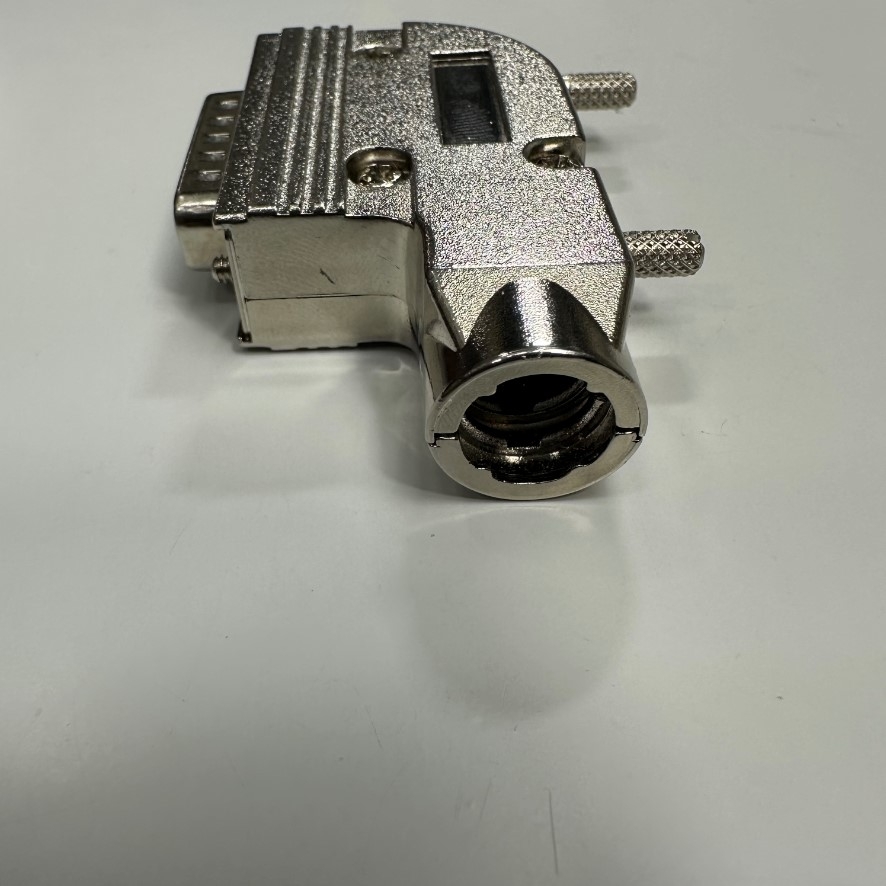

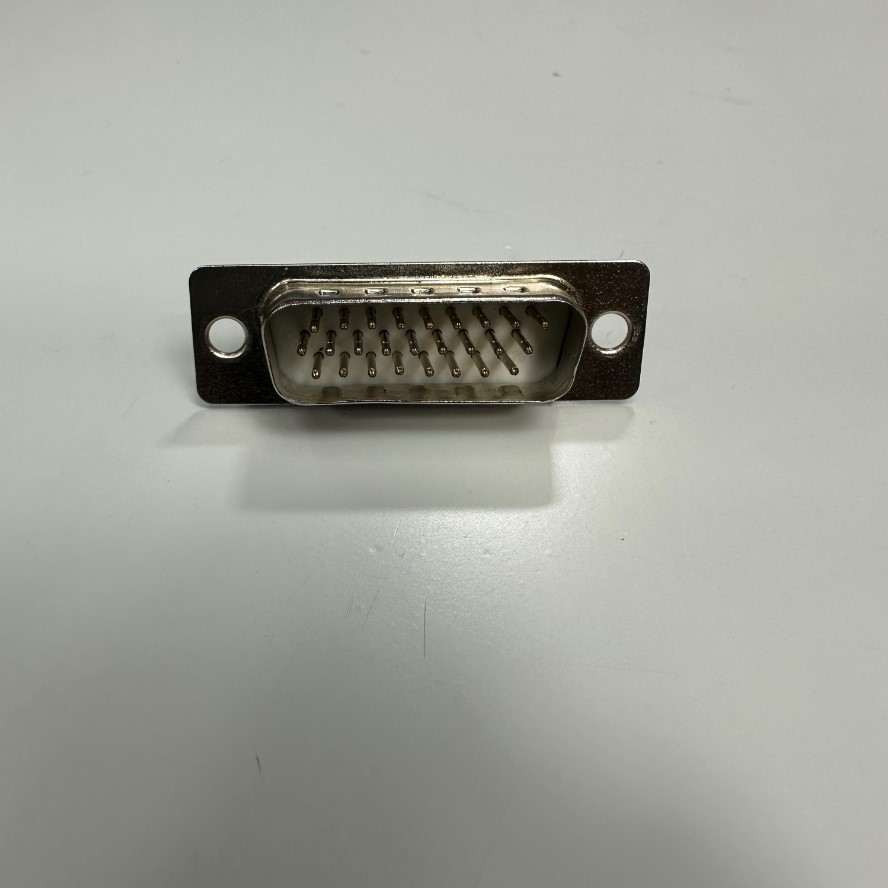

Đầu Jack Norcomp DB26 Male D-Sub Solder Wire Connector /Hood Kit Right Angle Metal Fe For industrial Servo Motor, Medical Interface I/O Control Cable, Studio Audio Cable

Mã SP: 12097

Thương hiệu: NorComp

Loại sản phẩm: 26 Pin D-Sub Male

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/NorComp D-Sub Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Specifications
Made in Taiwan: NorComp
Manufacturer: NorComp Inc.
Series: 981, ARMOR
Packaging: Bag
Part Status: Active
Accessory Type: Two Piece Backshell
Number of Positions: 15
Compatible Shell Size: A
Compatible D-Sub Size: 15pos and HD26pos
Cable Type: Round
Cable Exit: 90°
Shielding: Shielded
Primary Material: Metal
Material: Metal, Zinc Alloy
Plating: Nickel over Copper
Hardware: Assembly Hardware, Grommets
Features: Mating Screws 4-40
Color: Silver:
Base Product Number: 981-015

Specifications
Made in Taiwan: NorComp
Brand: Norcomp
Number of Contacts: 26
Gender: Male
Body Orientation: Straight
Mounting Type: Panel Mount
Pitch: 2.29mm
D Connector Type: High Density D-Sub
Termination Method: Solder
Current Rating: 5.0A
Housing Material: Steel
Voltage Rating: 500V
Length: 39.15mm
Width: 12.6mm
Depth: 12.0mm
Contact Plating: Gold Flash
Series: 180
Dimensions: 39.15 x 12.6 x 12mm
Contact Material: Brass
Maximum Operating Temperature: +100°C
Minimum Operating Temperature: -50.0°C
Đầu Jack Norcomp DB26 Male D-Sub Solder Wire Connector /Hood Kit Right Angle Metal Fe For industrial Servo Motor, Medical Interface I/O Control Cable, Studio Audio Cable
