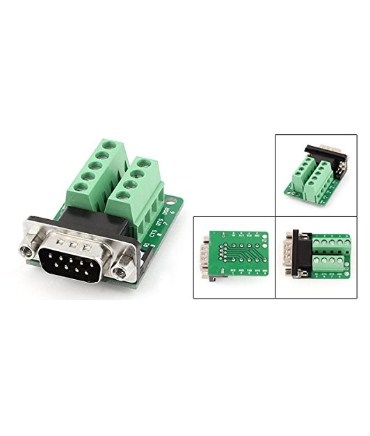

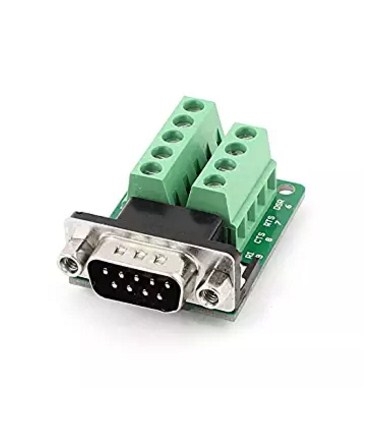

Rắc Cắm Mô Dun Bắt Vít Khối DB9 Connector Male adapter signals Terminal RS232 Serial DTE

Mã SP: 1373

Thương hiệu: China

Loại sản phẩm: Rắc Cắm Mô Dun DB9

Đánh giá

:

Giá

:

100.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

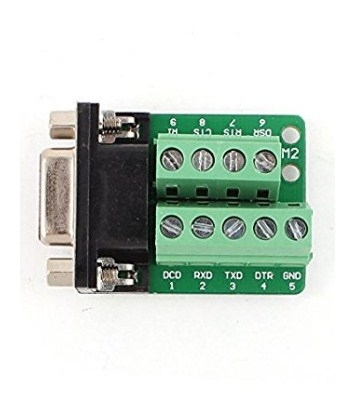

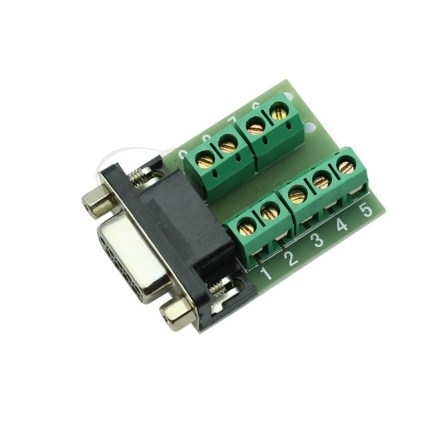

Rắc cắm mô dun bắt vít khối DB9 connector female adapter signals Terminal RS232 Serial

Product name : DB9 adapter; total Size : 45 x 31 x 18mm/1. 8" x 1. 2" x 0. 71"(L*w*h)

Rắc cắm mô đun bắt vít khối RS232 Serial DB9 connector female adapter với 9Pin tường ứng với 9 vít trên khôi thiết bị với số chân từ 1-9 ở rắc DB9 connector female và một chân tiếp mát thiết bị. Người sử dụng có thể đấu mô dun khối theo sơ đồ cần sử dung với các chuẩn song song, RS232(Com) null modem crossover, Link APC 940-0020B Serial, Cáp máy cân điện tử FX-5000I RS232F, Cáp máy cắt RS232 to 1284 decal Mimaki CG-60ST; Cáp máy in sổ Olivetti; Cáp điều khiển Cisco cable CAB CONSOLE RJ45 Console; Cáp lập trình PLC Mitsubishi PC to Mitsubishi,cáp De Consola Tripp-lite (din 8 Pin Macho A Db9 Hembra)

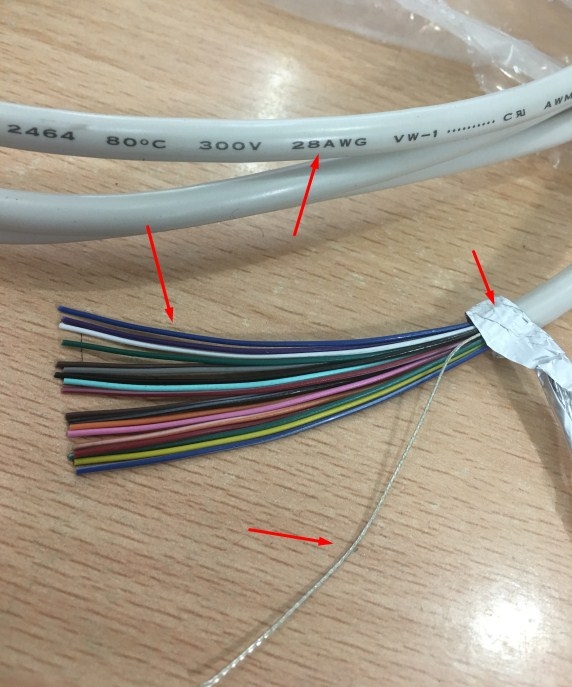

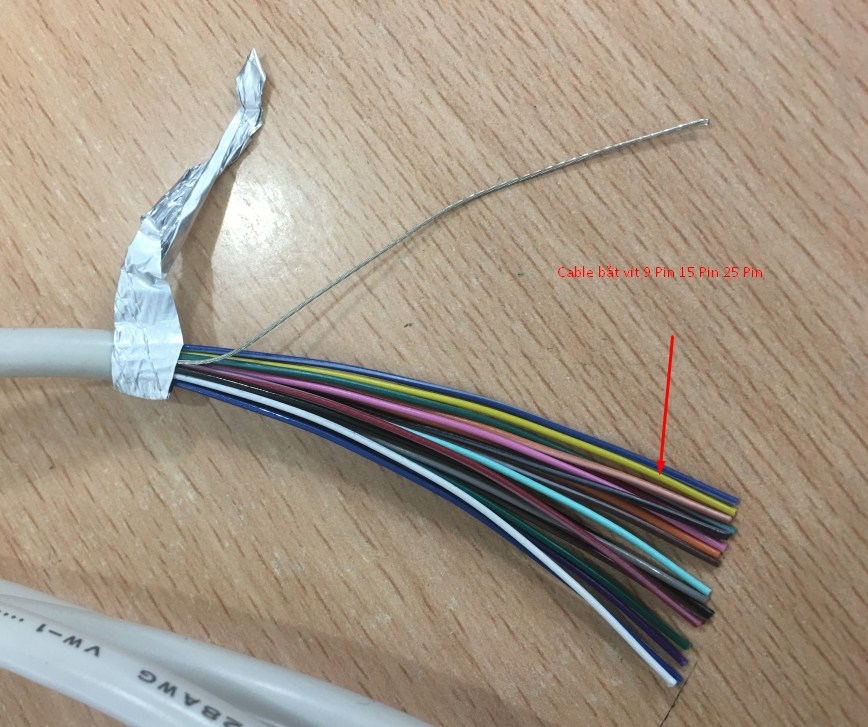

Mô dun khối RS232 female tước thíc với các loại cáp mạng cáp viết thông 24…. 12AWG tuốt vỏ cáp bắt vít, mạch kết nối bằng đồng chống  và tạo kết nối tốt nhất cho thiết bị.

Mô dun khối RS232 female: Được Thiên Trường thi công hệ thống chuyện nhận dữ liệu, điều khiển

\

RS-232 DB-9 male connector at the
data terminal equipment (DTE).
RS-232 DB-9 female connector at the
data communication equipment (DCE)
Cổng RS232 Com 9+ Cổng RS232 9-


1. Kết Nối song song(nối thẳng)

Straight Cables
Straight cables are used to connect a DTE with a DCE device, like attaching Ethernut 1 or 2 to a PC. They have one male plug to connect the DCE and a female plug for the DTE side.

The most simple cable requires 3 wires only.

1. Kết Nối song song(nối thẳng) và đấu chập chân cắm để kết nối tính hiệu

The simple 3-wire cable may not work if one end doesn't provide hardware handshake, while hardware handshake can't be disabled on the other side. In such cases a cable with shortened handshake signals will help.

If you are experiencing character loss, some flow control is required. For basic RTS/CTS flow control we need a 5-wire cable. Often the software will not allow to enable individual handshake signals. So we must locally provide the remaining handshakes.

For full modem handshake we need a 9-wire cable. This standard straight cable may be used, for example, to attach a modem to Ethernut 3.

This layout is also usefull as a general extension cable.

Cross Cables
Cross cables are used to connected two DTE devices. In exceptional cases such cables can be used to connect two DCE devices, provided that the female plugs are replaced by male types.

Like with straight cables, the most simple one requires 3 wires only.

If one end doesn't provide hardware handshake, while hardware handshake can't be disabled on the other side, then we need a cable with shortened handshake signals.

A 5-wire cable is required for basic RTS/CTS flow control. Again, it is a good idea to locally add wires to the unused handshake signals.

The so called Null Modem Cable uses 7 wires and can be generally used for connecting two DTE devices.
