Đầu Jack FUJIKURA DDK 57-30240 24 Pin Male Centronics 2 Rows 2.16mm Pitch Connector 5A 1200VAC For Servo Drive, PLC, CNC Industrial, Robot Industrial, Medical Connector Cable

Mã SP: 11462

Thương hiệu: FUJIKURA DDK Connector

Loại sản phẩm: DDK 57-30240 Connector

Đánh giá

:

Giá

:

650.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/FUJIKURA DDK Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Specifications
FUJIKUR DDK Connectors-Original
Part No.: 57-30240
Attribute: Value
Gender: Male
Number of Contacts: 24
Pitch: 2.16mm
Body Orientation: Straight
Mounting Type: Cable Mount
Contact Material: Brass
Contact Plating: Gold
Housing Material: PBT (Insulator)
Current Rating: 5.0A
Voltage Rating: 1200 V ac
Termination Method: Solder
Series: Centronics

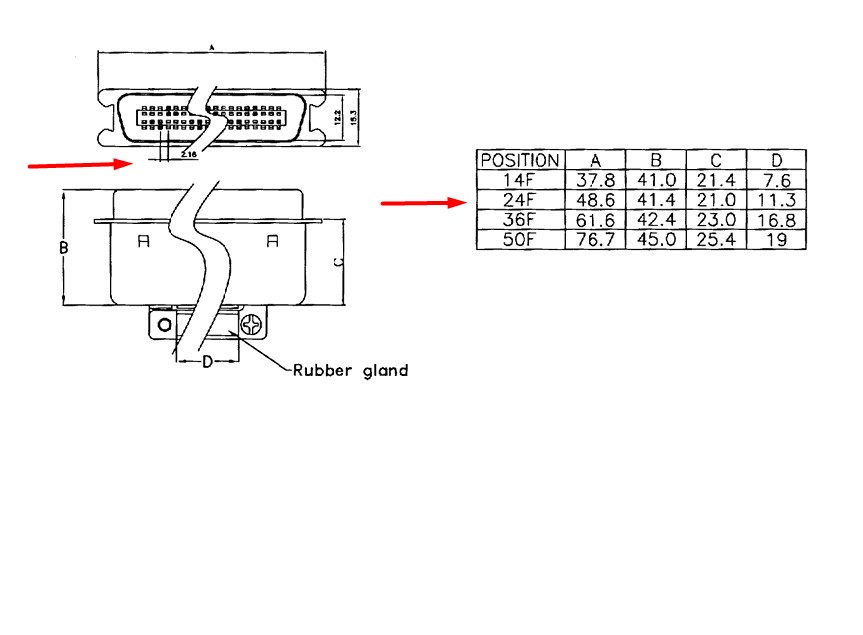

Length: 48.6mm
Maximum Operating Temperature: +105°C
Width :  15.3mm
Depth:  41.4mm
Minimum Operating Temperature: -55°C
Đầu Jack FUJIKURA DDK 57-30240 24 Pin Male Centronics 2 Rows 2.16mm Pitch Connector 5A 1200VAC For Servo Drive, PLC, CNC Industrial, Robot Industrial, Medical Connector Cable
