Đầu Jack DDK 57F-24 24 Pin Male Shielded IDC Flat Cable Connector Centronics 2 Rows 2.16mm Pitch For Servo Drive, PLC, CNC Industrial, Robot Industrial, Medical Connector Cable

Đầu Jack DDK 57F-24 24 Pin Male Shielded IDC Flat Cable Connector Centronics 2 Rows 2.16mm Pitch For Servo Drive, PLC, CNC Industrial, Robot Industrial, Medical Connector Cable

Mã SP: 12013

Thương hiệu: DDK

Loại sản phẩm: Connector DDK 57F-24 24 Pin Male

Đánh giá

Giá

800.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/DDK Connector
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Chi Tiết Sản Phẩm

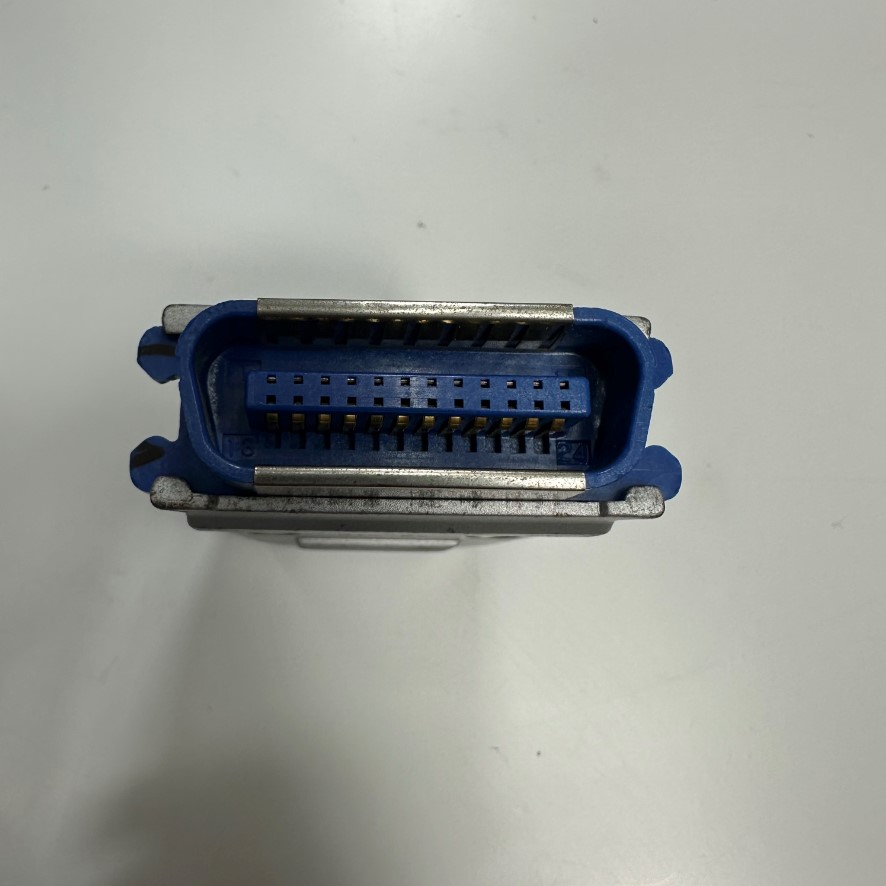

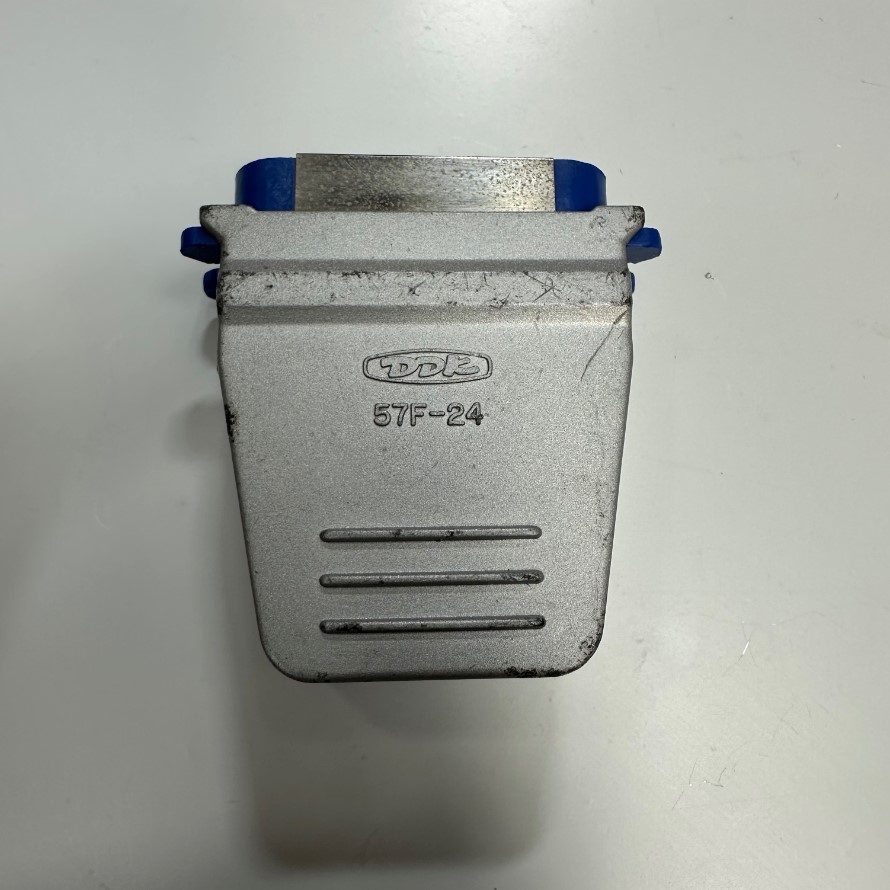

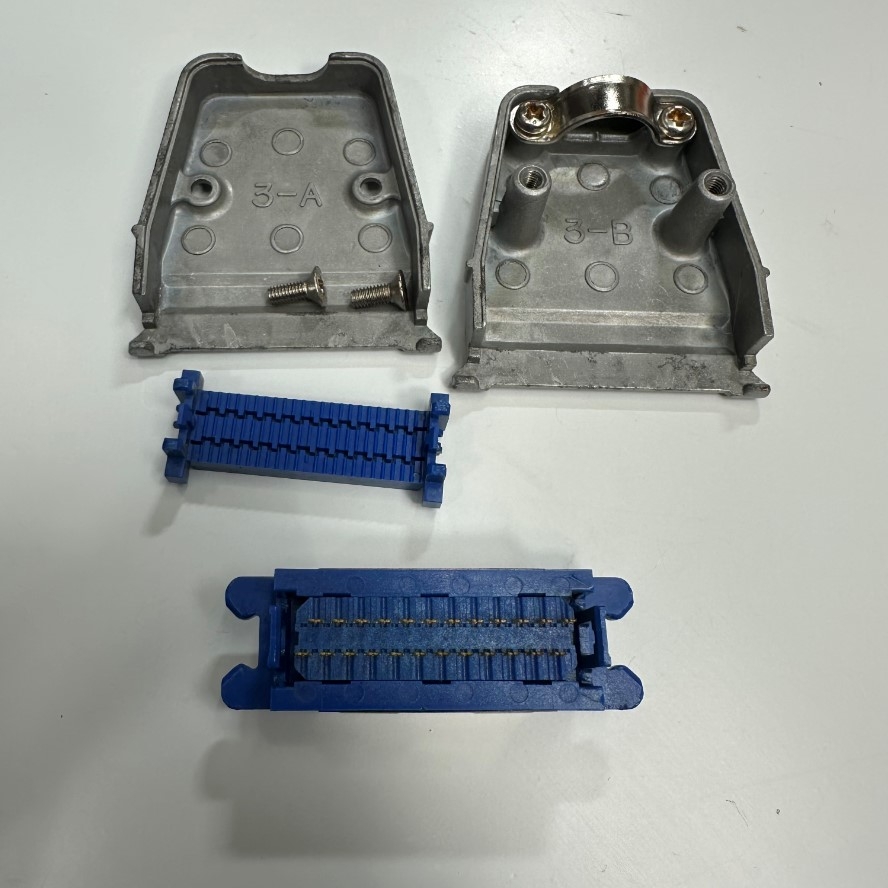

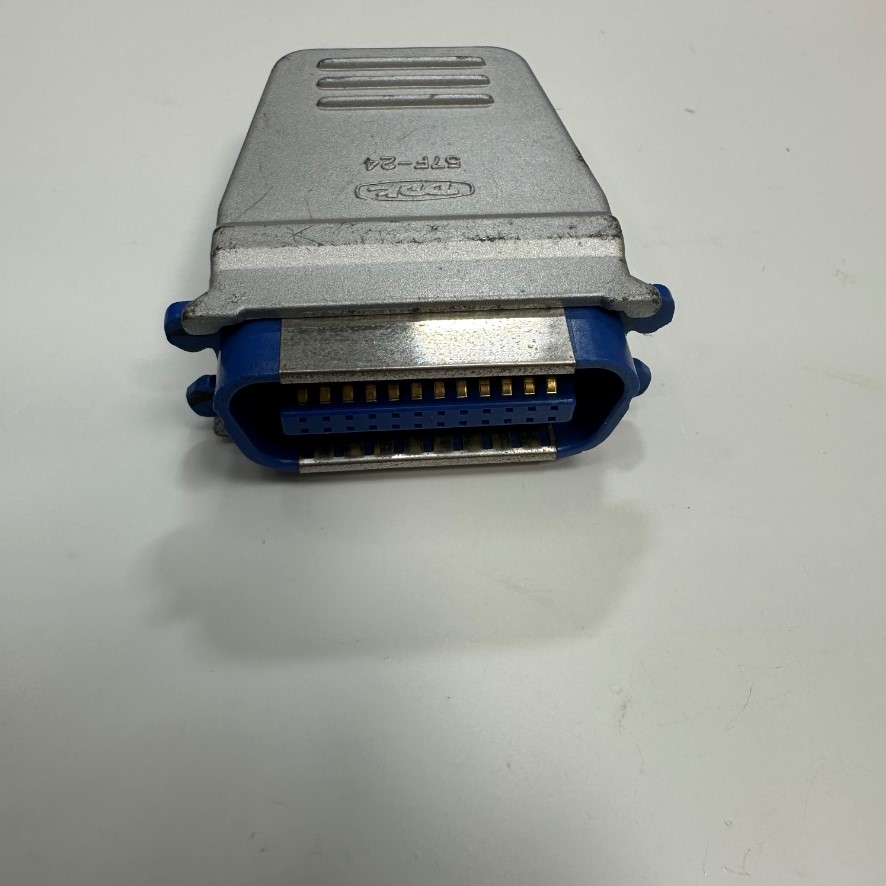

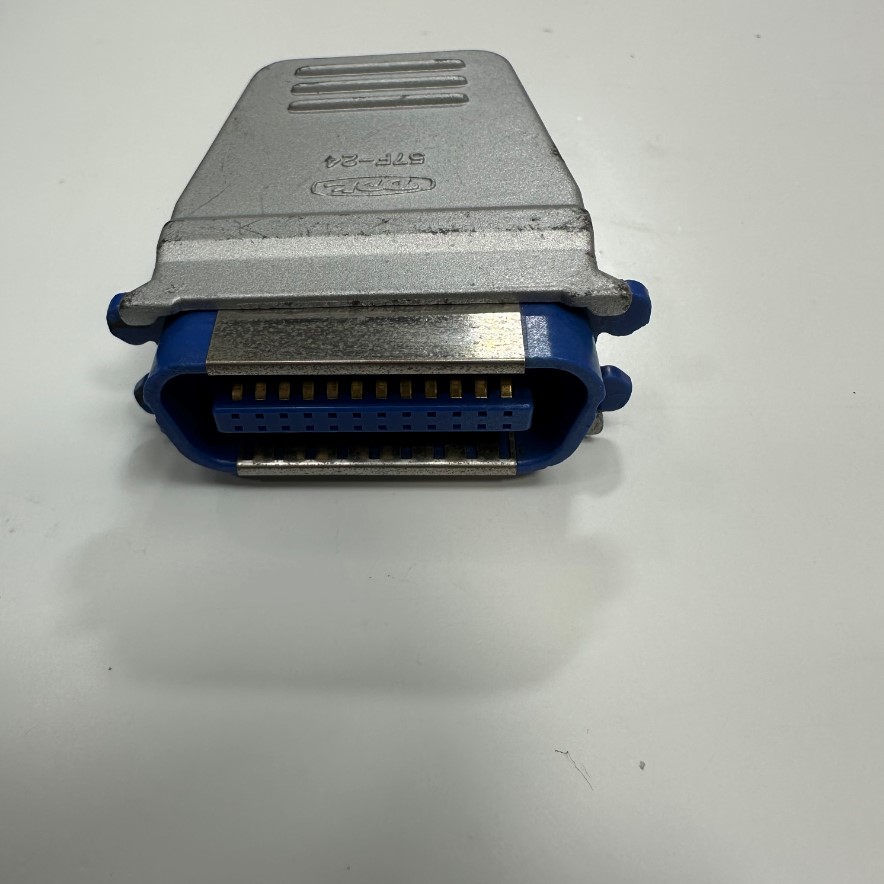

DDK 57F-24 Connector 24 Pin Male Shielded IDC Flat Cable

Hàng Original Theo Thiết Bị

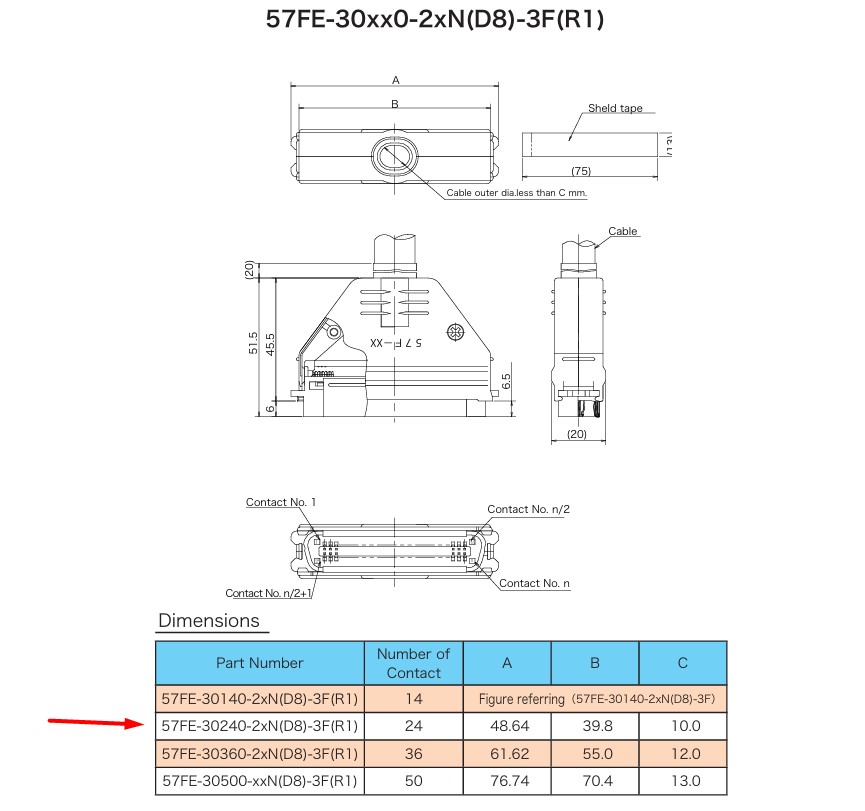

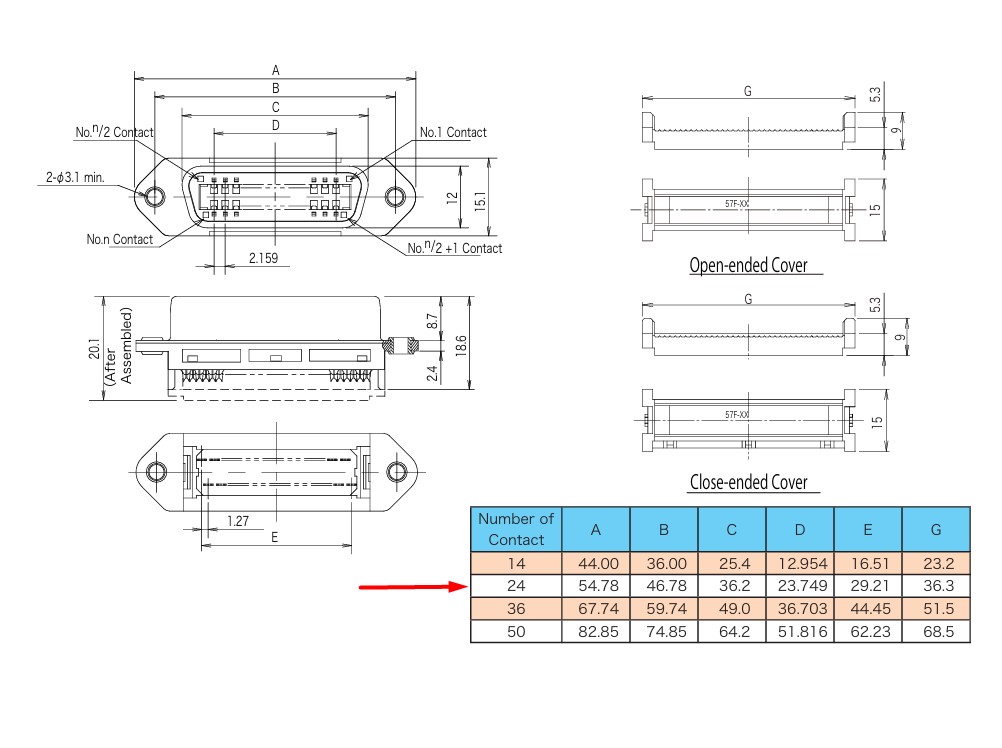

Specifications
Japan/DDK Connector-Original
Part No.: DDK 57F-24
Gender: Male
Number of Contacts: 24
Pitch: 2.16mm
Termination Method: IDC Flat Cable Connector
Series: Centronics
Body Orientation: Straight
Rated Voltage: 250V AC (r.m.s.)
Rated Current: 2A / Contact
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Insulation Resistance: 1000MΩ min. at 500V DC
Operating Temperature: -55℃～＋105℃
Applicable Cable: 1.27mm AWG#28 (Solid Cable, Stranded Cable) AWG#30 (Solid Cable)
Đầu Jack DDK 57F-24 24 Pin Male Shielded IDC Flat Cable Connector Centronics 2 Rows 2.16mm Pitch For Servo Drive, PLC, CNC Industrial, Robot Industrial, Medical Connector Cable
