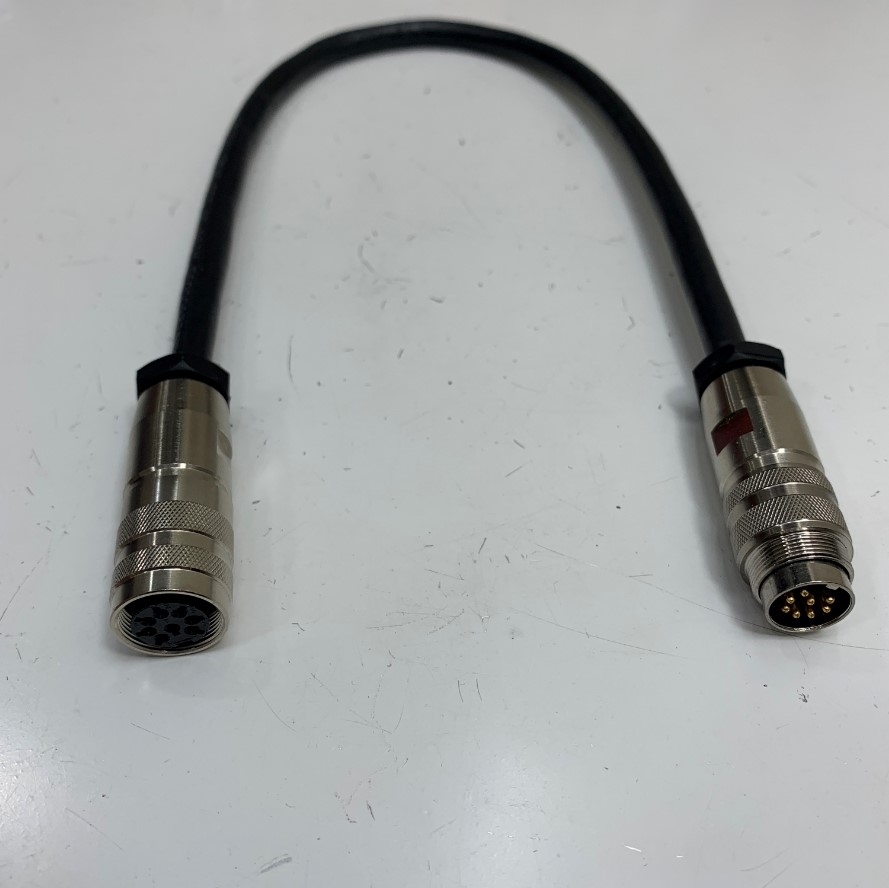

Cáp RET-8-M-F-0.5 AISG 8 Pin Male to AISG 8 Pin Female Ret Control Cable 0.5M Length 8 Conductors MCU to RCU

Mã SP: 11290

Thương hiệu: Original AISG 2.0 Cable

Loại sản phẩm: AISG Connector 8 Pin DIN Male to Female

Đánh giá

:

Giá

:

2.100.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/AISG 2.0 Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

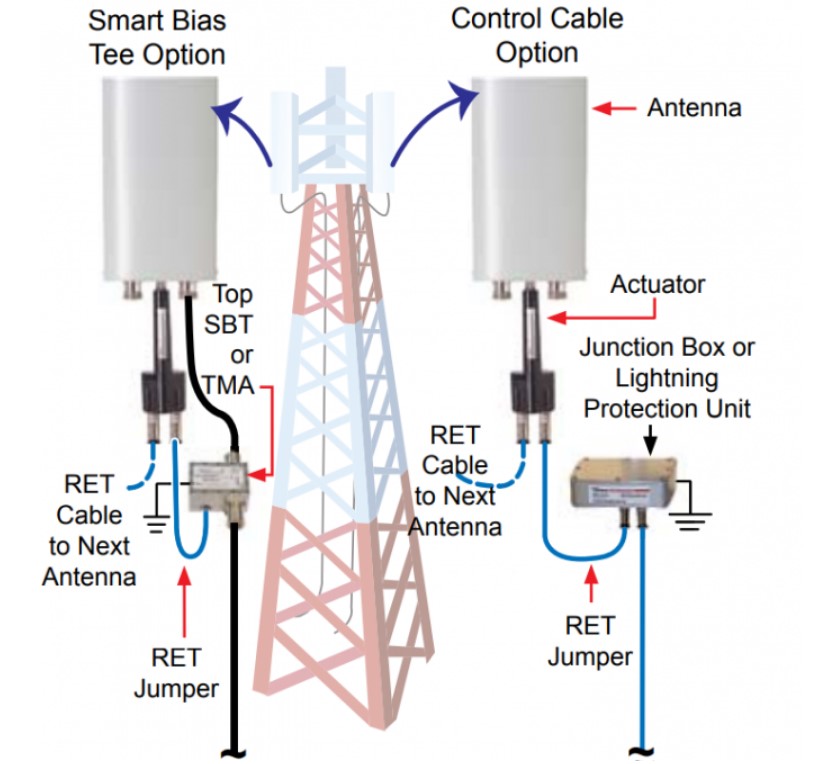

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely.
This RET Cables provide a direct connect option from the Master Control Unit (MCU) to a RET module,
feed data and power from controller to RET System. These cables are offered in a variety of lengths,
with the shorter lengths being available to “daisy chain” multiple RET modules together at the top of the antenna base station

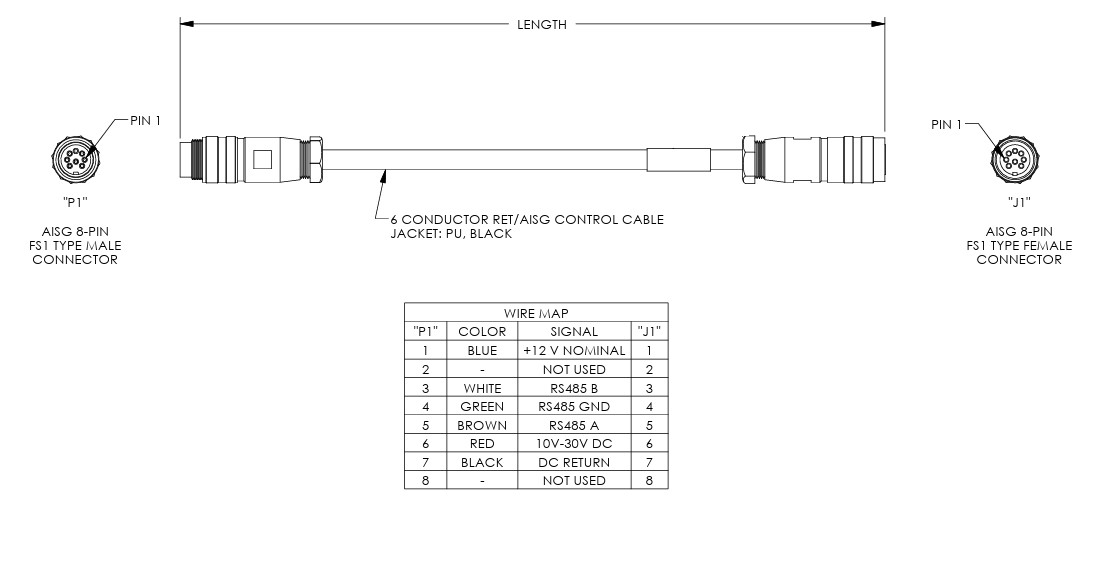

Cable Drawing

Product Description
Length: 0.5 meter, customized available,
Protocol: AISG 1.1 | AISG 2.0
AISG Connector: 8-pin DIN Female / Male
AISG Connector Standard: IEC 60130-9
Insulation resistance: ≥5MΩ
Contact resistance: ≤5mΩ
Connector Interfaces:Terminated AISG 8‐pin socket screw lock male and female

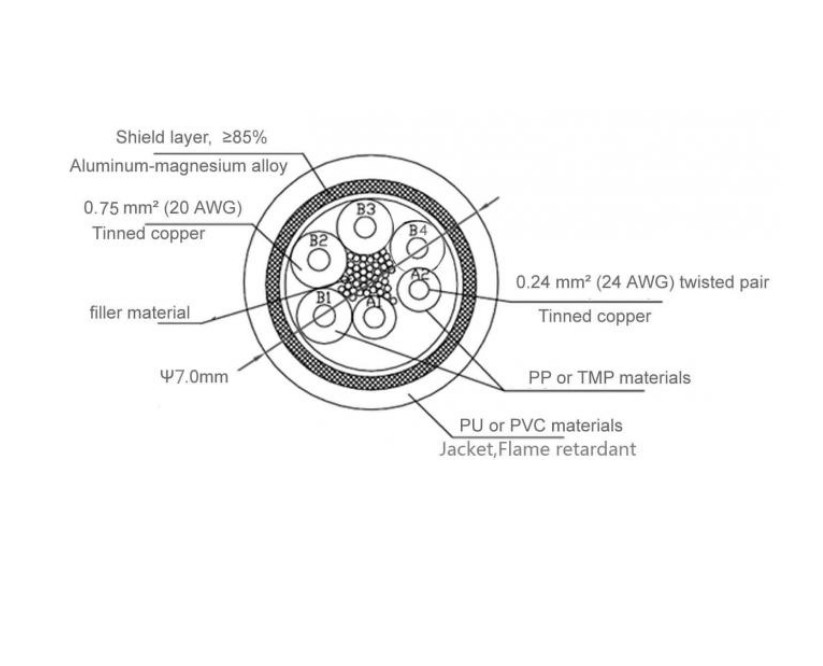

About the cable:
4 x 0.75mm2(20 AWG) stranded (power) 2 x 0.25mm2(23 AWG) twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
4 x 0.41mm2(21AWG) stranded (power) 2 x 0.21mm2 (24 AWG)twisted pair (data) 6 conductor cable 7mm (0.26 inch) diameter
The above two wire sizes for your opinion
The outer jacket is available in two materials for your opinion, PU or PVC
Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%
Cáp RET-8-M-F-0.5 AISG 8 Pin Male to AISG 8 Pin Female Ret Control Cable 0.5M Length 8 Conductors MCU to RCU
