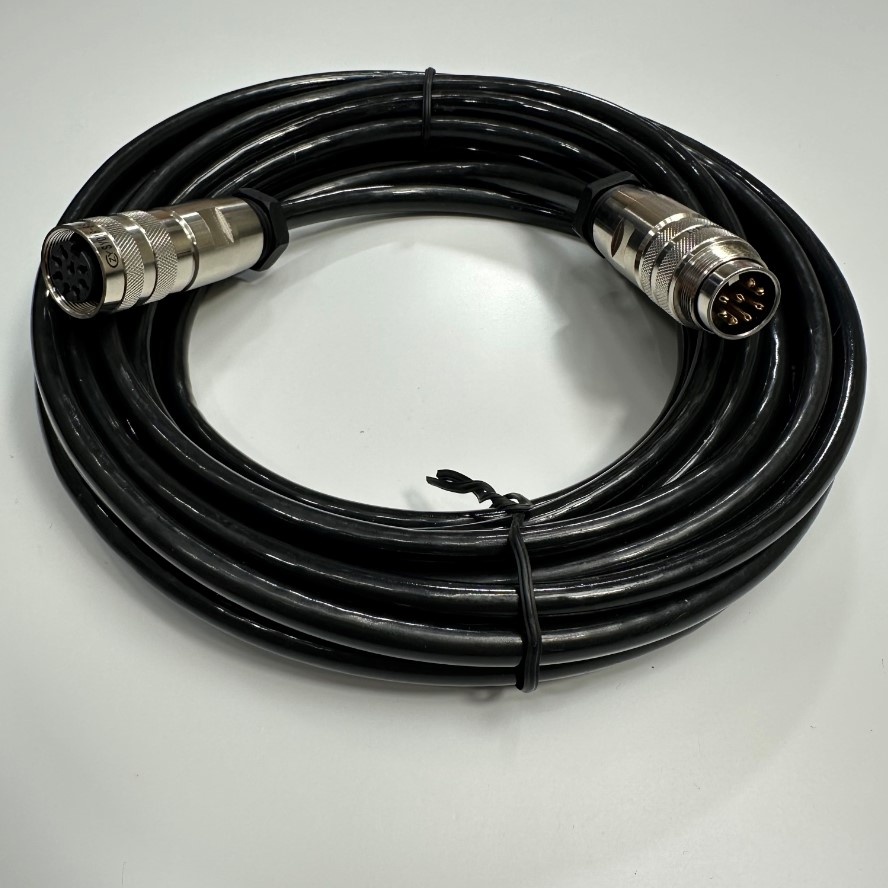

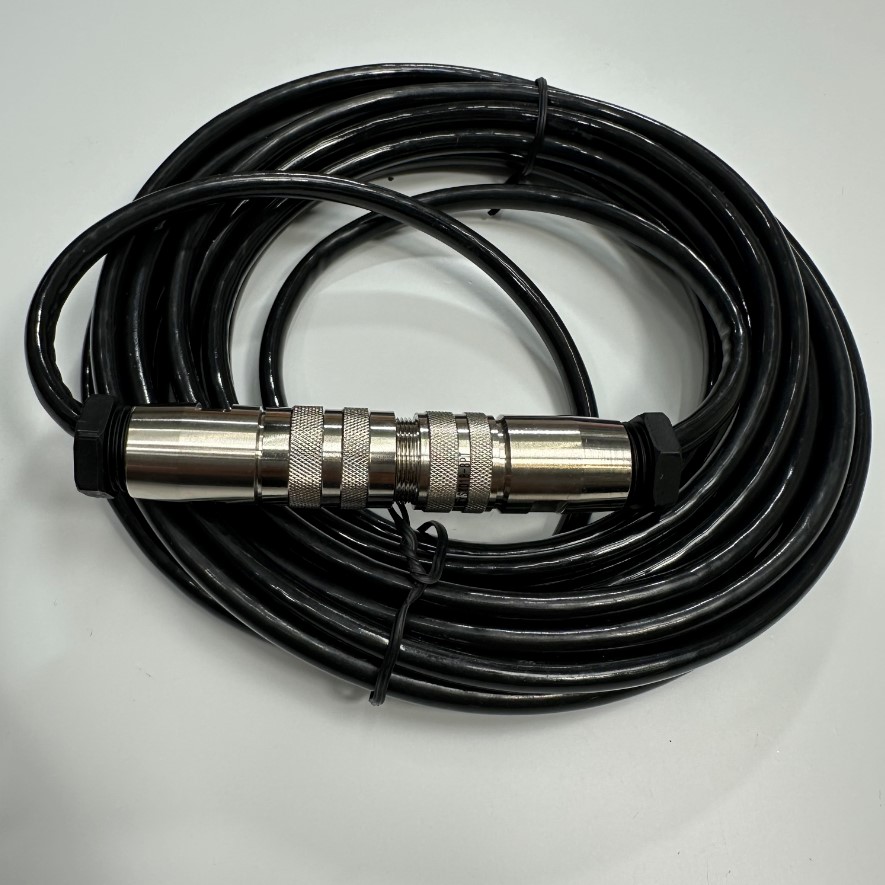

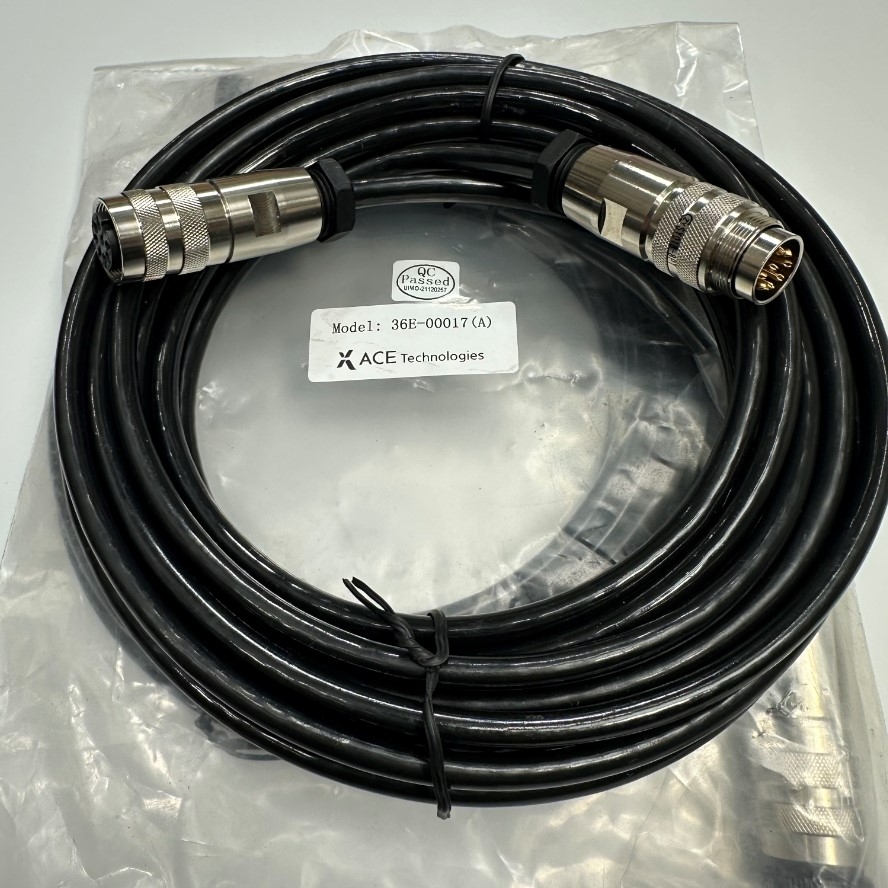

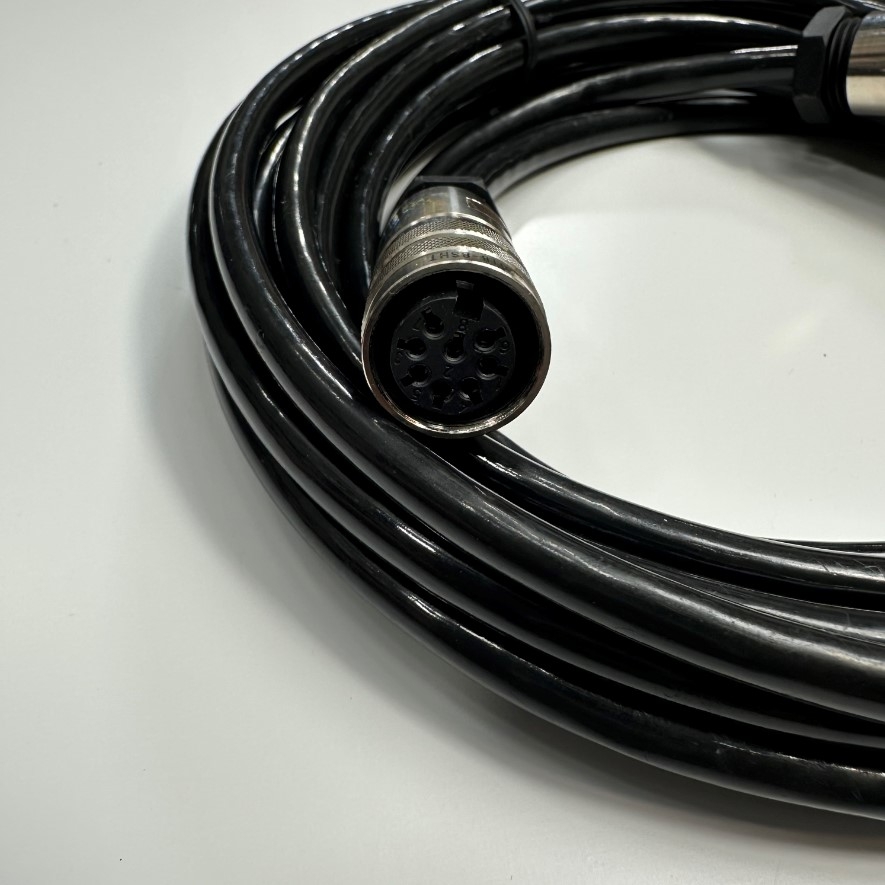

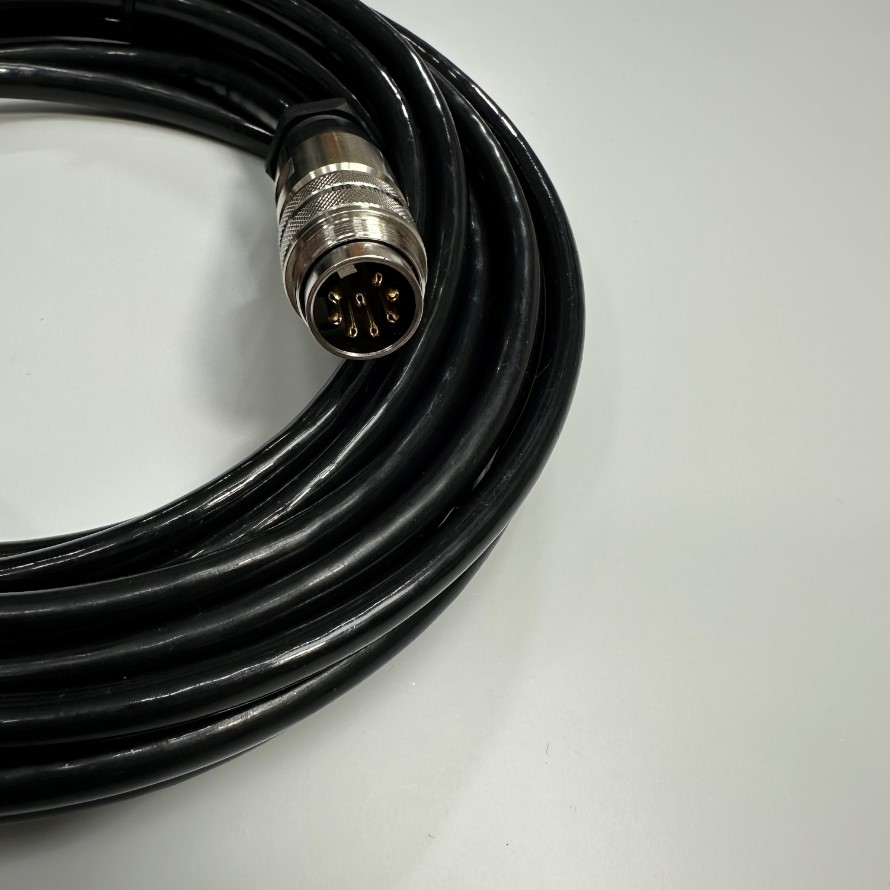

Cáp 5M 17ft Cable AISG M16 8 Pin Male to Female ACE Technologies 36E-00017(A) For RET Control Cable MCU to RCU Antenna Line Devices

Mã SP: 12143

Thương hiệu: Ace Electronics

Loại sản phẩm: AISG 8 Pin Male to Female

Đánh giá

:

Giá

:

3.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Ace Electronics AISG Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

AISG 1.1 and 2.0 compliant control cables

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely.
This RET Cables provide a direct connect option from the Master Control Unit (MCU) to a RET module,
feed data and power from controller to RET System. These cables are offered in a variety of lengths,
with the shorter lengths being available to “daisy chain” multiple RET modules together at the top of the antenna base station

Product Description
Length: 5 meter, customized available,
Protocol: AISG 1.1 & AISG 2.0

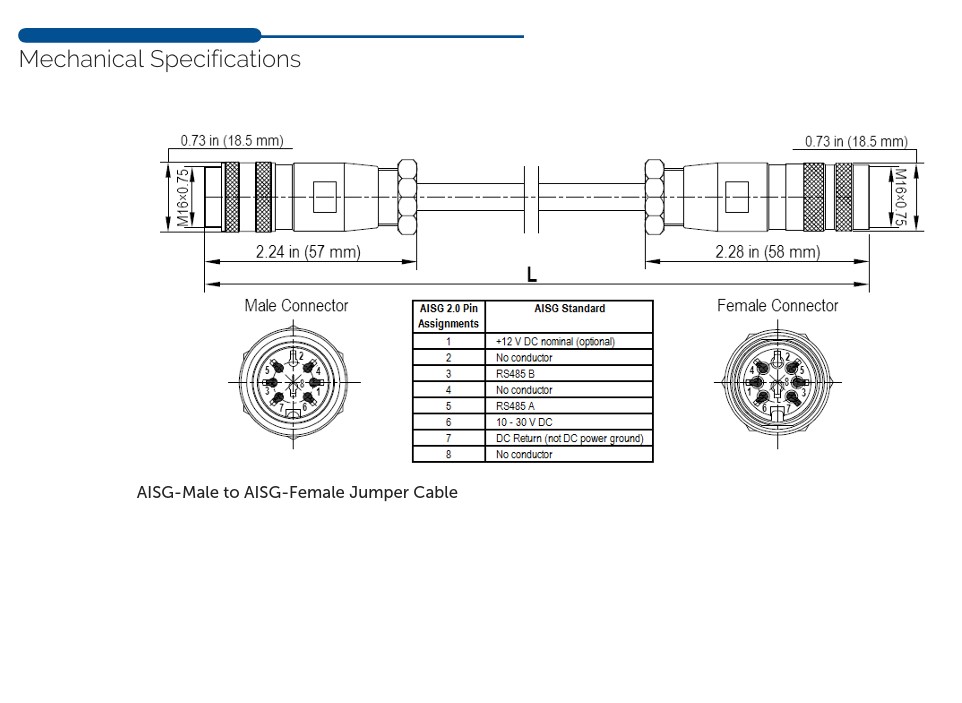

AISG Connector: 8-pin DIN Female / Male
AISG Connector Standard: IEC 60130-9
Insulation resistance: ≥5MΩ
Contact resistance: ≤5mΩ

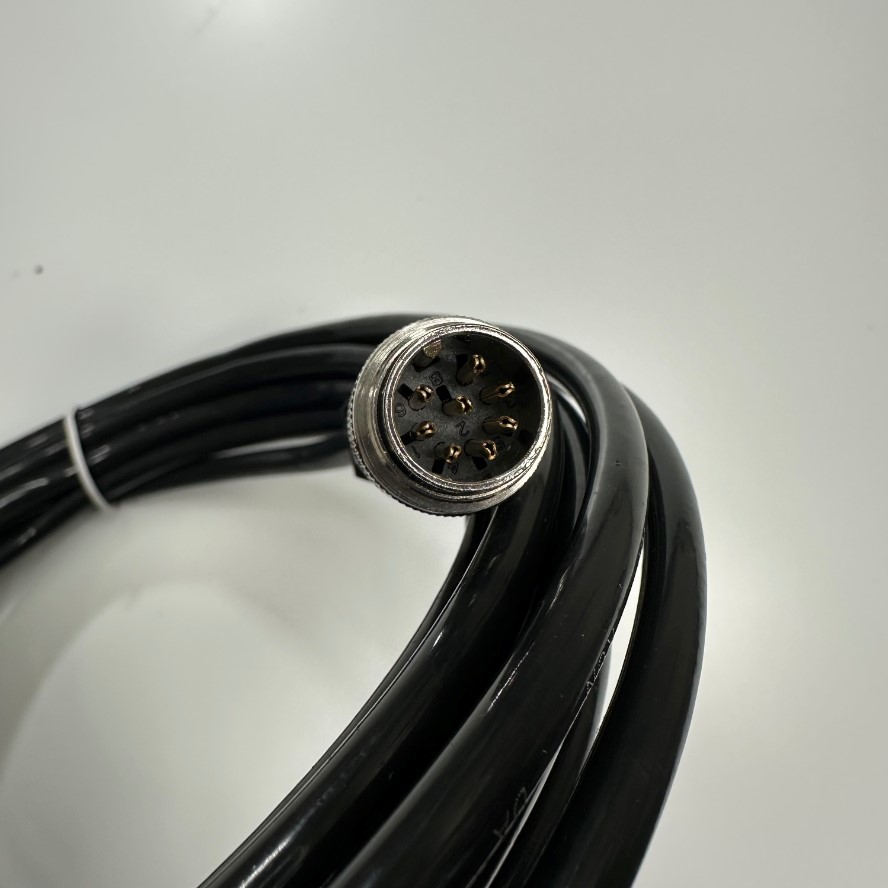

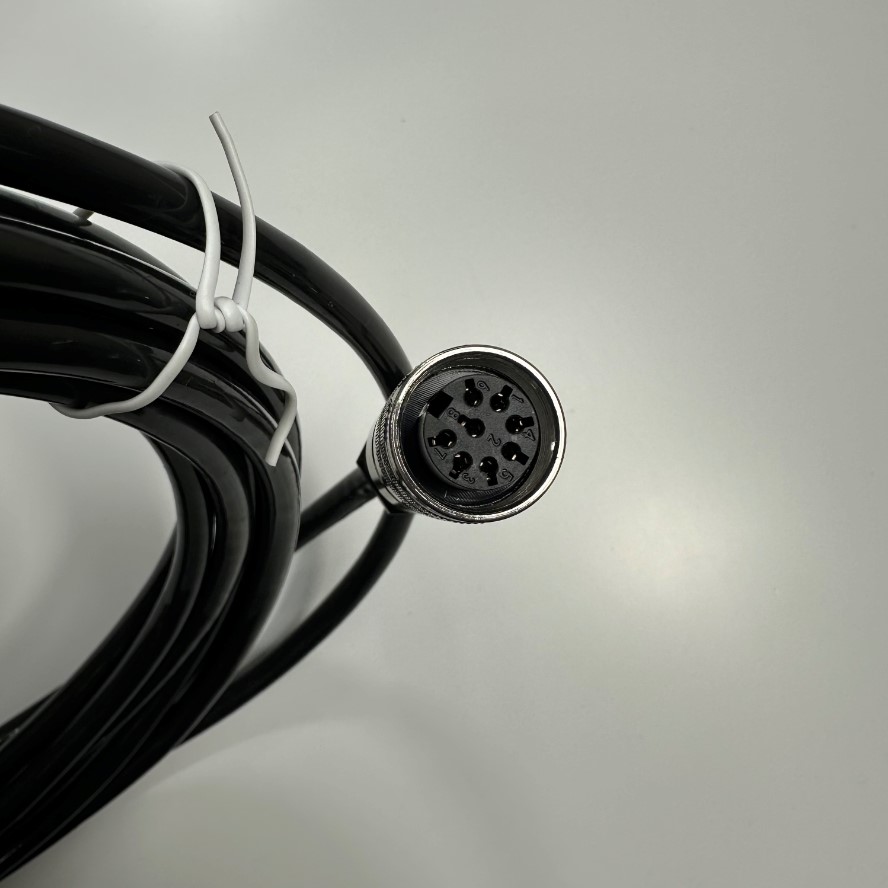

Connector Interfaces:Terminated AISG 8‐pin socket screw lock male and female
About the cable:
The above two wire sizes for your opinion
The outer jacket is available in two materials for your opinion, PU or PVC
Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%
Cáp 5M 17ft Cable AISG M16 8 Pin Male to Female ACE Technologies 36E-00017(A) For RET Control Cable MCU to RCU Antenna Line Devices
