Cáp LS-SER-9MF-5M Dài 5M 17ft RS232 Serial Data DB9 Male to Female Cable Extension Shielded Cable Molex 26AWG UL E116273 80°C 300V OD 7.0mm Color Black For Industrial Communication

Mã SP: 9927

Thương hiệu: KTT PLC/HMI/Computer

Loại sản phẩm: DB9M/DB9F Straight Through Cable

Đánh giá

:

Giá

:

700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

(LS-SER-9MF-5M) 시리얼 다이렉트 연장 케이블-5M

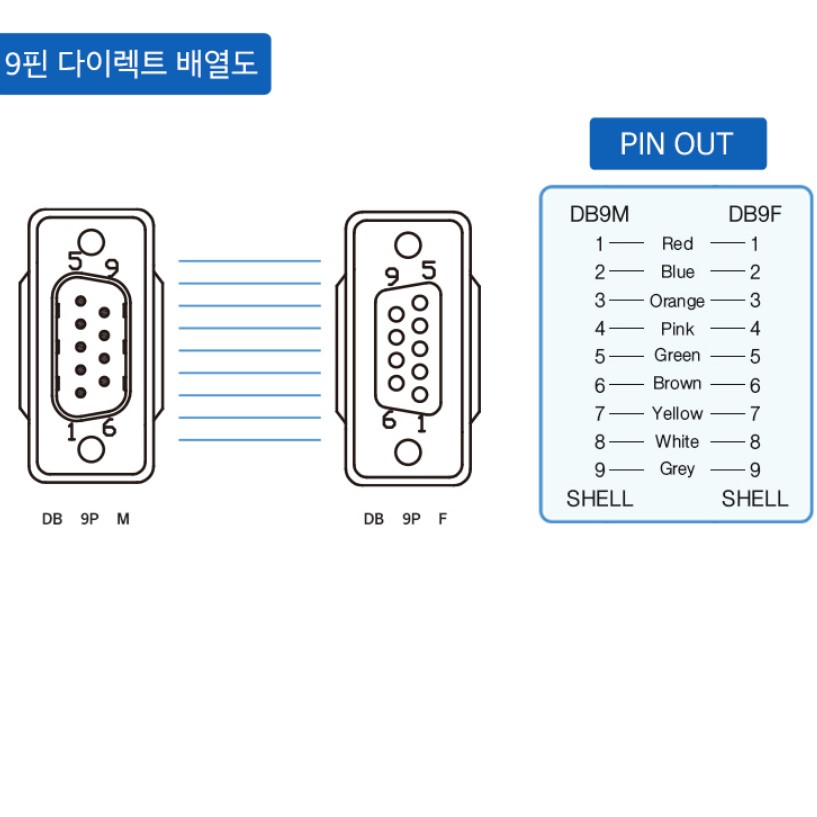

Wiring Diagram RS232 Serial Cable Extension Male to Female Straight Through Cable

RS232 Serial Cable Extension Male to Female Straight Through Cable
Brand: Thientruongpc - KTT
Cable Type: RS232 Serial Cable DB9 Serial Straight Through Cable
Connector 1: DB9 Pin Male Connector x1
Connector 2: DB9 Pin Female Connector x1
Connector plating: Nickle Plated
Gender: Male to DB9 Female
Wire: UL 26AWG - Shielded Cable OD=7.0mm
Shielding: Yes
Jacket: CM-PVC
Pin-Out: Straight Through Connection: 1-1 / 2-2 / 3-3 / 4-4 / 5-5 / 6-6 / 7-7 / 8-8 / 9-9 / Shield-Shield
Cable Length:  17 ft [5 m]
Color: Black
Cable MOLEX 4 PAIR 26 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C LL31941 CSA AWM I/II A 75°C 300V FT4 RoHS COMPLIANT
Cáp LS-SER-9MF-5M Dài 5M 17ft RS232 Serial Data DB9 Male to Female Cable Extension Shielded Cable Molex 26AWG UL E116273 80°C 300V OD 7.0mm Color Black For Industrial Communication
