Cáp Dell Part CN-01502C Dài 3M External Mini SAS-HD SFF-8644 to SFF-8088 Mini SAS Cable Molex Data Server Raid

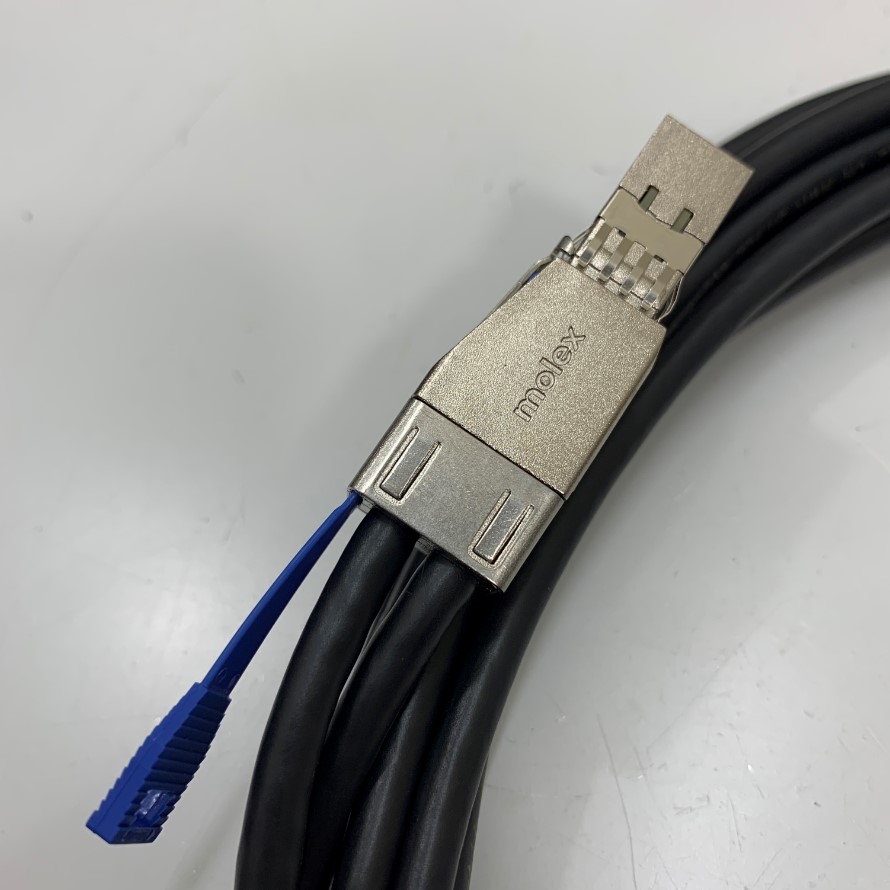

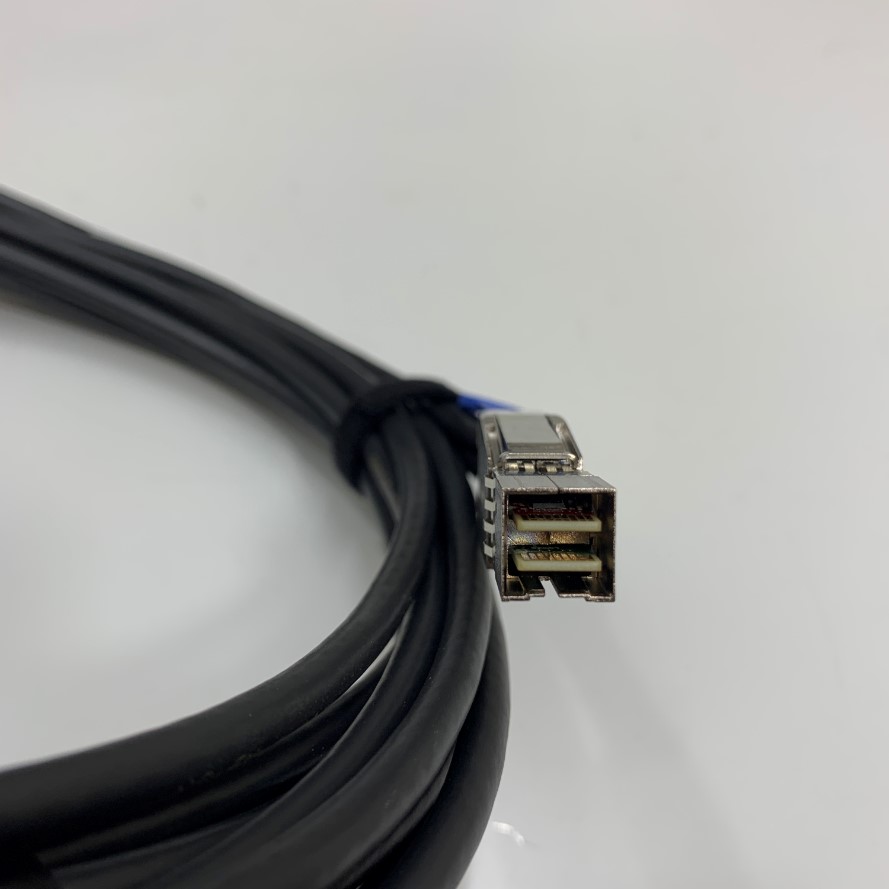

Mini Sas hd sff-8644 connector

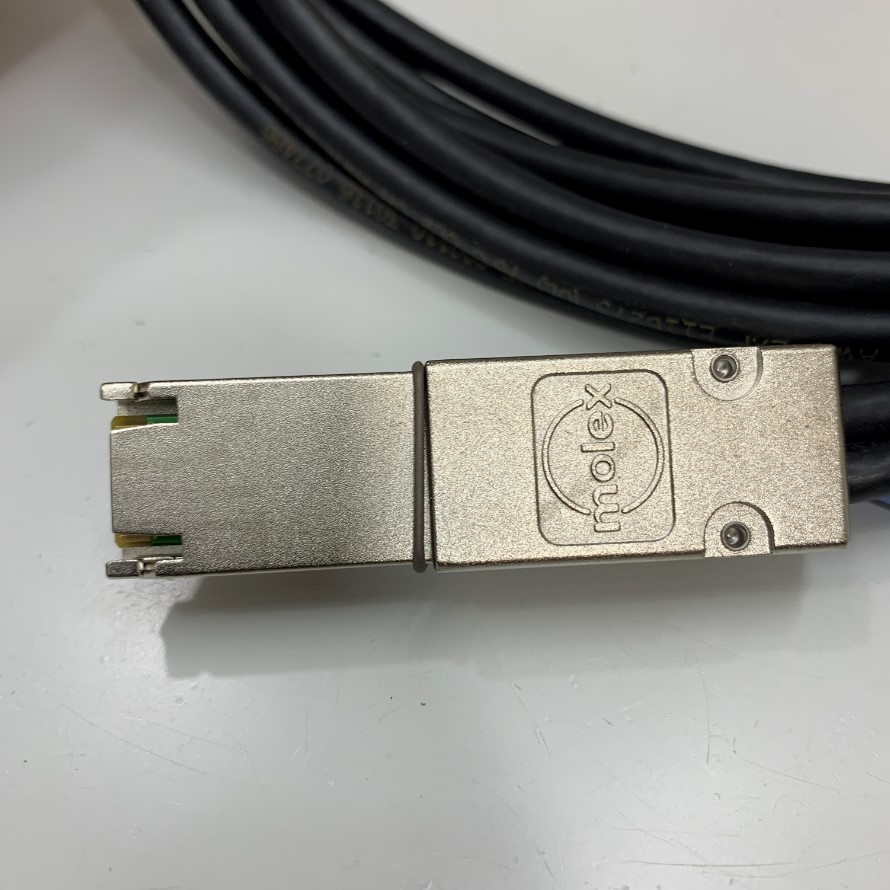

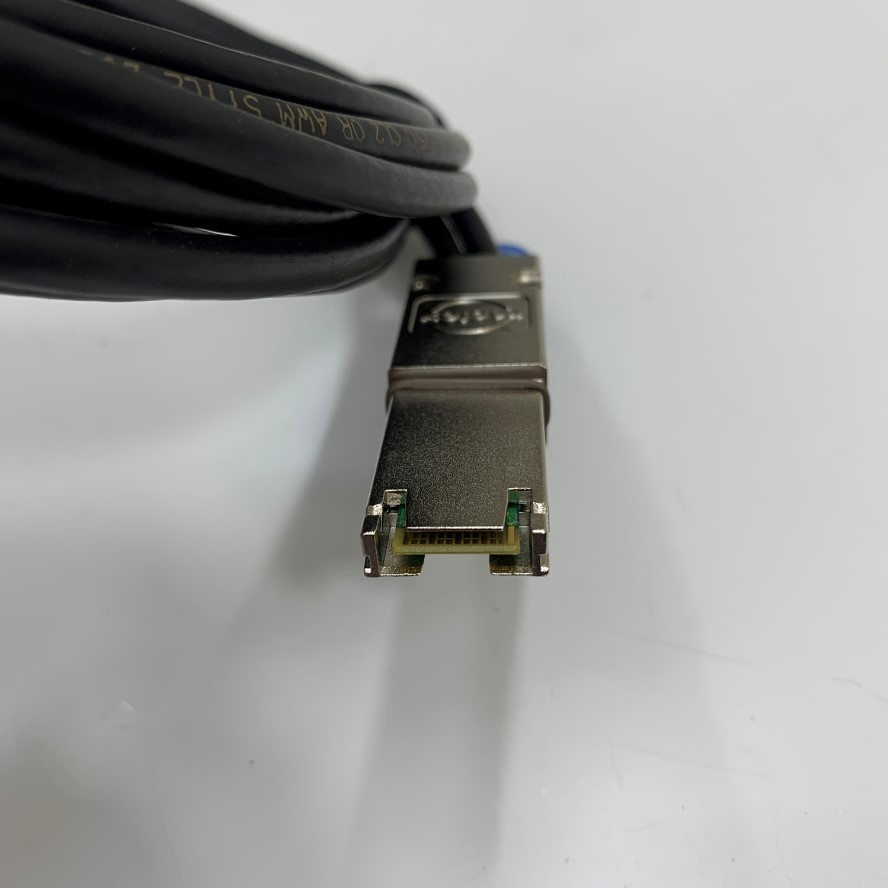

Mini SAS SFF-8088 connector

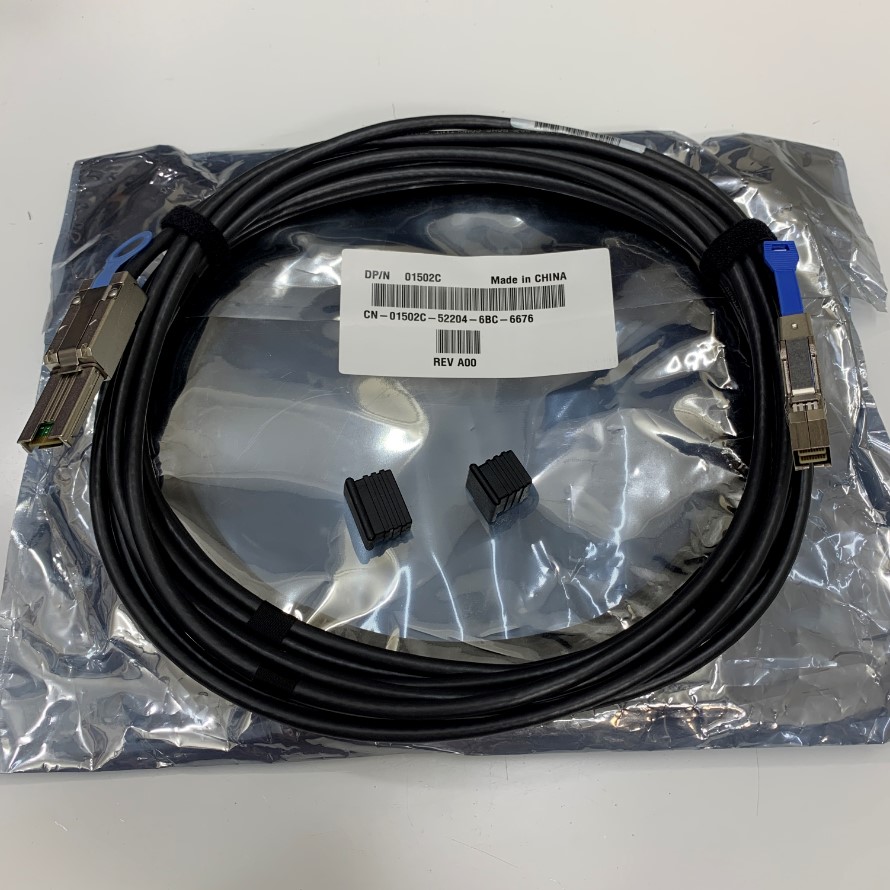

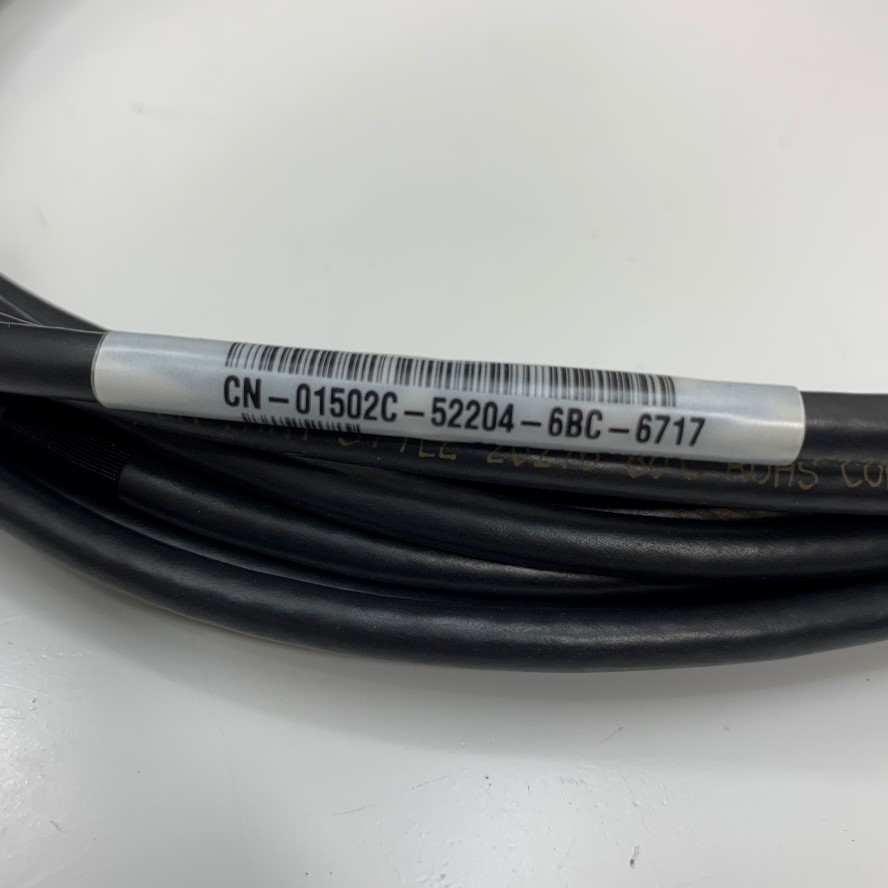

Part CN-01502C-52204-6BC-6717

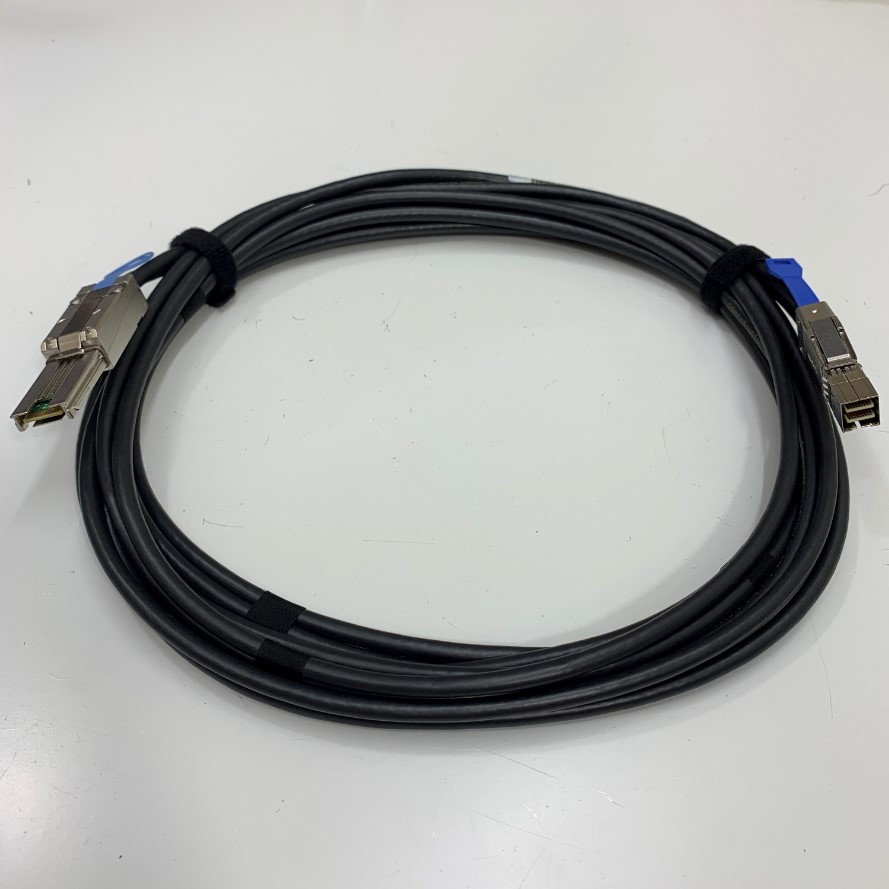

Dell HD2 Mini SAS SFF-8644 to SFF-8088 External Cable 3M
Product description
Brand: Dell-China
Part #: 01502C
Manufacturer: Dell/EMC
Connectors
Connector A: SFF-8644 (4x HD Mini SAS - Molex Connector)
Connector B: SFF-8088 (4x Mini SAS) - Molex Connector)
Plated Connector: Gold
Color: Black
Length: 3M
American Wire Gauge (AWG): 28AWG
Dual Cable Diameter: 2x Ø 5.6 mm
Cable MOLEX 4 PAIR 28 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C ROHS  COMPLIANT
Impedance = 100 Ohms
This cable is used to connect SAS 6G to SAS 12G controllers or other SAS devices
Data Rate: 6Gbps per channel
Fully compliant SAS 3.0 interface specifications
Excellent EMI performance
Signal Integrity 1. Mated Connector Impedance: 100 ohm±15%
Cable Absolute Impedance: 100 ohm±10%
Applications:
DATA Center
Servers, Storage racks, RAID systems
External Storage Systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Switches

Cáp Dell Part CN-01502C Dài 3M External Mini SAS-HD SFF-8644 to SFF-8088 Mini SAS Cable Molex Data Server Raid
Cable with SFF-8088 to SFF-8644 (external Mini SAS x4 connector 26-pin to 36-pin external Mini SAS hybrid connector) connection, for connecting hardware in racks and across adjacent racks. Compatible Mini SAS hybrid cables are suitable for connecting SAS devices (such as hard drives, controllers, storage area network hardware, etc.).  Cables support transmission rates of up to 6Gb/s (with 3Gb/s SAS and 6Gb/s SAS protocol)
