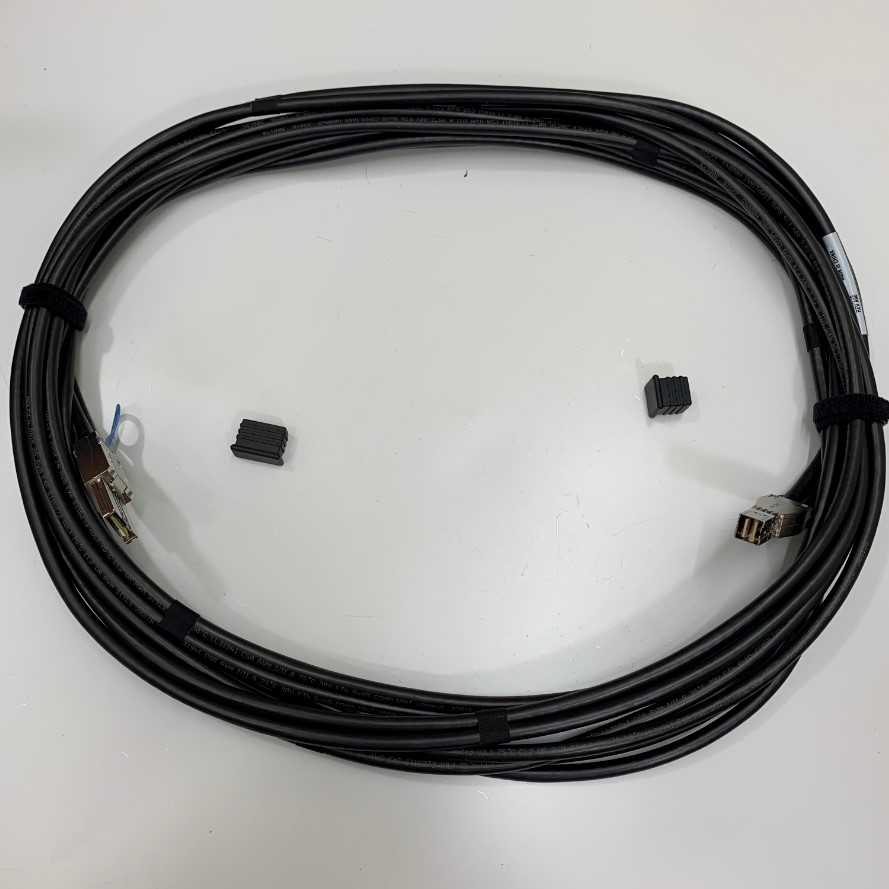

Cáp 0FDPNX Dell 5M External Mini SAS HD SFF-8644 to SFF-8088 Mini SAS Cable Molex Data Server Raid

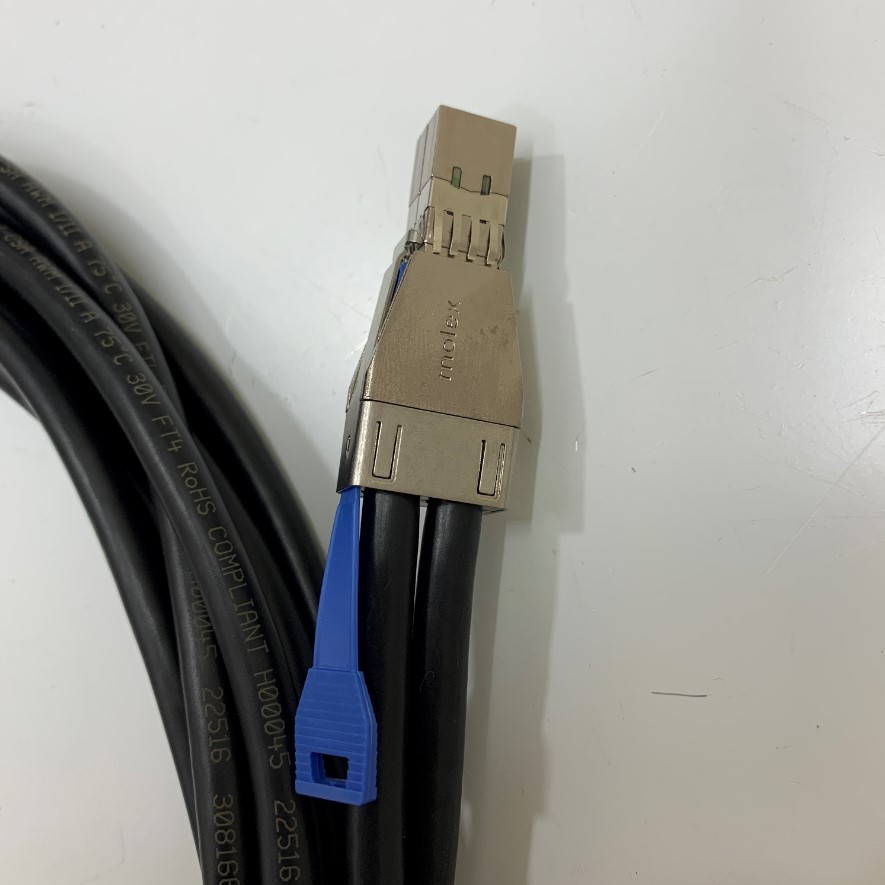

Mini Sas hd sff-8644 connector

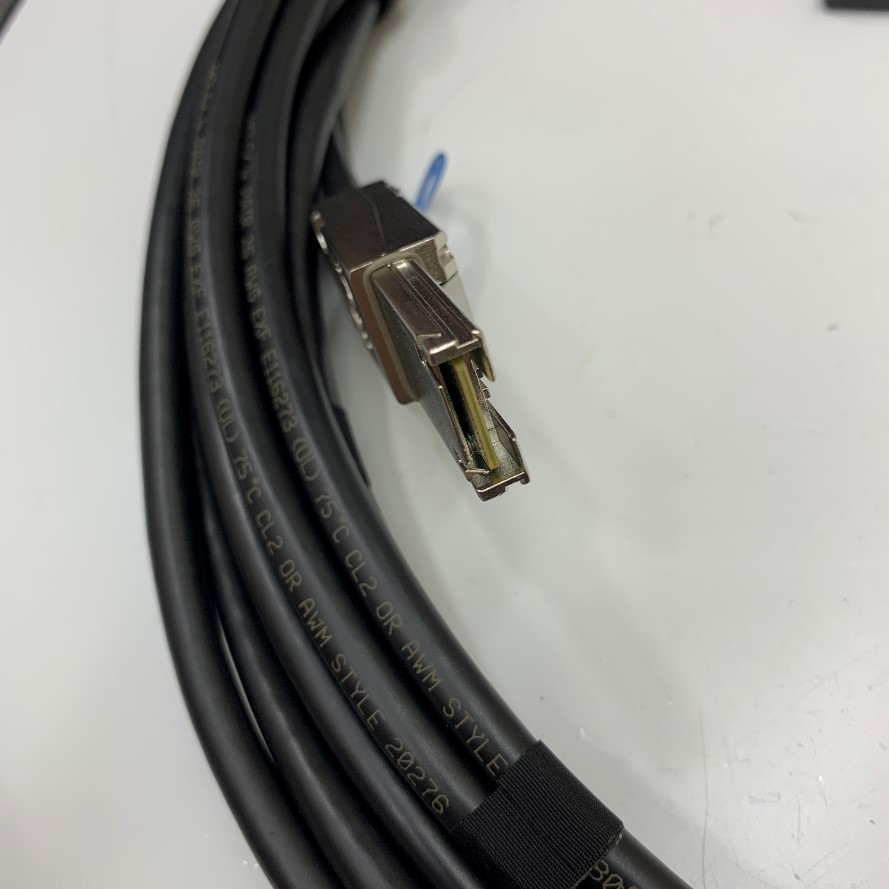

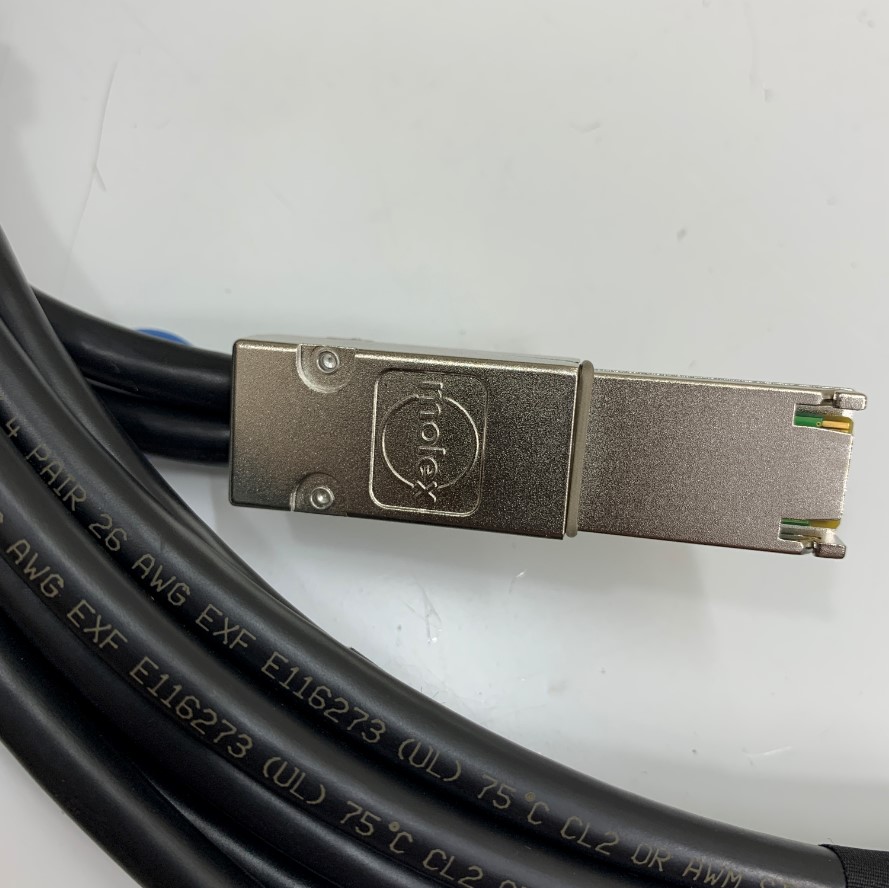

Mini SAS SFF-8088 connector

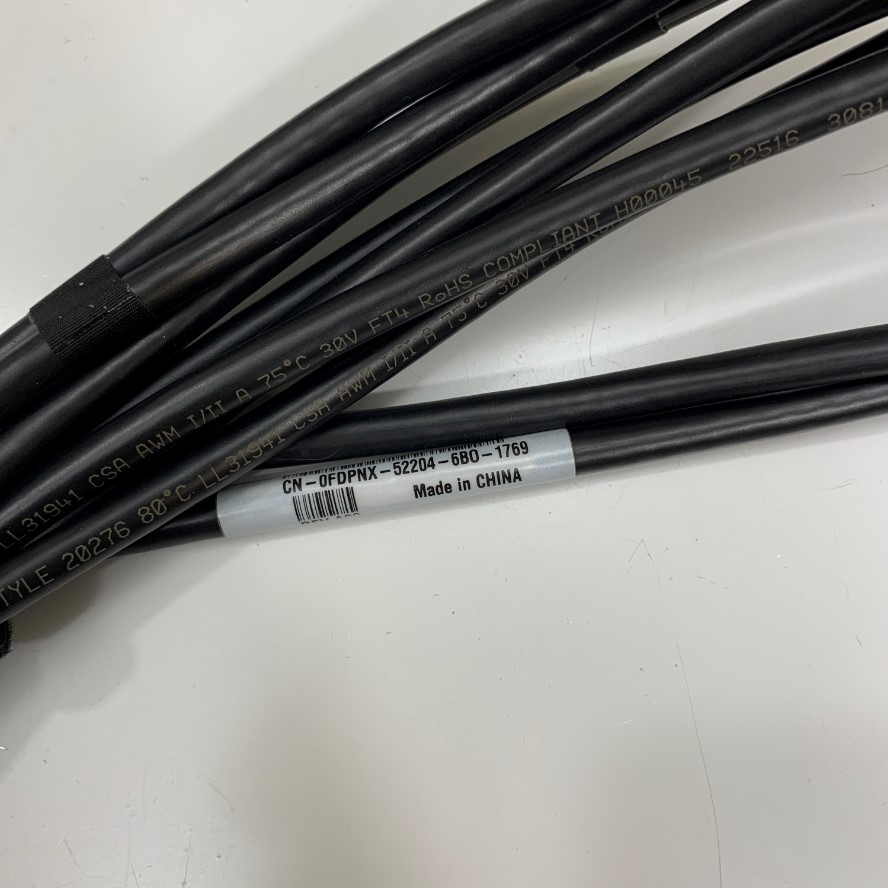

CN-0FDPNX-52204-6B0-1769

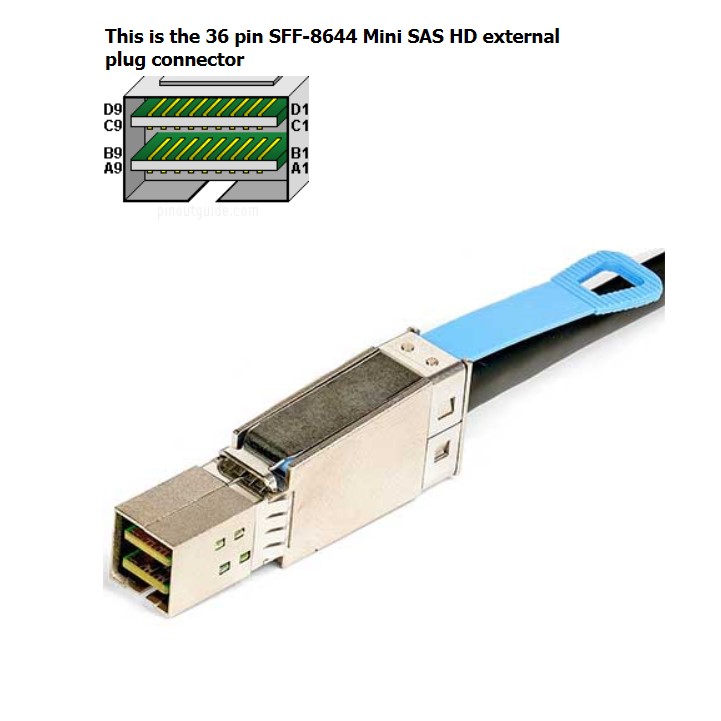

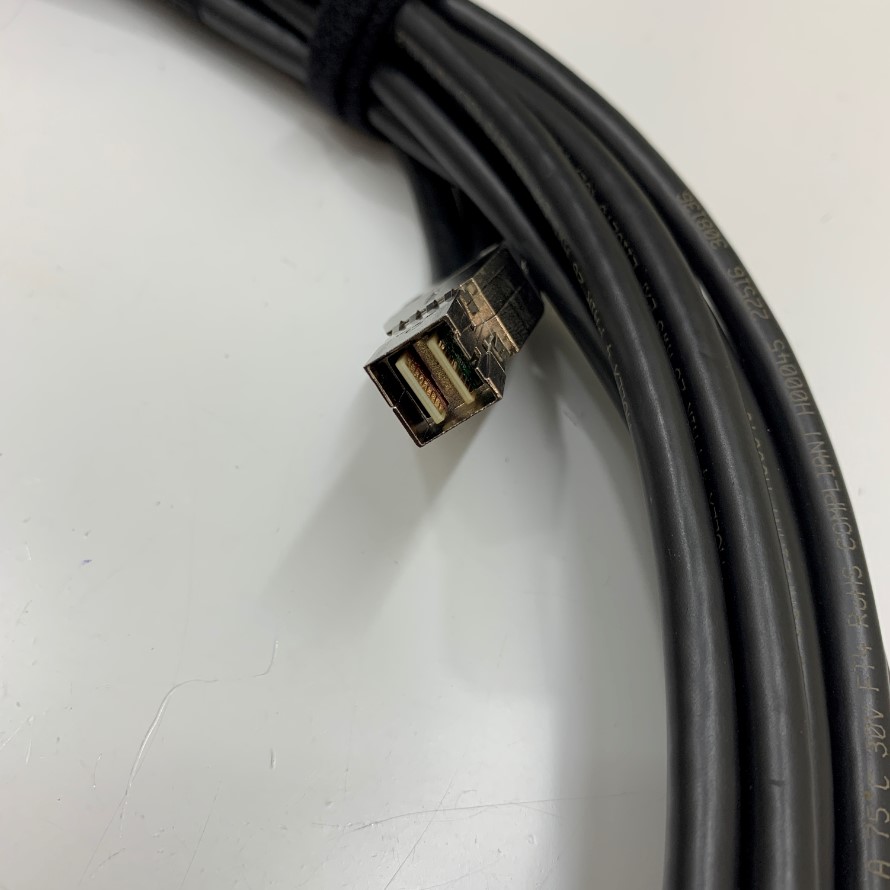

This is the 36 pin SFF-8644 Mini SAS HD external plug connector

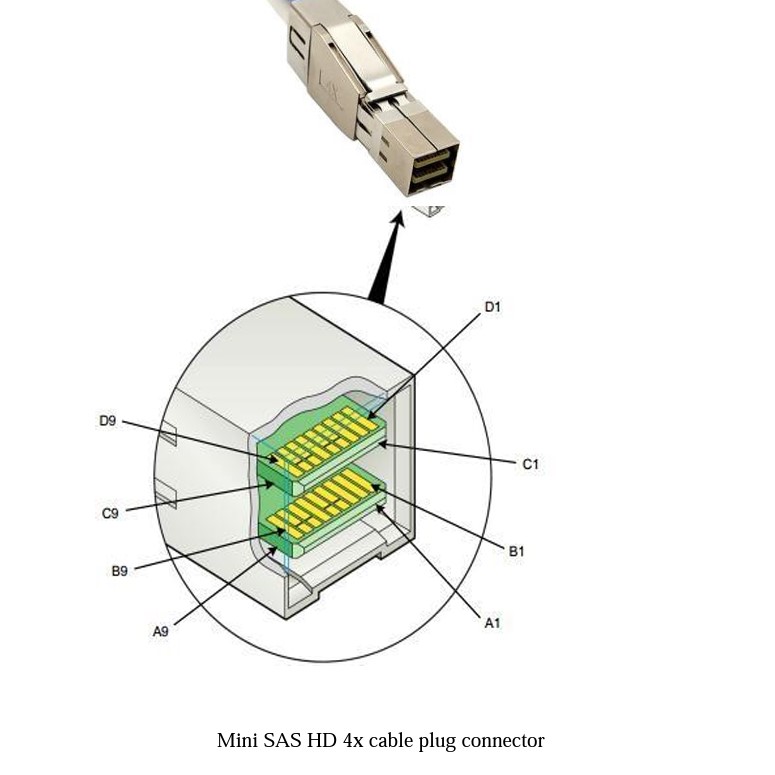

Mini SAS HD 4x cable plug connector

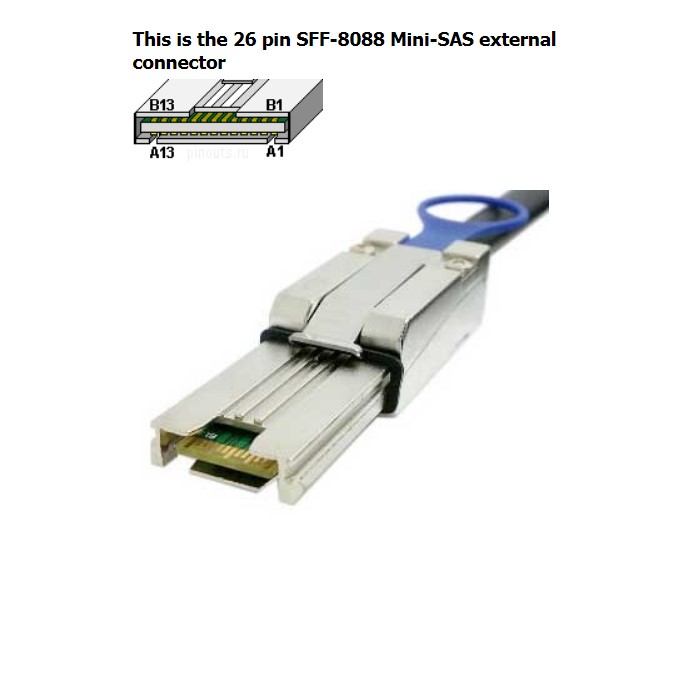

This is the 26 pin SFF-8088 Mini-SAS external connector

Product description

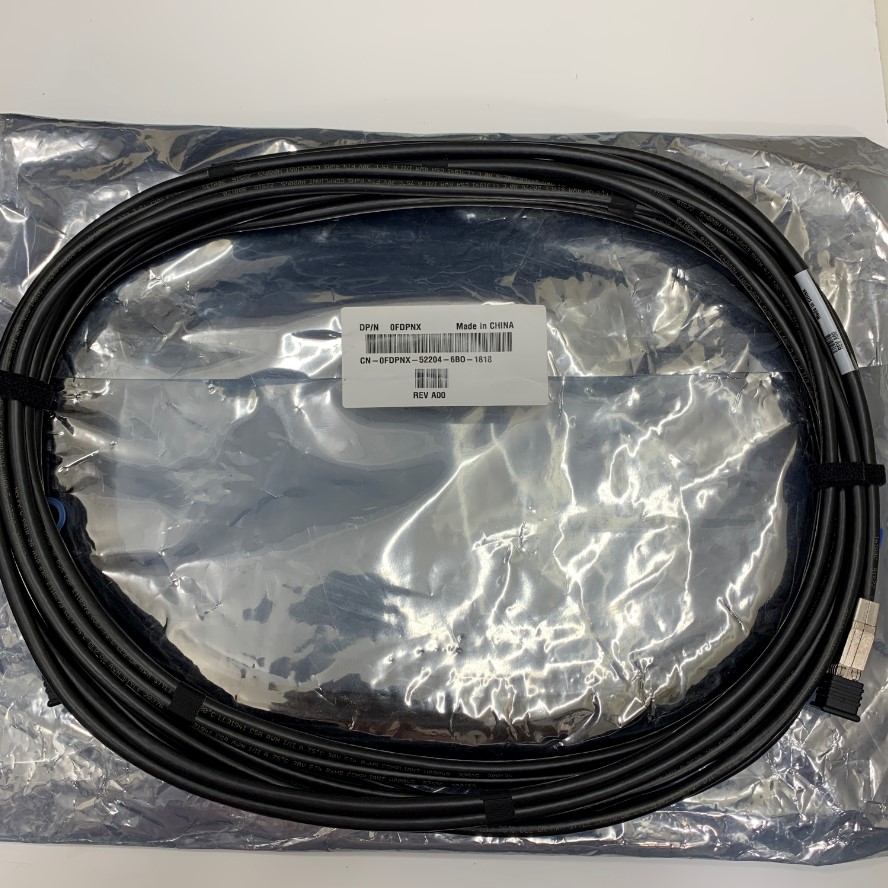

DELL 0FDPNX 5.0 meter Mini-SAS SFF-8088 to Mini-SAS SFF-8644 Cable
Original: Dell-China
Speed: 6GB SAS
Wire-Gauge: 26AWG
Specifications：
Connectors
Connector A: SFF-8644 (4x HD Mini SAS - Molex Connector)
Connector B: SFF-8088 (4x Mini SAS) - Molex Connector)
Plated Connector: Gold
Color: Black
Length: 5M
American Wire Gauge (AWG): 26AWG
Dual Cable Diameter: 2x Ø 6.9 mm
Cable MOLEX 4 PAIR 26 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C LL31941 CSA AWM I/II A 75°C 30V FT4 RoHS COMPLIANT H00045 22516
Impedance = 100 Ohms
This cable is used to connect SAS 6G to SAS 12G controllers or other SAS devices
Data Rate: 6Gbps per channel
Fully compliant SAS 3.0 interface specifications
Excellent EMI performance
Signal Integrity 1. Mated Connector Impedance: 100 ohm±15%
Cable Absolute Impedance: 100 ohm±10%

Applications:
DATA Center
Servers, Storage racks, RAID systems
External Storage Systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Switches

Cáp CN-0FDPNX Dell 5M External Mini SAS HD SFF-8644 to SFF-8088 Mini SAS Cable Molex Data Server Raid

Cable with SFF-8088 to SFF-8644 (external Mini SAS x4 connector 26-pin to 36-pin external Mini SAS hybrid connector) connection, for connecting hardware in racks and across adjacent racks. Compatible Mini SAS hybrid cables are suitable for connecting SAS devices (such as hard drives, controllers, storage area network hardware, etc.).  Cables support transmission rates of up to 6Gb/s (with 3Gb/s SAS and 6Gb/s SAS protocol)
