Cáp Dell 5M MiniSAS-HD SFF-8644 to SFF-8088 ESG-X SAS Cable 0FDPNX

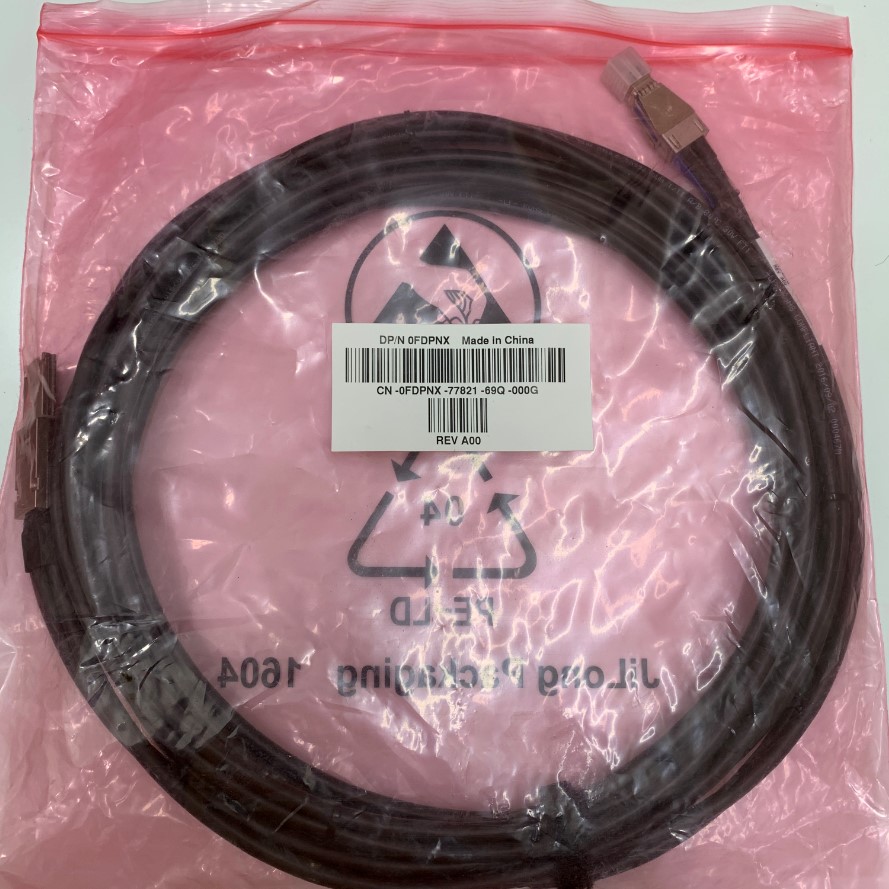

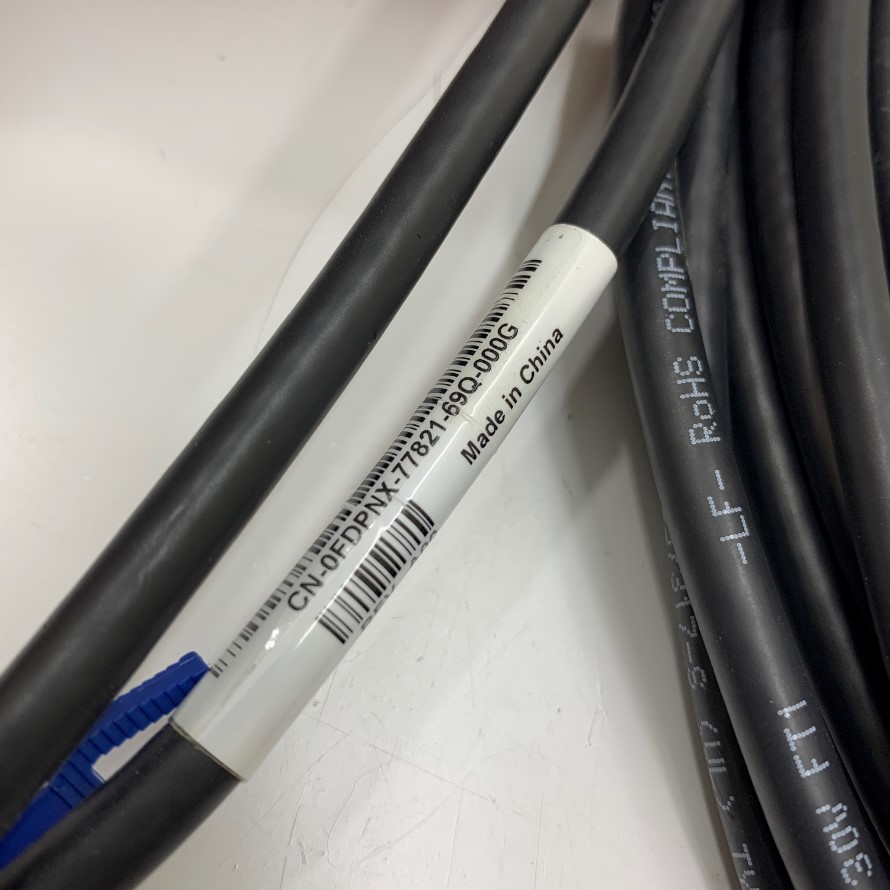

CN-0FDPNX-77821-69Q-000G

CN-0FDPNX-77821-69Q-000G

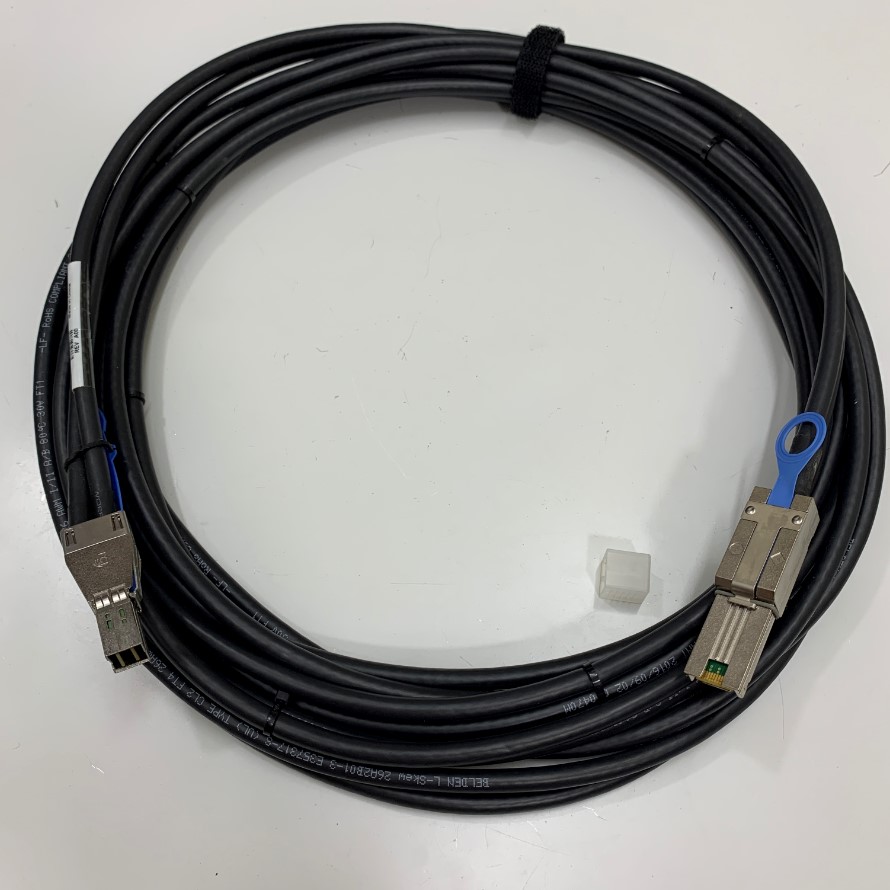

Dell HD2 Mini SAS SFF-8644 to SFF-8088 External Cable 5M
Product description
Brand: Dell-China
Part #: 0FDPN
Manufacturer: Dell/EMC
Connectors

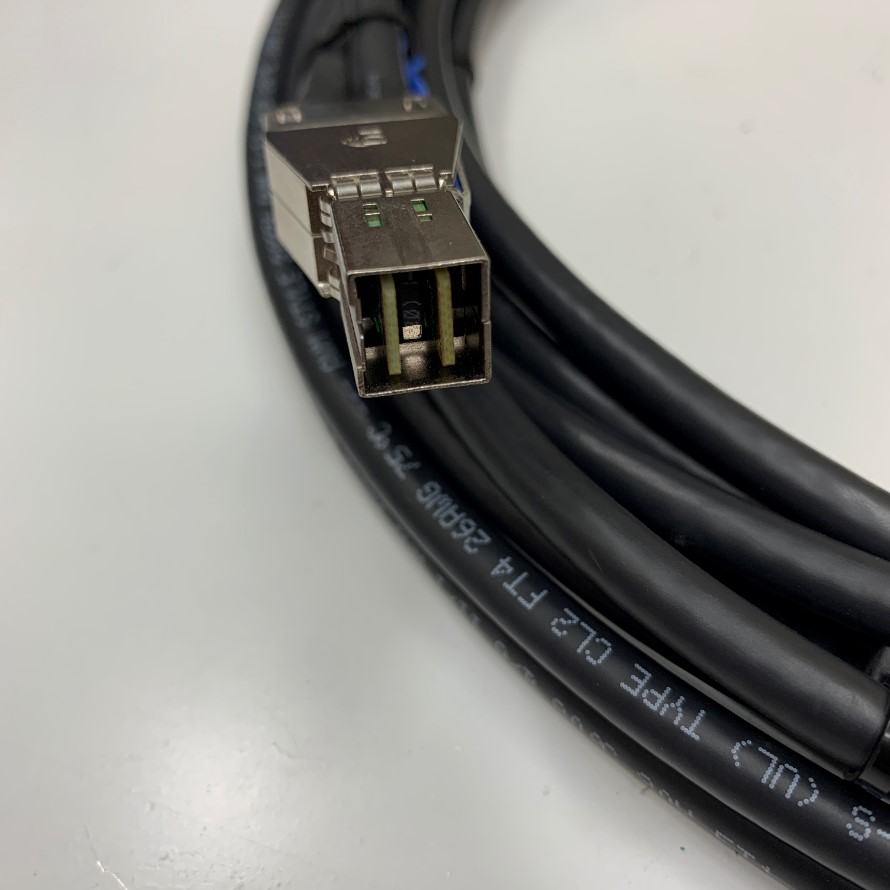

Connector A: SFF-8644 (4x HD Mini SAS - FCI Connector)

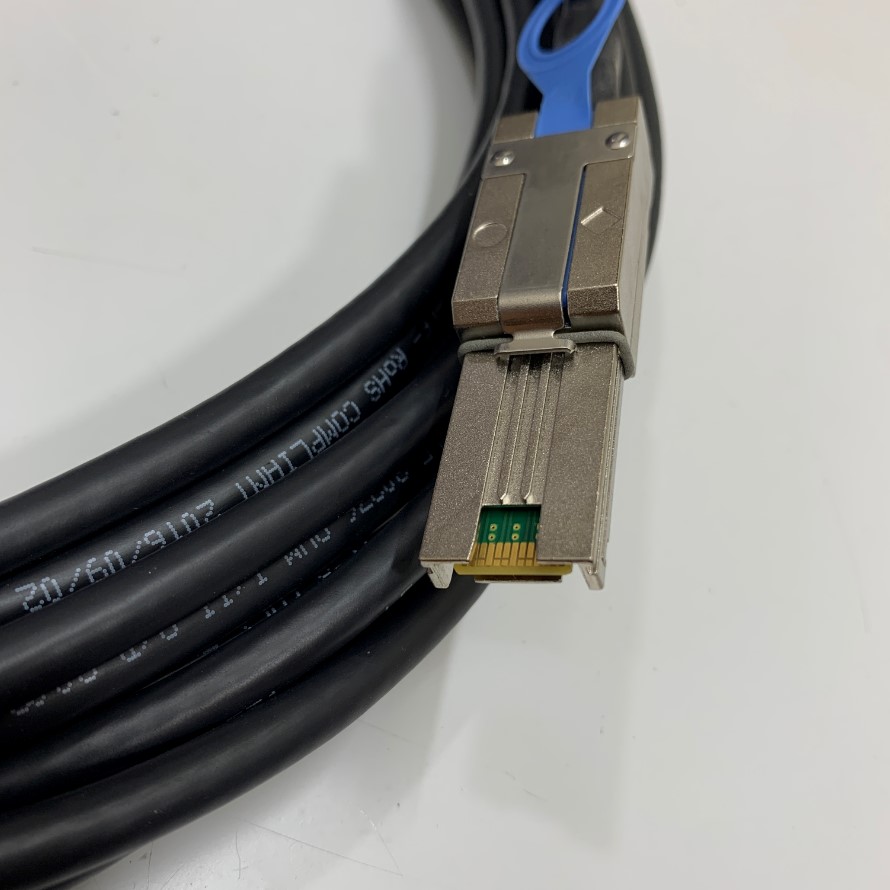

Connector B: SFF-8088 (4x Mini SAS) - FCI Connector)
Plated Connector: Gold
Color: Black
Length: 5M
American Wire Gauge (AWG): 26AWG
Dual Cable Diameter: 2x Ø 7.0mm
Cable BELDEN L-Skew 26A2B01-3 E357317-S (UL) TYPE CL2 FT4 26AWG 75°C AWM STYLE 20276 AWM I/II A/B 80°C 30V FT1 -LF- RoHS COMPLIANT
Impedance = 100 Ohms
This cable is used to connect SAS 6G to SAS 12G controllers or other SAS devices
Data Rate: 6Gbps per channel
Fully compliant SAS 3.0 interface specifications
Excellent EMI performance
Signal Integrity 1. Mated Connector Impedance: 100 ohm±15%
Cable Absolute Impedance: 100 ohm±10%
Applications:
DATA Center
Servers, Storage racks, RAID systems
External Storage Systems
SAS/SATA HBA interfaces
Direct-attached storage (DAS)
Switches
Cáp Dell 5M MiniSAS-HD SFF-8644 to SFF-8088 ESG-X SAS Cable 0FDPNX
