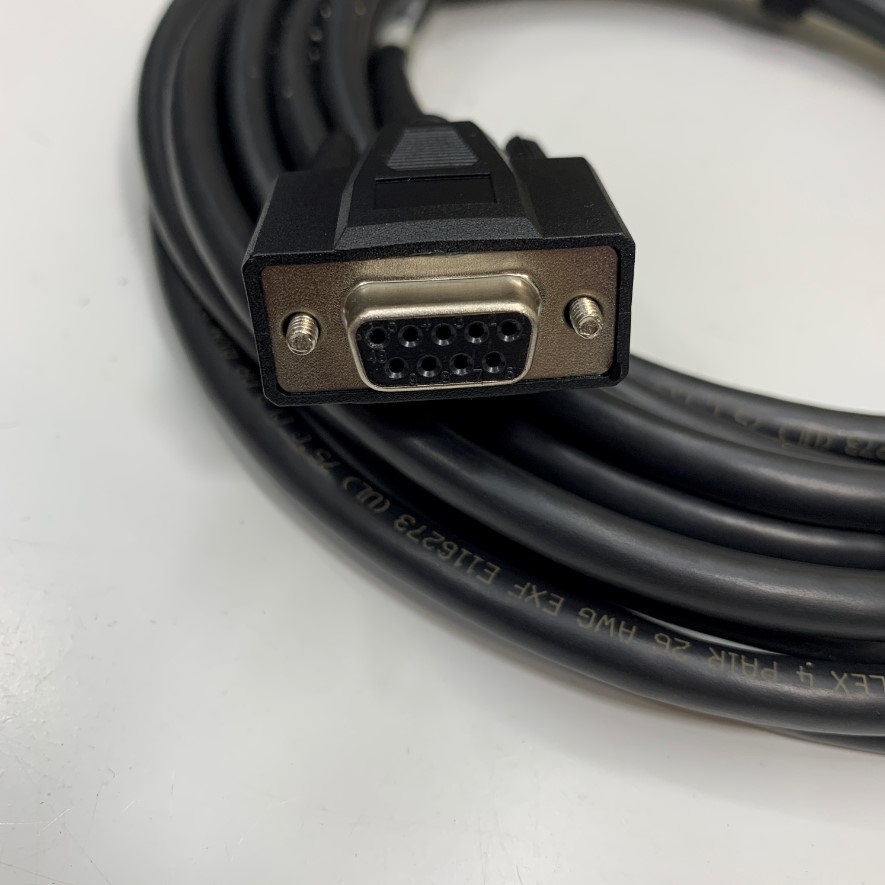

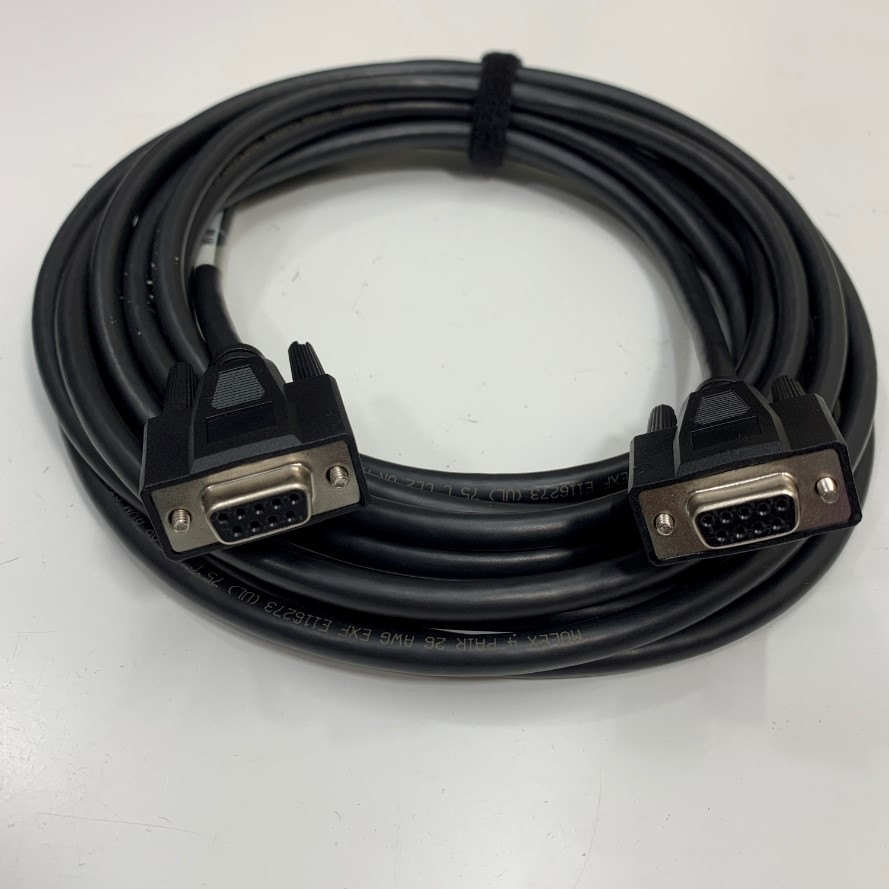

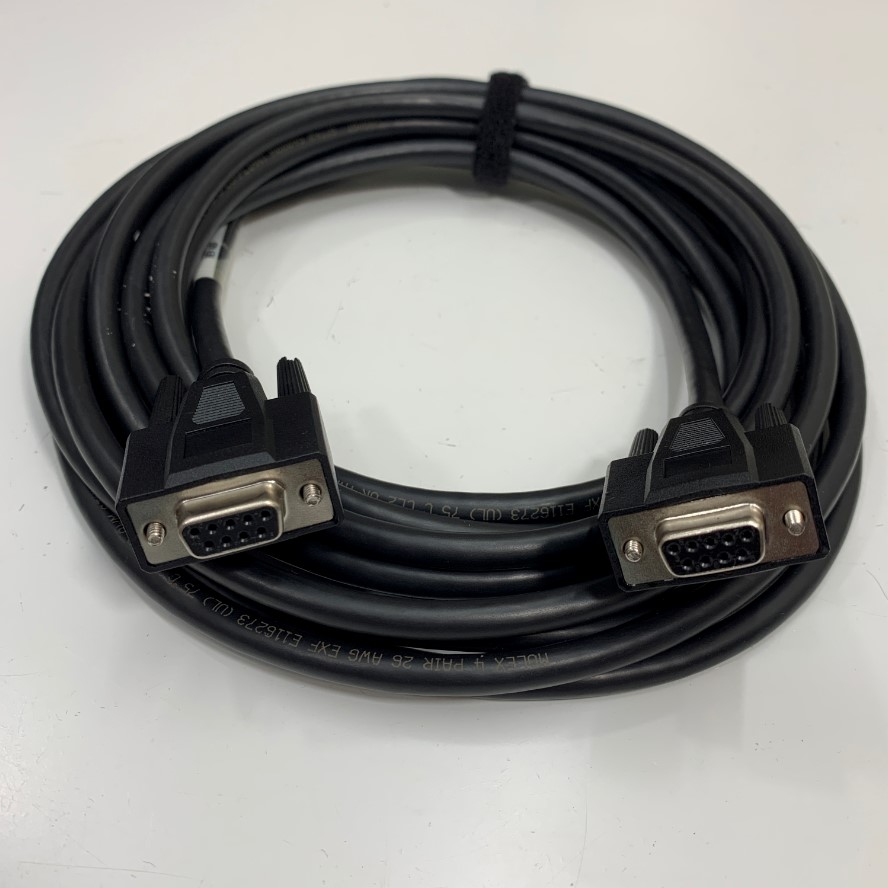

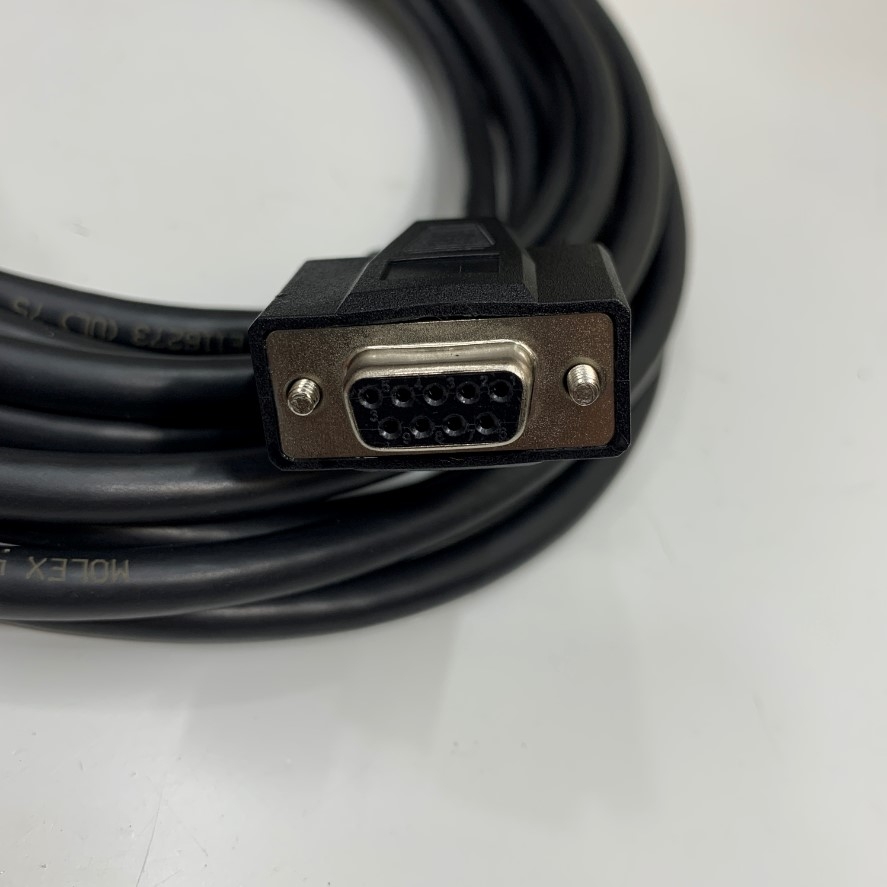

Cáp Agilent F1047-80002 Dài 5M 17ft RS232C Serial DB9 Female to Female Communication Shielded Cable Molex 26AWG UL E116273 80°C 300V OD 7.0mm Color Black

Mã SP: 9928

Thương hiệu: KTT PLC/HMI/Computer

Loại sản phẩm: DB9F/DB9F Cross Cable

Đánh giá

:

Giá

:

900.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Cable Agilent F1047-80002 Serial Communication with Agilent Instruments under DOS, Windows and UNIX

Wiring Diagram RS232C Serial Cross Cable Agilent F1047-80002 Serial Communication

RS232 Serial Cross Cable
Brand: Thientruongpc - KTT
Cable Type: RS232c Cross Cable
Connector 1: DB9 Pin Female Connector x1
Connector 2: DB9 Pin Female Connector x1
Connector plating: Nickle Plated
Gender: DB9 Female to DB9 Female
Wire: UL 26AWG - Shielded Cable OD=7.0mm
Shielding: Yes
Jacket: CM-PVC
Pin-Out: Cros Connection: 1-1 / 2-3 / 3-2 / 4-6 / 5-5 / 6-4 / 7-8 / 8-7 / 9-9 / Shield-Shield
Cable Length:  17 ft [5 m]
Color: Black
Cable MOLEX 4 PAIR 26 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C LL31941 CSA AWM I/II A 75°C 300V FT4 RoHS COMPLIANT
Cáp Agilent F1047-80002 Dài 5M 17ft RS232C Serial DB9 Female to Female Communication Shielded Cable Molex 26AWG UL E116273 80°C 300V OD 7.0mm Color Black
