  • Cáp Công Nghiệp Industrial Cable

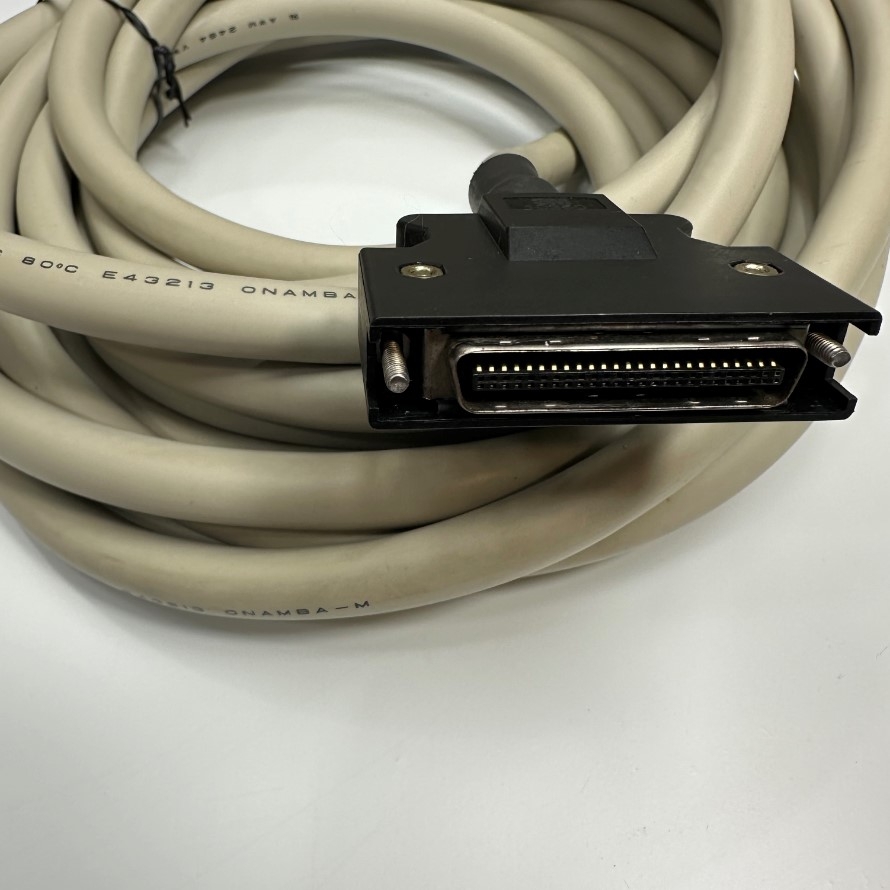

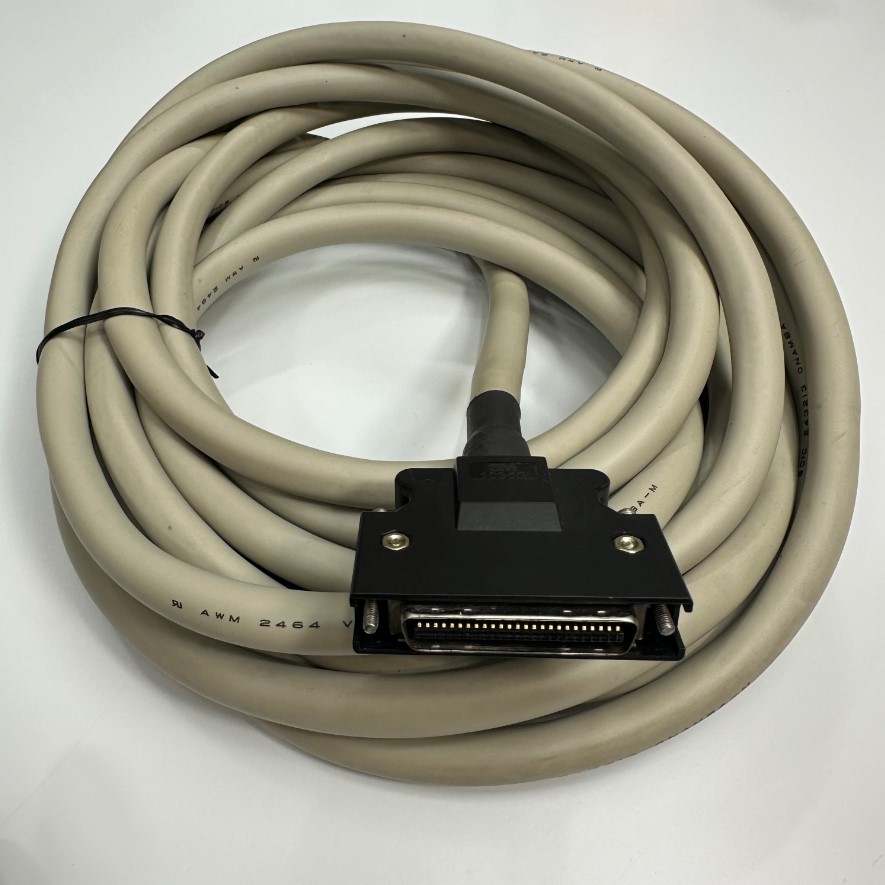

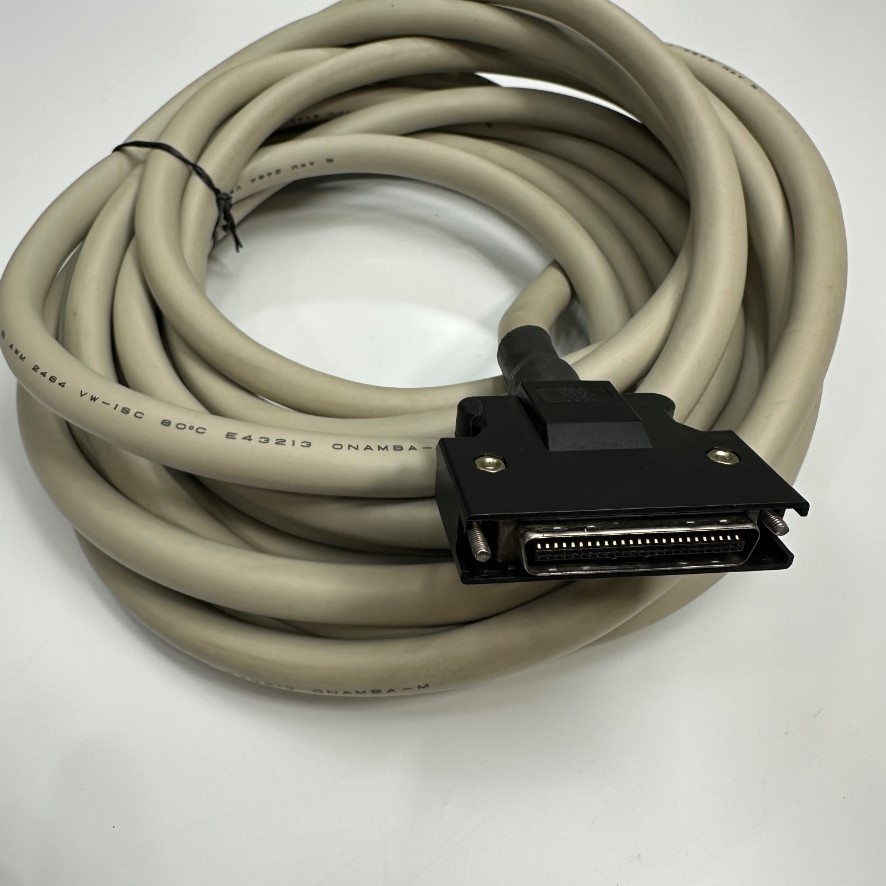

  • Cáp 6M 20ft DV0P4360 Interface Cable Panasonic CN1 A5 A6 Series X4 Servo Driver I/O Control Line MR-J3CN1 Signal Cable ONAMBA-M E43213 Connector MDR 50 Pin Male to 50 Core OD Ø 12.0mm Gray

Cáp 6M 20ft DV0P4360 Interface Cable Panasonic CN1 A5 A6 Series X4 Servo Driver I/O Control Line MR-J3CN1 Signal Cable ONAMBA-M E43213 Connector MDR 50 Pin Male to 50 Core OD Ø 12.0mm Gray

Mã SP: 12351

Thương hiệu: Original I/O Cable

Loại sản phẩm: MDR 50 Pin Male to 50 Core

Đánh giá

:

Giá

:

4.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Signals I/O Data Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

ONAMBA-M E43213 Shielded Cable Grey

Cable ONAMBA-M E43213 AWM 2464 VW-1 SC 80°C 300V OD 12.0mm Gray

Cable Drawing

Part Number: DV0P4360
Product details: 50 pin
Applicable Family / Series AC Servo Motors
MINAS A6SF Series
MINAS A6SG Series
MINAS A6SE Series
MINAS A5 Series
MINAS A5E Series
MINAS A5II Series
MINAS A5IIE Series
MINAS A4 Series
MINAS A4F Series
Specifications
Brand: Taiwan/Original I/O Signals Data And Power Cable
Model number: DV0P4360 Interface Cable Panasonic Servo Driver I/O Control Line

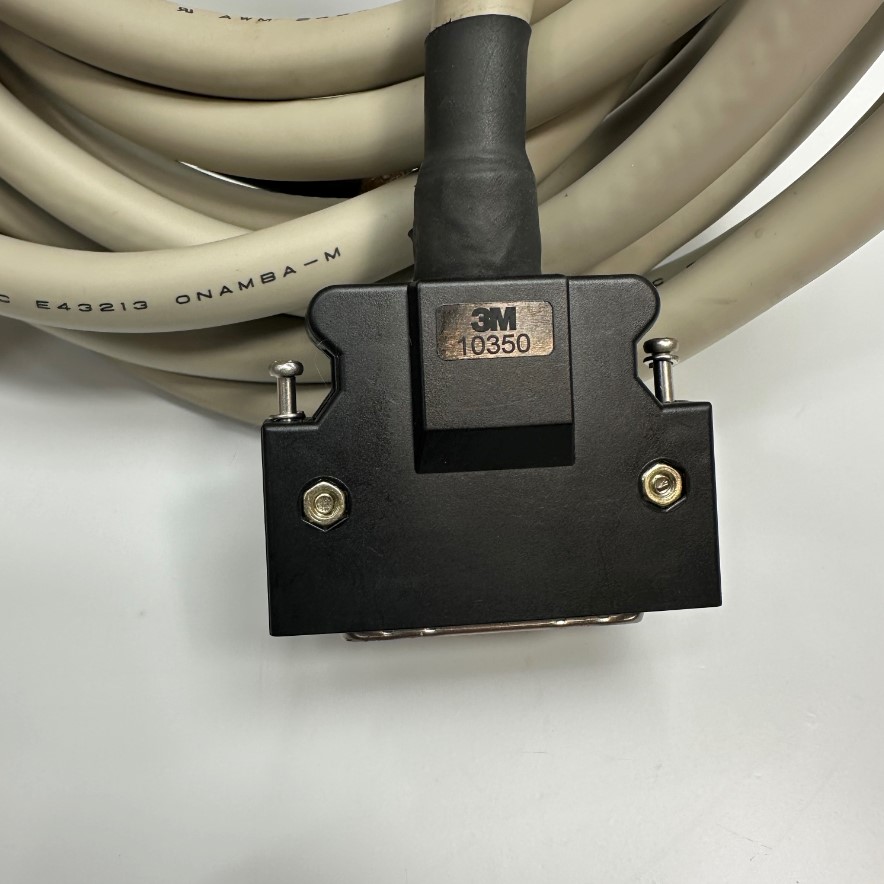

Connector Type 1: MDR 50 Pin Male (3M 10150 Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw)
Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.17mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

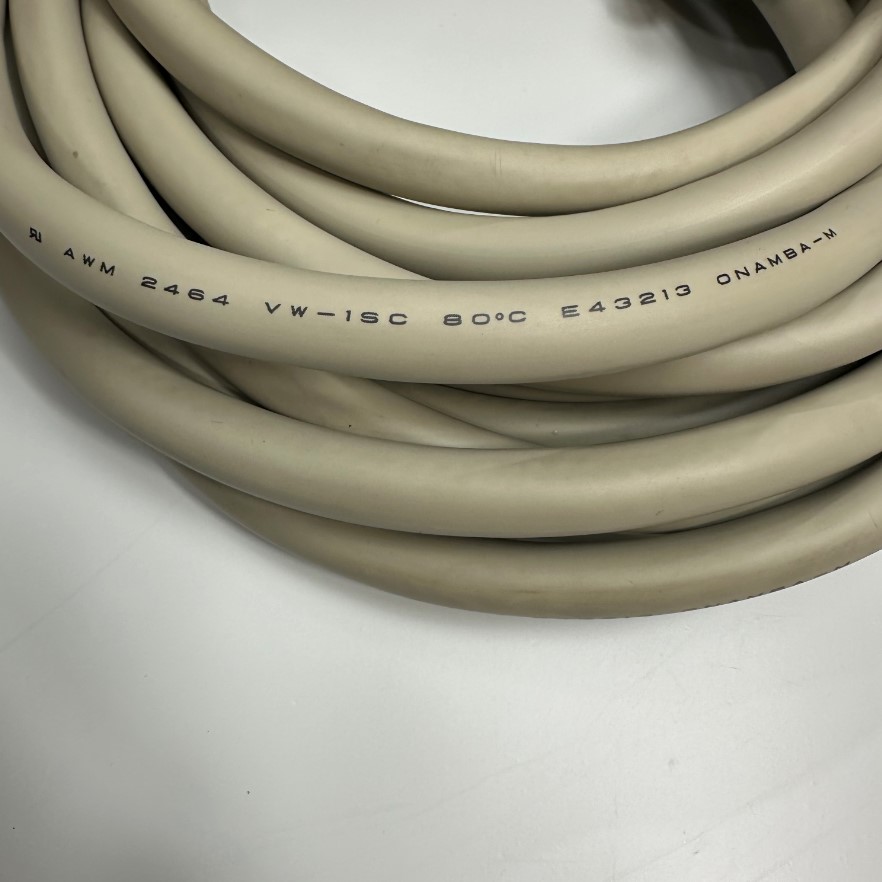

Cable ONAMBA-M E43213 AWM 2464 VW-1 SC 80°C 300V OD 12.0mm Gray
Outer diameter: 12.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 6M ~ 20ft
Pin-Out: Straight Through Connection: 1 - Bare Wire Open; 2 - Bare Wire Open;--------; 50 - Bare Wire Open; Shell - Shell
Cáp 6M 20ft DV0P4360 Interface Cable Panasonic CN1 A5 A6 Series X4 Servo Driver I/O Control Line MR-J3CN1 Signal Cable ONAMBA-M E43213 Connector MDR 50 Pin Male to 50 Core OD Ø 12.0mm Gray
