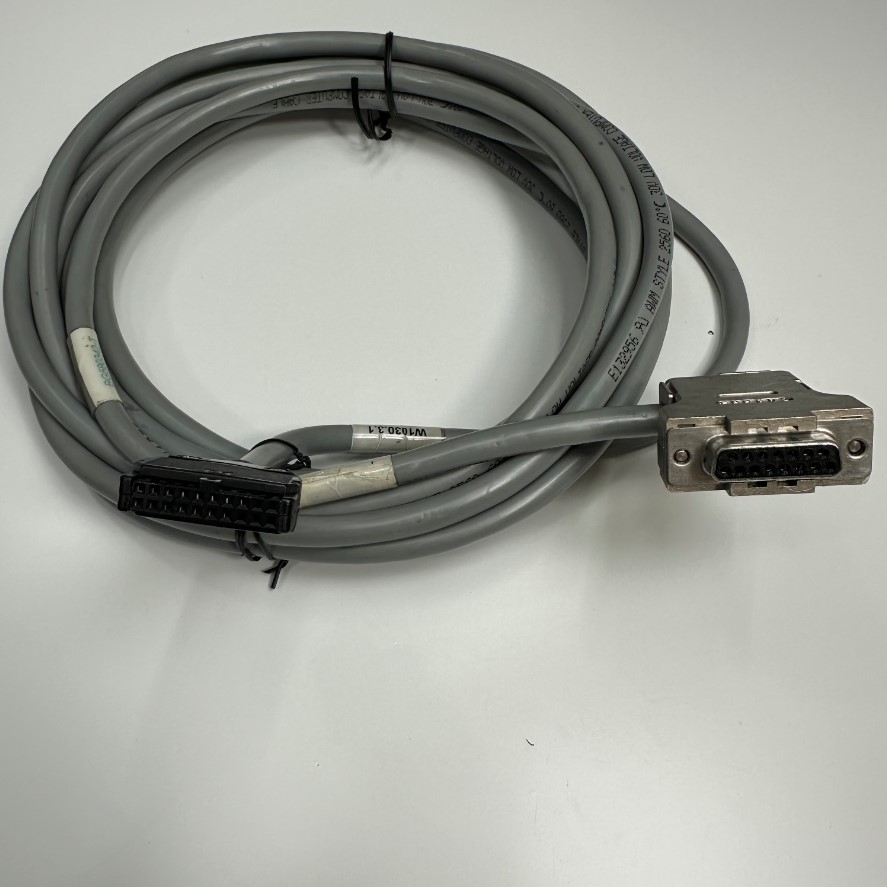

Cáp 5M 17ft W1030.3.1 Gas 2 PC 2 A200.4-Y200.4 BG580342-T Cable Connector IDC 20 Pin Female to DB15 Female D-Sub 15 Pin FPHGR2 90 Degree Metal

Mã SP: 11967

Thương hiệu: Original Industrial Cable

Loại sản phẩm: IDC 20 Pin Female to DB15 Female

Đánh giá

:

Giá

:

3.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Original Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

20 IDC Crimp Terminal Connector 2.54mm Pitch

Connector DB15 Female D-Sub 15 Pin FPHGR2 90 Degree Metal

Specifications
Brand: Japan/Original Industrial Cable

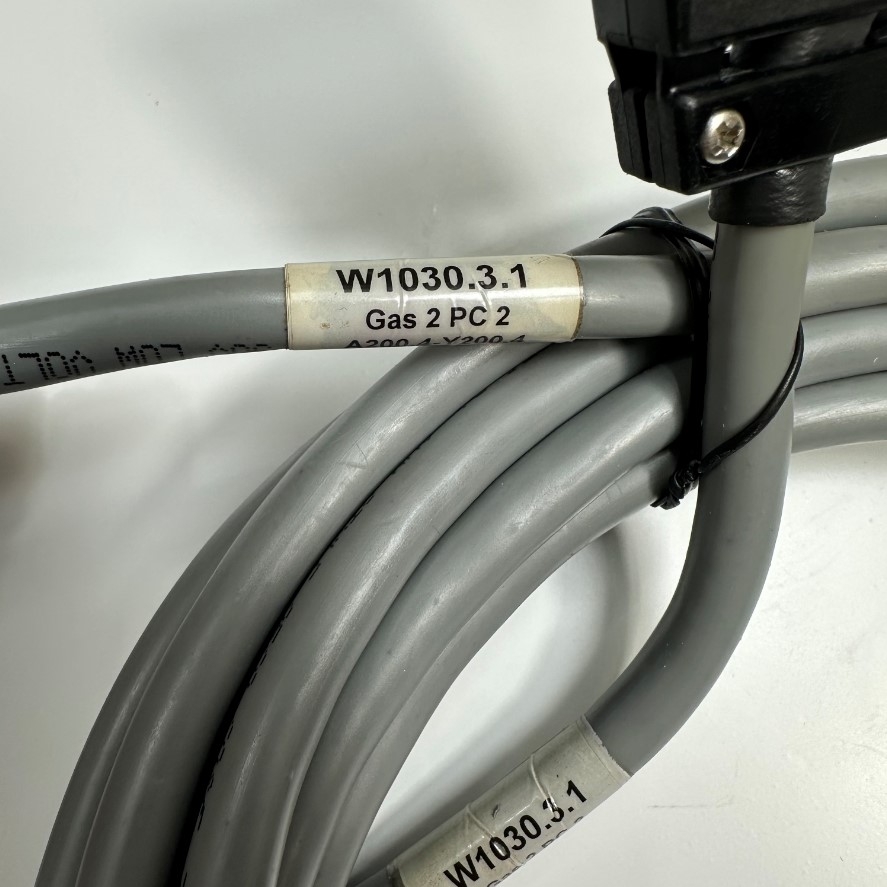

PartNumber: W1030.3.1 Gas 2 PC 2 A200.4-Y200.4 BG580342-T Encoder System Cable

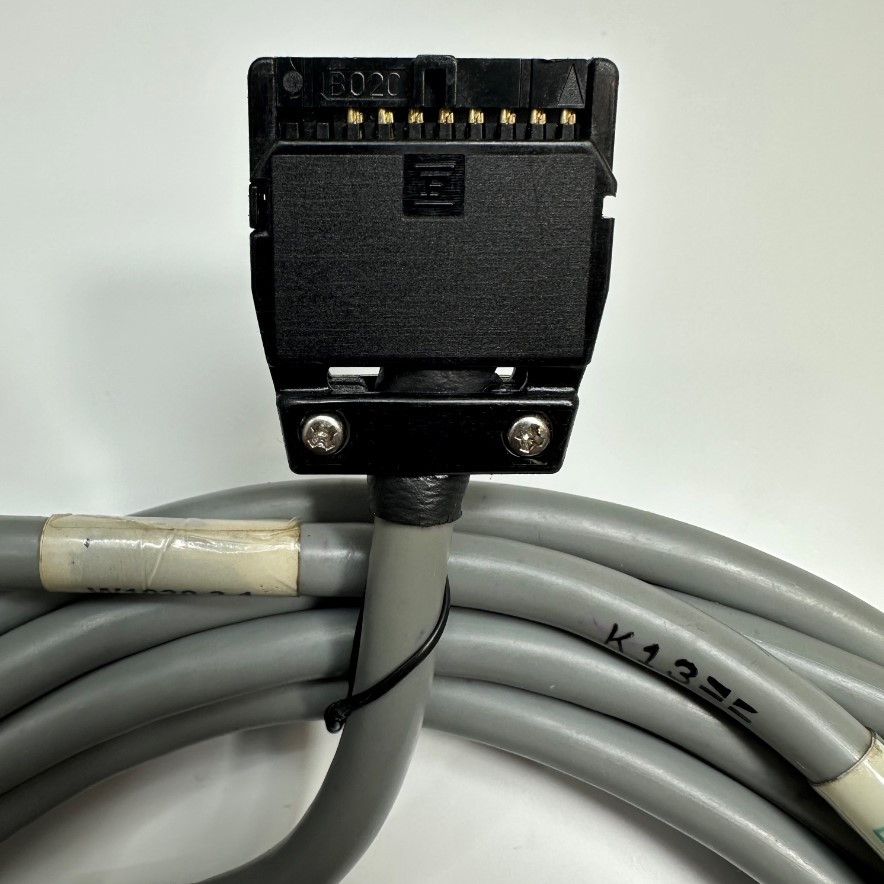

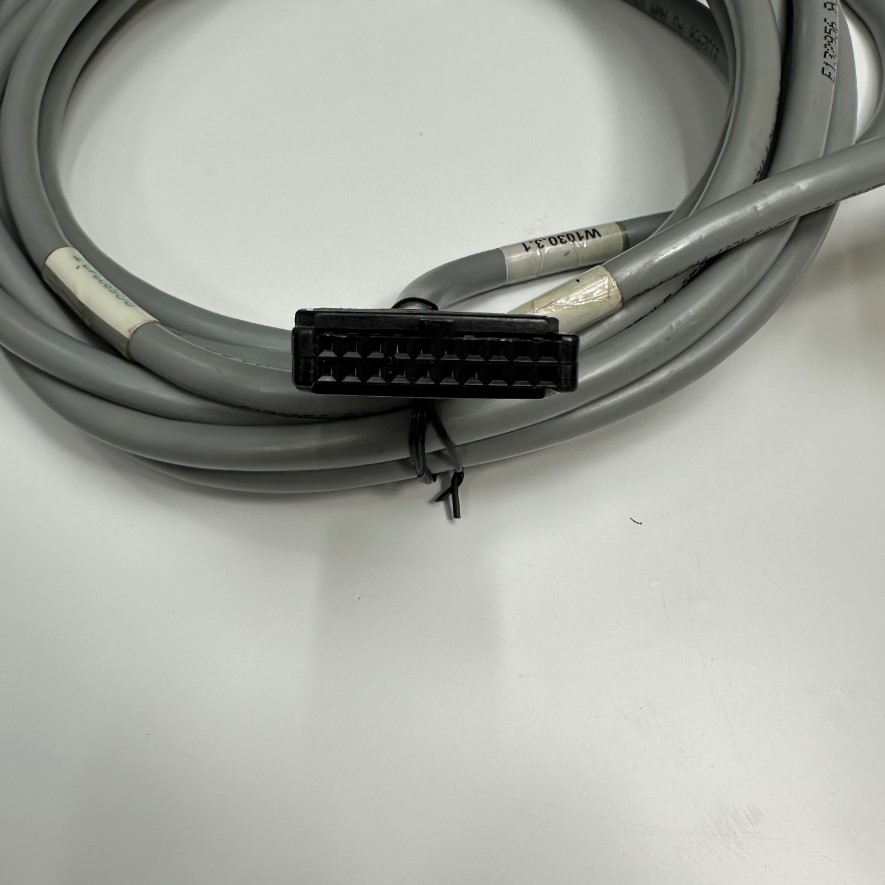

Connector 1: IDC 20 Pin Female (Crimp Terminal Connector)

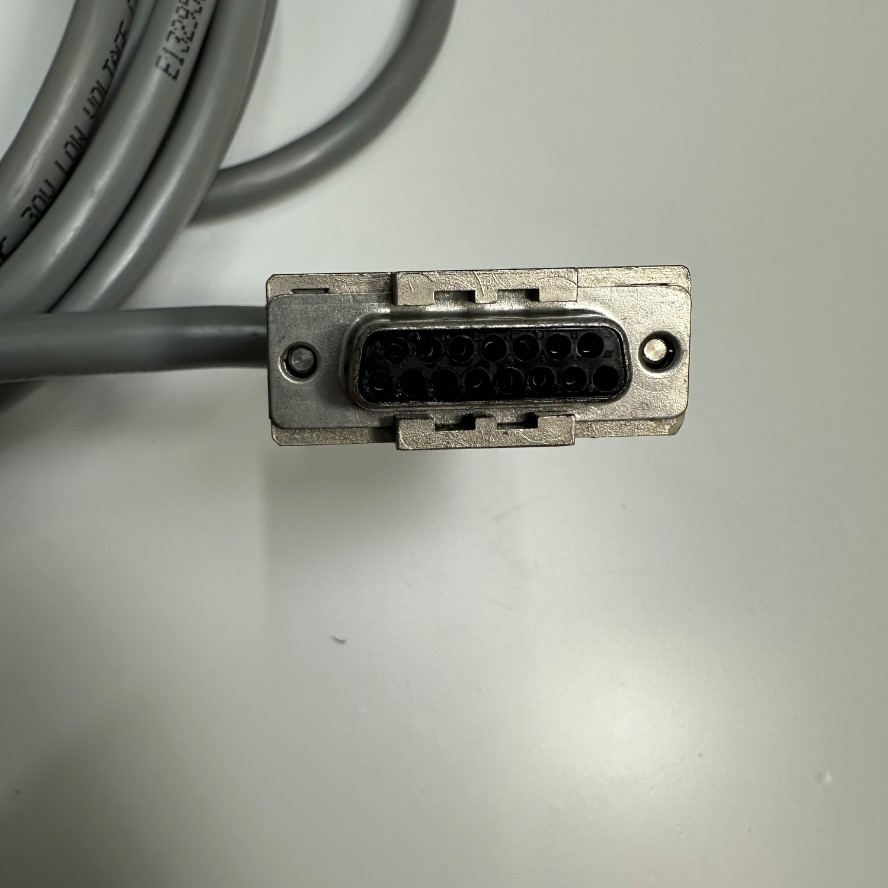

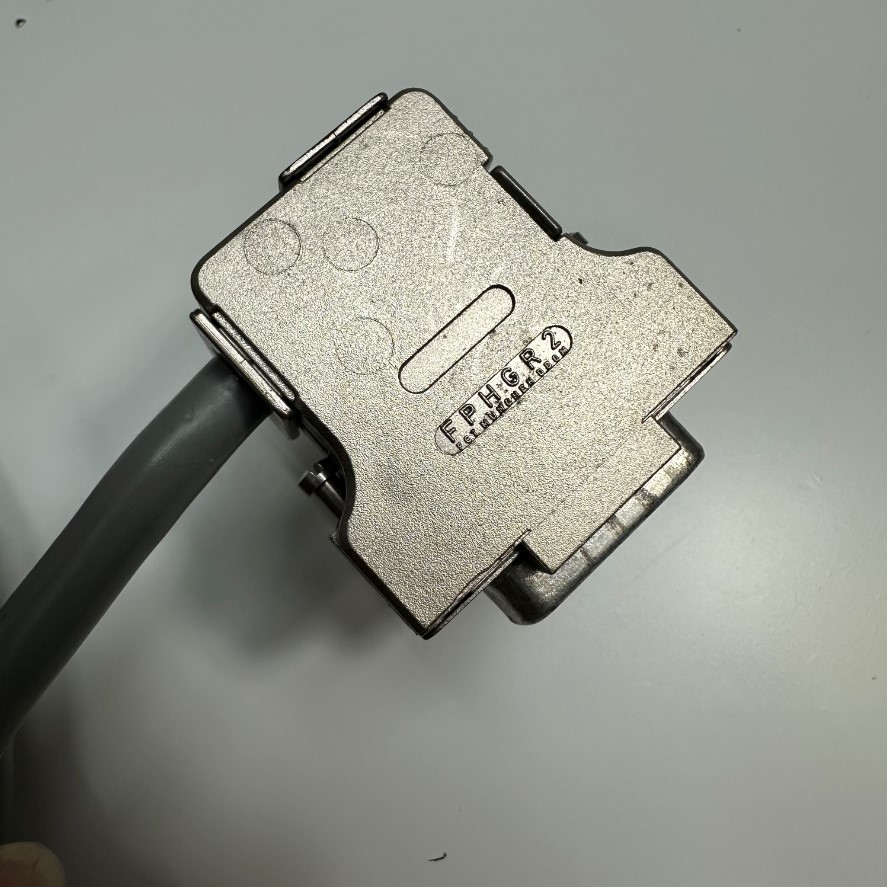

Connector 2: DB15 Female D-Sub 15 Pin FPHGR2 90 Degree Metal
Cable Type: IDC 20 Pin Female to DB15 Female
Number of Conductors: 15
Connector plating: Gold Plated
Cable: Shielded E132956 AWM STYLE 2560 60°C 30V LOW VOLTAGE COMPUTER CABLE OD 8.0mm
Data Conductor Type: 24 AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 8.0mm
Operating Temperature: -20°C to 60°C
Material: Cu
Shielding: Yes
Colour: Grey
Length : 5M ~ 17ft
Cáp 5M 17ft W1030.3.1 Gas 2 PC 2 A200.4-Y200.4 BG580342-T Cable Connector IDC 20 Pin Female to DB15 Female D-Sub 15 Pin FPHGR2 90 Degree Metal
