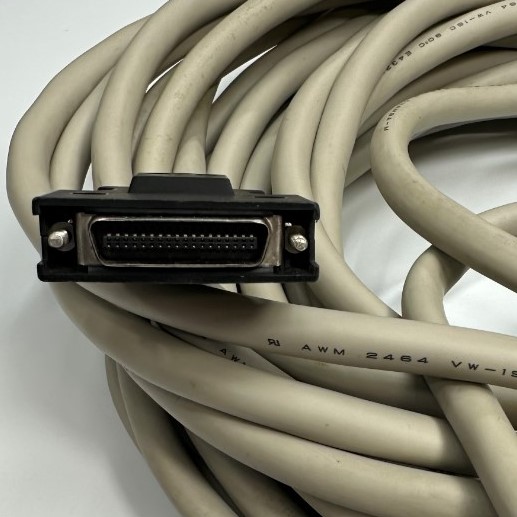

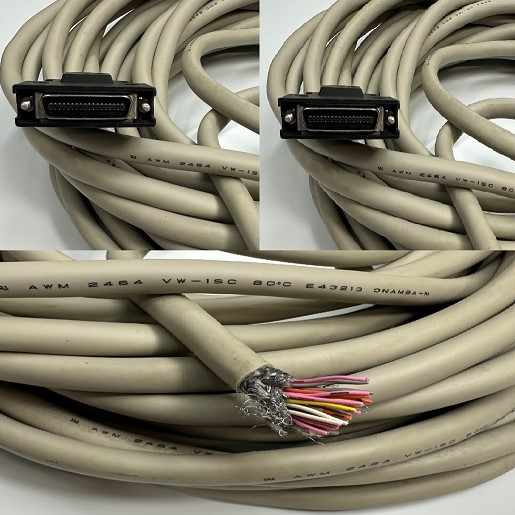

Cáp 5M 17ft MIPI Data Interface SCSI Shielded Cable HPCN Connector MDR 36 Pin Male to Male Pitch 1.27mm Screw Lock Signal I/O Cable ONAMBA-M E43213 OD Ø 10.5mm Grey

Mã SP: 12354

Thương hiệu: Original I/O Cable

Loại sản phẩm: MDR 36 Pin Male to Male

Đánh giá

:

Giá

:

4.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Signals I/O Data Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

ONAMBA-M E43213 Shielded Cable Grey

Specifications
Brand: Taiwan/Original I/O Signals Data And Power Cable
Model number: DV0P4510 Interface Cable Panasonic Servo Driver I/O Control Line

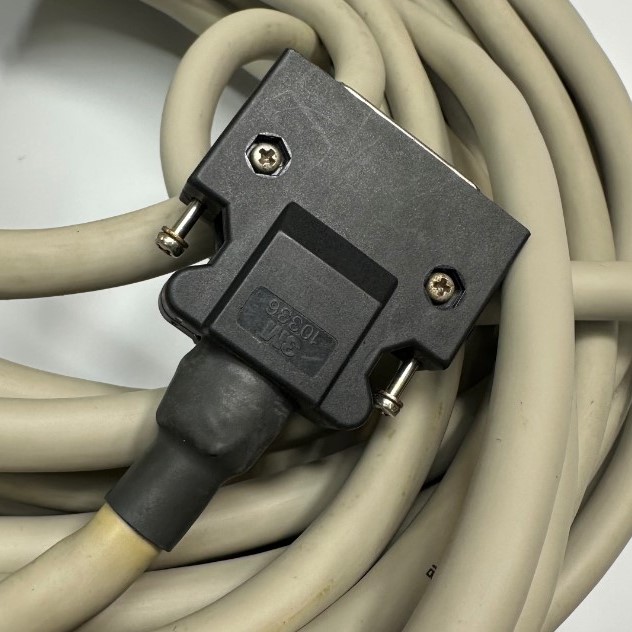

Connector Type 1: MDR 36 Pin Male (3M 10136 Pitch 1.27mm Gold Plated SCSI MDR 36 Pin Male With Screw)
Connector Type 2: MDR 36 Pin Male (3M 10136 Pitch 1.27mm Gold Plated SCSI MDR 36 Pin Male With Screw)
Number of Conductors: 36 x 0.17mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

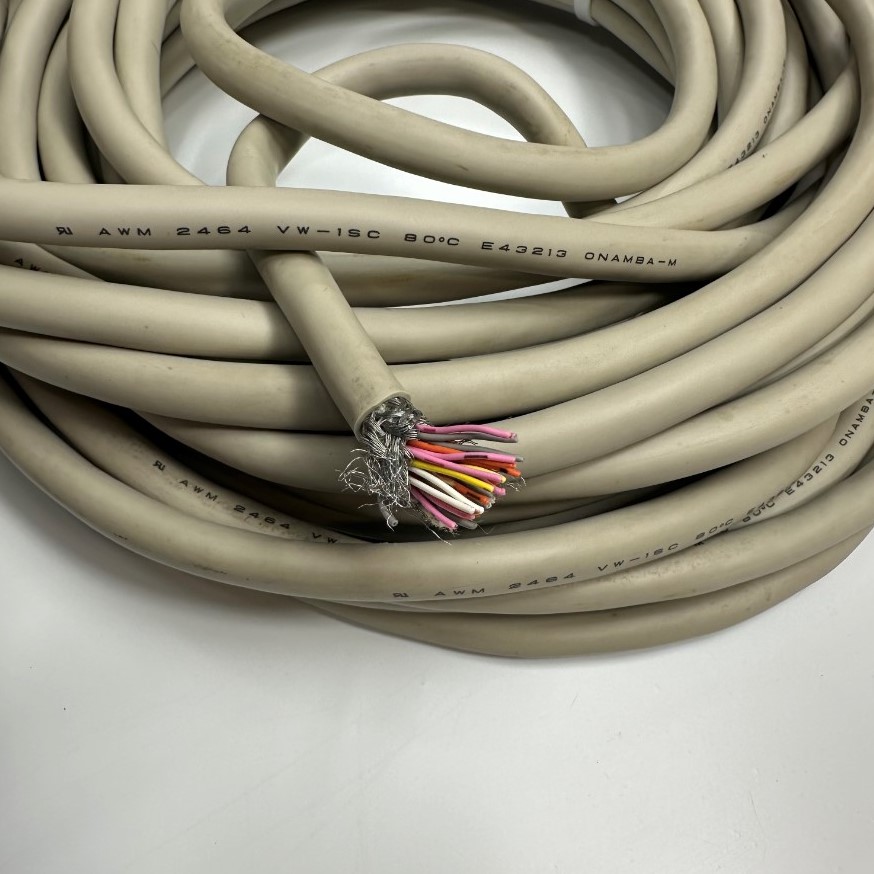

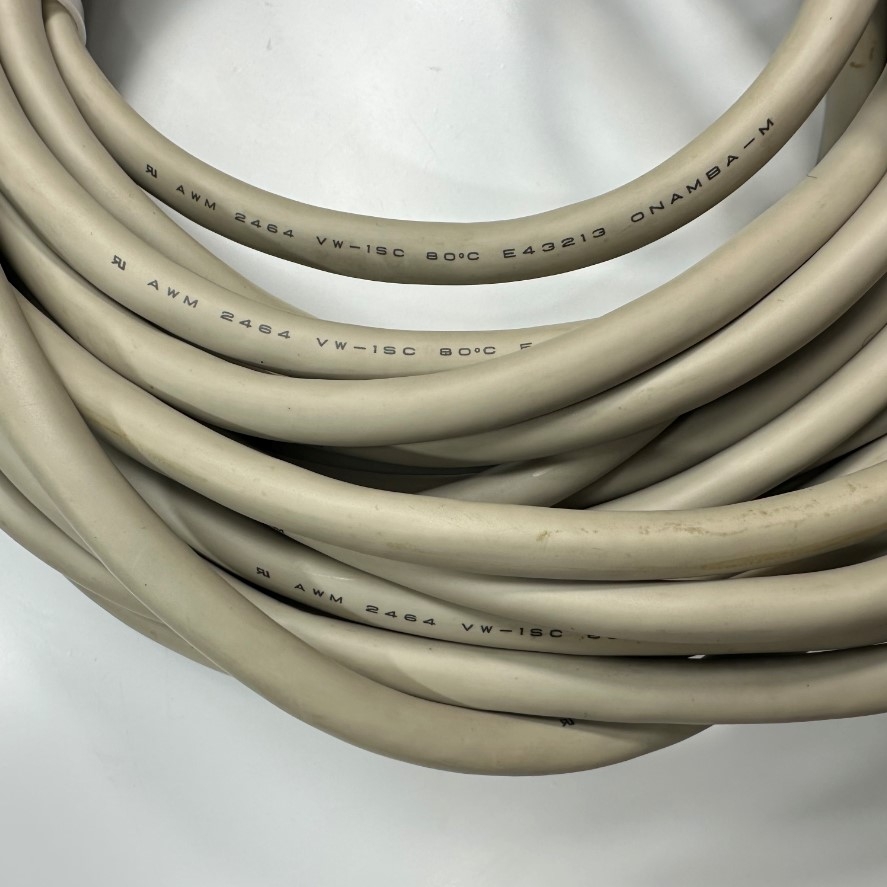

Cable ONAMBA-M E43213 AWM 2464 VW-1SC 80°C 300V OD 10.5mm Gray
Outer diameter: 10.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 5M ~ 17ft
Pin-Out: Straight Through Connection: 1 - 1; 2 -2;--------; 36 - 36; Shell - Shell
Cáp 5M 17ft MIPI Data Interface SCSI Shielded Cable HPCN Connector MDR 36 Pin Male to Male Pitch 1.27mm Screw Lock Signal I/O Cable ONAMBA-M E43213 OD Ø 10.5mm Grey
