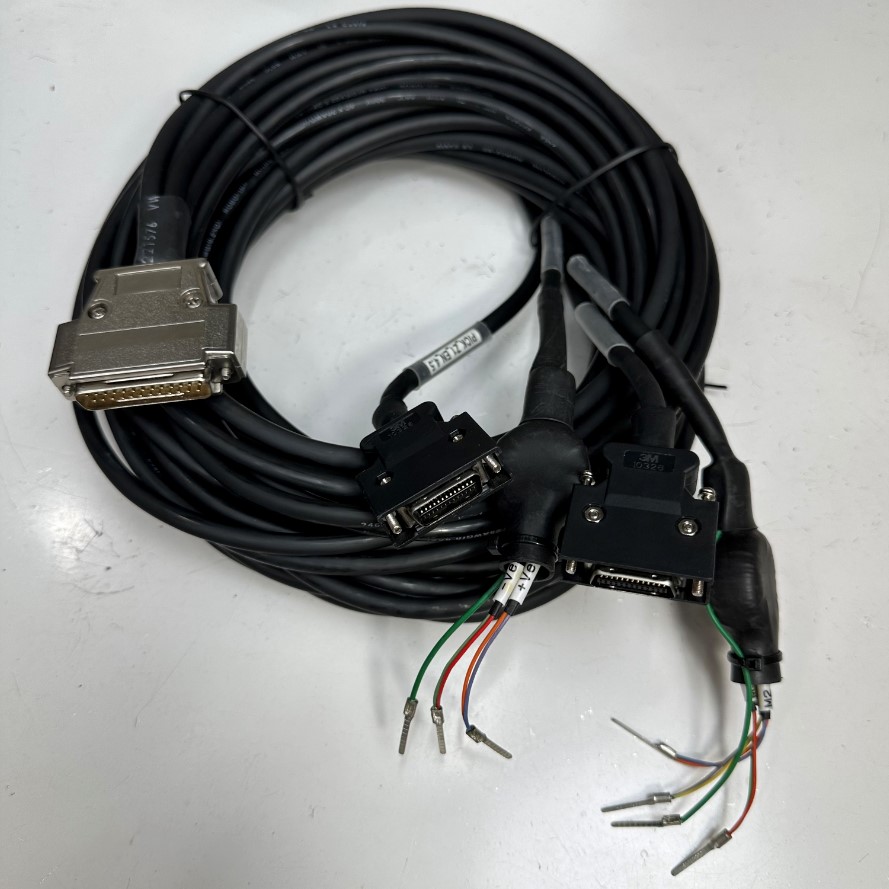

Cáp 4.5M 15ft DB25 Pin Male Cover Shell/Hood Housing Metal to 2 Port MDR 26 Pin Male + Power Cable For Servo Industrial Control Cable

Mã SP: 11905

Thương hiệu: Original I/O Bus Cable

Loại sản phẩm: Cable DB25 to 2 Port MDR 26 Pin

Đánh giá

:

Giá

:

4.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original Servo Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

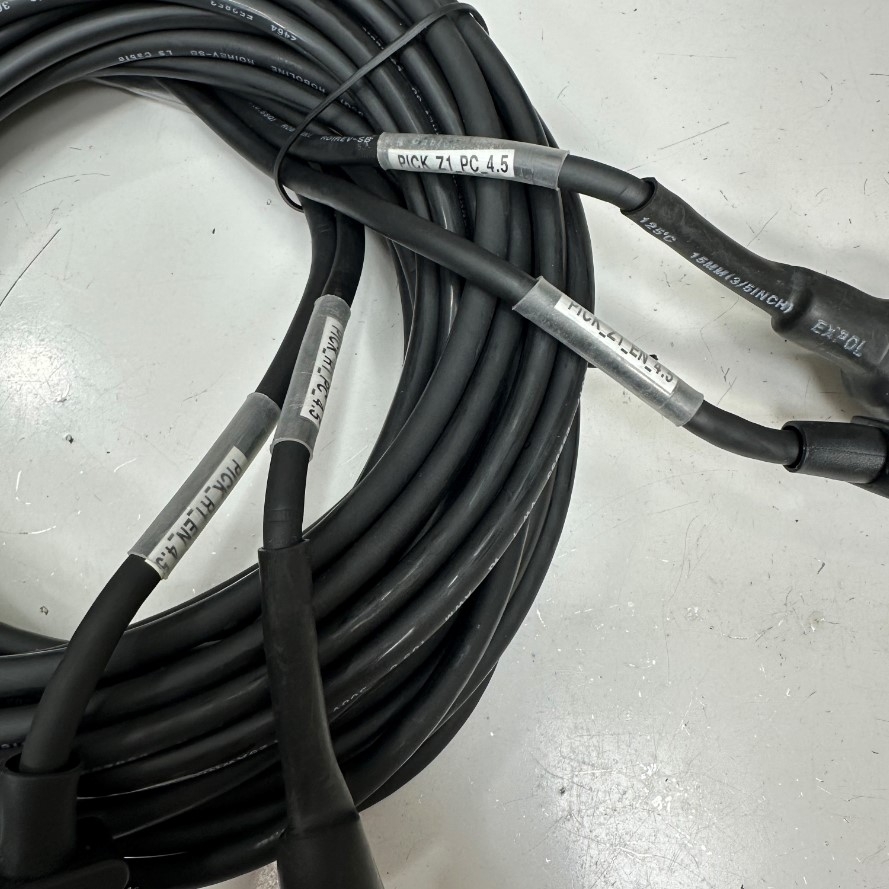

1 Port MDR 26 Pin Male PICK_R1_EN_4.5
1 Port Power Cable PICK_R1_EN_4.5
1 Port MDR 26 Pin Male PICK_Z1_EN_4.5
1 Port Power Cable PICK_Z1_EN_4.5

Specifications
Brand: Korea/Original Servo Industrial Cable
PartNumber: Servo Encode Industrial Cable

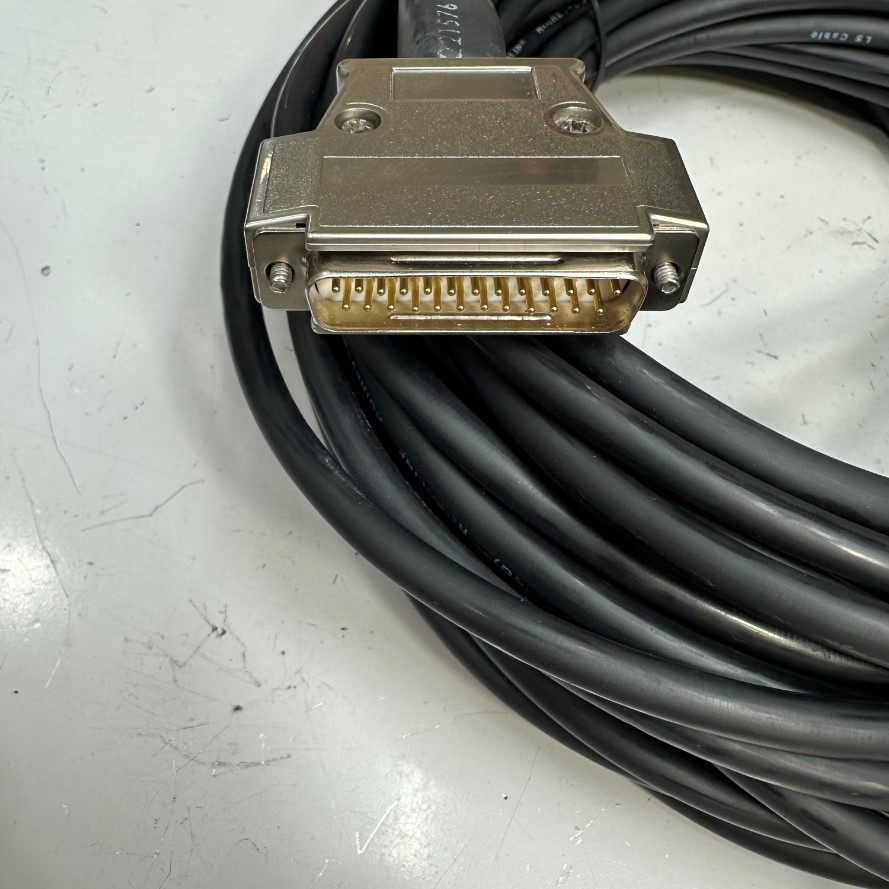

Connector 1: DB25 Pin Male (Metal)

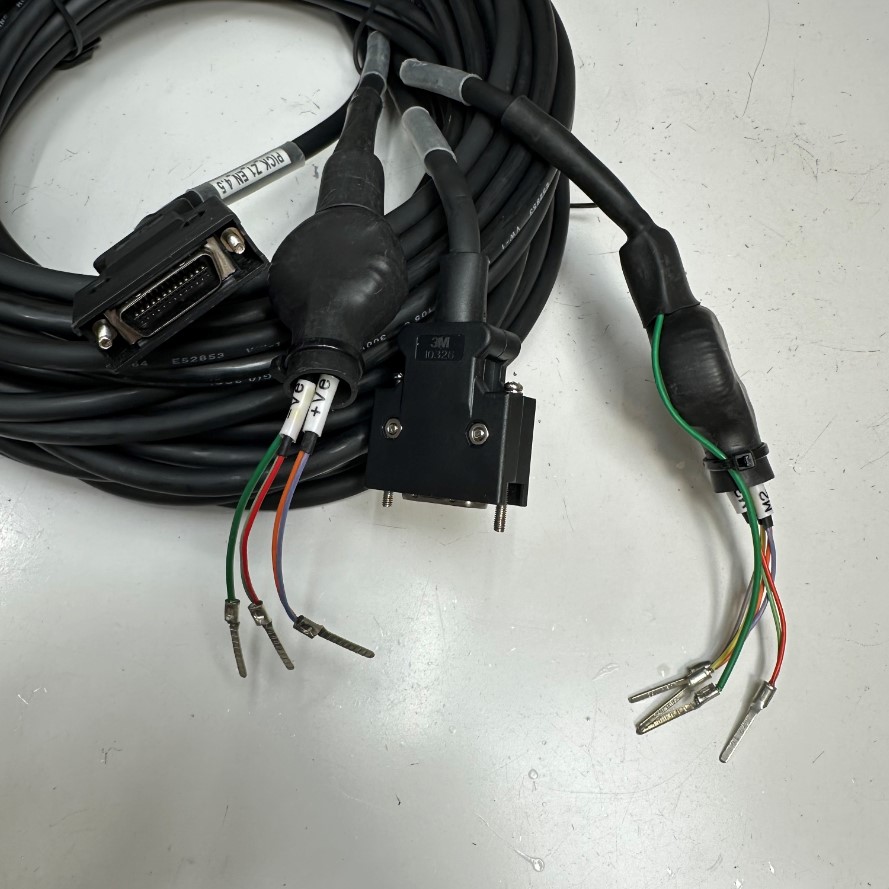

Connector 2.1: MDR 26 Pin Male (3M 10326) (I/O Data)
Connector 2.2: MDR 26 Pin Male (3M 10326) (I/O Data)
Connector 2.3: Core Wire Open End (Power Cable)
Connector 2.4: Core Wire Open End (Power Cable)
Cable Type: DB25 Pin Male to 2 Port MDR 26 Pin Male + Core Wire Open End
Number of Conductors: 23
Connector plating: Gold Plated
Cable: 2517 E52853 VW-1 AWM 105°C 300V 4P X 25AWG(0.2SQ) ROBOLINE ROIREV-SB LS CABLE OD 7.5mm
Cable: 2517 E52853 VW-1 AWM 105°C 300V 4P X 25AWG(0.2SQ) ROBOLINE ROIREV-SB LS CABLE OD 7.5mm

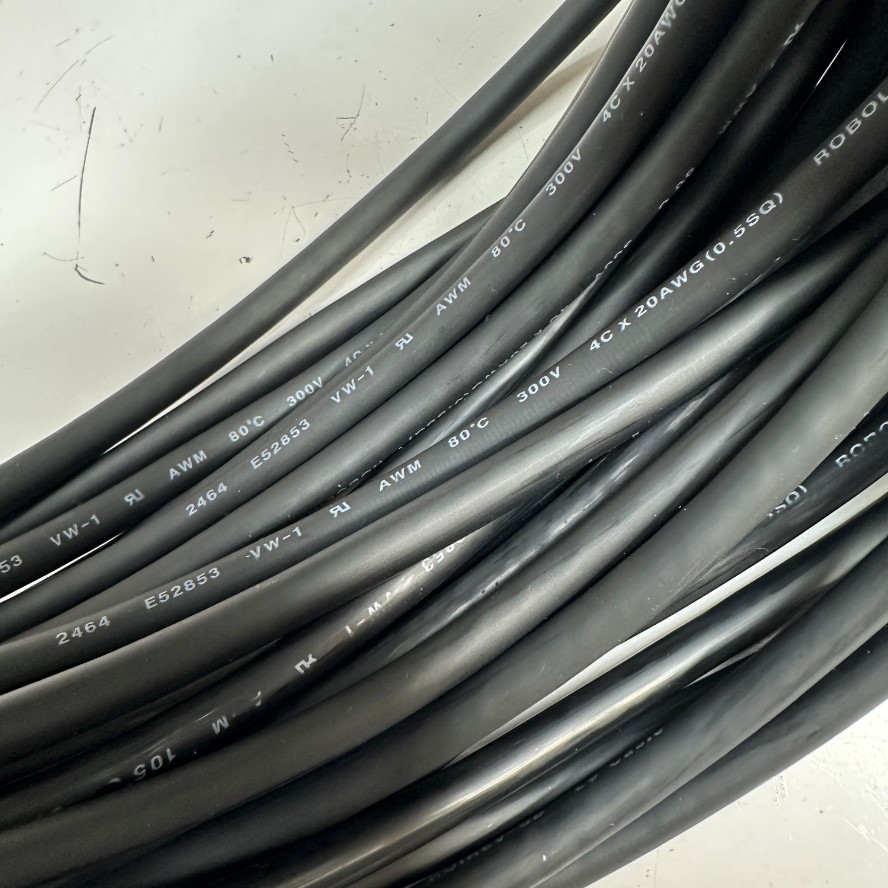

Cable: 2464 E52853 VW-1 AWM 80°C 300V 4C X 20AWG(0.5SQ) ROBOLINE ROIREV-SB LS CABLE OD 6.8mm
Cable: 2464 E52853 VW-1 AWM 80°C 300V 4C X 20AWG(0.5SQ) ROBOLINE ROIREV-SB LS CABLE OD 6.8mm
Data Conductor Type: 20AWG-25AWG
Maximum Operating Voltage: 300V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 7.5mm & 6.8mm
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Protection class: IP20
Colour: Black
Length : 4.5M ~ 15ft
Cáp 4.5M 15ft DB25 Pin Male Cover Shell/Hood Housing Metal to 2 Port MDR 26 Pin Male + Power Cable For Servo Industrial Control Cable
