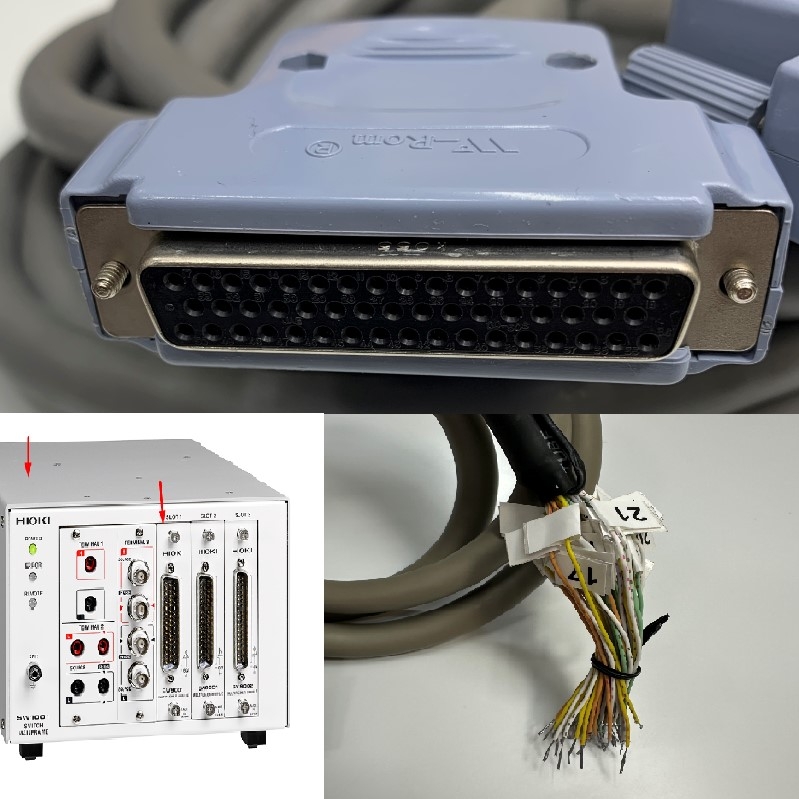

Cáp 3M 10ft Shielded Cable DD-50SF-N Connector DB50 50 Pin Female to 50 Core Ends Hitachi E41447 26AWG OD Ø 13.0mm 50 Core x 0.15mm² Grey For HIOKI SW1001/SW1002, SW9001/SW9002 Multi-Channel Multiplexing System
Mã SP: 12406
Thương hiệu: KTT I/O Signal Cable
Loại sản phẩm: DB50 50 Pin Female to 50 Core
Đánh giá
:Giá
:3.100.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc Multi Channel Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
Mr Khôi: 037.308.1800
Hỗ trợ kỹ thuật Khanh: 038.724.5670

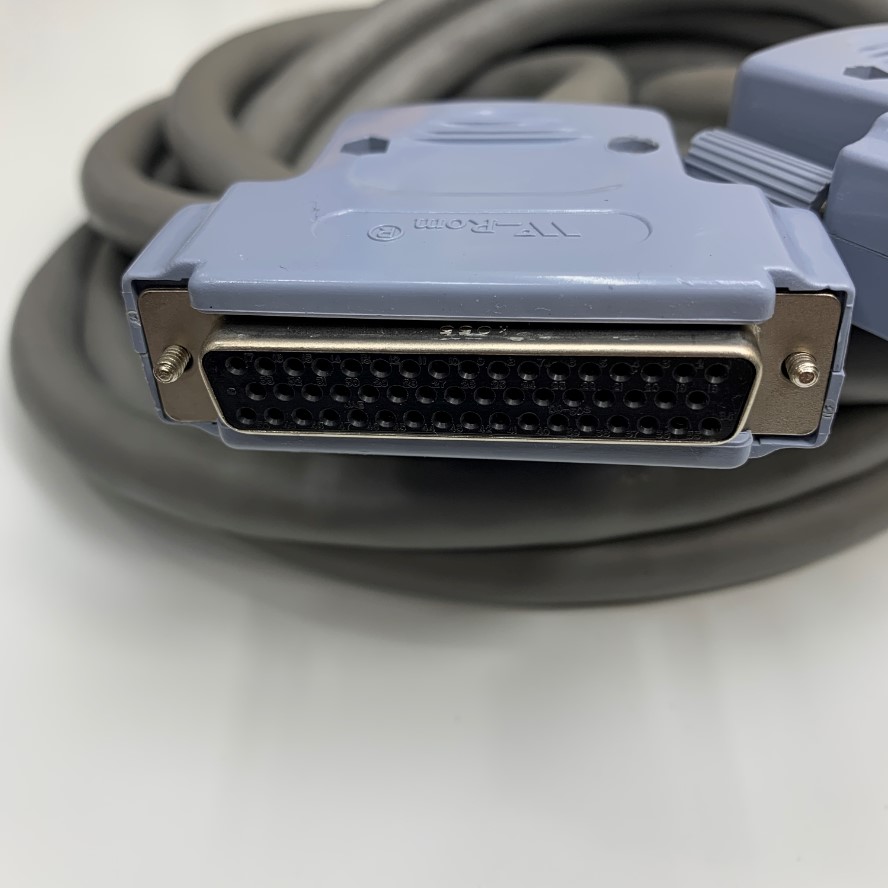

DD-50SF-N Connector DB50 50 Pin Female 3 Row D-Sub Solder

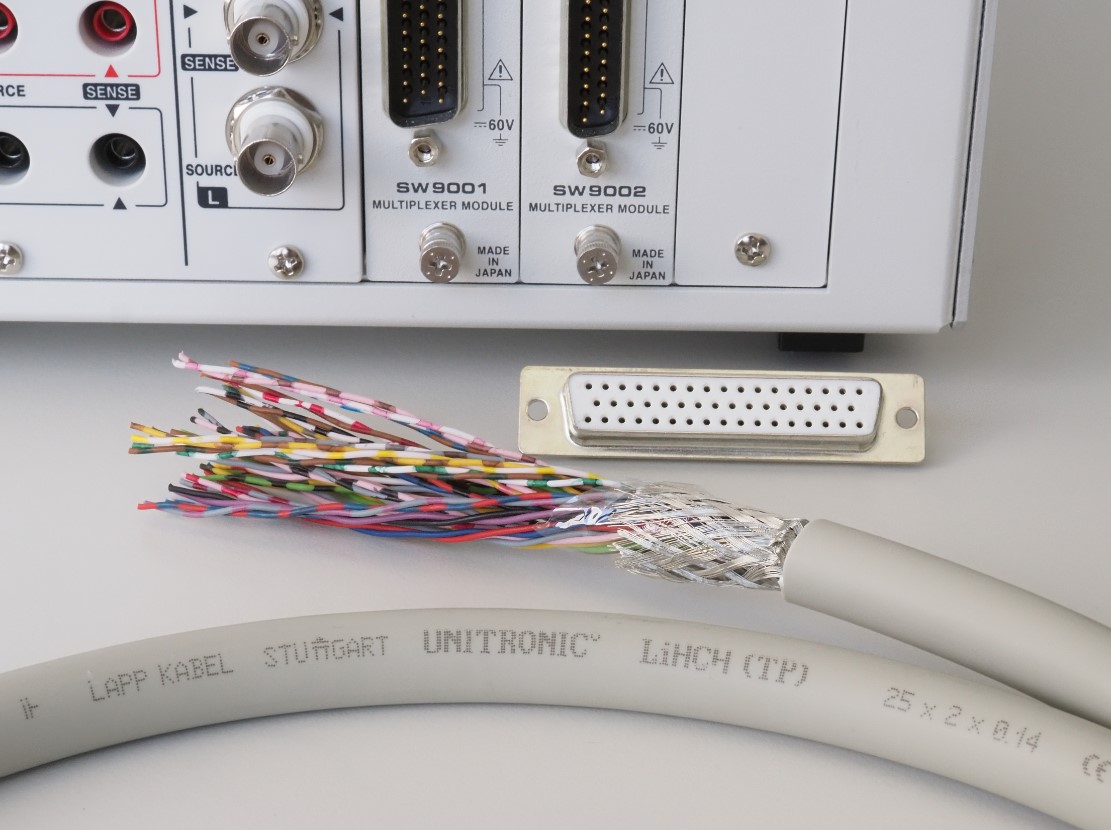

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 26AWG 80°C 300V OD 13.0mm Cable 25 x 2 x 0.15mm² Grey

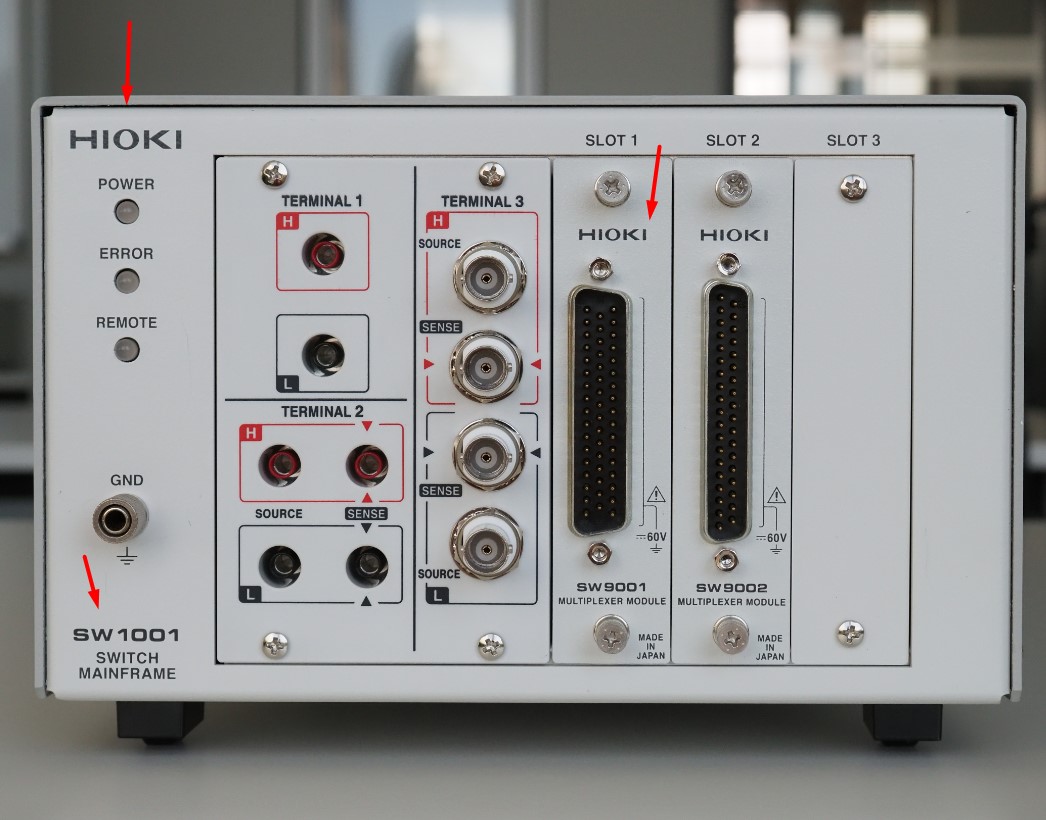

Bộ chuyển mạch đa kênh Hioki SW1001 Switch Mainframe

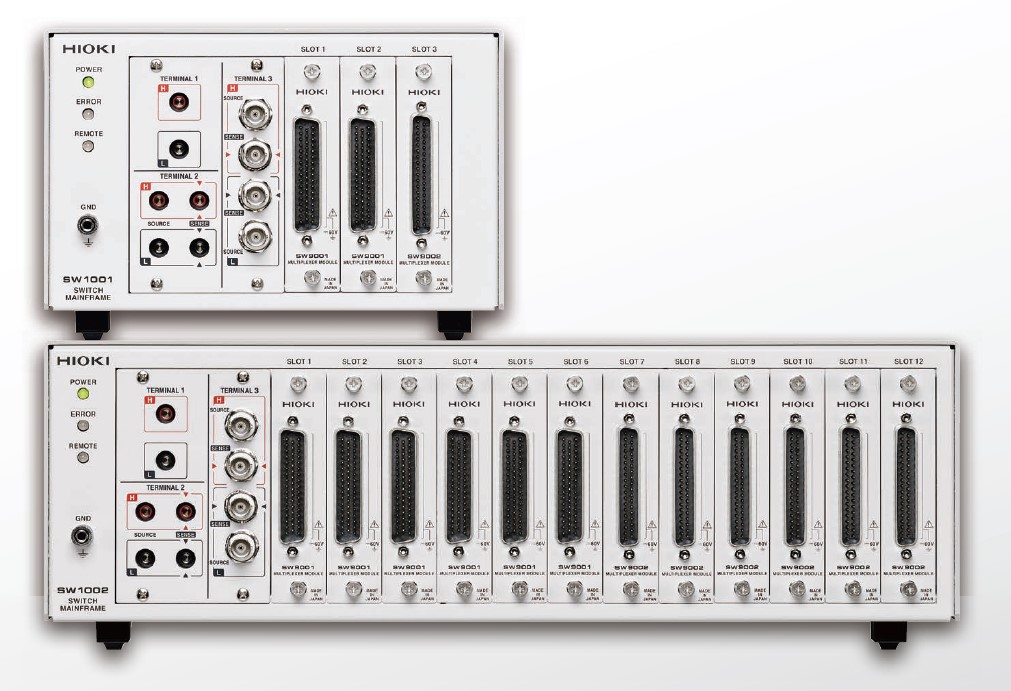

Bộ chuyển mạch đa kênh HIOKI SWITCH MAINFRAME SW1001, SW1002

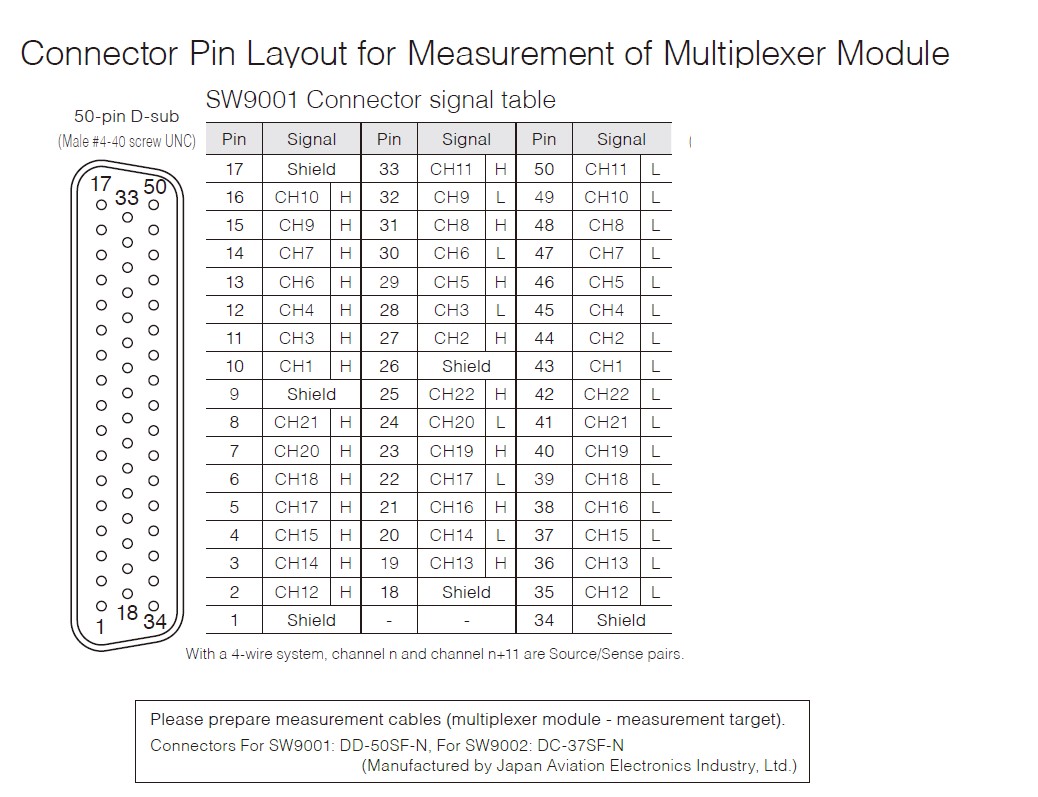

Connector Pin Layout SW9001 Connector signal table
Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Cable
Model number: DB50 50 Pin Female to 50 Core - HIOKI SW1001 Connector signal table Cable
Connector Type 1: DB50 3 Rows Female Solder Connector With Screw
Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.15mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V
Outer diameter: 13.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 3M ~ 10ft
Cáp 3M 10ft Shielded Cable DD-50SF-N Connector DB50 50 Pin Female to 50 Core Ends Hitachi E41447 26AWG OD Ø 13.0mm 50 Core x 0.15mm² Grey For HIOKI SW1001/SW1002, SW9001/SW9002 Multi-Channel Multiplexing System
