Cáp 30M 100ft RS-232C Communication Shielded Interface Null Modem Cable DB9 Female to Female Cross Line Cable For Industrial Serial Data Transfer witch Computer
Mã SP: 11830
Thương hiệu: KTT Industrial Cable
Loại sản phẩm: RS-232C Cross Cable
Đánh giá
:Giá
:4.200.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Hiển: 094.816.2498
Mr Khôi: 037.308.1800
Mr Khoa: 098.131.9702

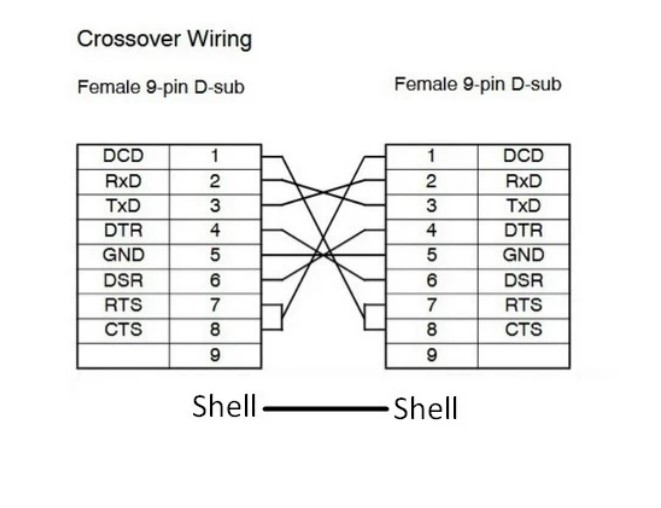

Wiring Diagram RS232C Serial Cross Cable
RS-232C Serial Data Transfer Cross Cable
Brand: Thientruongpc - KTT
Specifications
Cable Type: RS-232C Null Modem Full Cross Cable
Connector 1: DB9 Pin Female Connector x1
Connector 2: DB9 Pin Female Connector x1
Number of Conductors: 7
Connector plating: Gold Plated
Gender: DB9 Female to DB9 Female
Wire: UL 28AWG 80C 30V - Shielded Cable OD=6.4mm
Cable Style: Round
Shielding: Yes
Jacket: PVC
Pin-Out: Cros Connection: 1-7+8 / 2-3 / 3-2 / 4-6 / 5-5 / 6-4 / 7+8 - 1 / Shield-Shield
Color: Black
Cable Length: 30M ~ 100ft
