  • Cáp Công Nghiệp Industrial Cable
  • Cáp 2M 6.5ft SCSI-VHDCI 100P Cable Connector SCSI 100 Pin Male Pitch 1.27mm to SCSI VHDCI 100 Pin Male Pitch 0.8mm For DIN-100S-01 ADLink Terminal Boards witch ADLINK Advantech PCIe-8158 Motion Control

Cáp 2M 6.5ft SCSI-VHDCI 100P Cable Connector SCSI 100 Pin Male Pitch 1.27mm to SCSI VHDCI 100 Pin Male Pitch 0.8mm For DIN-100S-01 ADLink Terminal Boards witch ADLINK Advantech PCIe-8158 Motion Control

Mã SP: 8008

Thương hiệu: ADLINK

Loại sản phẩm: SCSI-VHDCI 100P Cable

Đánh giá

:

Giá

:

4.300.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original ADLINK Control I/O Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

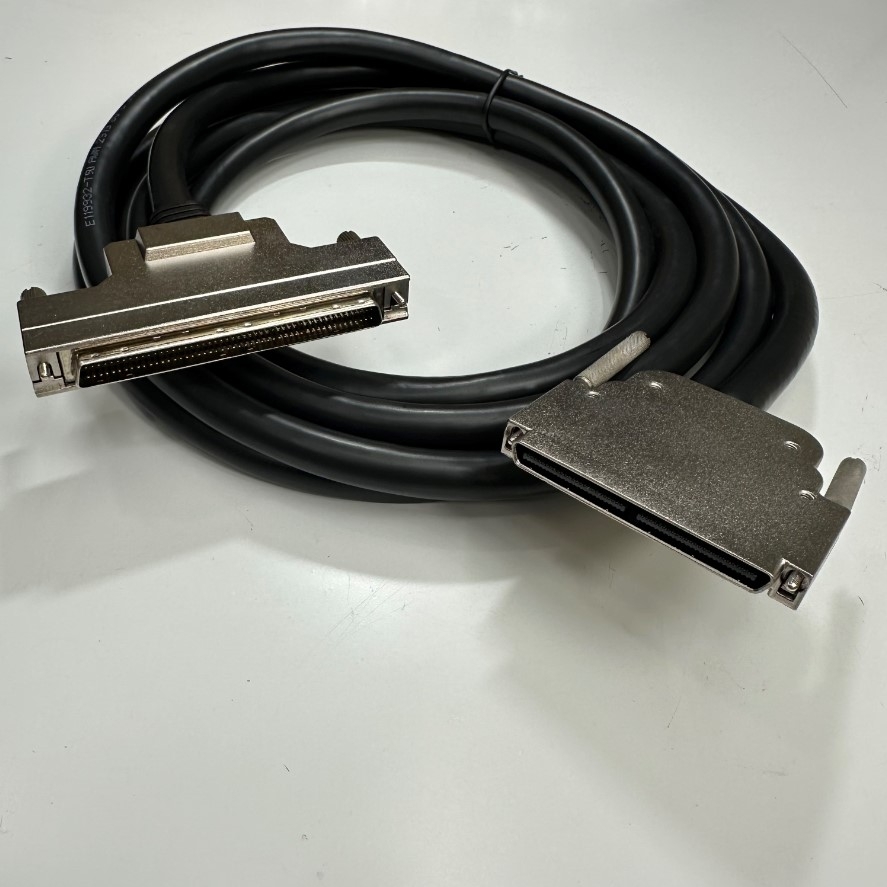

2M Cable SCSI-VHDCI 100P Cable Connector SCSI 100 Pin Male Pitch 1.27mm to SCSI VHDCI 100 Pin Male Pitch 0.8mm

ADLINK Advantech PCI-1758

ADLINK Advantech PCIe-8158

ADLINK Terminal Boards DIN-100S-01 100 Pin SCSI-II Connector

Terminal Board with One 100-pin SCSI-II
Connector and DIN-r ail Mounting
On-board Connector Type: 100-pin SCSI-II female

Hàng Original Theo thiết bị ADLINK Advantech Terminal Boards/Motion Control Card
Specification
Brand: Taiwan/Original ADLINK Control I/O Cable
Model: SCSI-VHDCI 100P
Connector 1: SCSI 100 Pin Male Pitch 1.27mm (IDC Type Connector)
Connector 2: VHDCI 100 Pin Male Pitch 0.8mm (IDC Type Connector)
Connector plating: Gold over Nickel
Gender: SCSI-II 100 Pin Male to SCSI VHDCI 100 Pin Male
Number of Conductors: 100
Wire: UL 28AWG - Shielded Cable OD=11mm
Cable: E119939-TSU AWM 2919 80°C 30V VW-1 LOW VOLTAGE COMPUTER CABLE COPARTNER
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Length : 2M ~ 6.5ft
Color: Black
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. /  .-. / 100-100 / Shield-Shield
Cáp 2M 6.5ft SCSI-VHDCI 100P Cable Connector SCSI 100 Pin Male Pitch 1.27mm to SCSI VHDCI 100 Pin Male Pitch 0.8mm For DIN-100S-01 ADLink Terminal Boards witch ADLINK Advantech PCIe-8158
