  • Cáp Công Nghiệp Industrial Cable

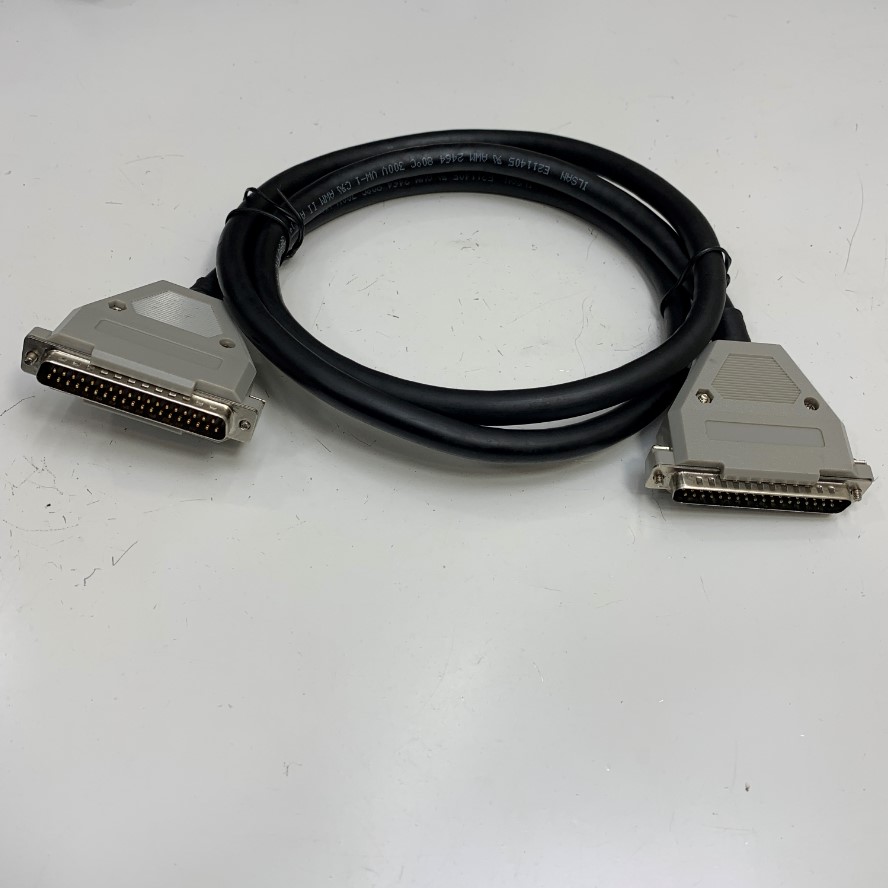

  • Cáp 1M 3.3ft OEM Thay Thế CA-3710 Cable DB37 37 Pin Male to Male Serial Shielded Cable 24AWG ILSAN E211405 OD Ø 11mm Black For ICP DAS CA-3710 Industrial Connection Card witch DN-37 I/O

Cáp 1M 3.3ft OEM Thay Thế CA-3710 Cable DB37 37 Pin Male to Male Serial Shielded Cable 24AWG ILSAN E211405 OD Ø 11mm Black For ICP DAS CA-3710 Industrial Connection Card witch DN-37 I/O

Mã SP: 12411

Thương hiệu: Original I/O Cable

Loại sản phẩm: D-Sub DB37 Male/Male

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Serial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

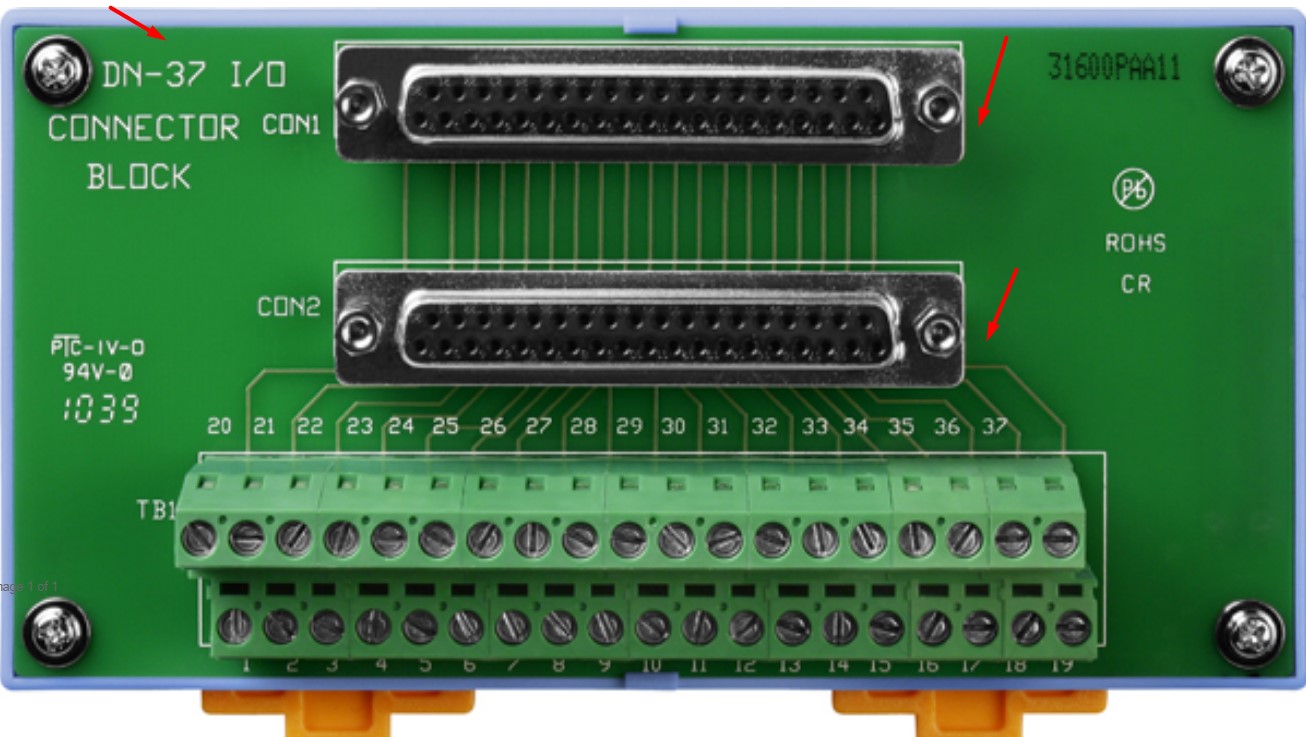

DN-37/2 (with DIN-Rail Mounting and Dsub 37-pin connector, Includes one CA-3720 37-pin Male-Male D-sub cable 3.0 M)

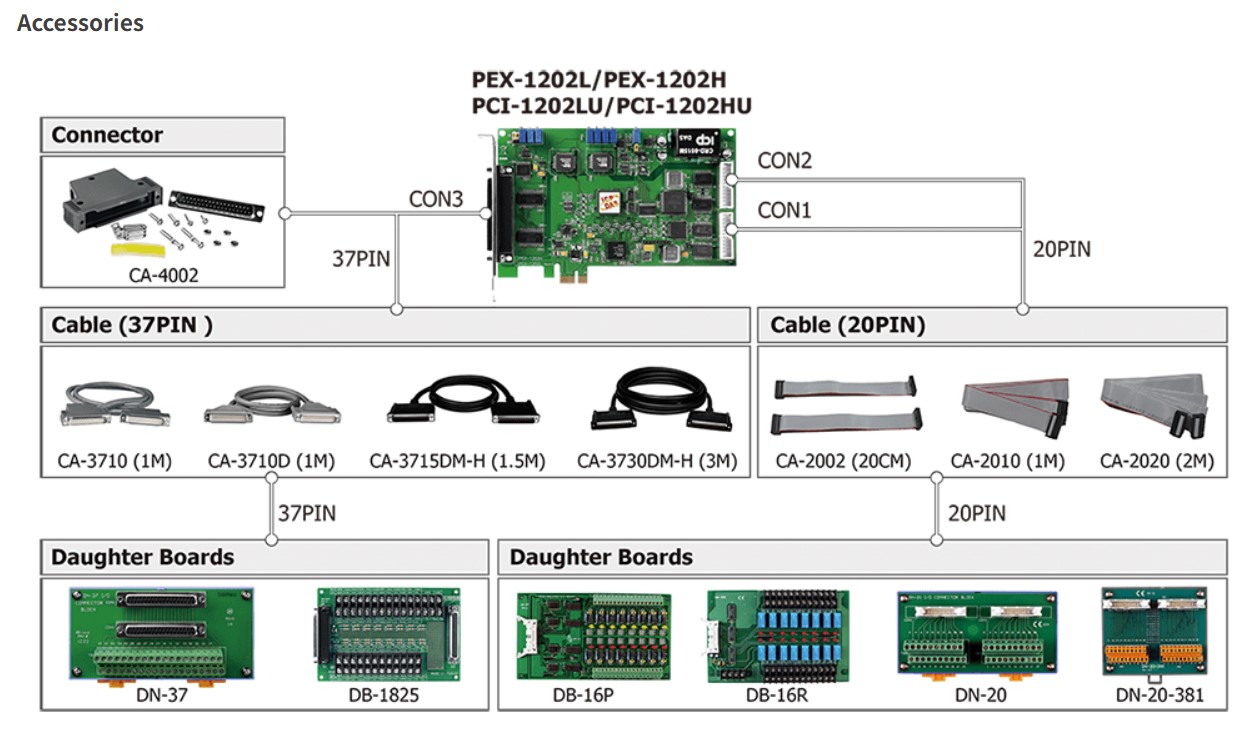

ICP DAS PCI Express PEX-1202L/PEX-1202H Card
ICP DAS PCI-1202LU/PCI-1202HU Card

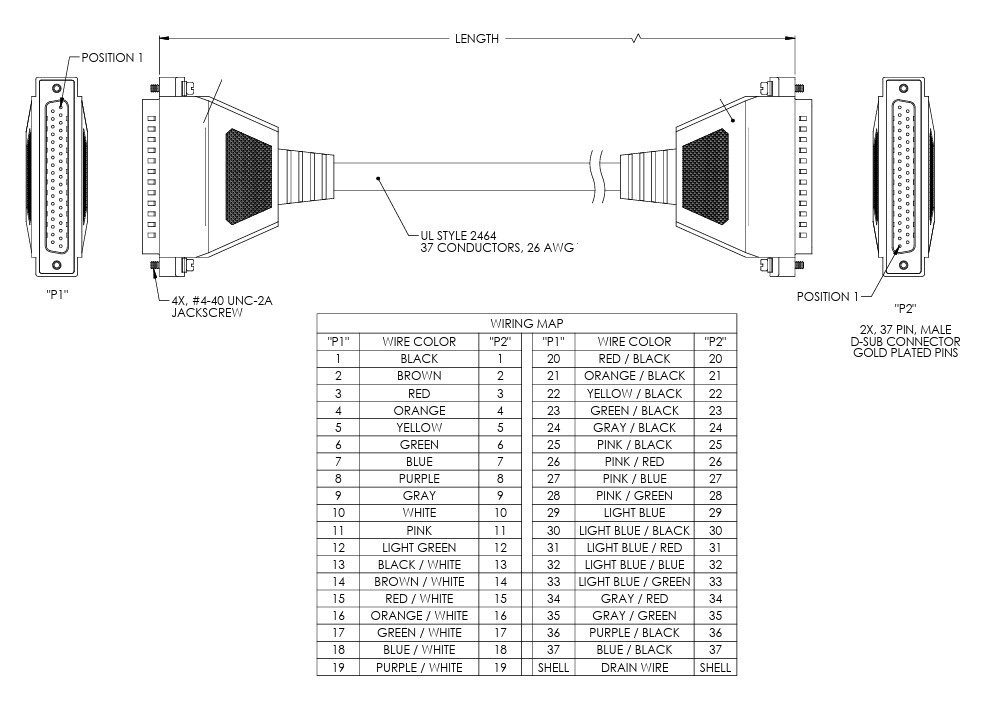

Drawing Cable Connector DDK 17J-37 DB37 Male to Male 3M

Specifications
Brand: Taiwan/Original Digital I/O Signals Cable
Model number: Communication I/O Data Cable

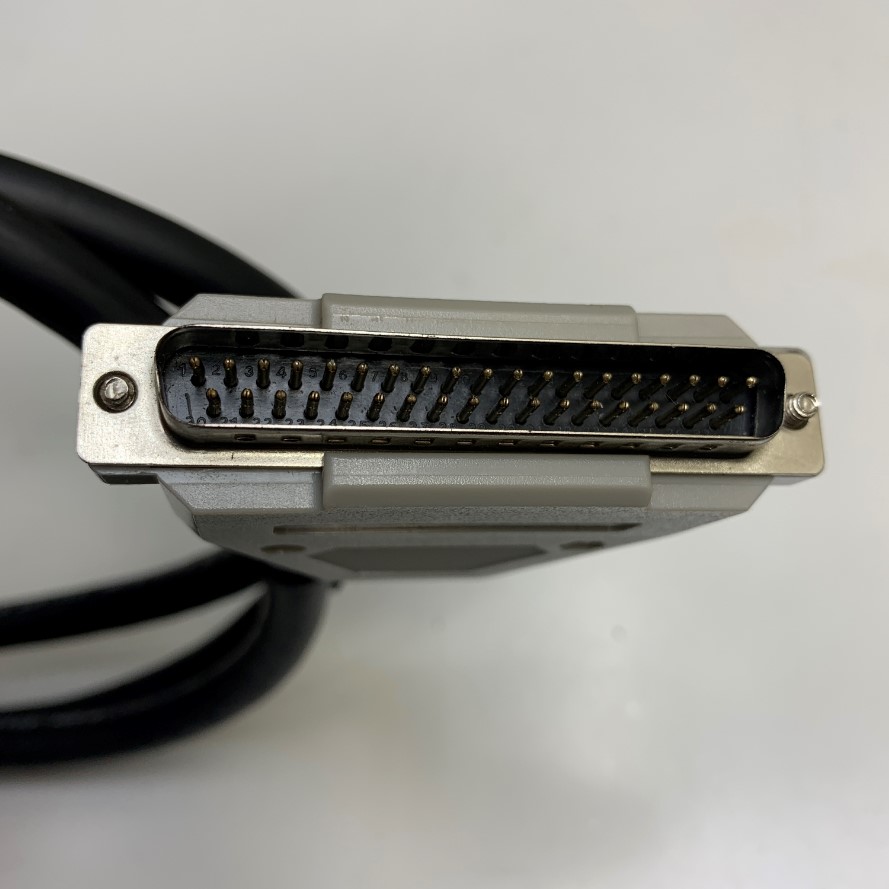

Connector Type 1: Jack DB37 Male Solder Connector With Screw
Connector Type 2: Jack DB37 Male Solder Connector With Screw
Number of Conductors: 37 x 0.2mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire

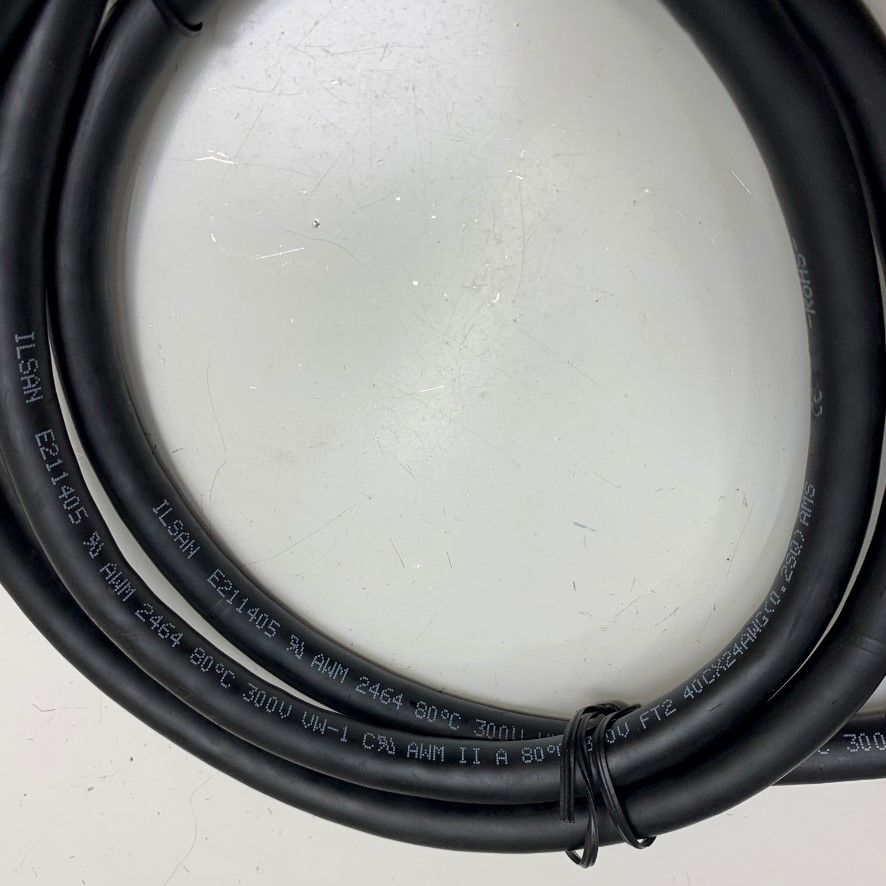

Cable: E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 40C x 24AWG(0.2SQ) AM -RoHS-
Outer diameter: 11.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 1M ~ 3.3ft
Pin-Out: Straight Through Connection: 1 - 1; 2 - 2;--------; 37 - 37; Shell - Shell
Cáp 1M 3.3ft OEM Thay Thế CA-3710 Cable DB37 37 Pin Male to Male Serial Shielded Cable 24AWG ILSAN E211405 OD Ø 11mm Black For ICP DAS CA-3710 Industrial Connection Card witch DN-37 I/O
