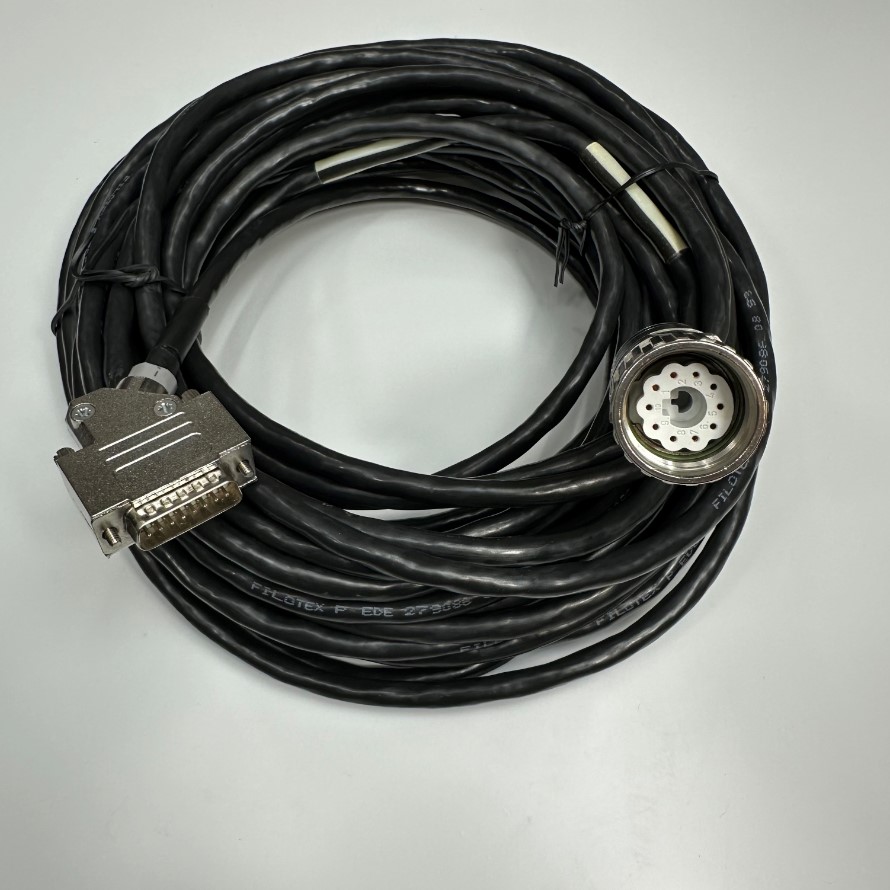

Cáp 10M 33ft Rexroth Encoder Cable RKG4200/010 Signal Shielded Cable Plug M23 10 Pin Female to DB15 Male For Rexroth Motor Encoder Control Cable

Mã SP: 11913

Thương hiệu: KTT Cable Servo Drive/Industrial

Loại sản phẩm: M23 10 Pin Female to DB15 Male

Đánh giá

:

Giá

:

9.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Khoa: ‭‭‭098.131.9702

Rexroth Encoder cable RKG4200/010

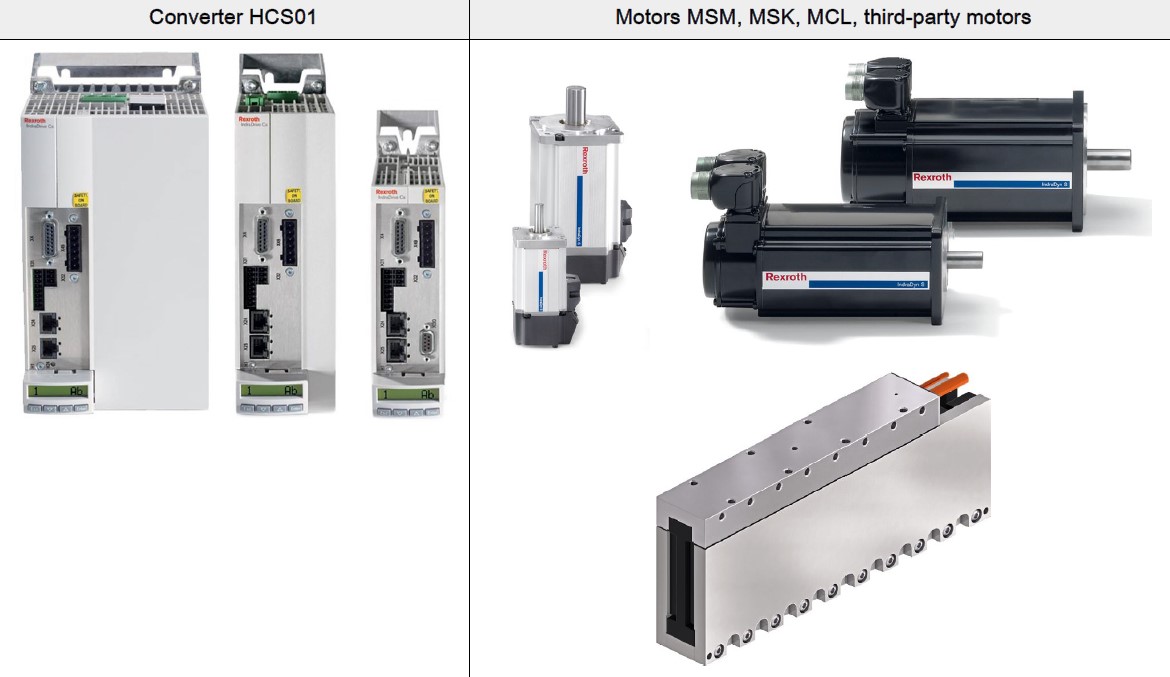

Rexroth IndraDrive Cs Converter HCS01 witch Motors MSM, MSK, MCL, third-party motors

Specifications
Brand: Thientruongpc - ViệtNam/Thientruongpc
PartNumber: RKG4200/010 Rexroth Encoder Cable
Connector 1: DB15 Male (Metal Fe)
Connector 2: M23 10 Pin Female
Cable Type: M23 10 Pin Female to DB15 Male
Number of Conductors: 10
Connector plating: Gold Plated
Cable: Shielded 10 Core x 0.4mm² 20AWG 105°C 300V OD 7.7mm
Data Conductor Type: 20AWG twisted pair
Maximum Operating Voltage: 300V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 7.7mm
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Protection class: IP20
Colour: Black
Length : 10M ~ 33ft
Cáp 10M 33ft Rexroth Encoder Cable RKG4200/010 Signal Shielded Cable Plug M23 10 Pin Female to DB15 Male For Rexroth Motor Encoder Control Cable
