Cáp 1.5M 5ft OEM Thay Thế CS-DSDMDB37MF-005 Cable Connector DB37 Pin Male to Female Shielded Hitachi 37 Core x 0.2mm² OD 12.5mm Grey For Power and Signal I/O Cable

Mã SP: 4206

Thương hiệu: KTT Power I/O Cable

Loại sản phẩm: DB37 Male to Female

Đánh giá

:

Giá

:

2.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/KTT Power and Signal Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

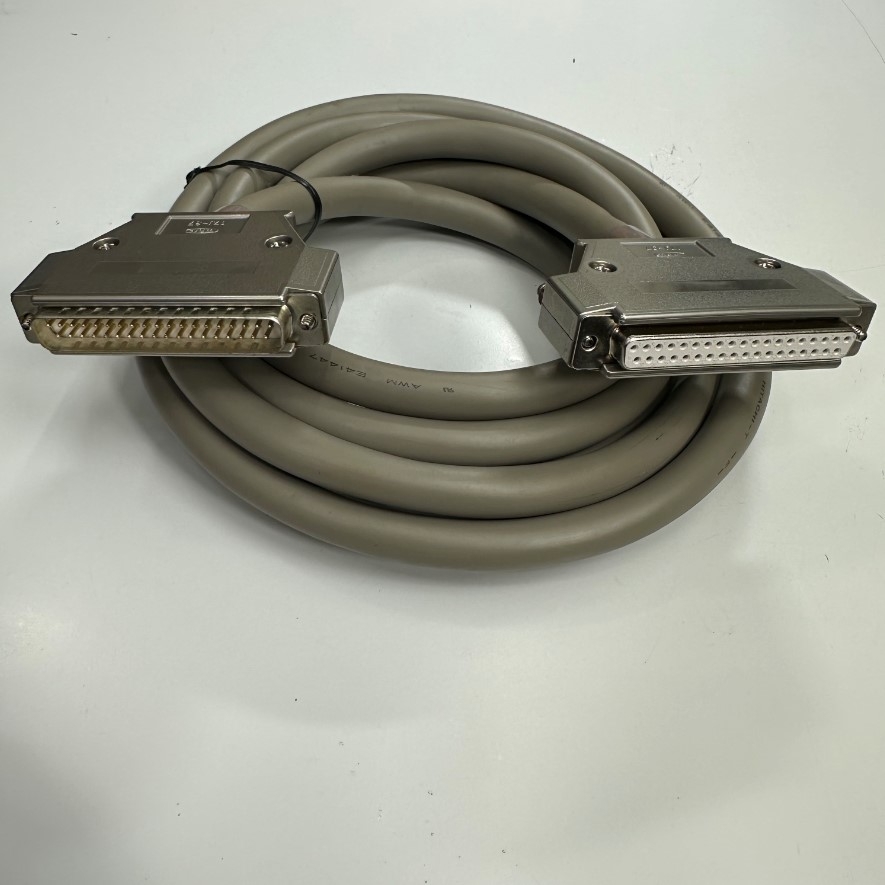

Connector DB37 Pin Male to Female Extension Shielded Cable Hitachi 37 Core x 0.2mm² OD 12.5mm Grey

Specifications
Brand: ViệtNam/KTT Power and Signal Cable
Model number: OEM Thay Thế CS-DSDMDB37MF-005 Cable DB37 Male to Female 37 Pin
Connector Type 1: DDK 17J-37 Connector Plug Metal DB37 Male 37 Pin Gold Plated With Screw
Connector Type 2: DDK 17J-37 Connector Plug Metal DB37 Female 37 Pin Gold Plated With Screw
Number of Conductors: 37 x 0.2mm²
Conductor Size AWG: 24WG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable 40 Core HITACHI-T -F- AWM E41447 STYLE 2464 VW-1 AWG24x20P 80°C 300V Multi-Pair
Outer diameter: 12.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1.5M ~ 5ft

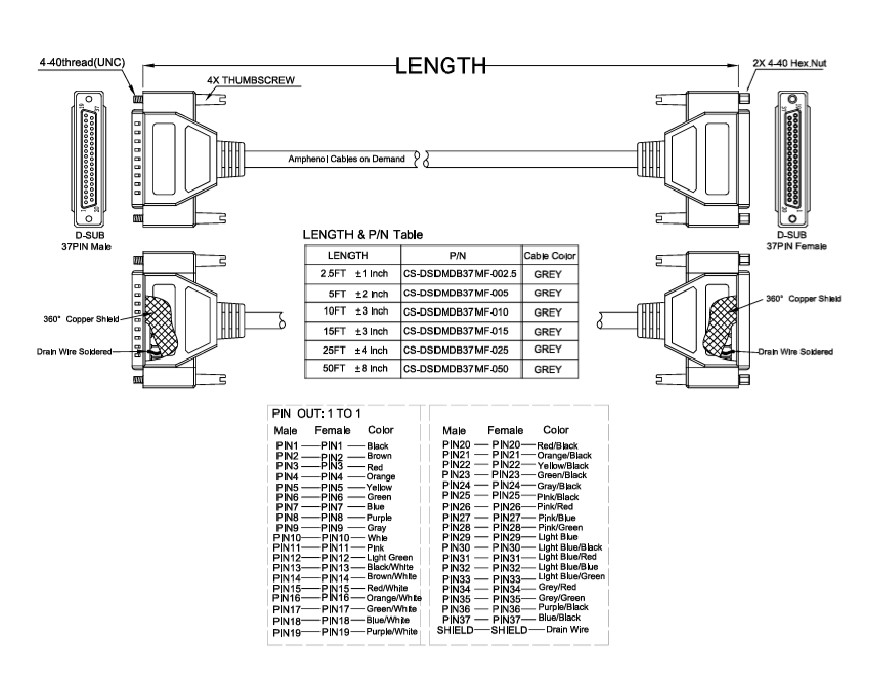

Pin-Out: Straight Through Connection: 1 - 1; 2 - 2;--------; 37 - 37; Shell - Shell
Cáp 1.5M 5ft OEM Thay Thế CS-DSDMDB37MF-005 Cable Connector DB37 Pin Male to Female Shielded Hitachi 37 Core x 0.2mm² OD 12.5mm Grey For Power and Signal I/O Cable
