  • Cáp Công Nghiệp Industrial Cable

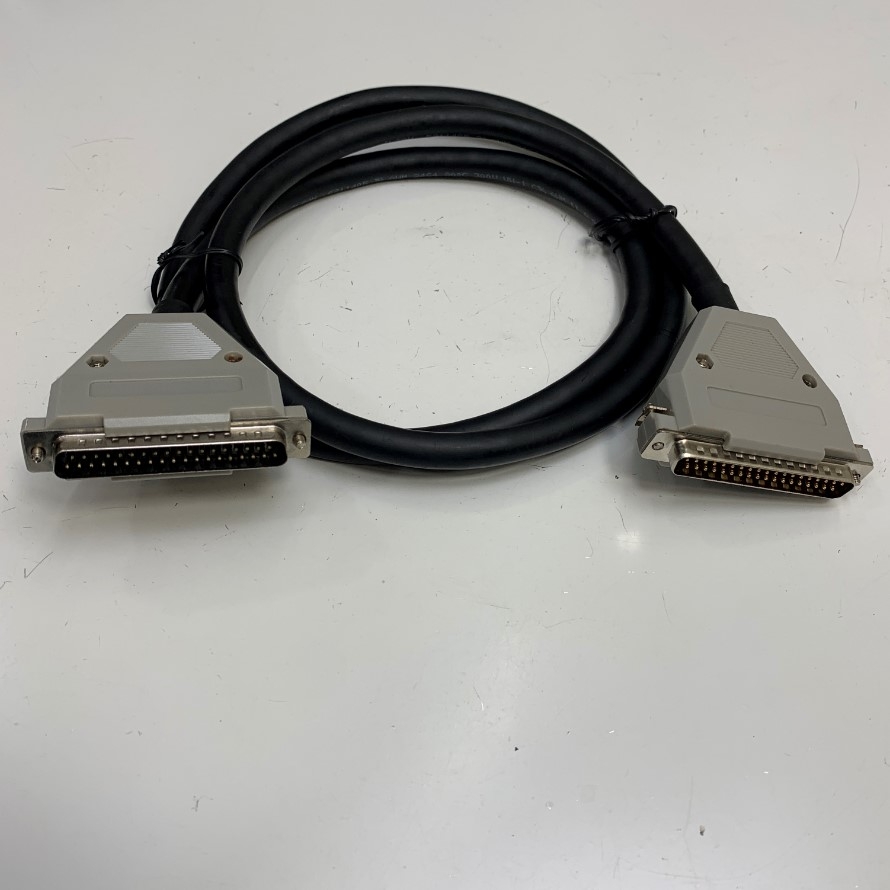

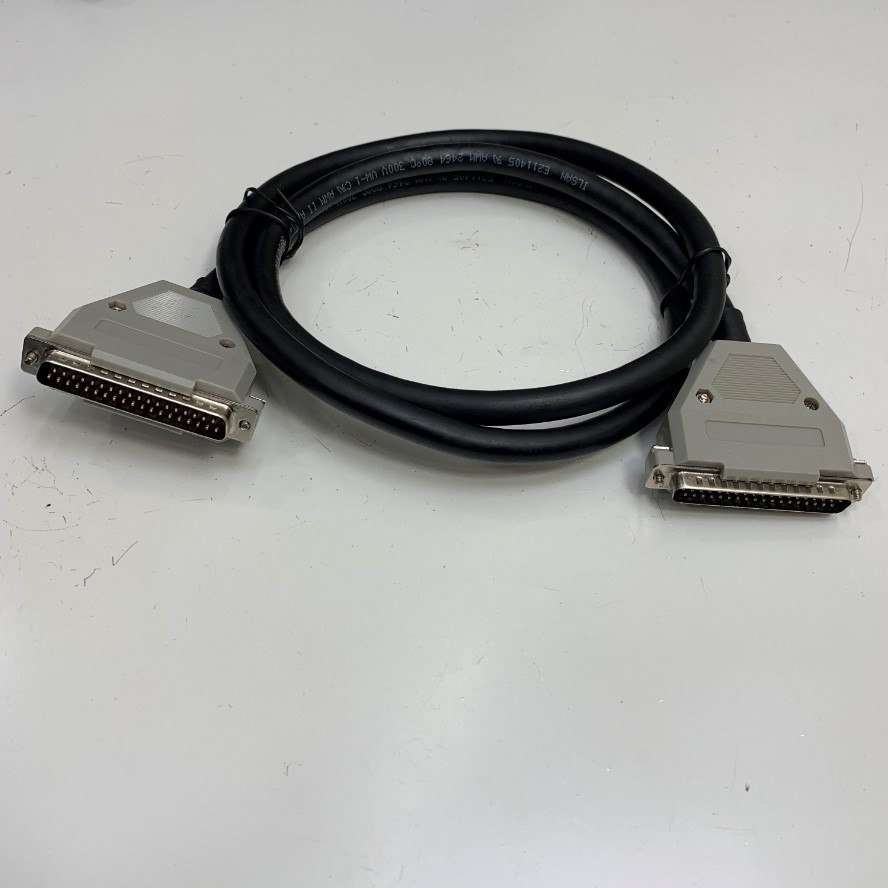

  • Cáp 1.4M 4.7ft Cable DB37 37 Pin Male to Male Cable 40 Core ILSAN E211405 80°C 300V 40CX24AWG (0.2SQ) OD 11mm For Module Contec EPD-37A 125V 1A 37 Pin D-Sub Connector Female Terminal

Cáp 1.4M 4.7ft Cable DB37 37 Pin Male to Male Cable 40 Core ILSAN E211405 80°C 300V 40CX24AWG (0.2SQ) OD 11mm For Module Contec EPD-37A 125V 1A 37 Pin D-Sub Connector Female Terminal

Mã SP: 10844

Thương hiệu: Original CNC Cable

Loại sản phẩm: 37 Pin Male/Male Cable

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Original CNC Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

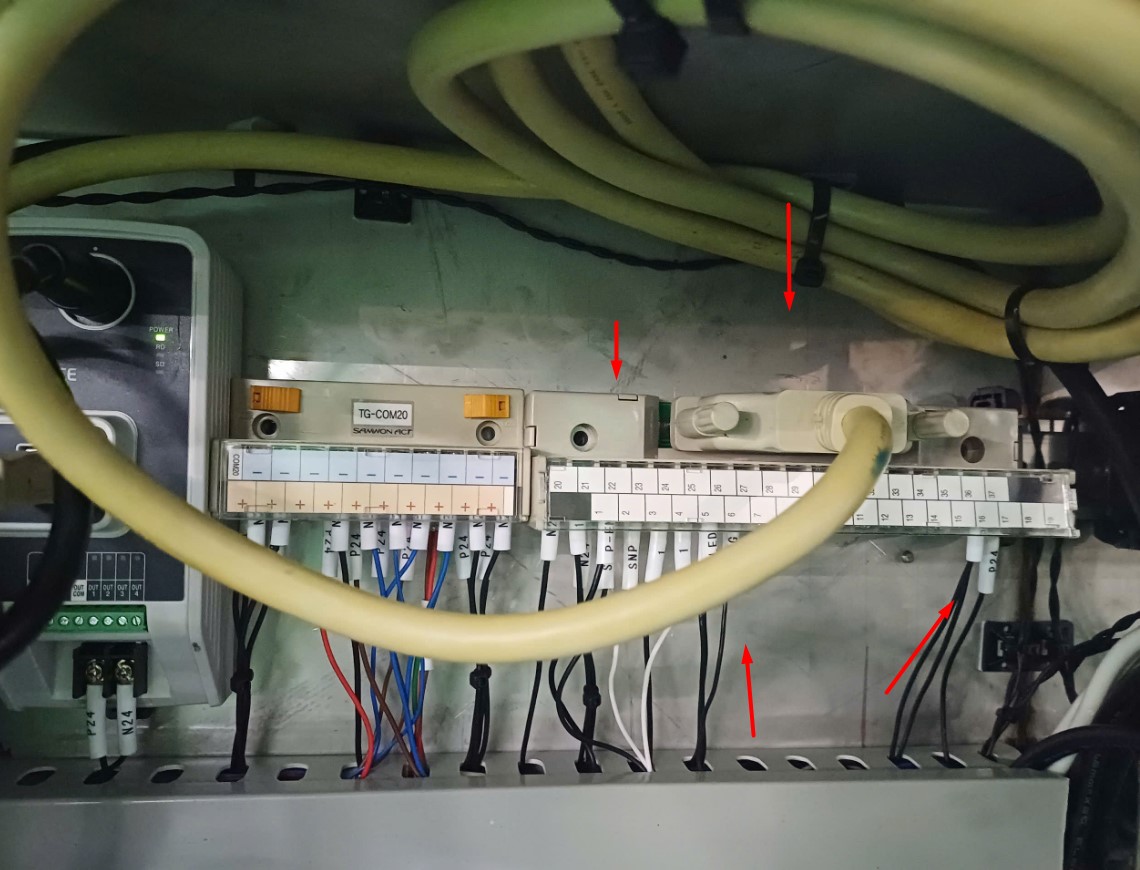

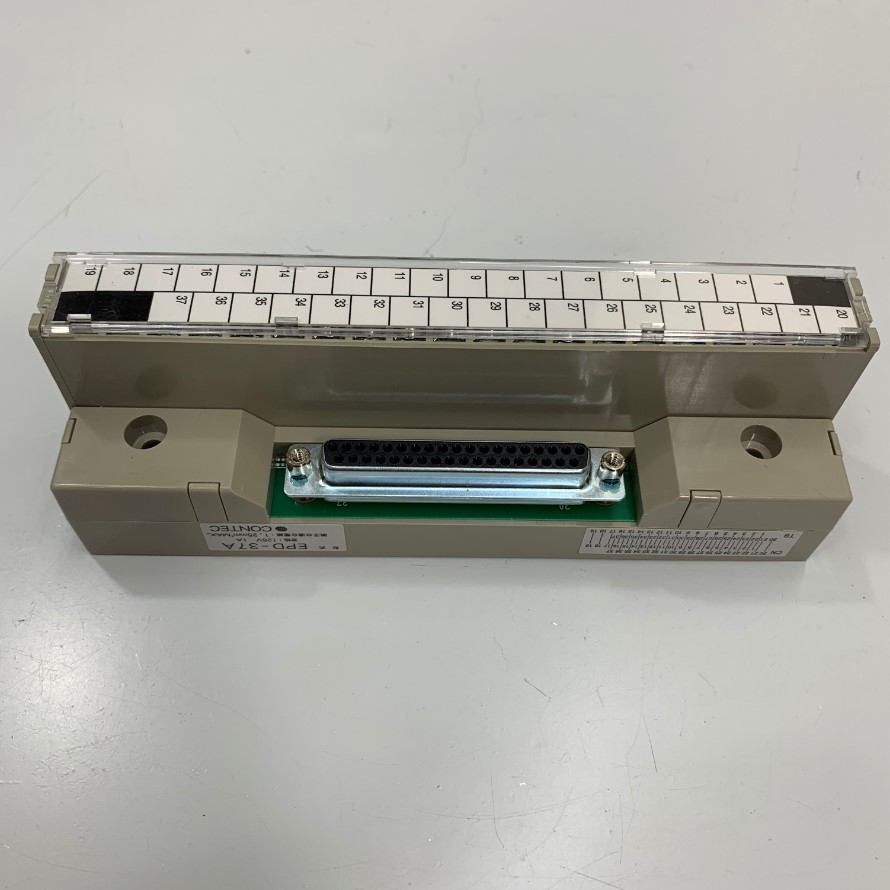

37 Pin Male/Male Cable For Module Contec EPD-37A 125V 1A 37 Pin D-Sub Connector Female Terminal Unit Relay Terminal Block Din Rail

Connection Diagram

Specifications
CNC Machine Servo Motor Interface IO Control Cable
Brand: Japan/Original I/O Signal Data Cable
Cable Type: Communication IO Data Cable

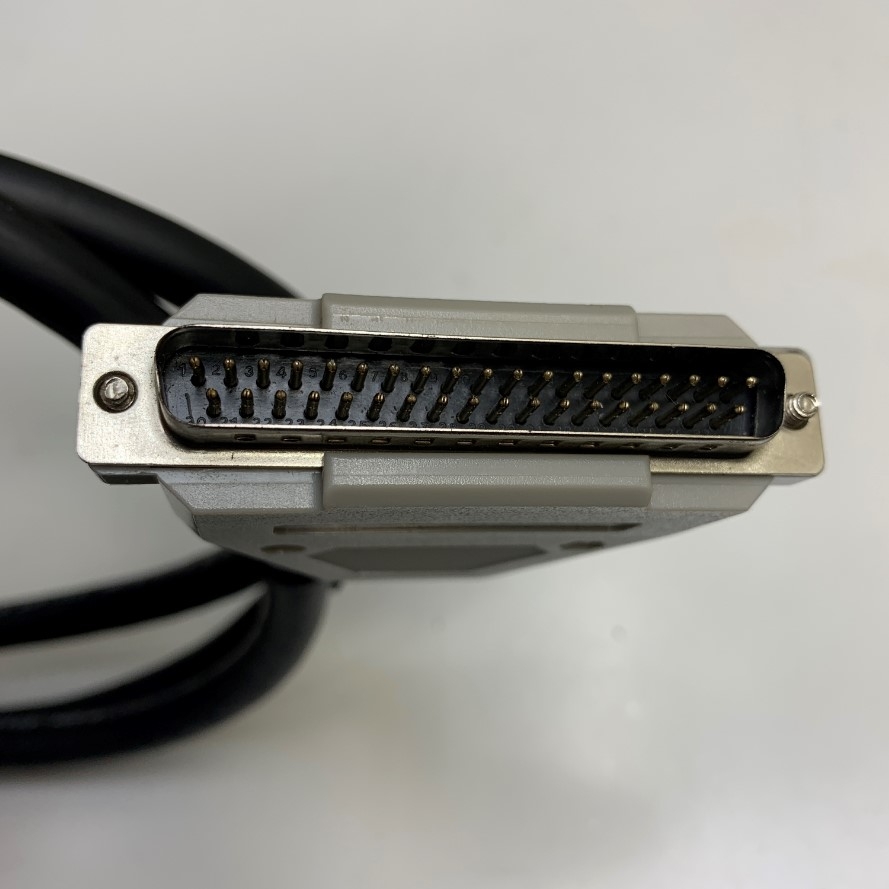

Connector 1: Jack DB37 Male Solder Connector With Screw
Connector 2: Jack DB37 Male Solder Connector With Screw
Connector plating: Connector Gold Plated
Gender: DB 37 Pin Male to DB 37 Pin Male
Wire: UL 24AWG - Cable OD=11mm

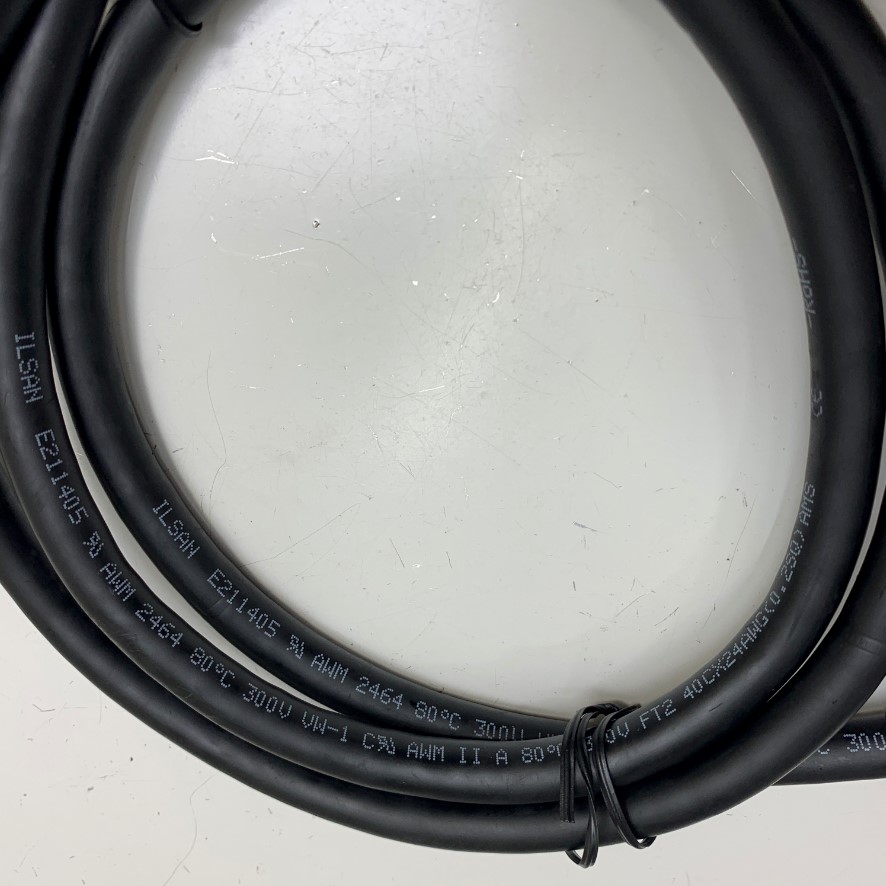

Cable: E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 40CX24AWG(0.2SQ) AM -RoHS-
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 35-35 / 36-36 / 37-37 / Shield-Shield
Cable Length: 1.4M ~ 4.7ft
Color: Black
Cáp 1.4M 4.7ft Cable DB37 37 Pin Male to Male Cable 40 Core ILSAN E211405 80°C 300V 40CX24AWG (0.2SQ) OD 11mm For Module Contec EPD-37A 125V 1A 37 Pin D-Sub Connector Female Terminal
