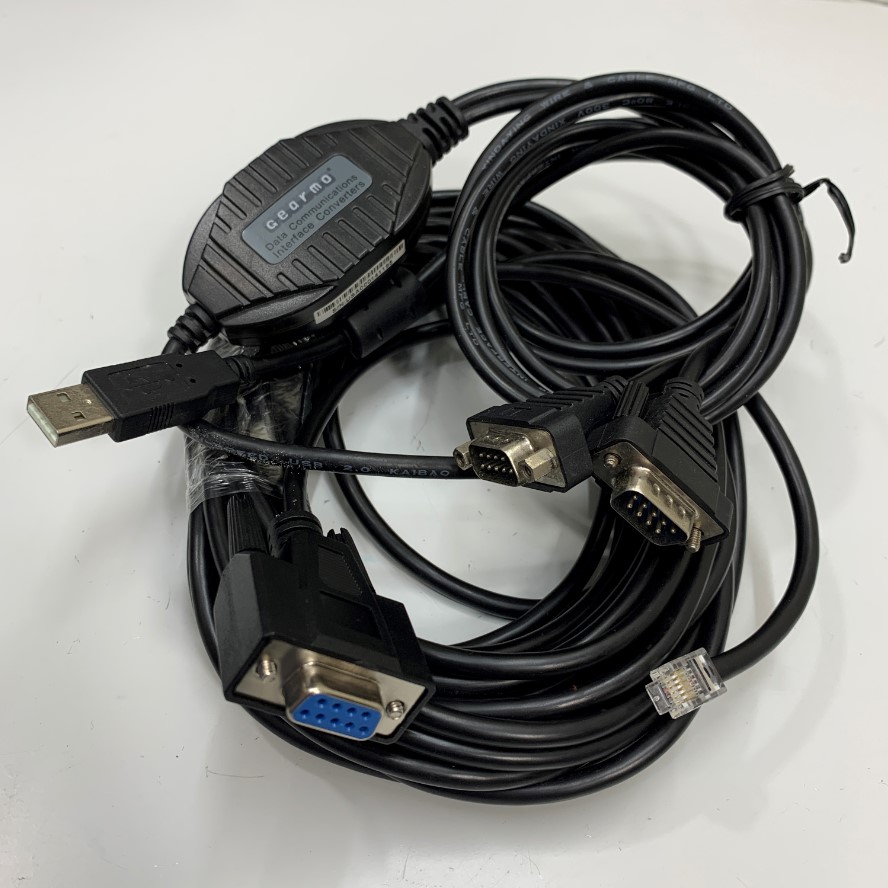

USB to 2 Port RS232 Serial with FTDI Chipset Windows 10/11 & Cáp 10M 33ft Cable Serial RJ11 6 Pin 6P6C to DB9 Female For Leadshine Stepper Motor Servo Drive Communication Cable Computer

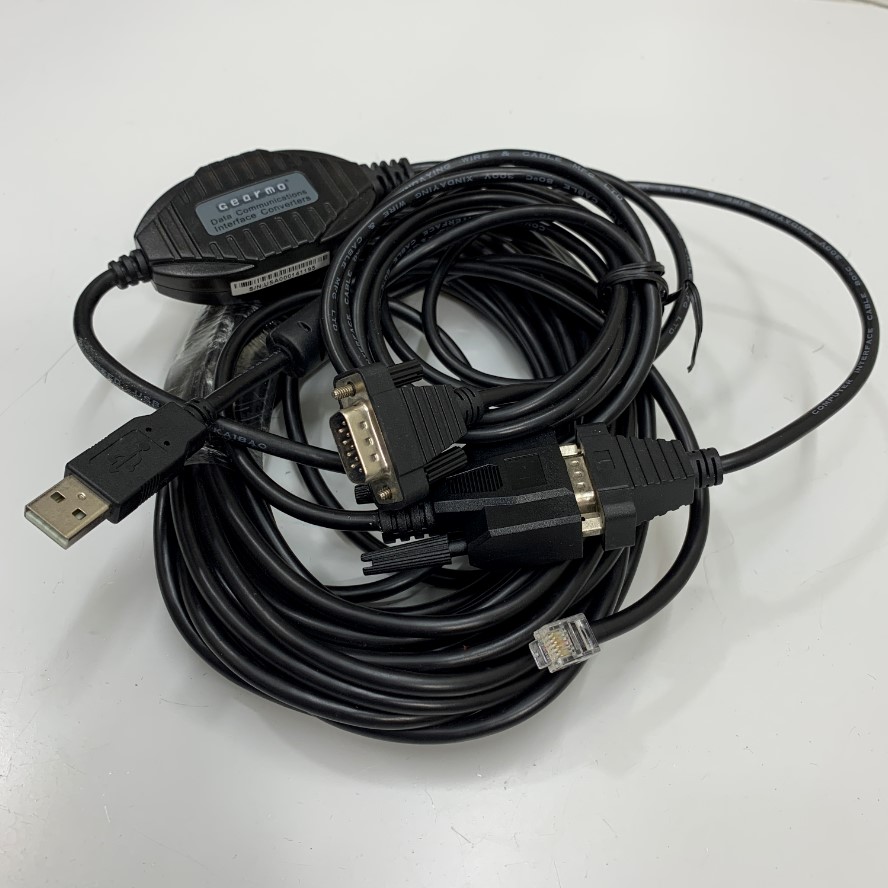

USB 2.0 to 2 Port RS232 Serial Gearmo USA-FTDI2X Converter with FTDI Chipset For Windows 10/11

Connector RS232 9 Pin DB9 Female Communication Computer

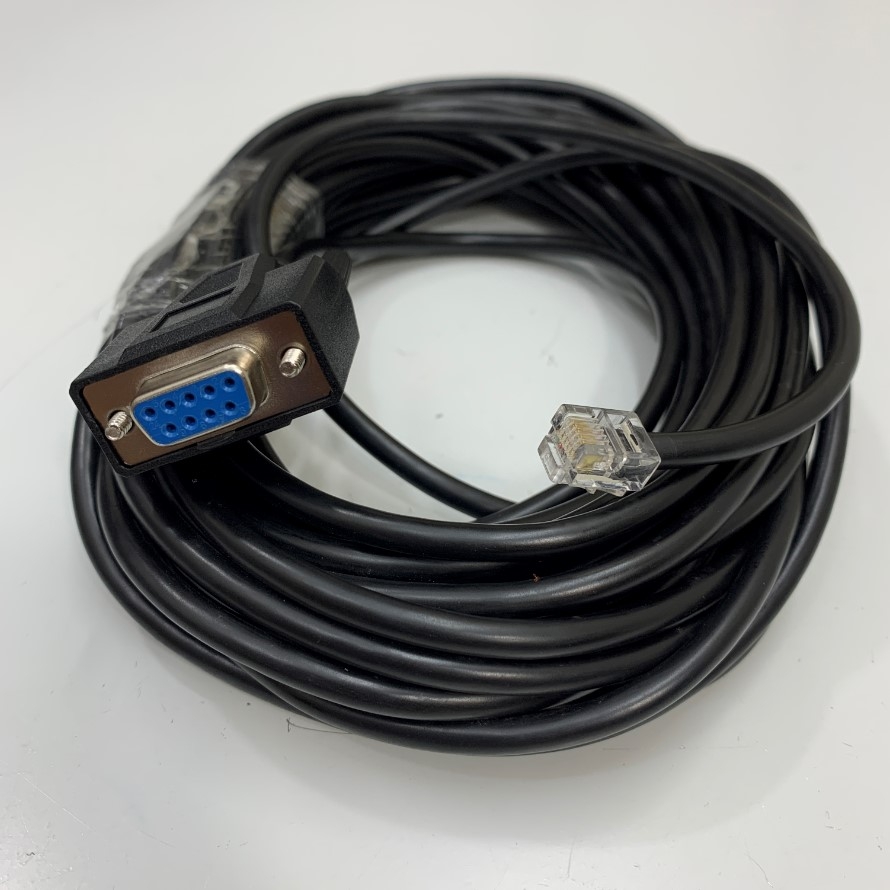

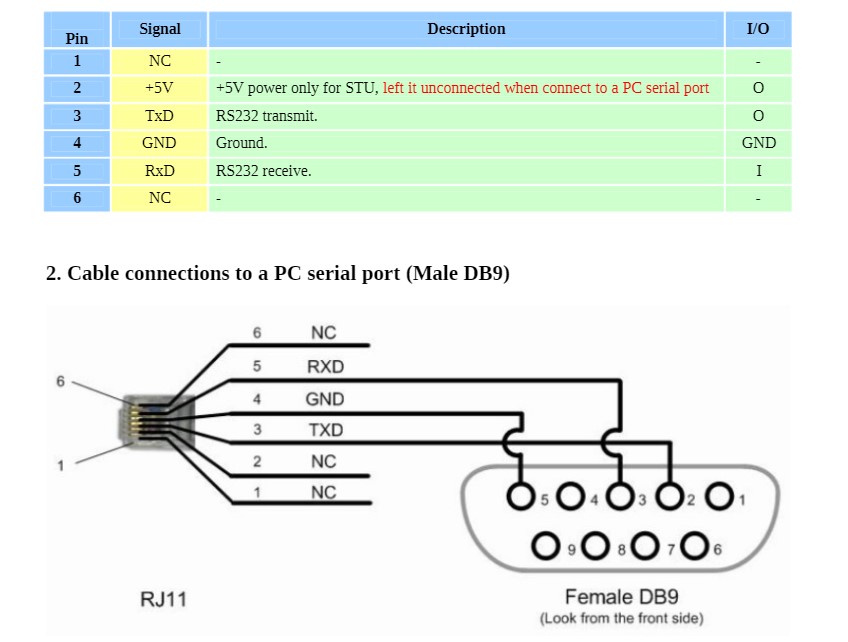

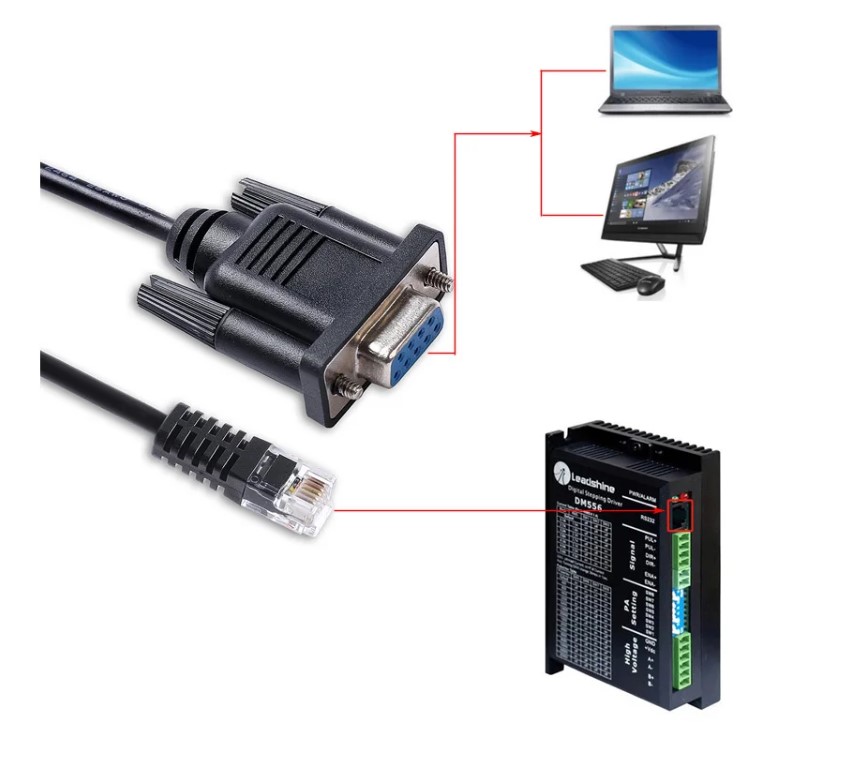

Wiring Diagram Leadshine Stepper Motor Servo Drive Serial Tuning Cable 9 Pin DB9 Female to RJ11 6P6C Serial RS232 Communication Cable

Stepper Drive:
DM432C, DM442，DM556, DM856, 3DM683, AM882, DM1182, DM2282
Servo Drive:
DCS810, DCS810S, ACS306, ACS606, ACS806

Technical Specifications
Brand: ViệtNam/Thientruongpc Cable Communications Leadshine
Cable Type: Serial RS232 Communication Cable
Cable Jacket Type:  PVC - Polyvinyl Chloride
Type and Rate: RJ11/DB9
Connector(s)
Connector A: 1 - RJ11 6 Pin 6P6C
Connector B: 1 - DB9 Female with PVC Molding and Screws
Operating temperature: -20 °C ~ 80 °C
Cable Length: 10M ~ 33ft
Color: Black
USB 2.0 to 2 Port RS232 Serial Gearmo USA-FTDI2X Converter with FTDI Chipset For Windows 10/11
USB to 2 Port RS232 Serial with FTDI Chipset Windows 10/11 & Cáp 10M 33ft Cable Serial RJ11 6 Pin 6P6C to DB9 Female For Leadshine Stepper Motor Servo Drive Communication Cable Computer
