Cáp LS-ES-ACH1000 Dài 1.8M 6ft Shielded Cable Firewire 1394 6 Pin to DB9 Female CN3 RS232 Communication Leadshine Servo Motor Drive H2-506 and PC Computer

Communication Cable For Leadshine Vector Easy Servo Drive  ES-DH1208 and ES-DH2306, H2-506 and PC Computer

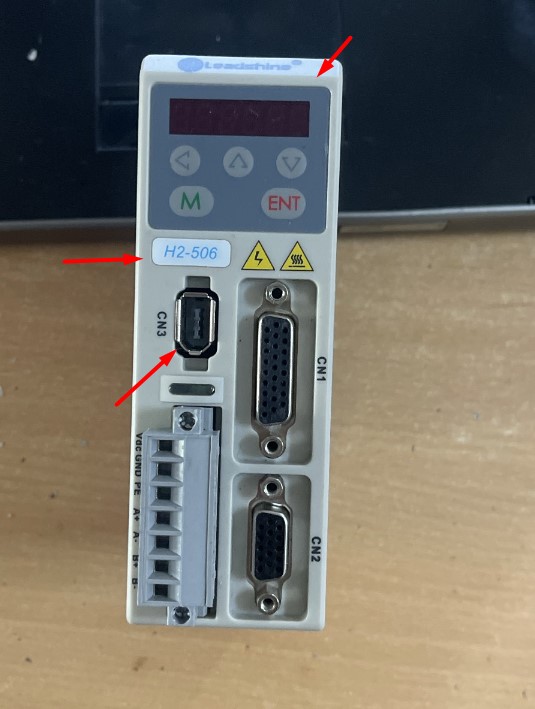

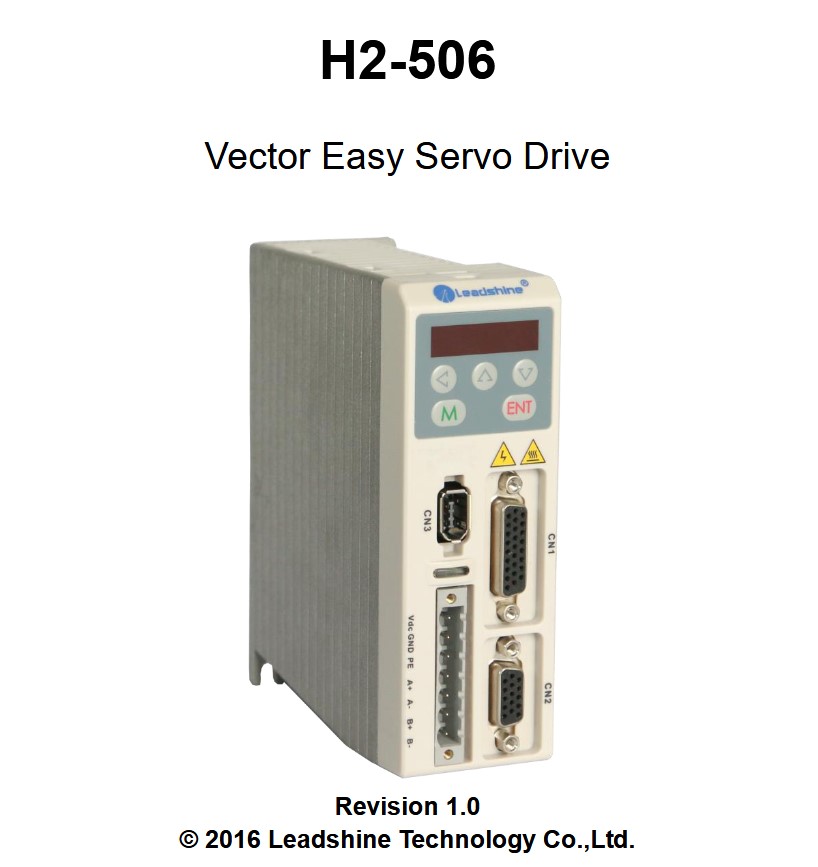

Leadshine H2-506 Vector Easy Servo Drive

Leadshine AC Hybrid Servo Drive H2-506 Servo Motor Driver

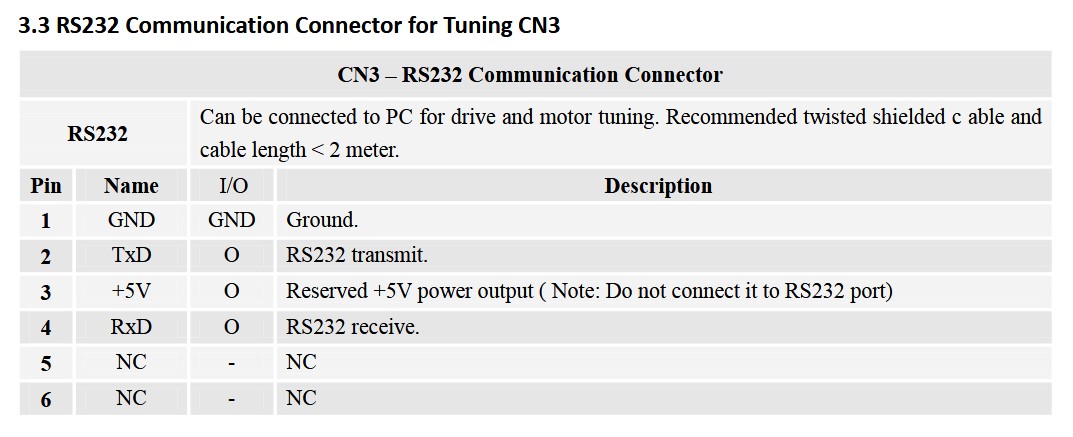

RS232 Communication Connector for Tuning CN3

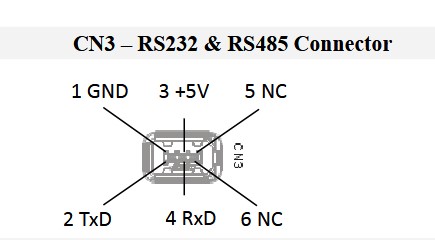

CN3 – RS232 Communication Connector

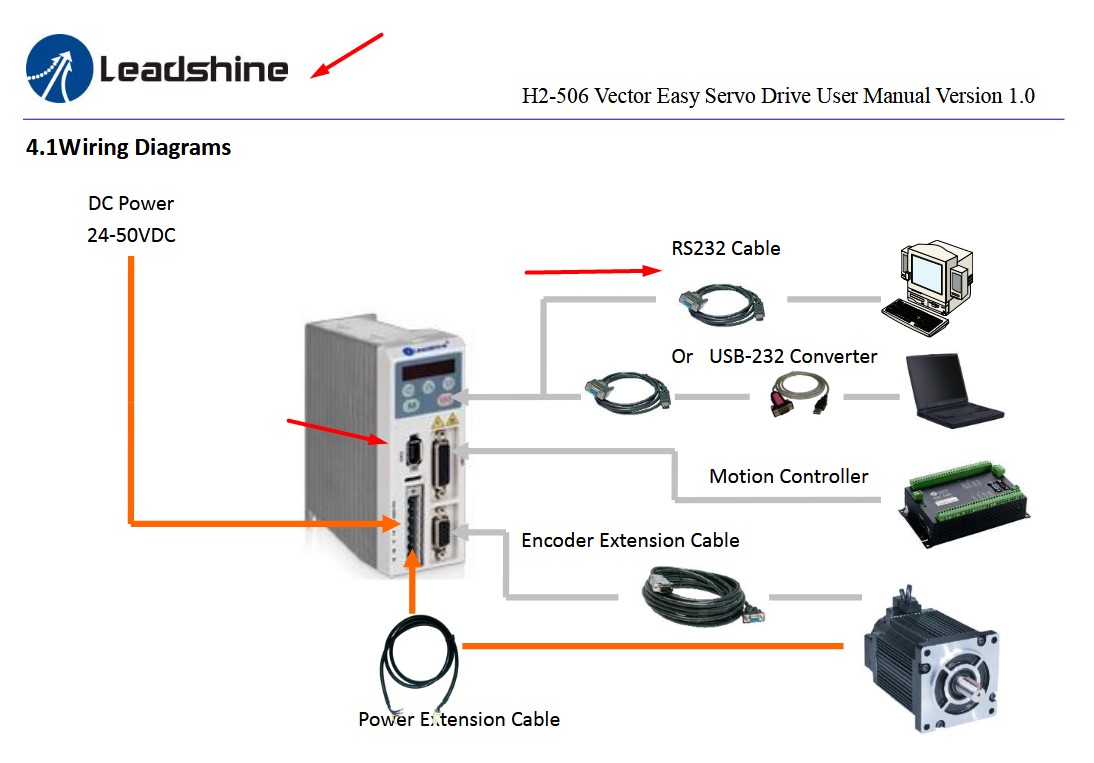

Wiring Diagram

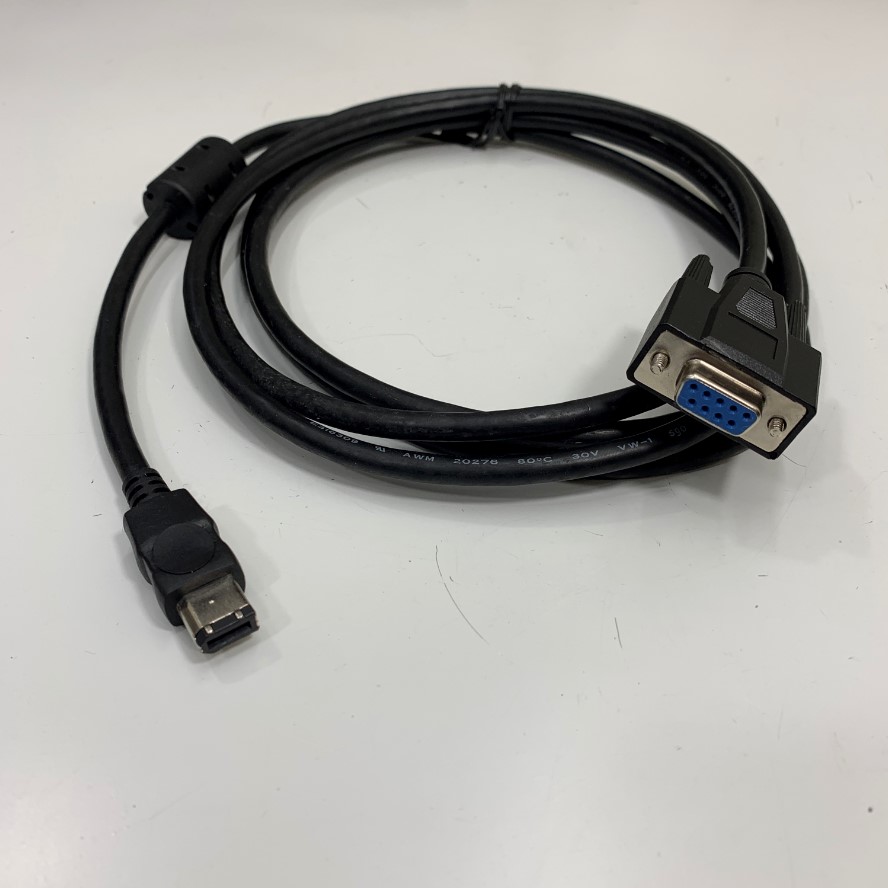

RS232 Cable

Specifications
Manufacturer: KTT/Thientruongpc
Brand: ViệtNam/Thientruongpc
Model: LS-ES-ACH1000 Leadshine Vector Easy Servo Drive CN3 Connection Shielded Cable RS232
Hardware
Cable Jacket Type: PVC - Polyvinyl Chloride
Color: Black
Wire Gauge: 28AWG Stranded
Jacket Material: 28AWG - Shielded Cable OD=6.0mm
Cable Shielding: 100% Aluminum Mylar Foil Shield
Connectors:

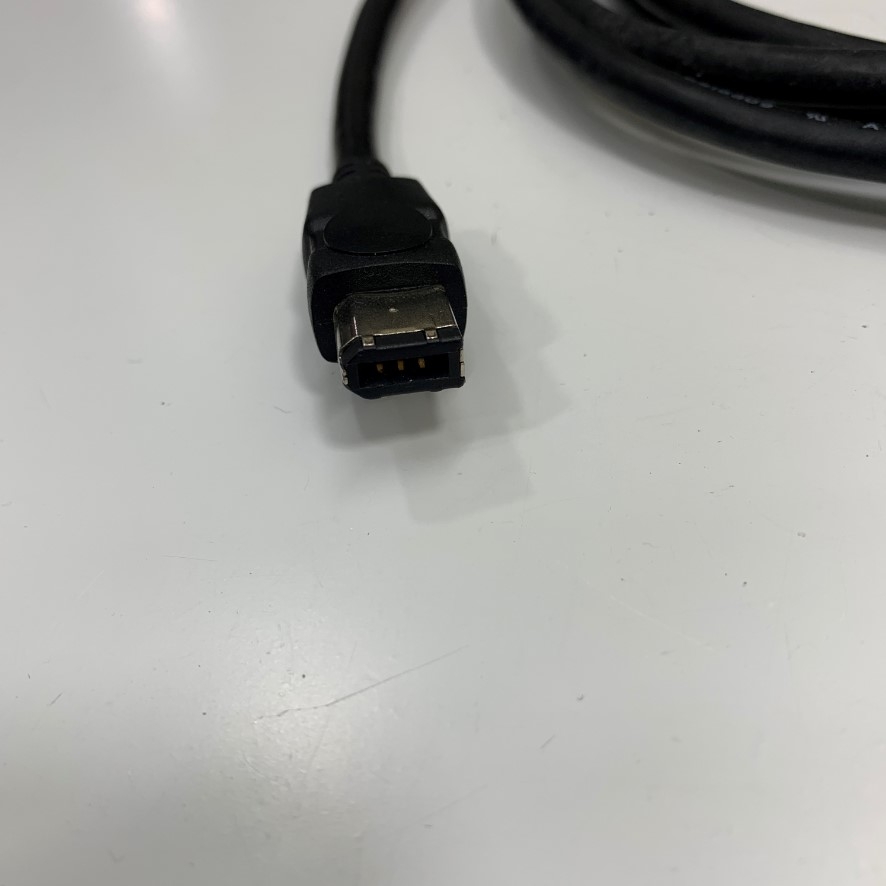

Connector A: Firewire 1394 6 Pin Connector

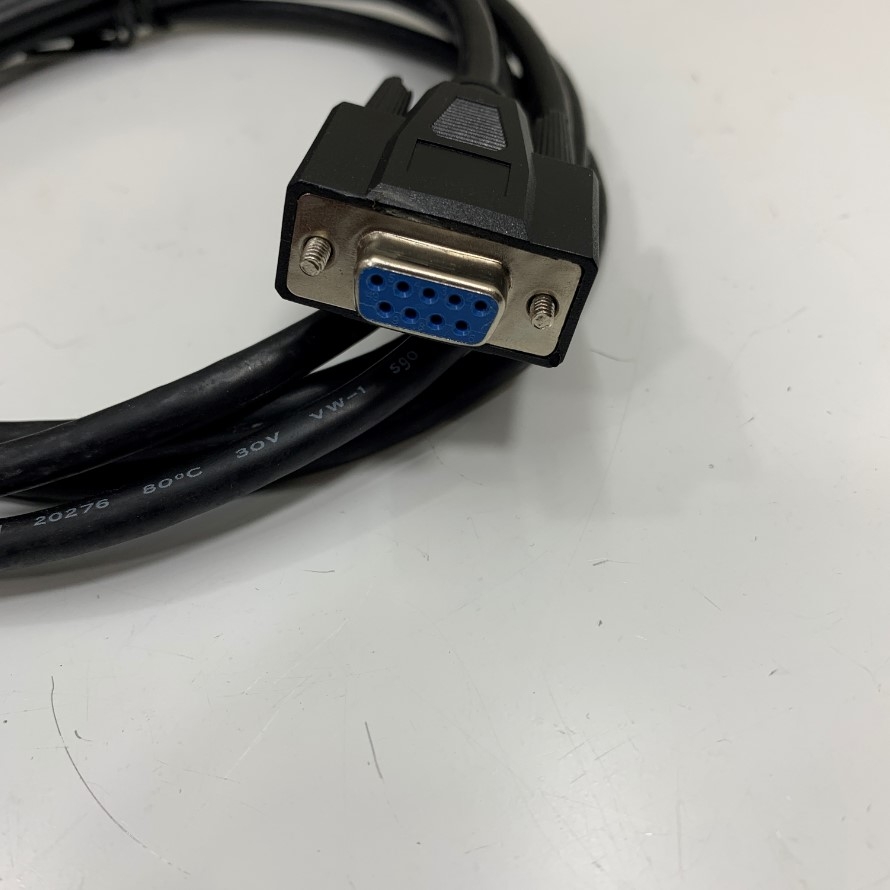

Connector B: DB9 Female Connector (thumbscrews)
Connector plating: Nickle Plated
Gender: Firewire IEEE 1394 6 Pin to DB9 Female
Cable Length: 1.8M ~ 6ft
