Cáp IDC 40 Pin Flat Ribbon Cable 40 Way 0.635mm Pitch Unscreened 25.4mm Dài 50M Length E524791 AWM 2678 30AWG VW-1 105ºC 150V FT1 FT2 Ming Xiang

Cáp IDC 40 Pin Flat Ribbon Cable 40 Way 0.635mm Pitch Unscreened 25.4mm Dài 50M Length E524791 AWM 2678 30AWG VW-1 105ºC 150V FT1 FT2 Ming Xiang

Mã SP: 9339

Thương hiệu: Ming Xiang

Loại sản phẩm: 40 Pin 0.635mm Flat Ribbon

Đánh giá

Giá

7.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Ming Xiang IDC Flat Ribbon Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Chi Tiết Sản Phẩm

IDC Ribbon Cable Flat 40 Core 30AWG 0.635mm Width 40 Conductor = 25.4mm

Specifications
Brand: Shanghai Mingxiang Electronic Technology Co., ltd
Attribute: Value
Ribbon Cable Type: Flat Ribbon
Pitch: 0.635mm
Terminated/Unterminated: Unterminated
Number of Ways: 40
Screened/Unscreened: Unscreened
Wire Gauge: 30AWG AWM 2678 VW-1 FT1
Length: 50M

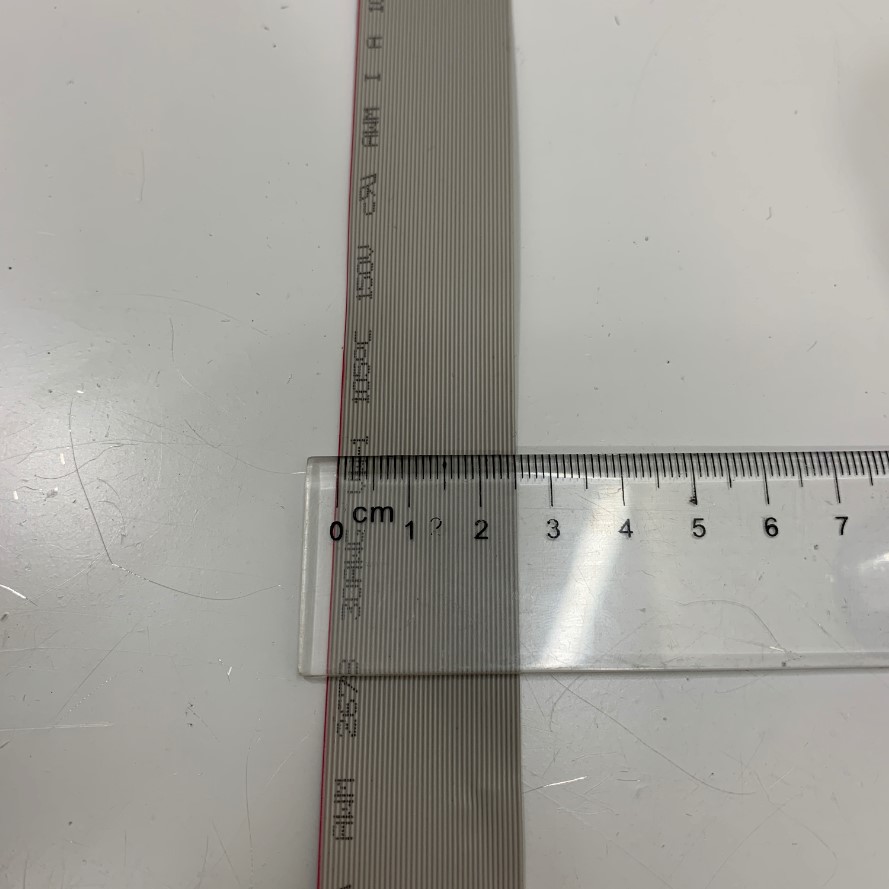

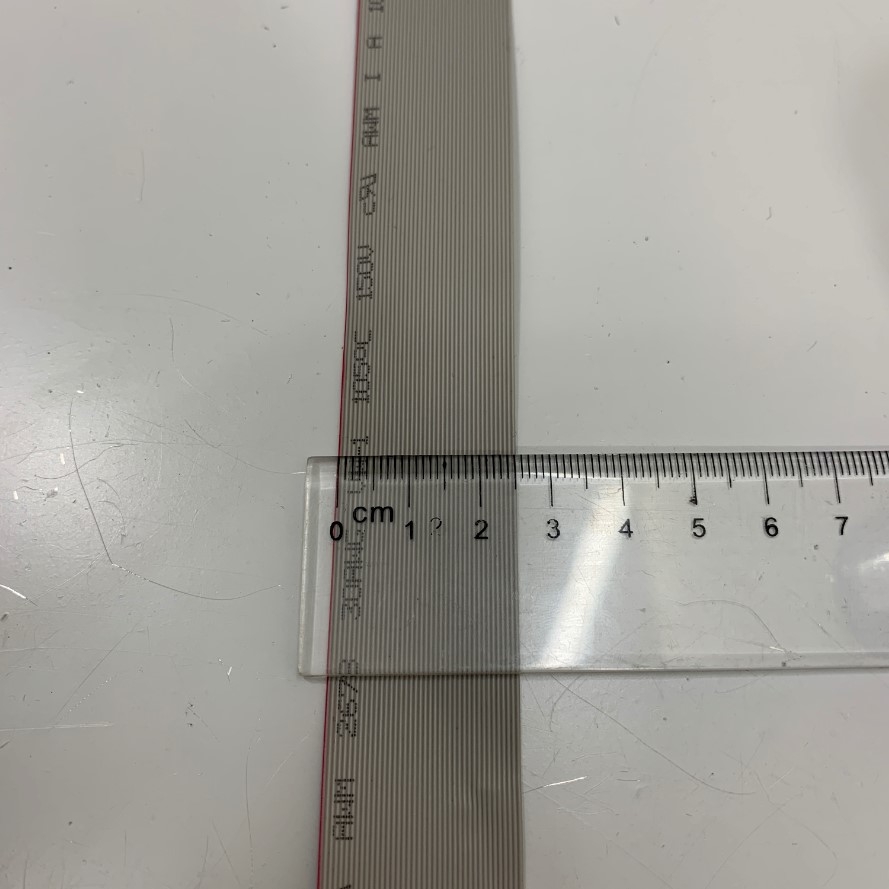

Width: 25.4 mm
Maximum Operating Temperature: +105°C
Sheath Colour: Grey
Conductor Strand Type: Stranded
Number of Strands: 7
Minimum Operating Temperature: -20°C
Voltage Rating: 150 V
Cáp IDC 40 Pin Flat Ribbon Cable 40 Way 0.635mm Pitch Unscreened 25.4mm Dài 50M Length E524791 AWM 2678 30AWG VW-1 105ºC 150V FT1 FT2 Ming Xiang
