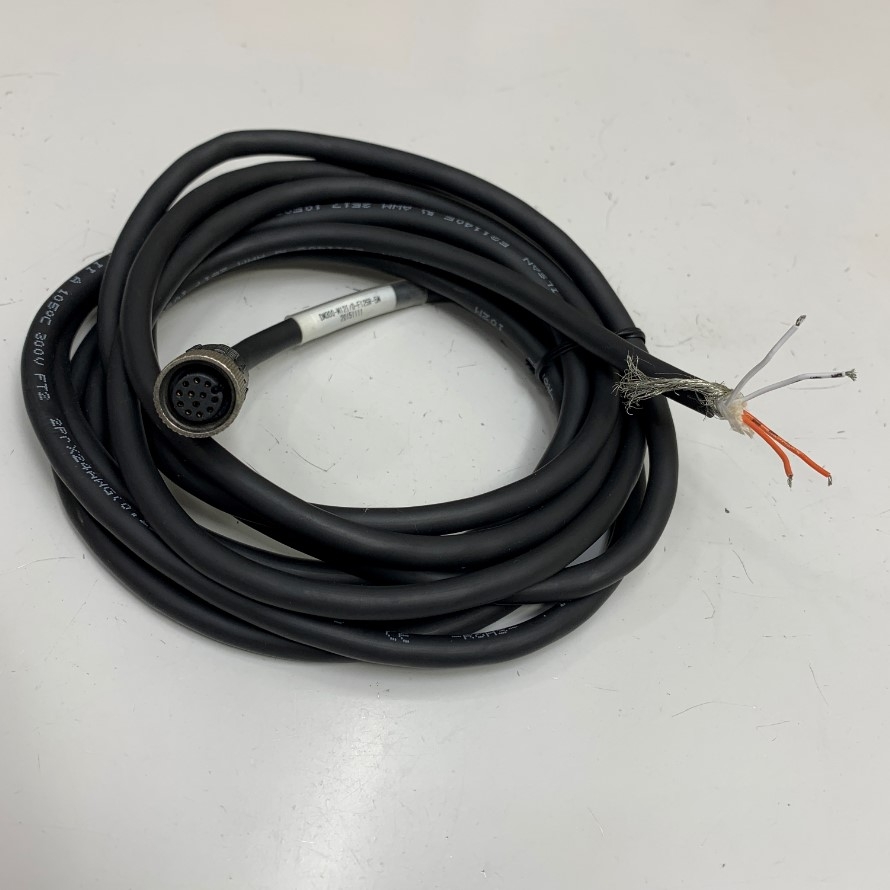

Cáp DM300-M12I/0-F12SR-5M Dài 5M 17ft Cable M12 A-Code 12 Pin Female to 4 Core Open End ILSAN E211405 105C 300V 4 Core x 0.25mm² For I/O Breakout Cable Power Supply Cognex Industrial Camera

Mã SP: 10984

Thương hiệu: Original Industrial Camera

Loại sản phẩm: M12 A-Code 12 Pin F to 4 Core

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original Power Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Communication Industrial I/O Breakout Cable Power Supply Camera Cable
Brand: Korea/Original Power Cable
Model: DM300-M12I/0-F12SR-5M

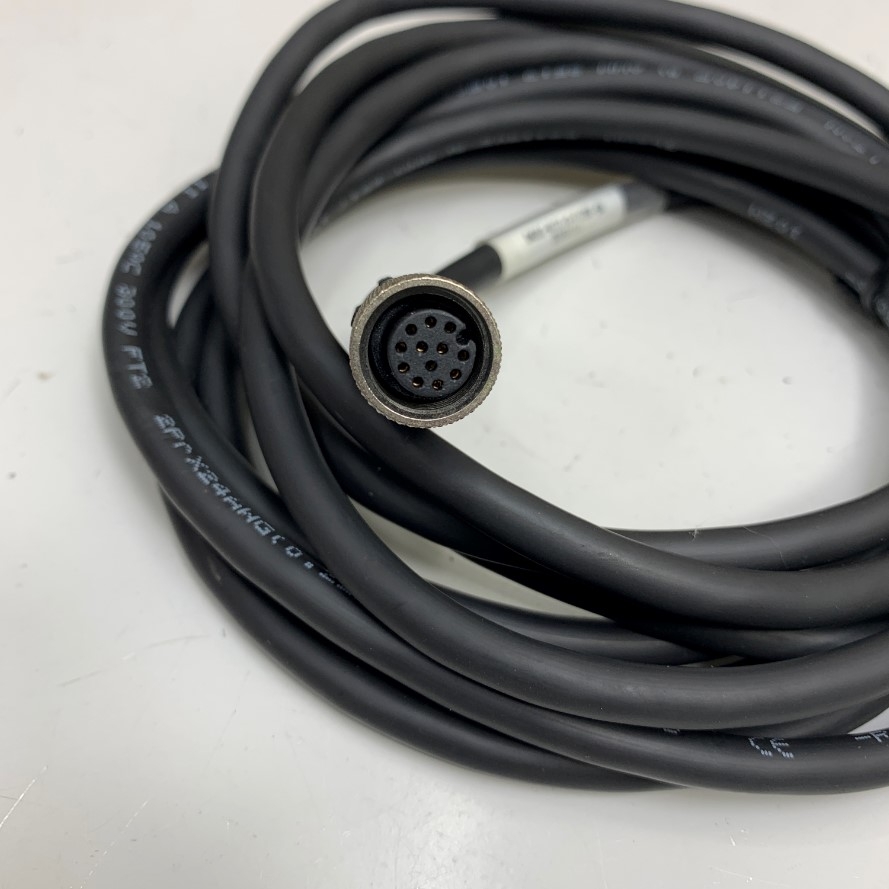

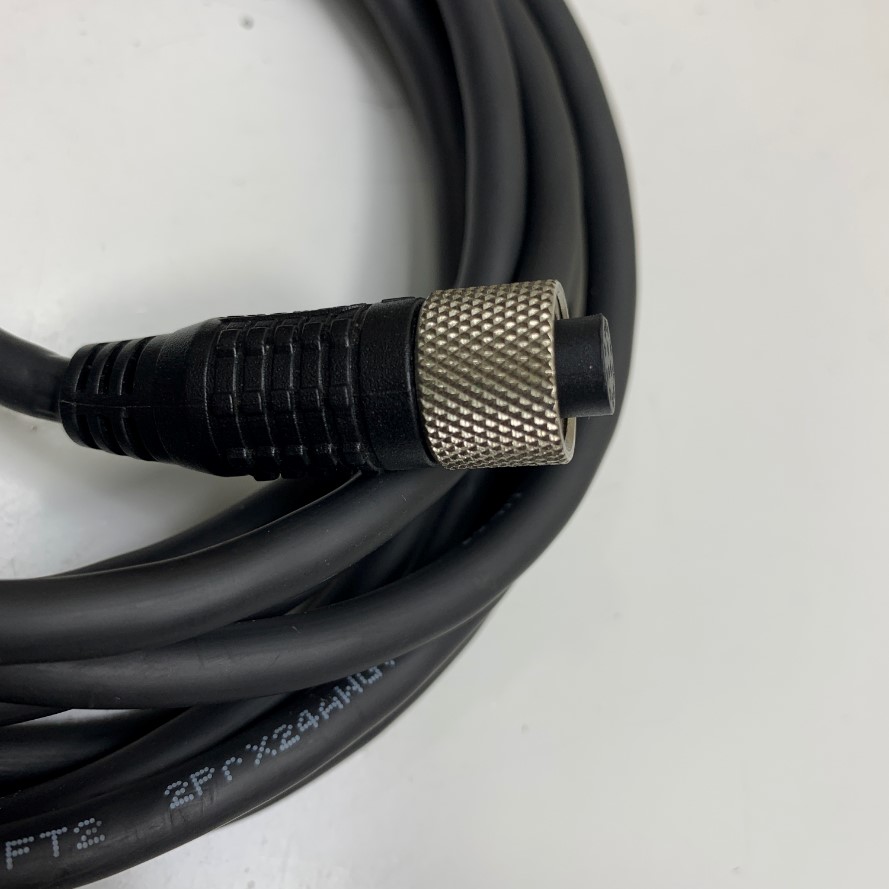

Connector 1: M12 A-Code 12 Pin Female

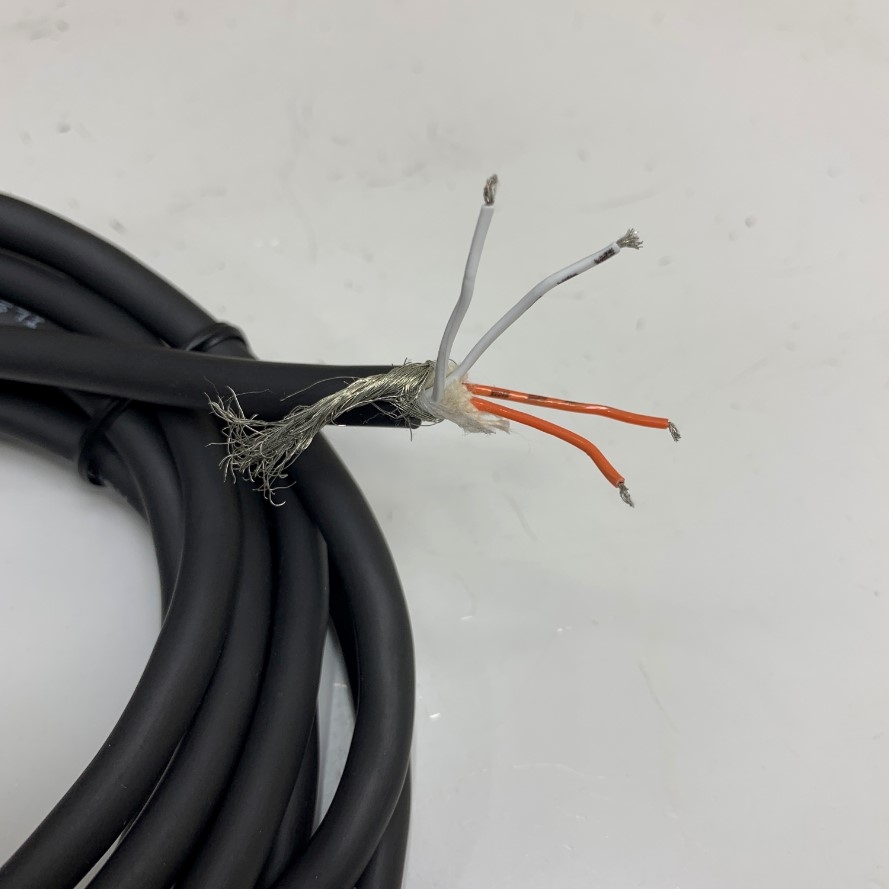

Connector 2: 4 Core Open End
Number of Conductors: 4
Connector plating: Gold Plated/Nickle Plated
Gender: M12 A-Code 12 Pin Female to 4 Core Open End
Wire: ILSAN E211405 AWM 2517 105°C 300V VW-1 AWM II A 105°C 300V FT2 2Pr X 24AWG (0.22SQ)SB IMOTPEV-S CE RoHS
Wire Gauge (AWG): 24AWG
Outside diameter: 6.4mm
Shield structure: Shielded
Current Rating: 2A
Voltage Rating: 300V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Length: 5M [17ft]
Color: Black
Cáp DM300-M12I/0-F12SR-5M Dài 5M 17ft Cable M12 A-Code 12 Pin Female to 4 Core Open End ILSAN E211405 105C 300V 4 Core x 0.25mm² For I/O Breakout Cable Power Supply Cognex Industrial Camera
