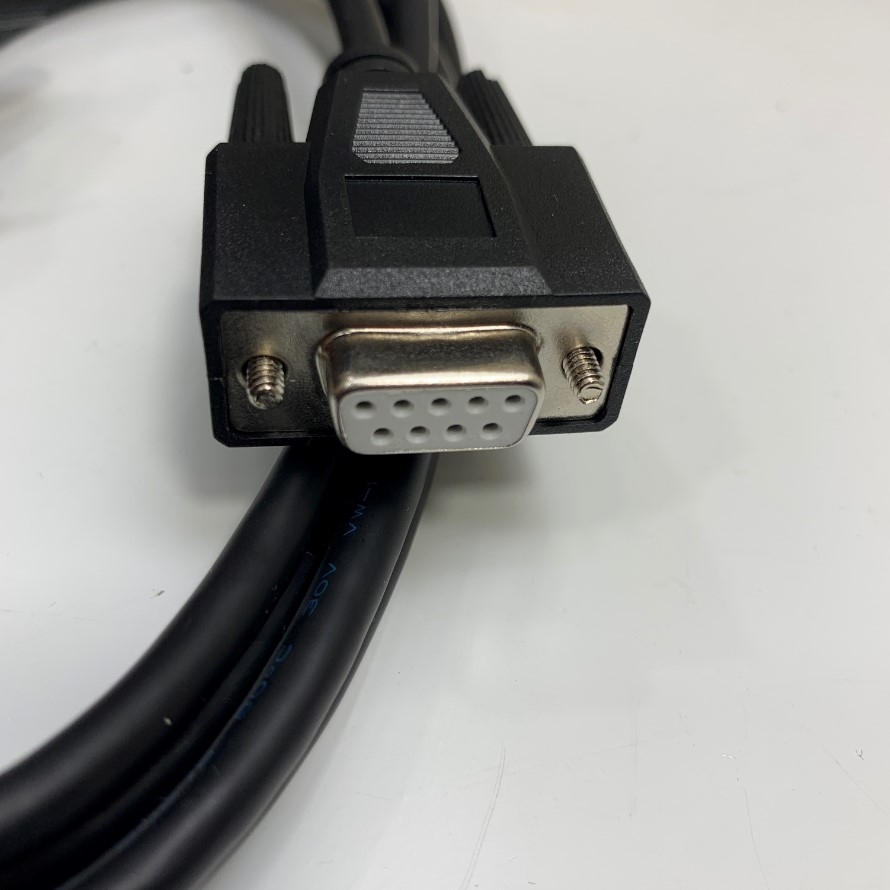

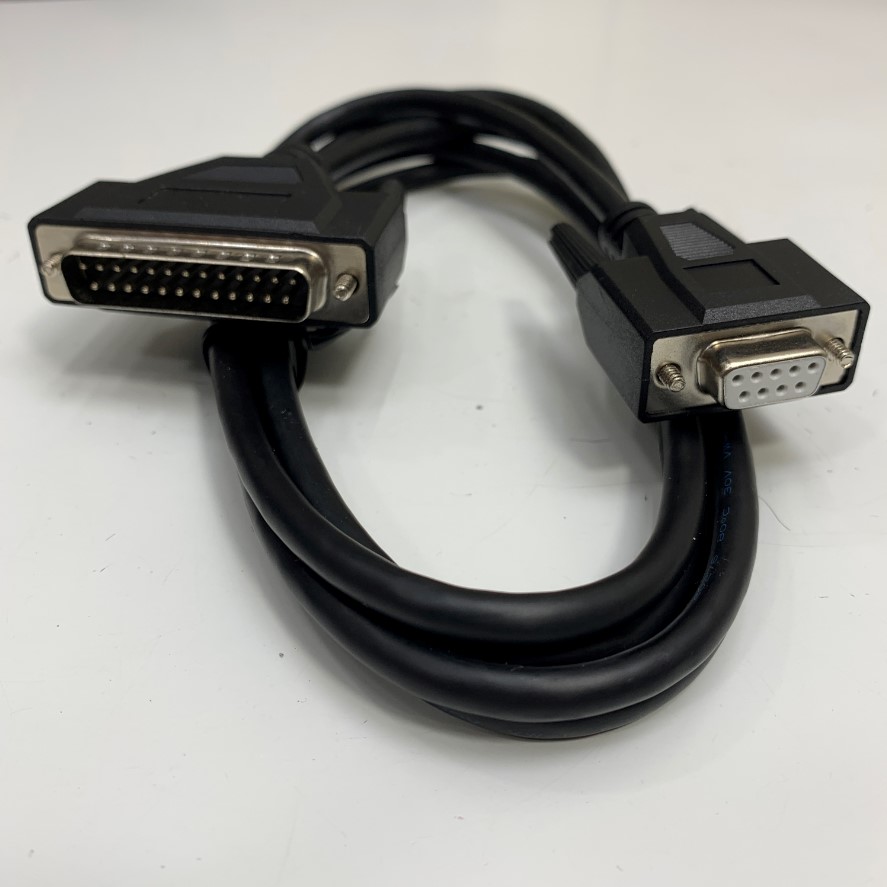

Cáp Điều Khiển RS-232C Cable P/N 321-60754 Dài 1.8M 6ft Shielded Cable Serial Null Modem DB25 Male to DB9 Female For Shimadzu Balance witch Computer Communication Data Transfer

Cáp điều khiển chất lượng cao theo tiêu chuẩn Japan Electric Balance Data Transfer
RS232C Cable P/N321-60754-01

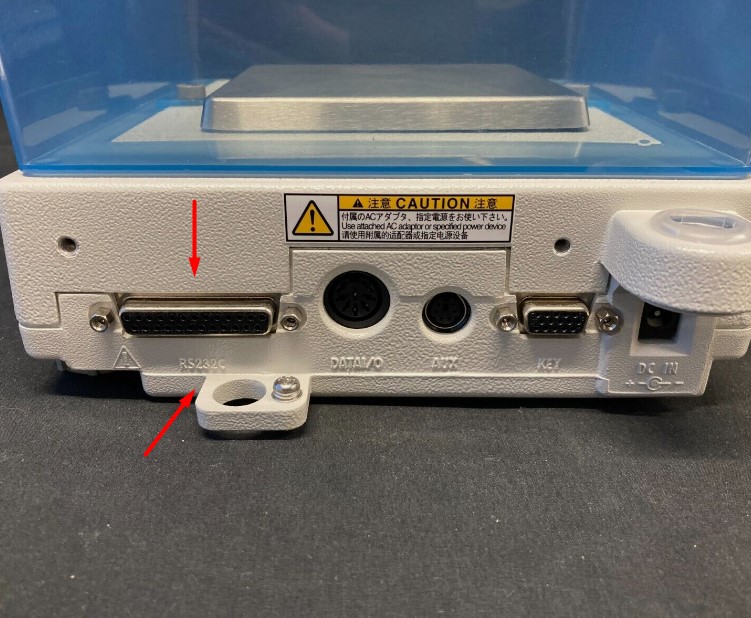

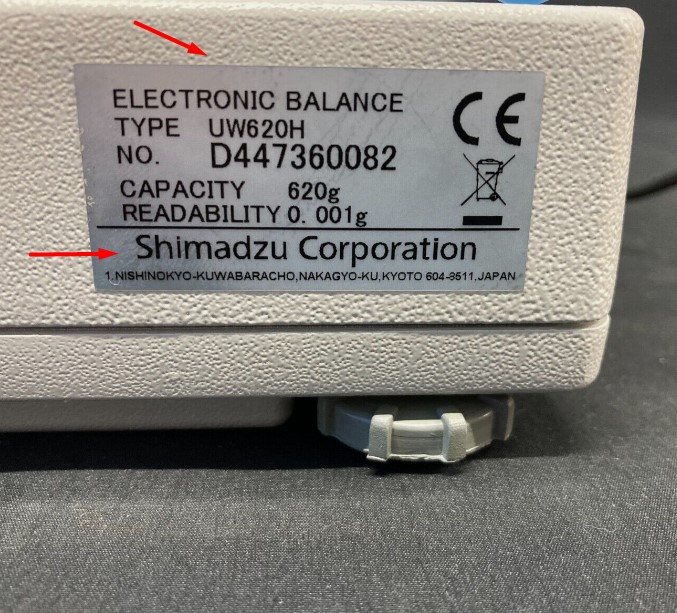

SHIMADZU UW620H Electric Balance

Specifications
Brand: ViệtNam/Thientruongpc
PartNumbe: P/N 321-60754-01 Cable RS-232C Shimadzu Balance witch Computer Communication Data Transfer
Connector 1: RS232 DB25 Male (Balance RS-232C) - Pan Pacific DB25 Male D-Sub Solder Type Connector
Connector 2: RS232 DB9 Female (Computer/HMI)   - Pan Pacific DB9 Female D-Sub Solder Type Connector
Cable Type: Serial Null Modem RS-232C DB25 Male to DB9 Female Cable
Connectors: RS232 DB25 Male to DB9 Female
Connector plating: Gold Plated/Nickle Plated
Wire: E118077-S AWM STYLE 20276 80C 30V VW-1
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC 80C VW-1
Voltage Rating: 30V
Cable Style: Round
Wire Diameter (mm): 5.6mm
Shielding: Yes
Length : 1.8M
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Color: Black
Cáp Điều Khiển RS-232C Cable P/N 321-60754 Dài 1.8M 6ft Shielded Cable Serial Null Modem DB25 Male to DB9 Female For Shimadzu Balance witch Computer Communication Data Transfer
