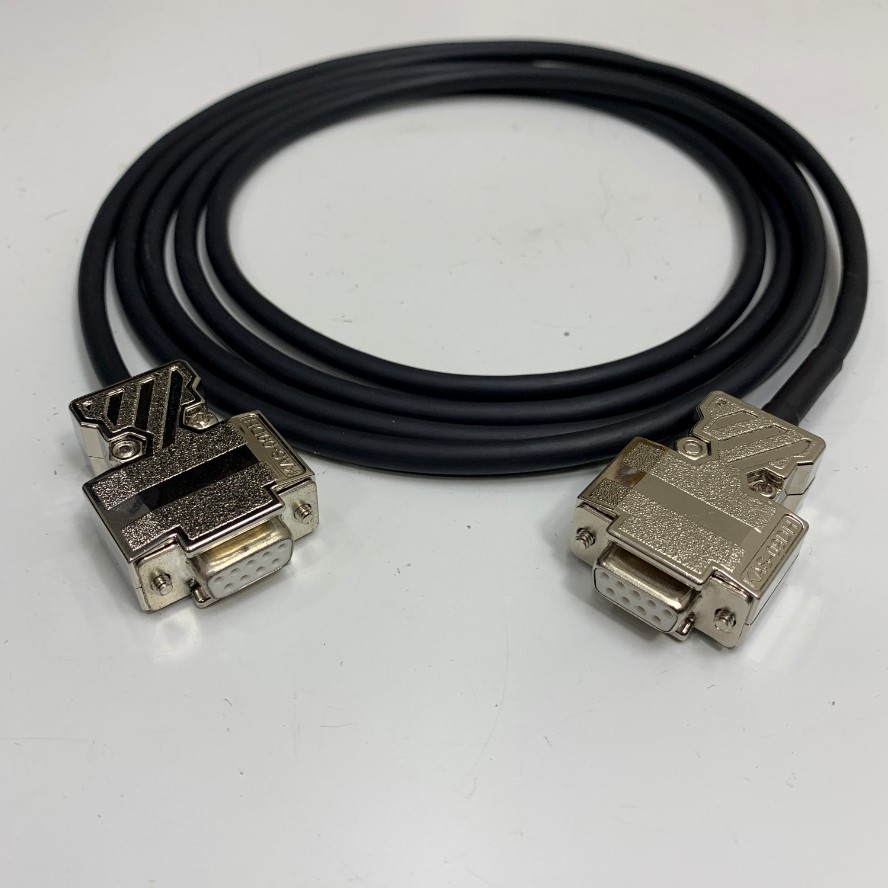

Cáp Cân Điện Tử Shimadzu 228-35397-92 RS232 Shielded Cable Dài 2M 6.5ft Serial DB9 9 Pin Female to Female For Shimadzu AP Series AP-224X Analytical Balance witch Computer Data Transfer

Shimadzu 228-35397-92 RS232 cable

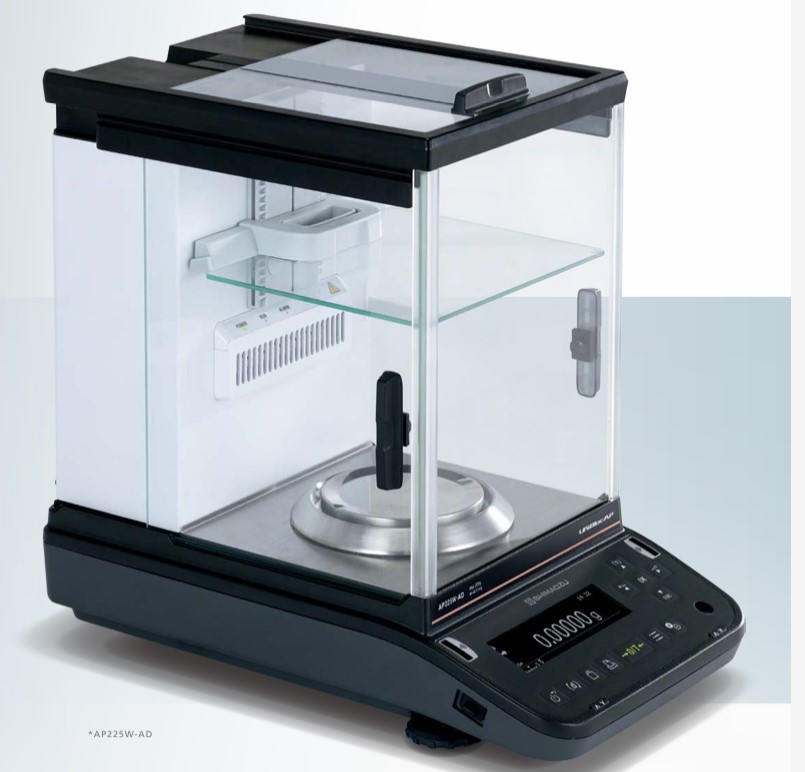

Shimadzu AP Series Analytical Balance

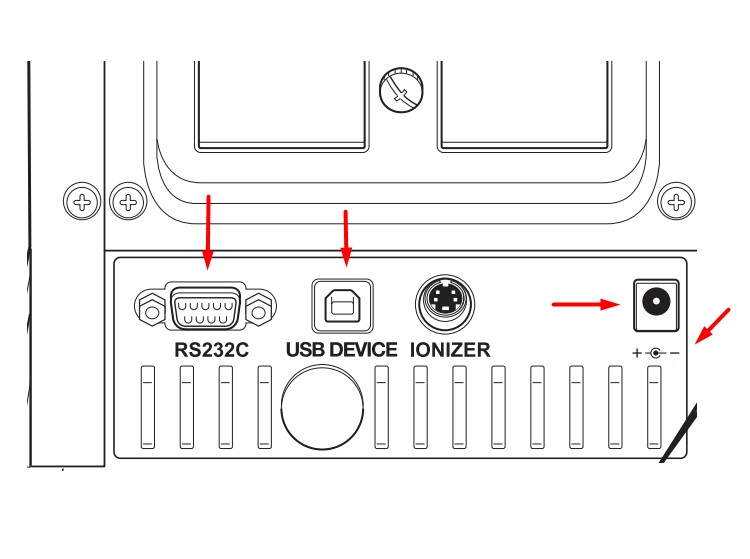

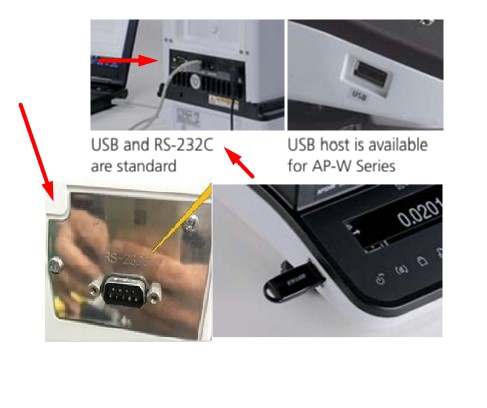

RS-232C Interface Shimadzu AP Series AP-224X Analytical Balance

Specifications
Brand: ViệtNam/Thientruongpc
Hàng chất lượng cao theo tiêu chuẩn Japan Balance RS-232C Interface Data Communication
PartNumbe: 228-35397-92 Cable RS-232C Shimadzu AP Series AP-224X Analytical Balance Weighing witch Computer Communication Data Transfer

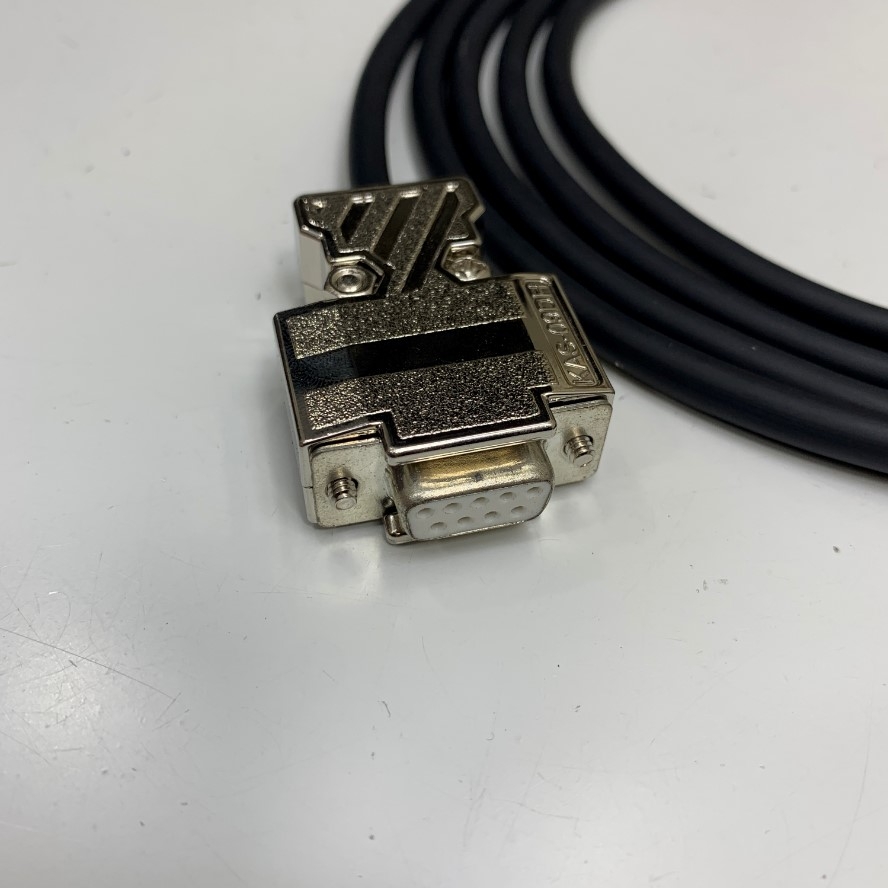

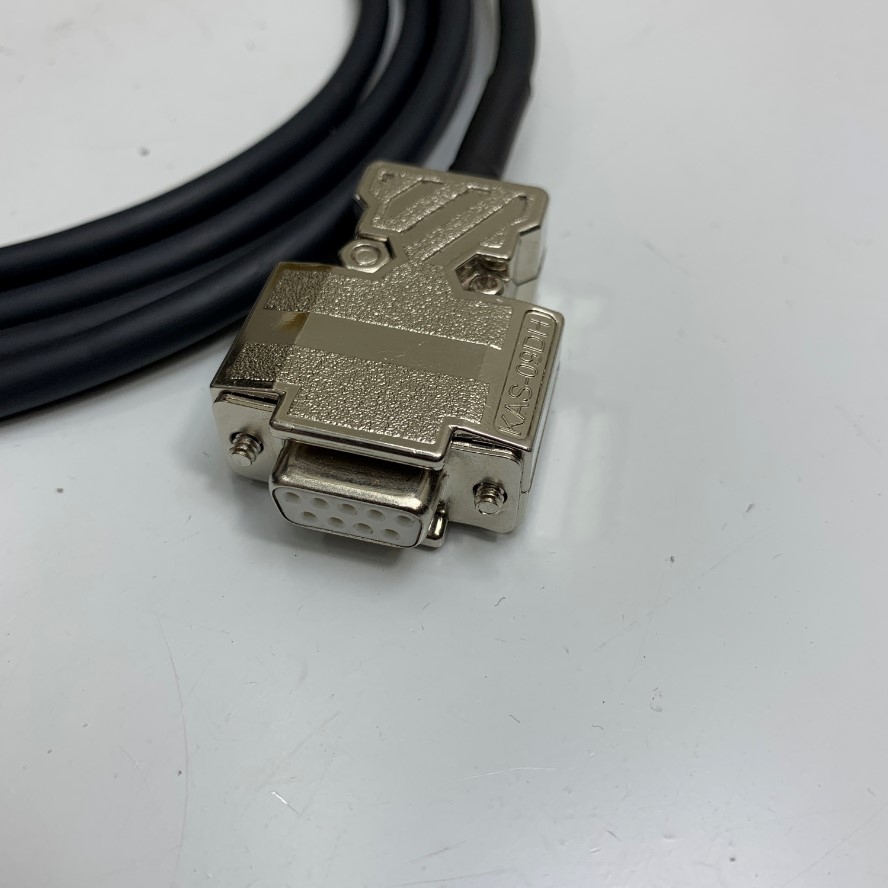

Connector 1: RS232 DB9 Female (Balance RS-232C) - Metal Connector Gold Plated Shell Kit 9 Pin Serial
Connector 2: RS232 DB9 Female (Computer/HMI/PLC) - Metal Connector Gold Plated Shell Kit 9 Pin Serial
Cable Type: Serial Null Modem RS-232C DB9 Female to DB9 Female Cable
Connectors: RS-232C DB9 Female to DB9 Female
Connector plating: Gold Plated
Wire: Cable Shielded 80°C 30V OD 6.0mm
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC 80C VW-1
Voltage Rating: 30V
Cable Style: Round
Wire Diameter (mm): 6.0mm
Shielding: Yes
Length : 2M
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Color: Black
Cáp Cân Điện Tử Shimadzu 228-35397-92 RS232 Shielded Cable Dài 2M 6.5ft Serial DB9 9 Pin Female to Female For Shimadzu AP Series AP-224X Analytical Balance witch Computer Data Transfer
