Cáp Điều Khiển IFM Electronic E12403 Dài 2.5M 8ft Cable M12 A-Code 8 Pin Female to 8 Core Open End For Eltra Trade Sensor/Actuator Connector

Mã SP: 10175

Thương hiệu: IFM Electronic

Loại sản phẩm: M12 A-Code 8 Pin F to 8 Core

Đánh giá

:

Giá

:

1.700.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Industrial Sensor Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

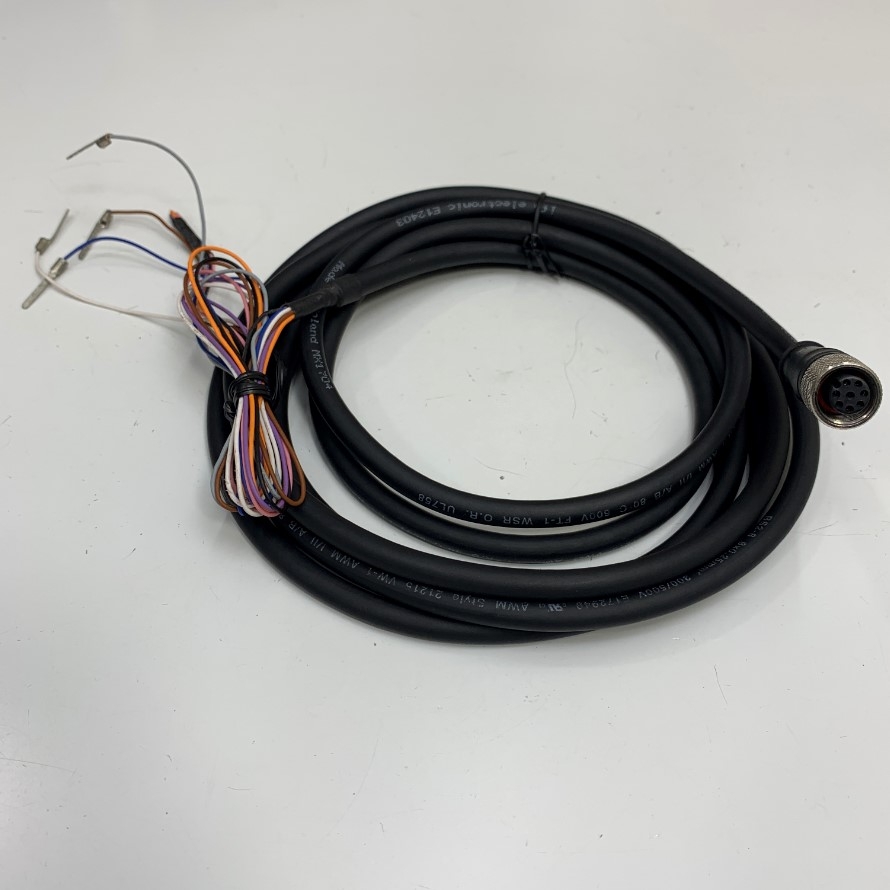

Eltra Trade IFM Electronic E12403 Cable

Communication Industrial I/O Sensor/Actuator Connector Cable
Brand: China/Original Eltra Trade IFM Electronic Cable
Model: E12403

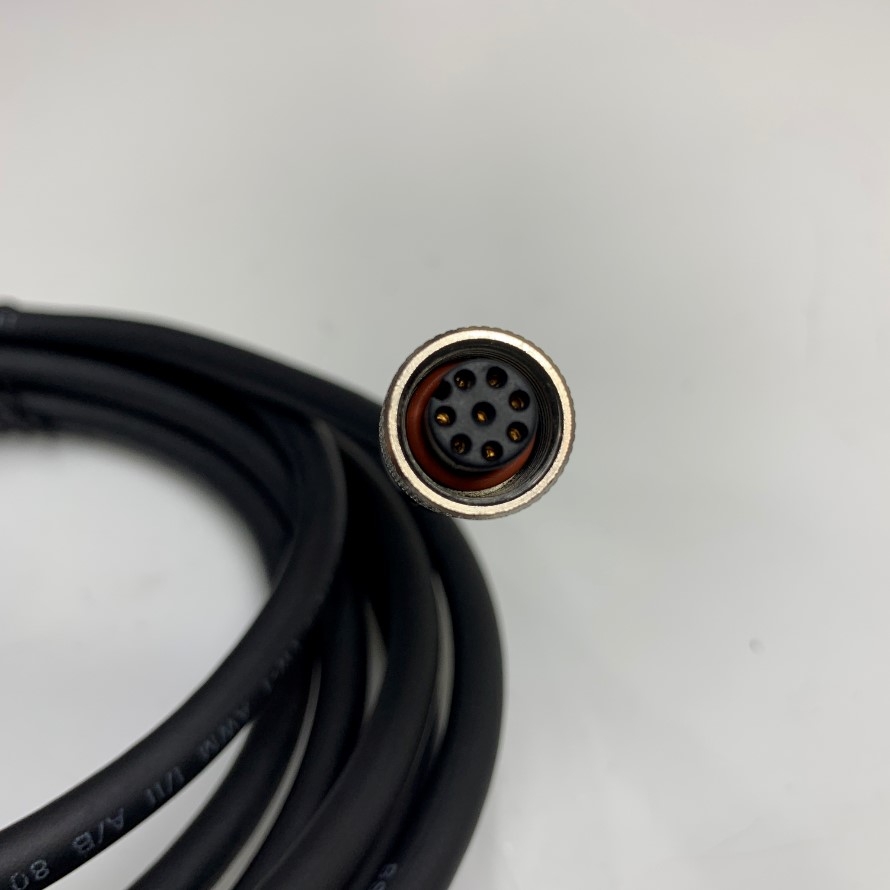

Connector 1: M12 A-Code 8 Pin Female

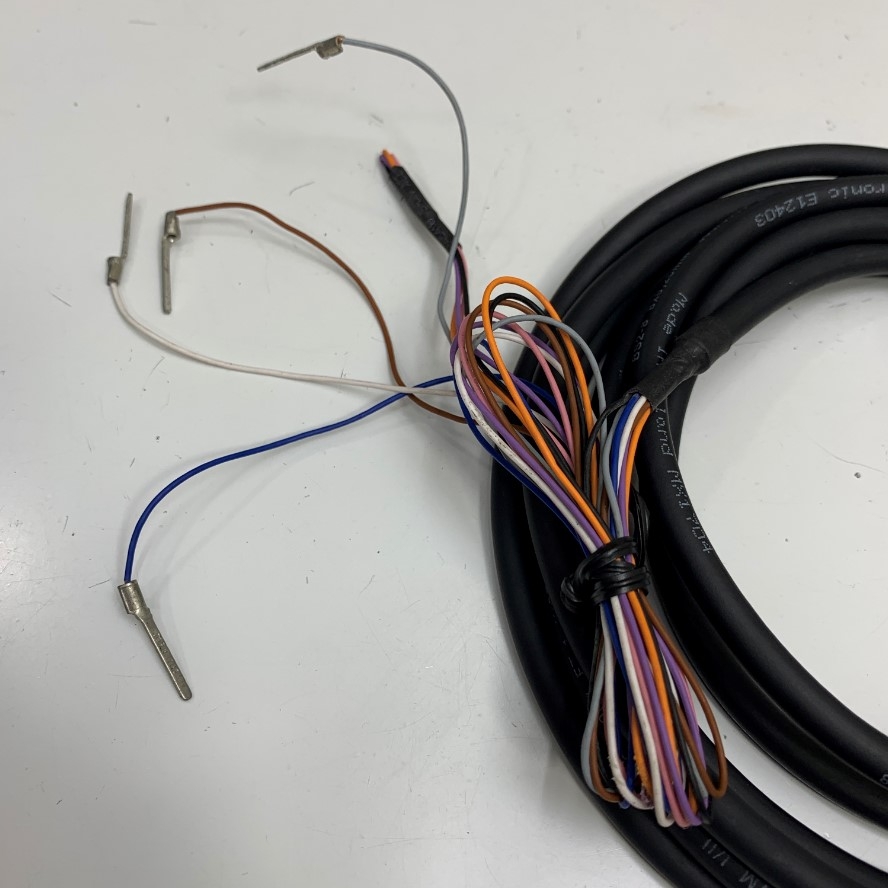

Connector 2: 8 Core Open End
Number of Conductors: 8
Connector plating: Gold Plated/Nickle Plated
Gender: M12 A-Code 8 Pin Female to 8 Core Open End

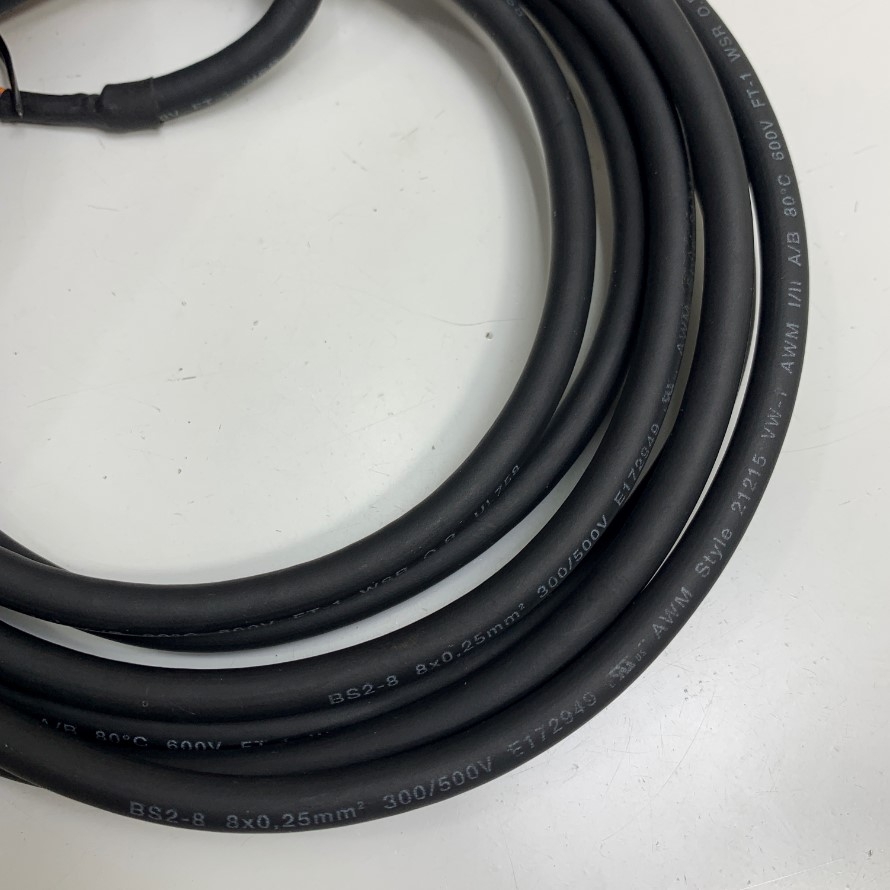

Wire: BS2-8 8x0.25mm² 300/500V E172949 AWM Style 21215 VW-1 AWM I/II 80°C 600V FT-1 WSR O.R UL758
Wire Gauge (AWG): 22AWG

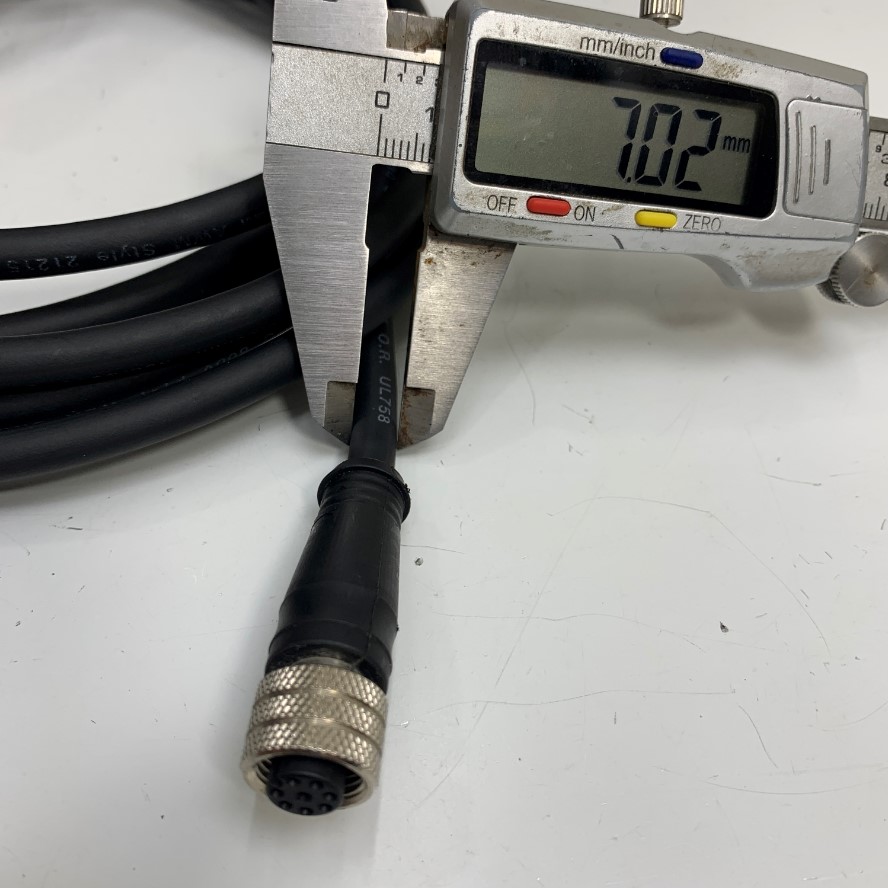

Outside diameter: 7.0mm
Number of conductors: 8 Piece(s)
Wire cross section: 0.25 mm²
Shield structure: Shielded
Current Rating: 2A
Voltage Rating: Max. 30 V AC/DC
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Length: 2.5M [8ft]
Color: Black
Cáp Điều Khiển IFM Electronic E12403 Dài 2.5M 8ft Cable M12 A-Code 8 Pin Female to 8 Core Open End For Eltra Trade Sensor/Actuator Connector
