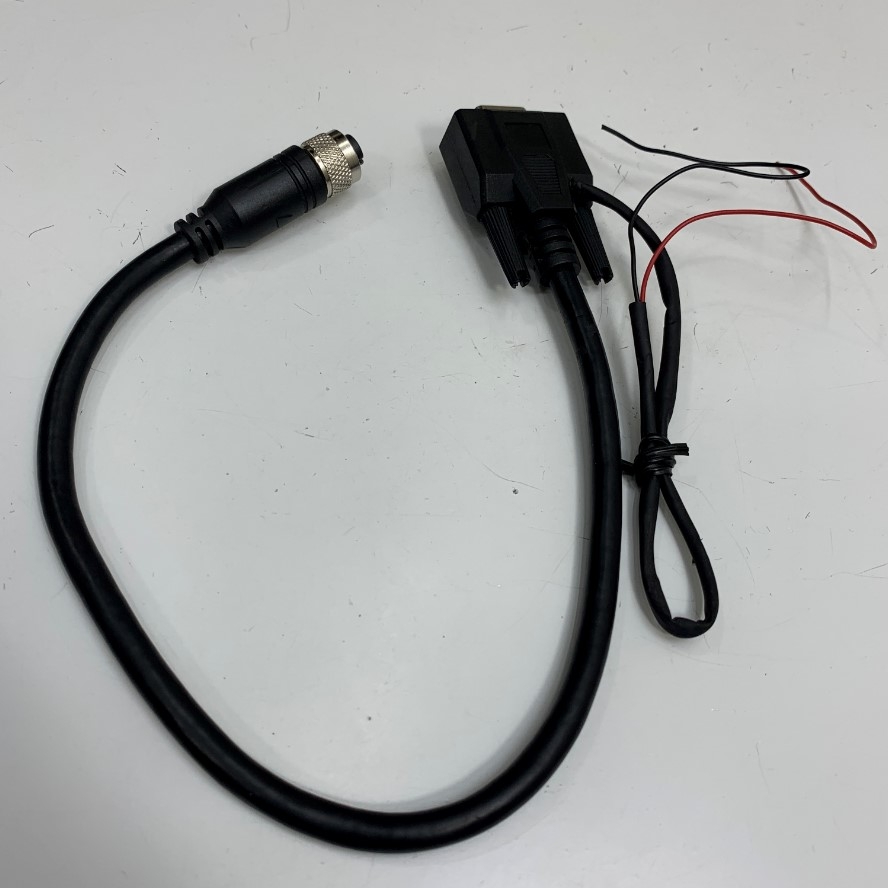

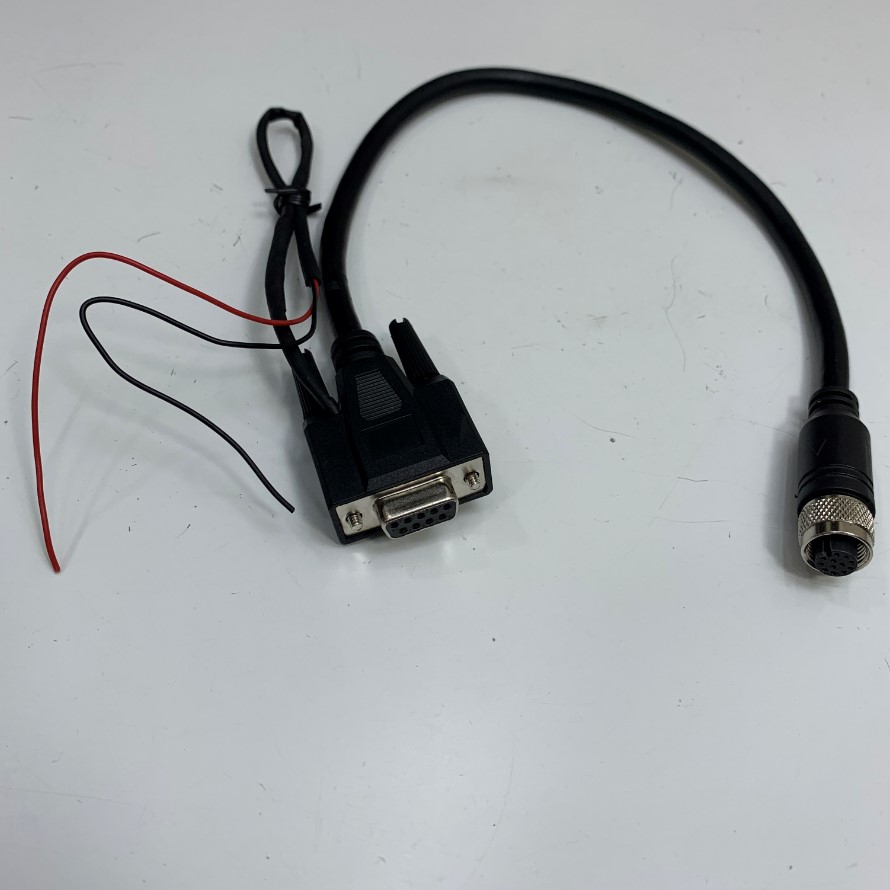

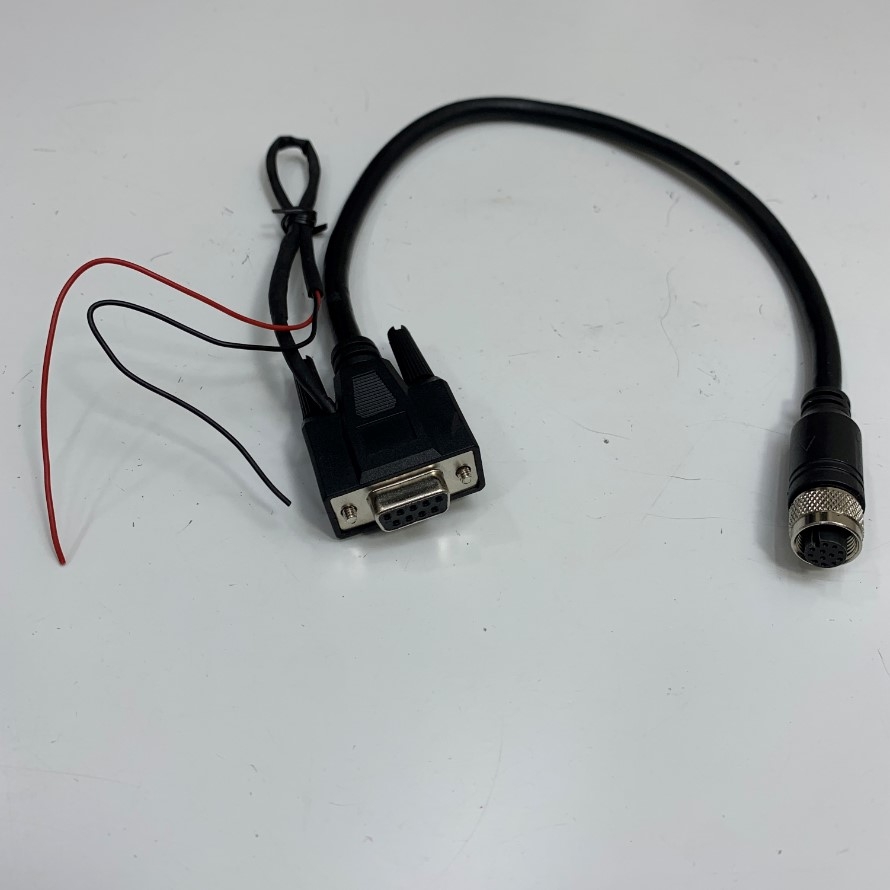

Cáp Điều Khiển CCBL-05-01 Dài 38Cm 1.2ft Cable M12 A-Code 12 Pin Female to DB9 Female RS232 Serial + DC Power Supply Extension Cable For Cognex Industrial Barcode Camera Reader

Mã SP: 10149

Thương hiệu: KTT Barcode Reader Cable

Loại sản phẩm: M12 A-Code 12 Pin to DB9

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

PRODUCT DESCRIPTION
Brand: Thientruongpc - ViệtNam/Thientruongpc
Manufacturer: Sensor/Actuator Connectors
Connector Series: M12 Circular interface
Contacts Poles: 12 Pin
Connector Gender: Female connector
Coding: A-Coded
Current Rating: 1.5 A
Voltage Rating: 30V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Conductor Size: 12 x 0.25mm²
Shieding: Metal shell shielding
Connection direction: Straight
Cable Jacket: PVC, PUR, halogen-free, TPE 80℃, Custom cable material
Outside diameter: 7.0mm
Cable E326837 AWM STYLE 20276 80C 30V VW-1 FT1
Colour: Black
Length: 0.38Cm

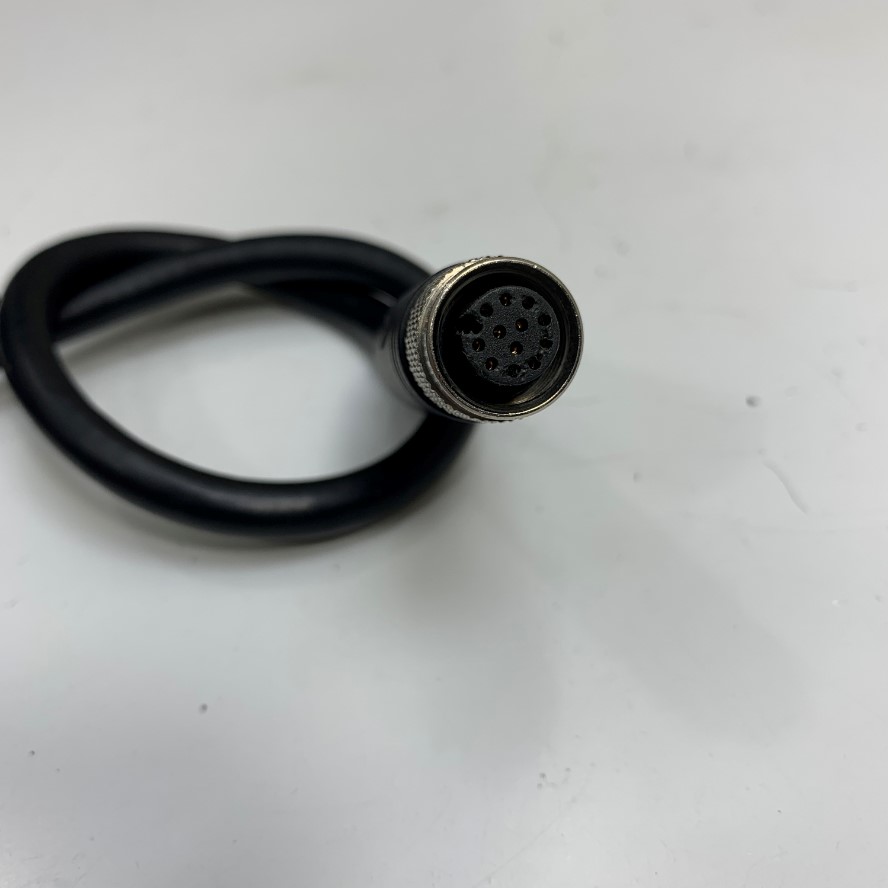

Side 1 Connector Type: M12 A-Code
Side 1 Connector Gender: Female

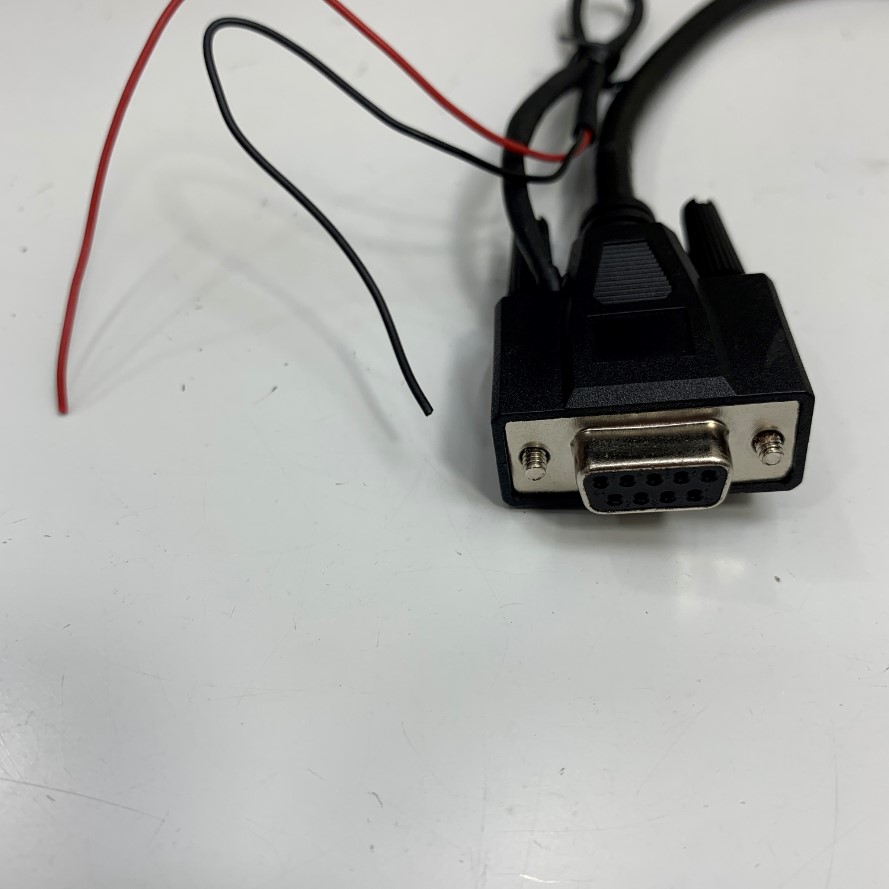

Side 2 Connector Type: DB9 Female
Side 2 Connector Type: DC Power Supply Extension
Cáp Điều Khiển CCBL-05-01 Dài 38Cm 1.2ft Cable M12 A-Code 12 Pin Female to DB9 Female RS232 Serial + DC Power Supply Extension Cable For Cognex Industrial Barcode Camera Reader
