Cáp Điều Khiển CCB-84901-2001-05 Dài 5M 17ft Cable M12 X-Code 8 Pin Male to RJ45 Shielded E258652 AWM Style 2464 AWM I/II A/B 80C 300V For Cognex Industrial Camera Flexible Gigabit Network

Mã SP: 10165

Thương hiệu: Original Industrial Camera

Loại sản phẩm: M12 8 Pin Male X-Code to RJ45

Đánh giá

:

Giá

:

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Industrial Camera Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

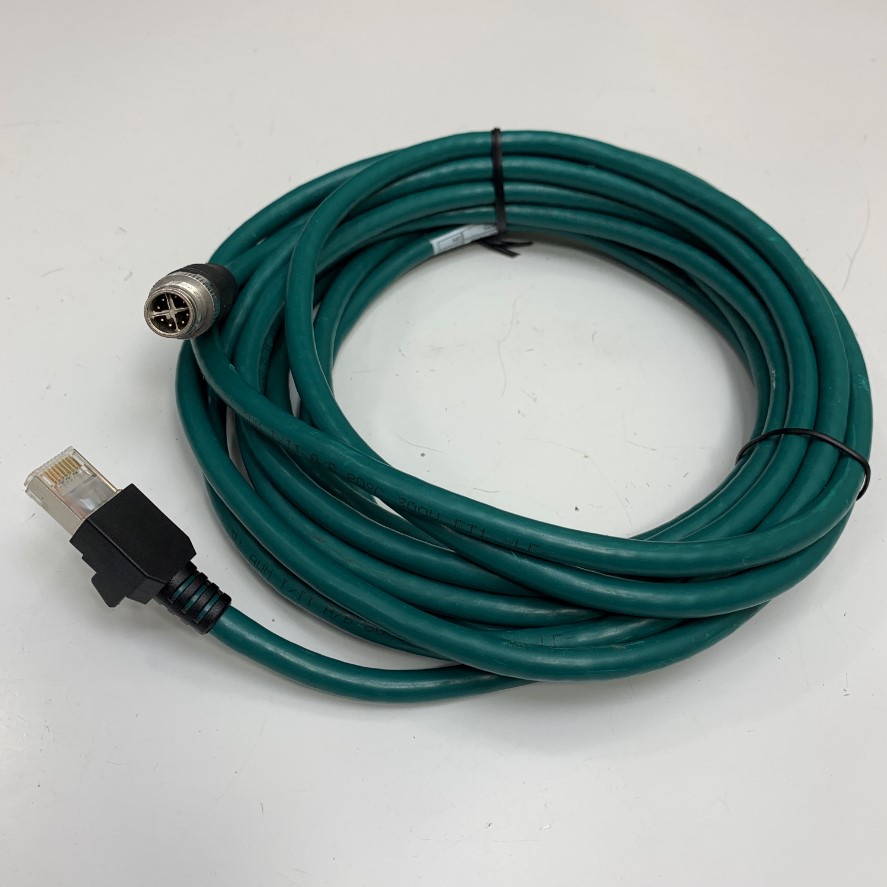

CCB-84901-2001-05 - Cognex X-Coded M12 Ethernet Cable

Connector RJ45 CAT6 Ethernet Shielded

Wiring Diagram M12 X-Coded 8 Pin Male to RJ45 GigE Ethernet Cable

Communication Industrial Camera Cable
Brand: China/Original Industrial Cable
Model: CCB-84901-2001-05
Connector 1: M12 8 Pin X-Code Male
Connector 2: RJ45 Male Shielded Modular
Number of Conductors: 8
Connector plating: Gold Plated/Nickle Plated
Gender: M12 8 Pin X-Code Male to RJ45 CAT6 Shielded Modular
Wire: Gigabit Ethernet Cable E258652 AWM Style 2464 AWM I/II A/B 80ºC 300V VW-1 FT1 4x2x0.6mm
Outside diameter: 7.0mm
Shield structure: Shielded
Current Rating: 2A
Voltage Rating: 300V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Cable Length: 5M [17ft]
Color: Blue
Cáp Điều Khiển CCB-84901-2001-05 Dài 5M 17ft Cable M12 X-Code 8 Pin Male to RJ45 Shielded E258652 AWM Style 2464 AWM I/II A/B 80C 300V For Cognex Industrial Camera Flexible Gigabit Network
