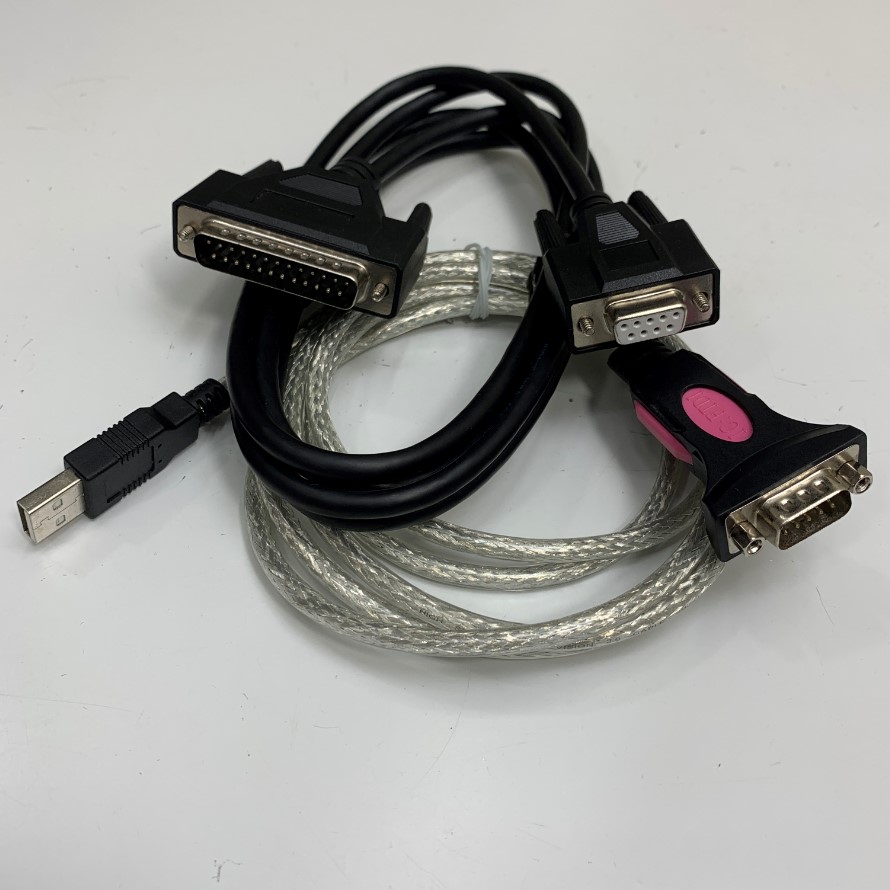

Cáp Điều Khiển Cân Điện Tử A&D AX-USB-25P-EX USB Converter FTDI Chip RS-232C Dài 3.5M 11.6ft Shielded Cable For AND Balances GF Series witch Computer Data Transfer

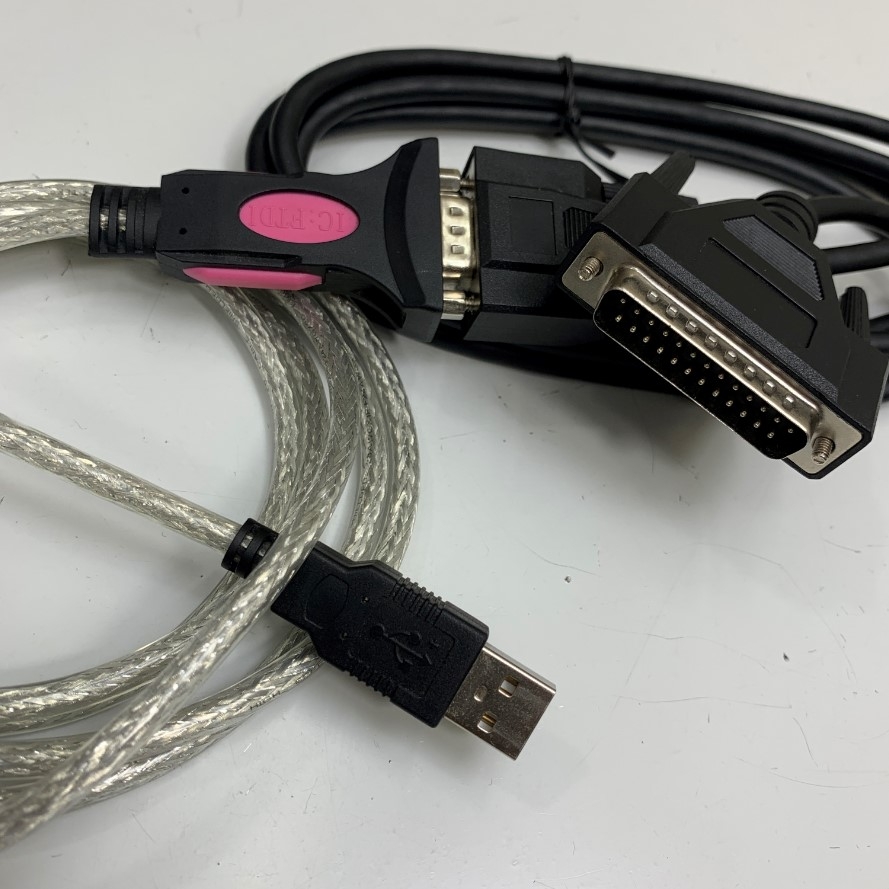

AX-USB-25P-EX USB Converter FTDI Chip
USB to RS232 FTDI Chip Converter For Windows, Apple Mac, and Linux. All
USB to RS232 Serial Converter with FTDI Chipset For Windows 10/11

CH340 Chip Converter

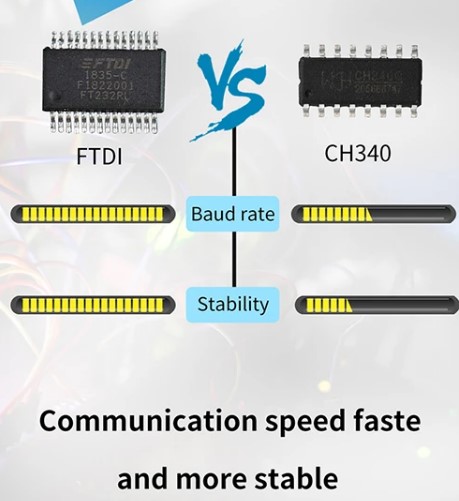

FTDI Chip Converter And CH340 Chip Converter

A&D AX-KO2116-090 RS-232C Cable (9pin - 25 pin, 0.9m)
AND Balances GF Series witch Computer Communication Data Transfer

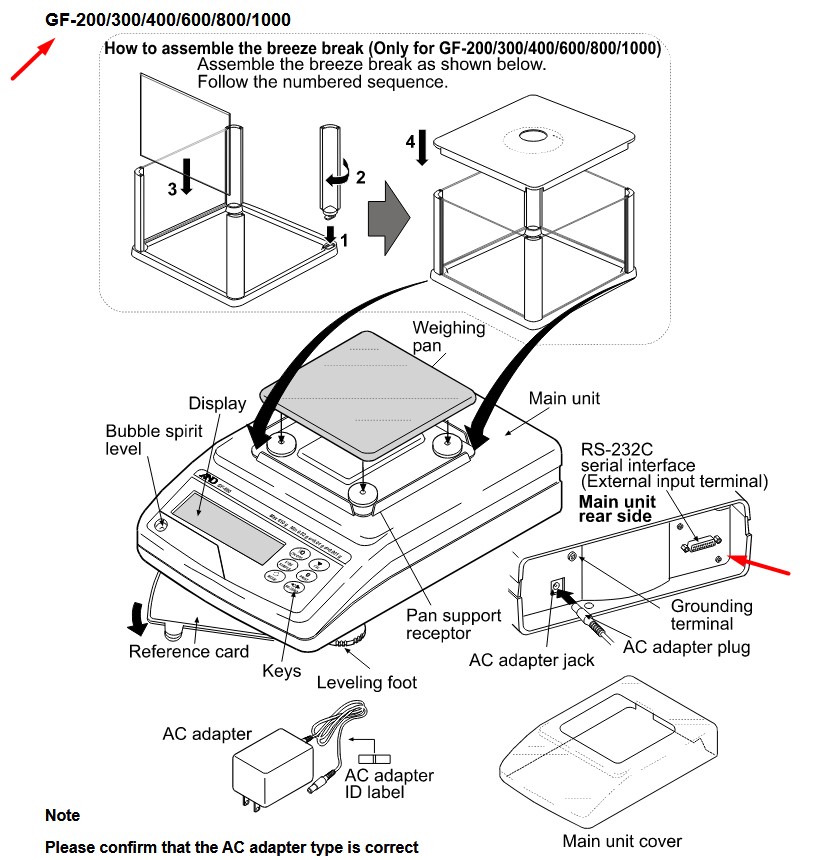

AND Balances GF Series GF-200/300/400/600/800/1000

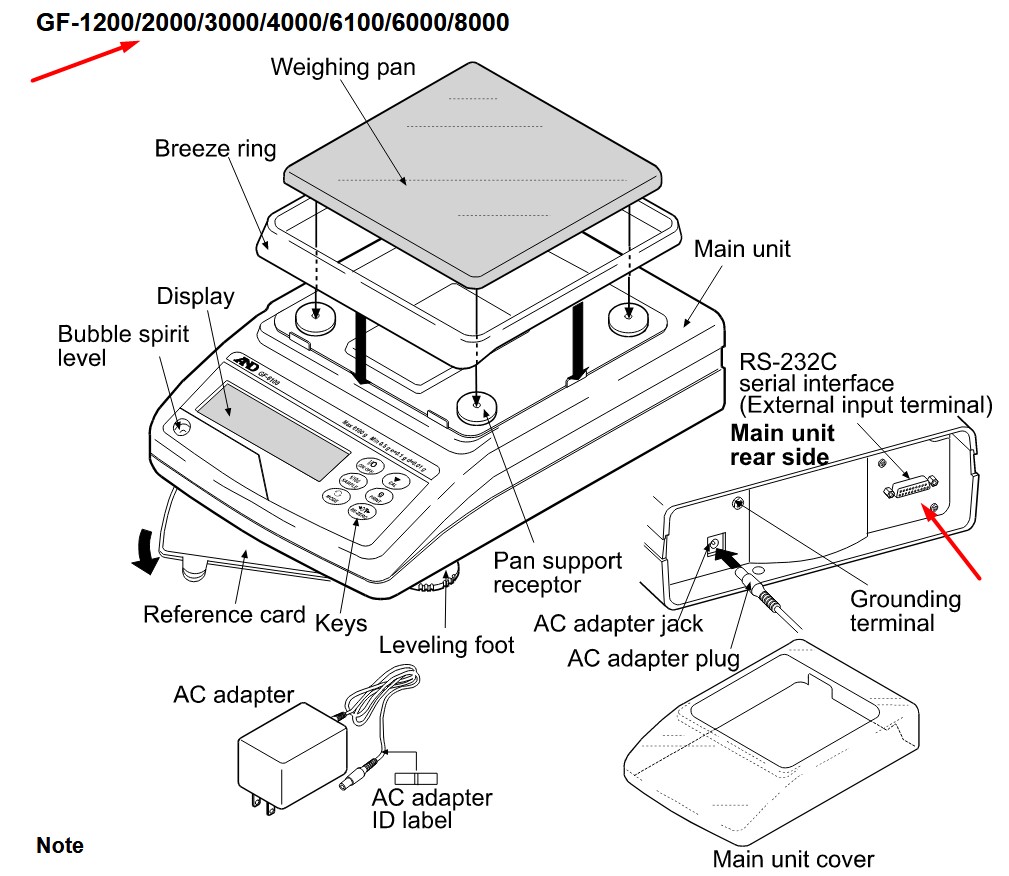

AND Balances GF Series GF-1200/2000/3000/4000/6100/6000/8000

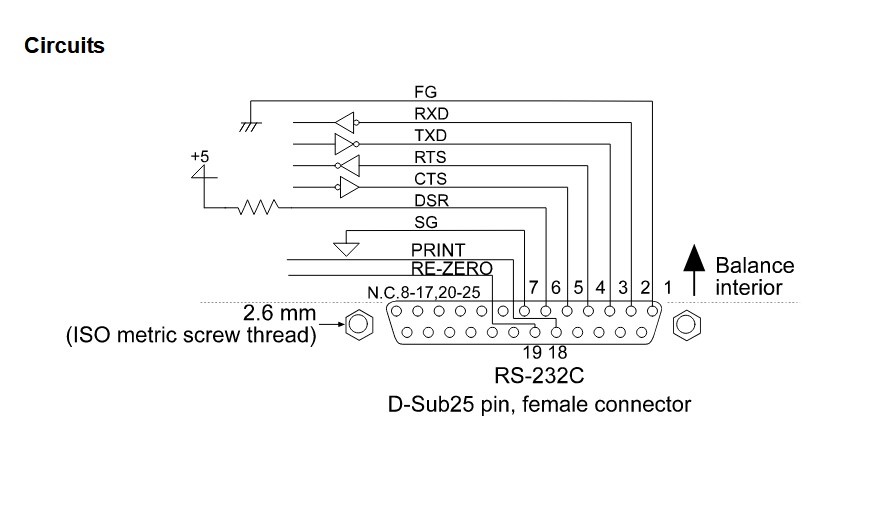

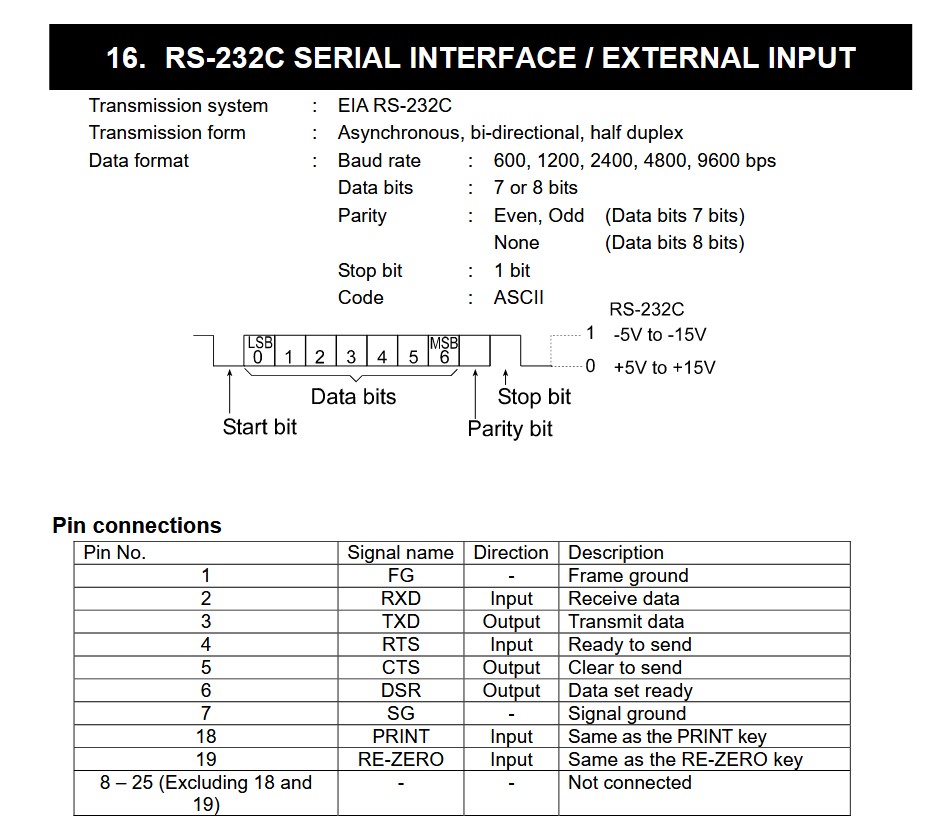

RS-232C SERIAL INTERFACE / EXTERNAL INPUT

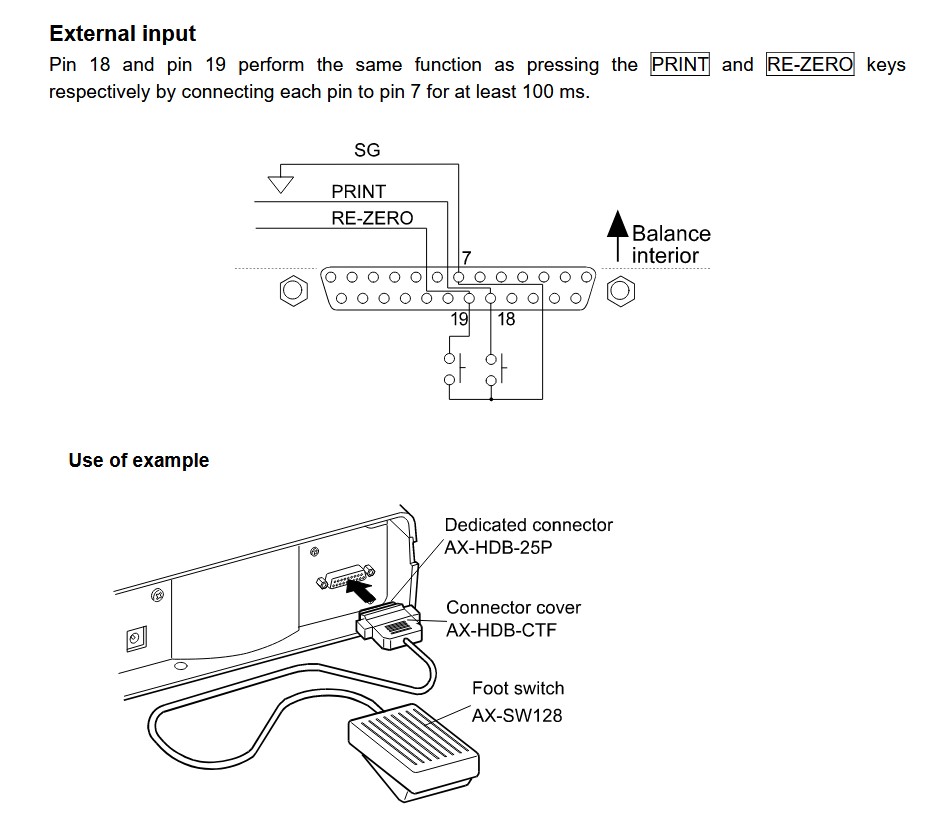

External input

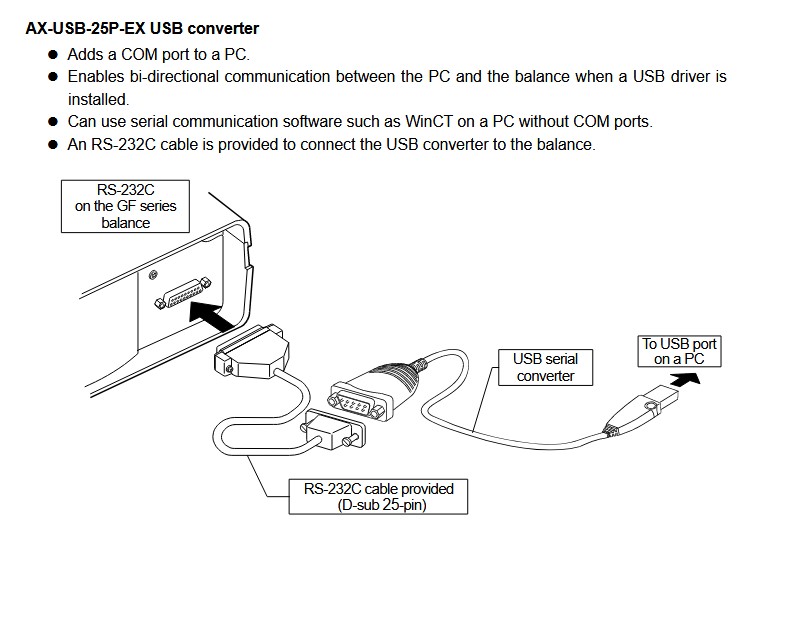

Communication between the PC and the balance

Specifications
Brand: ViệtNam/Thientruongpc
PartNumbe: A&D AX-KO2116-090 Cable RS-232C AND Balances GF Series witch Computer Communication Data Transfer
Connector 1: RS232 DB25 Male (Balance RS-232C) - Pan Pacific DB25 Male D-Sub Solder Type Connector
Connector 2: RS232 DB9 Female (Computer/HMI)   - Pan Pacific DB9 Female D-Sub Solder Type Connector
Cable Type: Serial Null Modem RS-232C DB25 Male to DB9 Female Cable
Connectors: RS232 DB25 Male to DB9 Female
Connector plating: Gold Plated/Nickle Plated
Wire: E118077-S AWM STYLE 20276 80C 30V VW-1
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC 80C VW-1
Voltage Rating: 30V
Cable Style: Round
Wire Diameter (mm): 5.6mm
Shielding: Yes
Length : 1.8M
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC - Polyvinyl Chloride
Color: Black

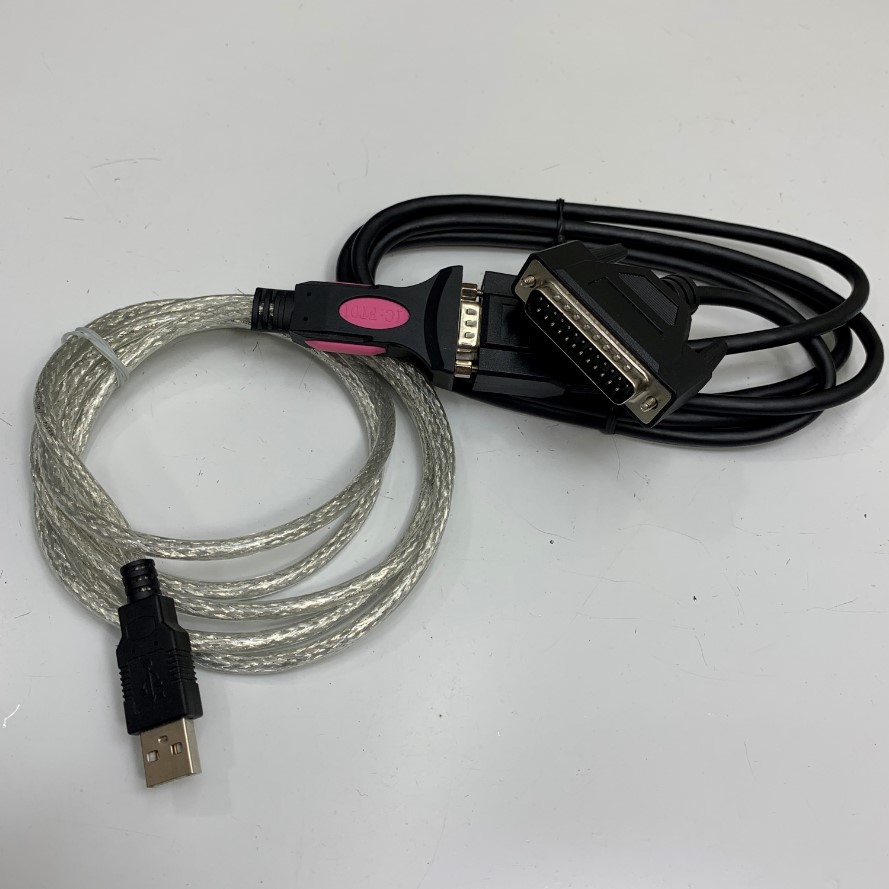

AX-USB-25P-EX USB Converter FTDI Chip Length : 1.8M
Cáp Điều Khiển Cân Điện Tử A&D AX-USB-25P-EX USB Converter FTDI Chip RS-232C Dài 3.5M 11.6ft Shielded Cable For AND Balances GF Series witch Computer Data Transfer
