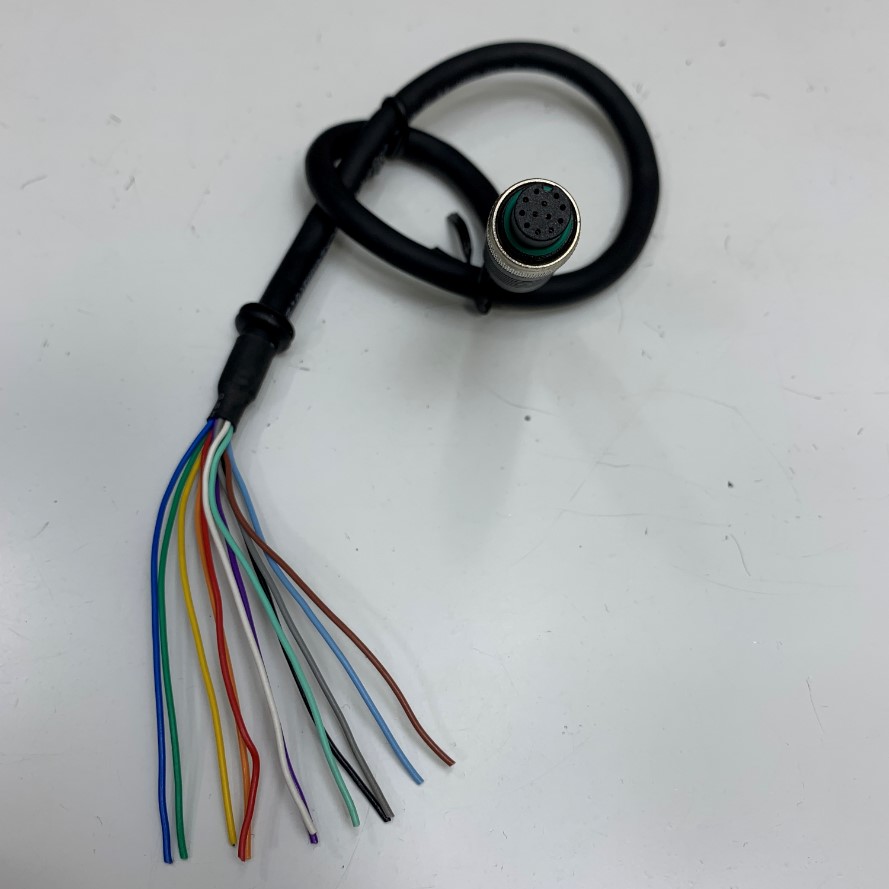

Cáp Điều Khiển Cable M12 A-Code 12 Pin Female to 12 Core Bare Wire Open End Dài 0.5 Meter 1.5ft For Sensor Actuator Connector

Mã SP: 10146

Thương hiệu: Original Industrial Sensor

Loại sản phẩm: M12 A-Code 12 Pin F to 12 Core

Đánh giá

:

Giá

:

1.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Industrial Sensor Actuator Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

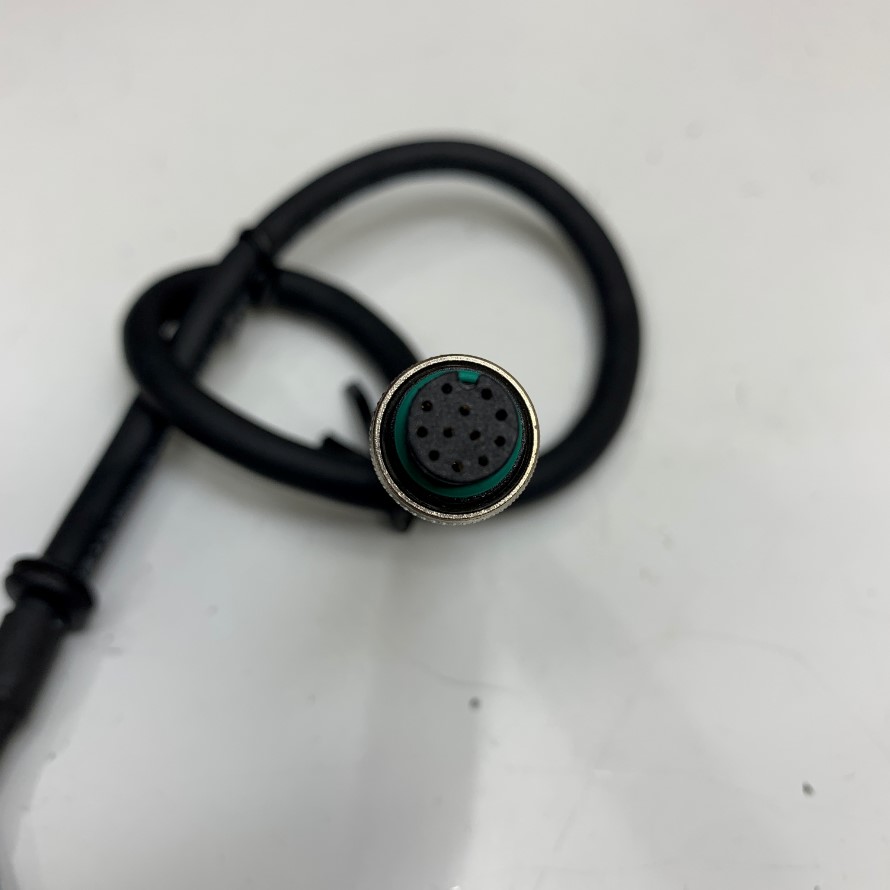

M12 A-Code 12 Pin Female Sensor Actuator Connector

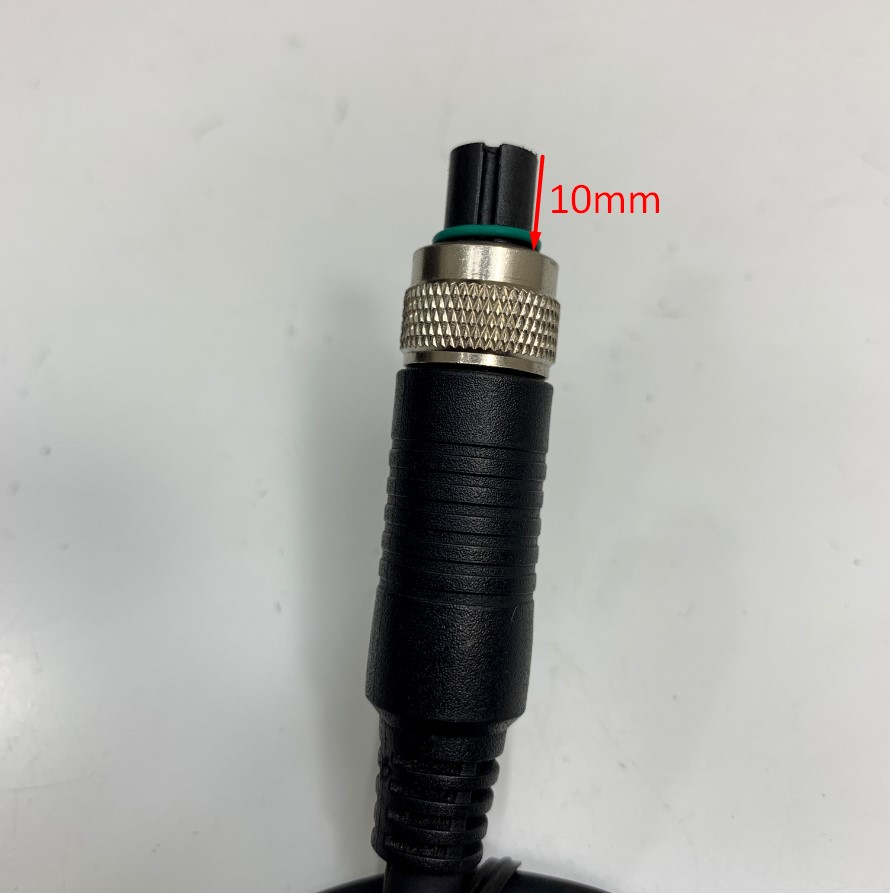

M12 A-Code 12 Pin Female Sensor Actuator Connector 10mm
M12 A-Code 12 Pin Female Industrial Barcode Camera Connector 4mm

Cable ILSAN E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 12CX24AWG (0.25Q)

PRODUCT DESCRIPTION
Manufacturer: Sensor/Actuator Connectors
Connector Series: M12 Circular interface
Contacts Poles: 12 Pin
Connector Gender: Female connector
Coding: A-Coded
Current Rating: 1.5 A
Voltage Rating: 30V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): - 25 °C - + 90 °C
Ingress Protection: IP67
Conductor Size: 12 x 0.25mm²
Shieding: Metal shell shielding
Connection direction: Straight
Cable Jacket: PVC, PUR, halogen-free, TPE 80℃, Custom cable material

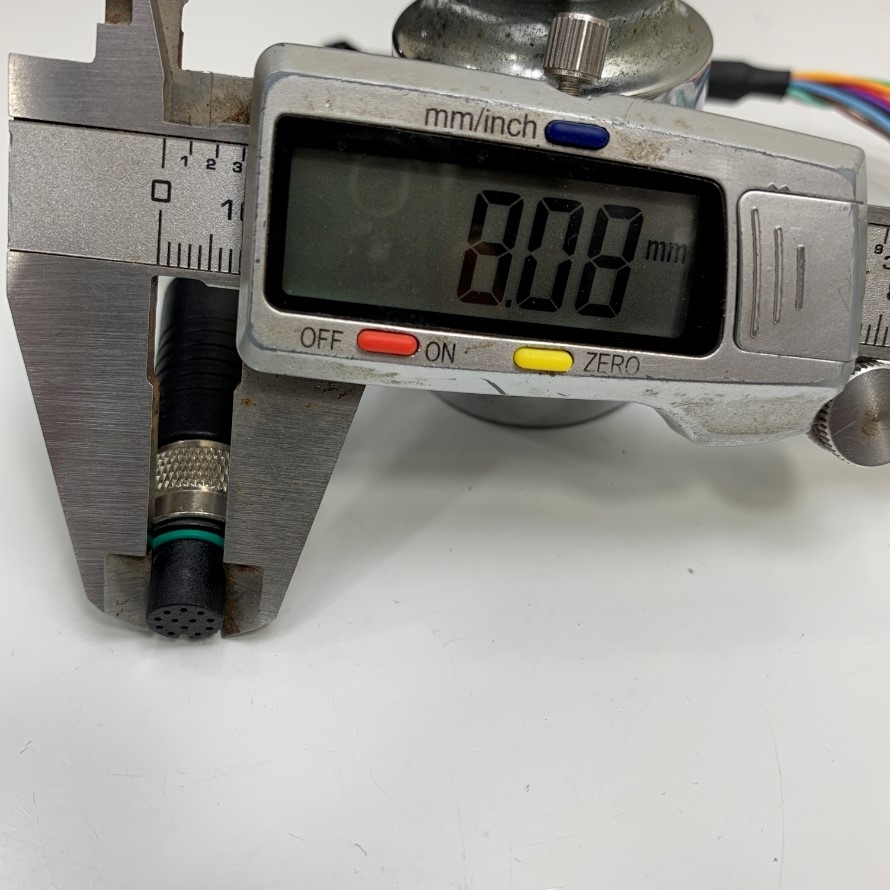

Outside diameter: 7.0mm
Cable ILSAN E211405 AWM 2464 80°C 300V VW-1 AWM II A 80°C 300V FT2 12CX24AWG (0.25Q)
Colour: Black
Length: 0.5M
Side 1 Connector Type: M12 A-Code
Side 1 Connector Gender: Female

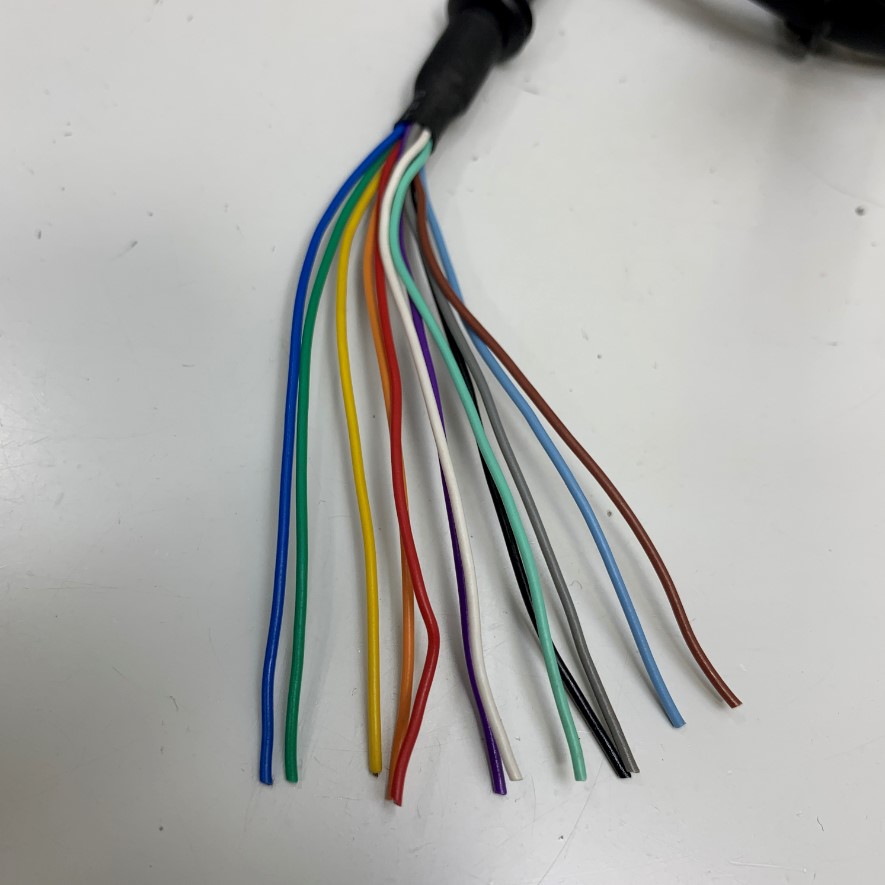

Side 2 Connector Type: Open end
Cáp Điều Khiển Cable M12 A-Code 12 Pin Female to 12 Core Bare Wire Open End Dài 0.5 Meter 1.5ft For Sensor Actuator Connector
