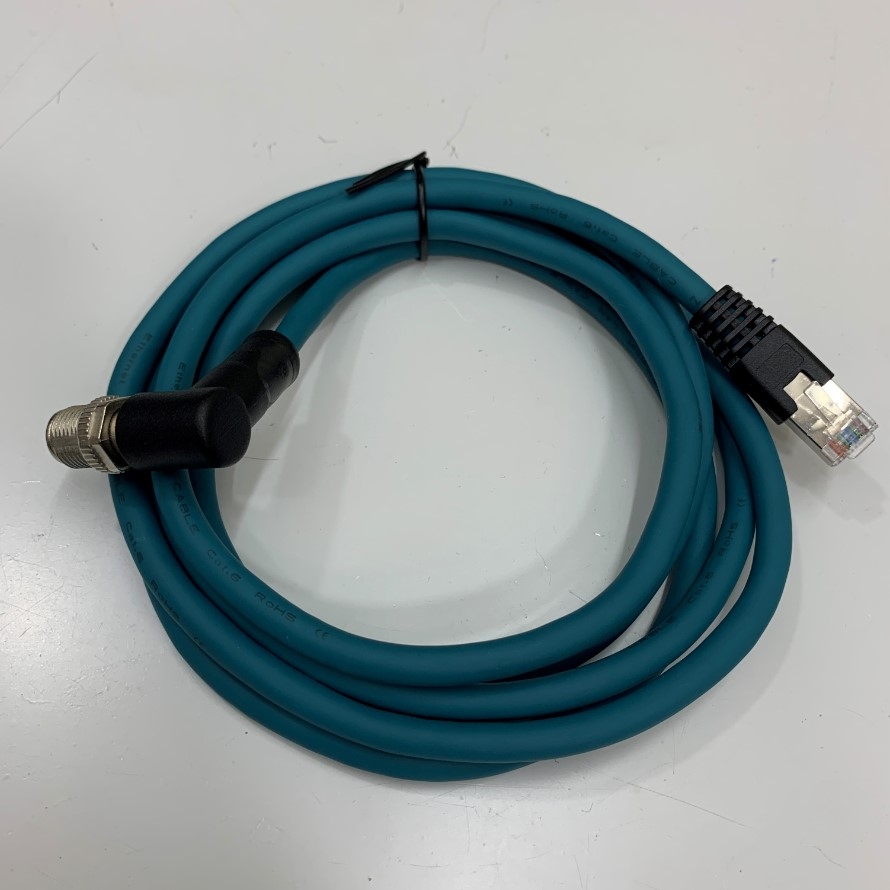

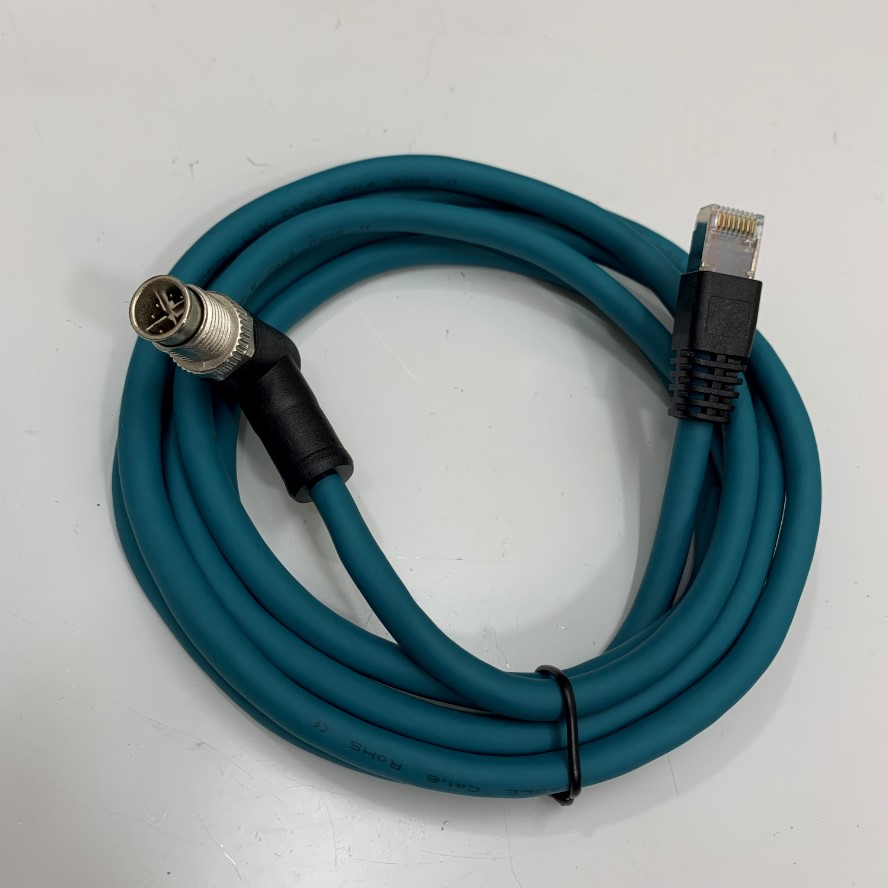

Cáp Angled Connector M12 8 Pin Male A-Code to RJ45 Ethernet Cable Shielded Cable OEM Cognex CCB-84901-2001-01 Dài 1M 3.3ft For Cognex Industrial Camera

Mã SP: 9169

Thương hiệu: Industrial Camera Cable

Loại sản phẩm: M12 8 Pin Male A-Code to RJ45

Đánh giá

:

Giá

:

1.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Industrial Camera Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

Connection line M12 Angled-RJ45 8-Pole X-Coded

Ethernet RJ45 Shielded Connection

OEM Cognex CCB-84901-2001-01 For Cognex Industrial Camera

Wiring Diagram M12 X-Coded 8 Pin Male to RJ45 GigE Ethernet Cable

Electrical Values Cat6 500 MHz / 1 Gigabit/ 10 GbE

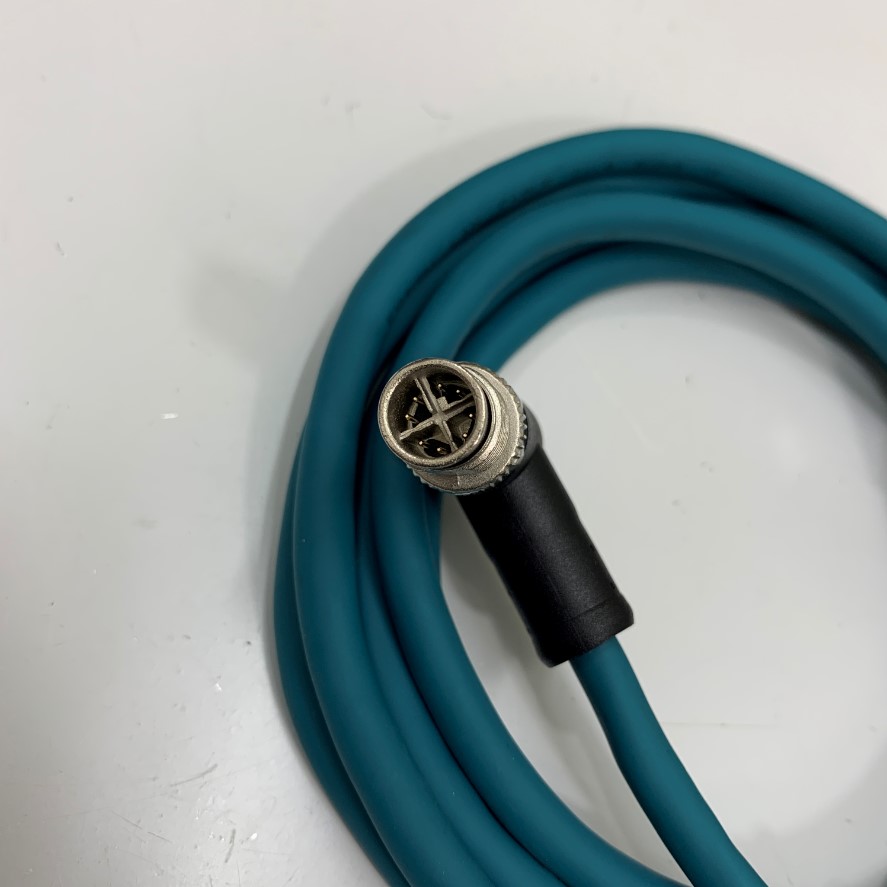

Plug Side A: Angled Connector M12 8-Pin X-coded Male, molded

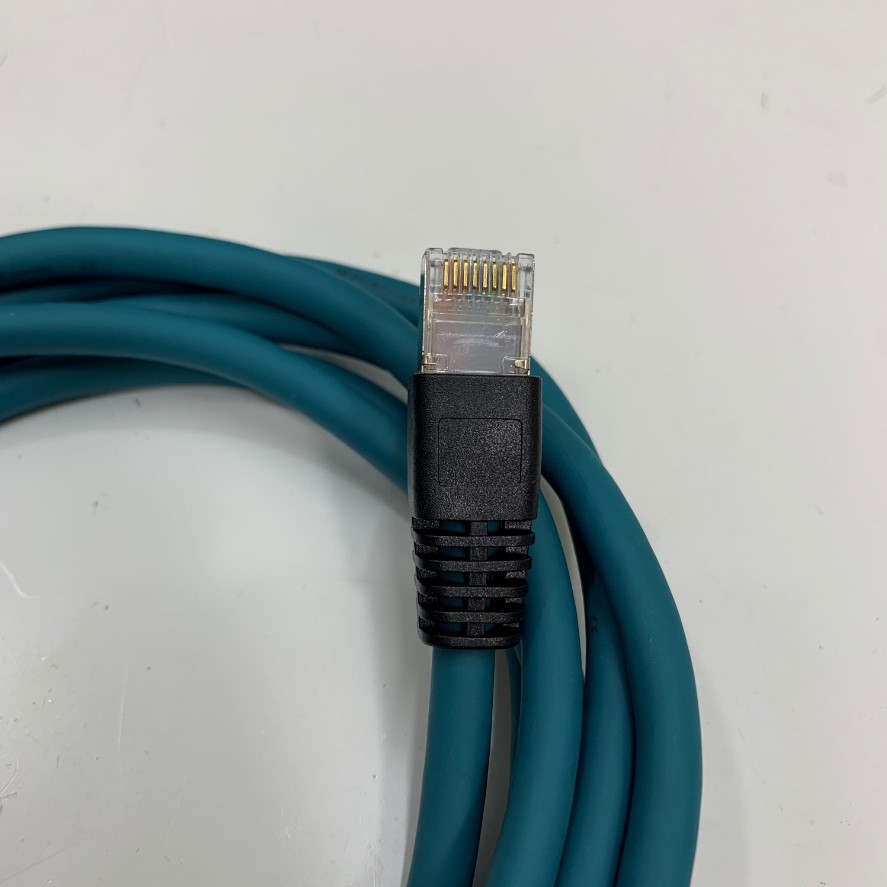

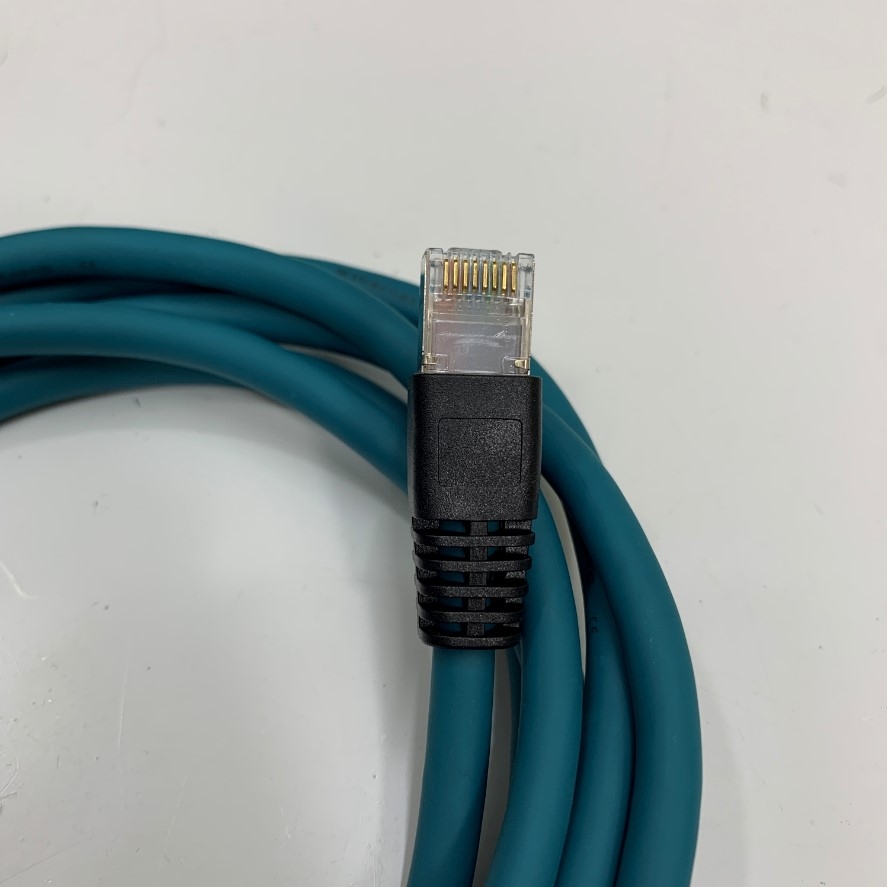

Plug Side B: RJ-45 plug shielded, molded
Pin Out X-coded
Norms ISO/IEC 11801 / EN 50173
Cable Construction 4x2xAWG27/7 S/FTP braid- and foilpairshielding (PiMf)
1. Conductors stranded bare copper conductor AWG26/7
2. Isolation Zell-PE conductor Ø 1,03 ± 0,05 mm
3. Pair Shielding laminated aluminium foil
4. Shielding chopper braid
5. Outer Sheath TPU, shiny black, UV-resistant, abrasion resistant, water repellent
Cable Diameter Ø 6,5 mm (± 0,2mm)
Color: Blue
Cable Length (ft.): 1M ~ 3.3ft
Operating Temperture resting-20°C to + 75°C; in operation 0°C to 60°C
Cáp Angled Connector M12 8 Pin Male A-Code to RJ45 Ethernet Cable Shielded Cable OEM Cognex CCB-84901-2001-01 Dài 1M 3.3ft For Cognex Industrial Camera
